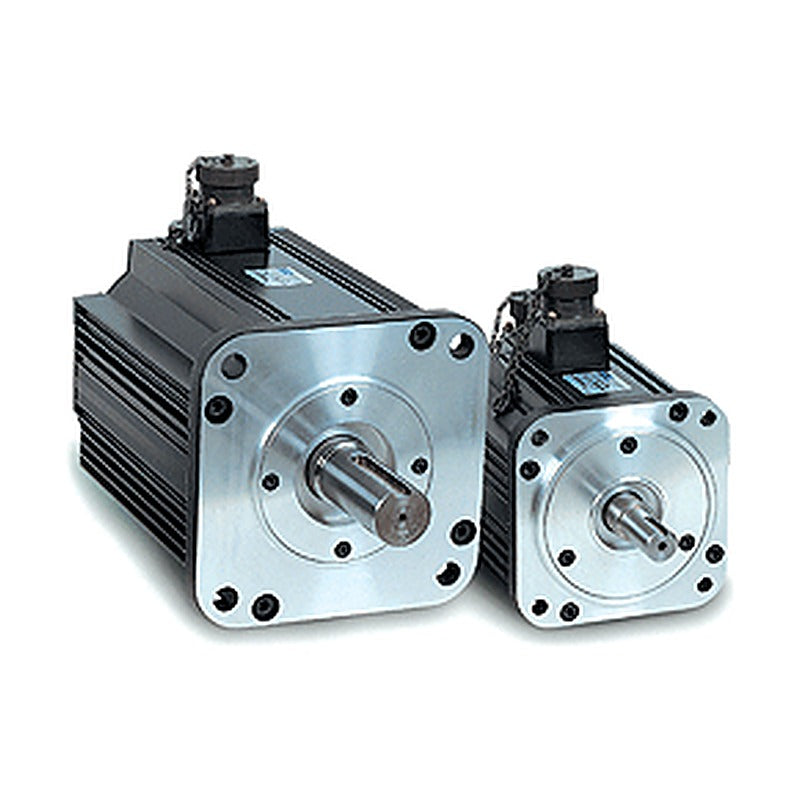

Higen FMA-LF AC Servo Motors (300 W-3 kW, 1000/2000 rpm)

Higen FMA-LF AC Servo Motors (300 W-3 kW, 1000/2000 rpm)

Higen FMA-LF series AC servo motors (low speed, high torque (F-type)), 300 W-3 kW, rated/max speed 1000/2000 rpm, for FDA7000 series 220 V servo drives.

Key features

  • LF series: low speed, high torque (F-type)
  • Rated/max speed 1000/2000 rpm
  • Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
  • Optional holding brake (24 VDC or 90 VDC by frame)
  • Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series FMA-LF
Output range 300 W-3 kW
Speed (rated/max) 1000/2000 rpm
Flange 130, 180 mm
Drive Higen FDA7000 series (AC 220 V)
Encoder Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake 0 none, 1 DC24/90 V, 2 DC24 V
Model format FMA-LFxx-(encoder)(shaft)(brake)(oil seal)
Ambient 0-40 °C, 80 % RH max.
Source Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets
FMA-LF03 Output: 300 W | Rated torque: 2.84 N·m | Flange: 130 mm | Drive: FDA7004 | Speed: 1000/2000 rpm
FMA-LF06 Output: 600 W | Rated torque: 5.68 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1000/2000 rpm
FMA-LF09 Output: 900 W | Rated torque: 8.62 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1000/2000 rpm
FMA-LF12 Output: 1.2 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LF20 Output: 2 kW | Rated torque: 19.1 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1000/2000 rpm
FMA-LF30 Output: 3 kW | Rated torque: 28.4 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1000/2000 rpm
Servo MotorsHigen
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Higen FMA-LF AC Servo Motors (300 W-3 kW, 1000/2000 rpm)

Brand Higen·Servo Motors

Available part numbers (6)

FMA-LF03, FMA-LF06, FMA-LF09, FMA-LF12, FMA-LF20, FMA-LF30

How to order

Send the Higen part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMA-LF03Output: 300 W | Rated torque: 2.84 N·m | Flange: 130 mm | Drive: FDA7004 | Speed: 1000/2000 rpm
FMA-LF06Output: 600 W | Rated torque: 5.68 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1000/2000 rpm
FMA-LF09Output: 900 W | Rated torque: 8.62 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1000/2000 rpm
FMA-LF12Output: 1.2 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LF20Output: 2 kW | Rated torque: 19.1 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1000/2000 rpm
FMA-LF30Output: 3 kW | Rated torque: 28.4 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1000/2000 rpm
