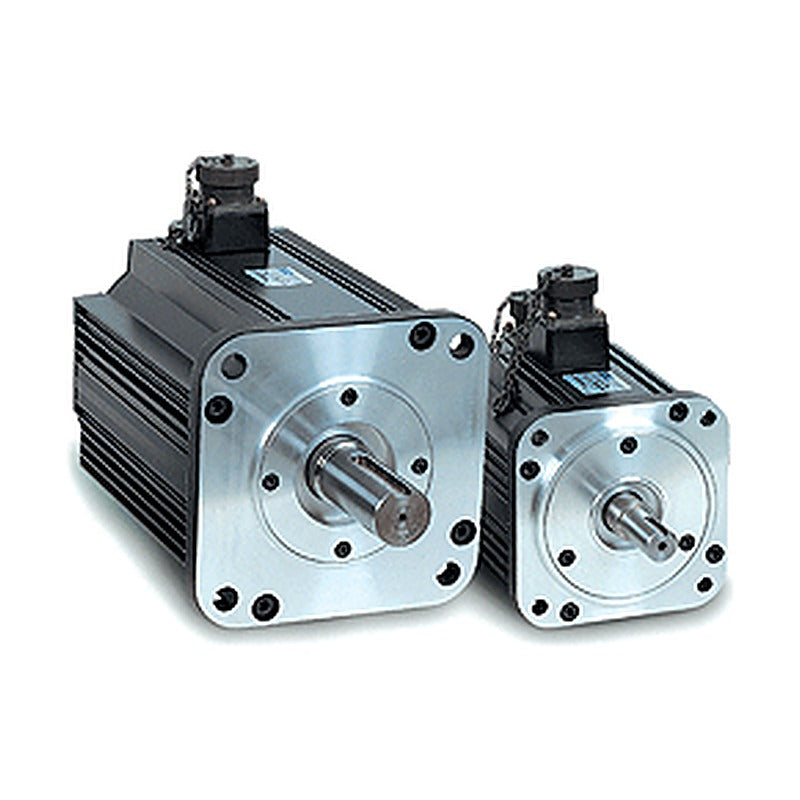

Higen FMA-LN AC Servo Motors (300 W-5.5 kW, 1000/2000 rpm)

Higen FMA-LN AC Servo Motors (300 W-5.5 kW, 1000/2000 rpm)

Higen FMA-LN series AC servo motors (low speed, high torque), 300 W-5.5 kW, rated/max speed 1000/2000 rpm, for FDA7000 series 220 V servo drives.

Key features

  • LN series: low speed, high torque
  • Rated/max speed 1000/2000 rpm
  • Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
  • Optional holding brake (24 VDC or 90 VDC by frame)
  • Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series FMA-LN
Output range 300 W-5.5 kW
Speed (rated/max) 1000/2000 rpm
Flange 130, 180 mm
Drive Higen FDA7000 series (AC 220 V)
Encoder Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake 0 none, 1 DC24/90 V, 2 DC24 V
Model format FMA-LNxx-(encoder)(shaft)(brake)(oil seal)
Ambient 0-40 °C, 80 % RH max.
Source Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets
FMA-LN03 Output: 300 W | Rated torque: 2.86 N·m | Flange: 130 mm | Drive: FDA7004 | Speed: 1000/2000 rpm
FMA-LN06 Output: 600 W | Rated torque: 5.72 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1000/2000 rpm
FMA-LN09 Output: 900 W | Rated torque: 8.6 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1000/2000 rpm
FMA-LN12 Output: 1.2 kW | Rated torque: 11.5 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LN12A Output: 1.2 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LN20 Output: 2 kW | Rated torque: 19.1 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1000/2000 rpm
FMA-LN30 Output: 3 kW | Rated torque: 28.6 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1000/2000 rpm
FMA-LN40 Output: 4 kW | Rated torque: 38.2 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1000/2000 rpm
FMA-LN55 Output: 5.5 kW | Rated torque: 52.5 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1000/2000 rpm
Servo MotorsHigen
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Higen FMA-LN AC Servo Motors (300 W-5.5 kW, 1000/2000 rpm)

Brand Higen·Servo Motors

Available part numbers (9)

FMA-LN03, FMA-LN06, FMA-LN09, FMA-LN12, FMA-LN12A, FMA-LN20, FMA-LN30, FMA-LN40, FMA-LN55

How to order

Send the Higen part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMA-LN03Output: 300 W | Rated torque: 2.86 N·m | Flange: 130 mm | Drive: FDA7004 | Speed: 1000/2000 rpm
FMA-LN06Output: 600 W | Rated torque: 5.72 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1000/2000 rpm
FMA-LN09Output: 900 W | Rated torque: 8.6 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1000/2000 rpm
FMA-LN12Output: 1.2 kW | Rated torque: 11.5 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LN12AOutput: 1.2 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7015 | Speed: 1000/2000 rpm
FMA-LN20Output: 2 kW | Rated torque: 19.1 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1000/2000 rpm
FMA-LN30Output: 3 kW | Rated torque: 28.6 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1000/2000 rpm
FMA-LN40Output: 4 kW | Rated torque: 38.2 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1000/2000 rpm
FMA-LN55Output: 5.5 kW | Rated torque: 52.5 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1000/2000 rpm
