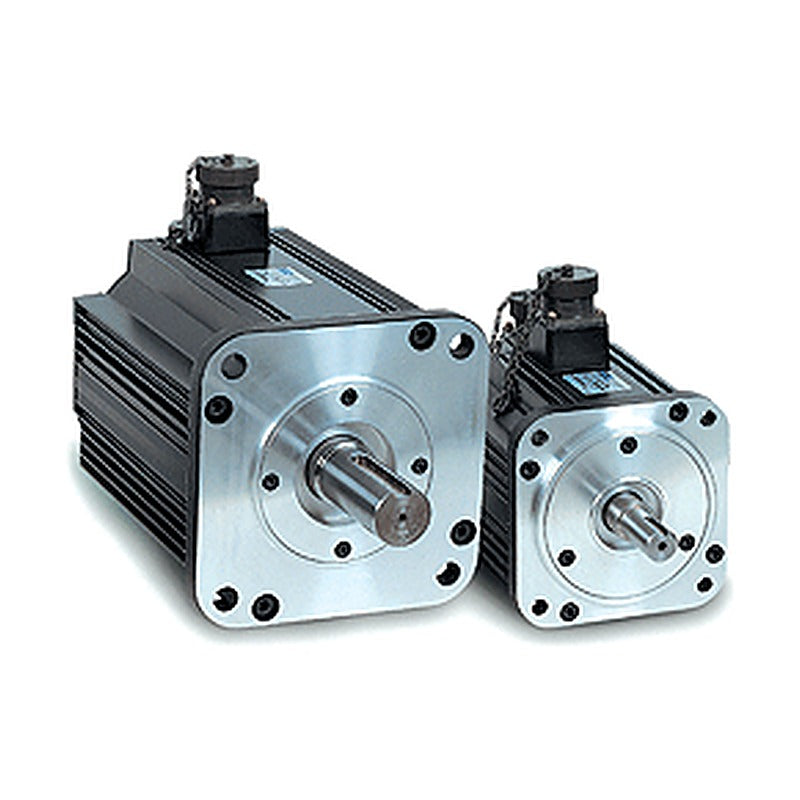

Higen FMA-TF AC Servo Motors (450 W-4.4 kW, 1500/3000 rpm)

Higen FMA-TF AC Servo Motors (450 W-4.4 kW, 1500/3000 rpm)

Higen FMA-TF series AC servo motors (medium speed, high torque (F-type)), 450 W-4.4 kW, rated/max speed 1500/3000 rpm, for FDA7000 series 220 V servo drives.

Key features

  • TF series: medium speed, high torque (F-type)
  • Rated/max speed 1500/3000 rpm
  • Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
  • Optional holding brake (24 VDC or 90 VDC by frame)
  • Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series FMA-TF
Output range 450 W-4.4 kW
Speed (rated/max) 1500/3000 rpm
Flange 130, 180 mm
Drive Higen FDA7000 series (AC 220 V)
Encoder Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake 0 none, 1 DC24/90 V, 2 DC24 V
Model format FMA-TFxx-(encoder)(shaft)(brake)(oil seal)
Ambient 0-40 °C, 80 % RH max.
Source Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets
FMA-TF05 Output: 450 W | Rated torque: 2.87 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1500/3000 rpm
FMA-TF09 Output: 850 W | Rated torque: 5.41 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1500/3000 rpm
FMA-TF13 Output: 1.3 kW | Rated torque: 8.27 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 1500/3000 rpm
FMA-TF20 Output: 1.8 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1500/3000 rpm
FMA-TF30 Output: 2.9 kW | Rated torque: 18.5 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1500/3000 rpm
FMA-TF44 Output: 4.4 kW | Rated torque: 27.9 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1500/3000 rpm
Servo MotorsHigen
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Higen FMA-TF AC Servo Motors (450 W-4.4 kW, 1500/3000 rpm)

Brand Higen·Servo Motors

Available part numbers (6)

FMA-TF05, FMA-TF09, FMA-TF13, FMA-TF20, FMA-TF30, FMA-TF44

How to order

Send the Higen part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMA-TF05Output: 450 W | Rated torque: 2.87 N·m | Flange: 130 mm | Drive: FDA7005 | Speed: 1500/3000 rpm
FMA-TF09Output: 850 W | Rated torque: 5.41 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 1500/3000 rpm
FMA-TF13Output: 1.3 kW | Rated torque: 8.27 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 1500/3000 rpm
FMA-TF20Output: 1.8 kW | Rated torque: 11.5 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 1500/3000 rpm
FMA-TF30Output: 2.9 kW | Rated torque: 18.5 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 1500/3000 rpm
FMA-TF44Output: 4.4 kW | Rated torque: 27.9 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 1500/3000 rpm
