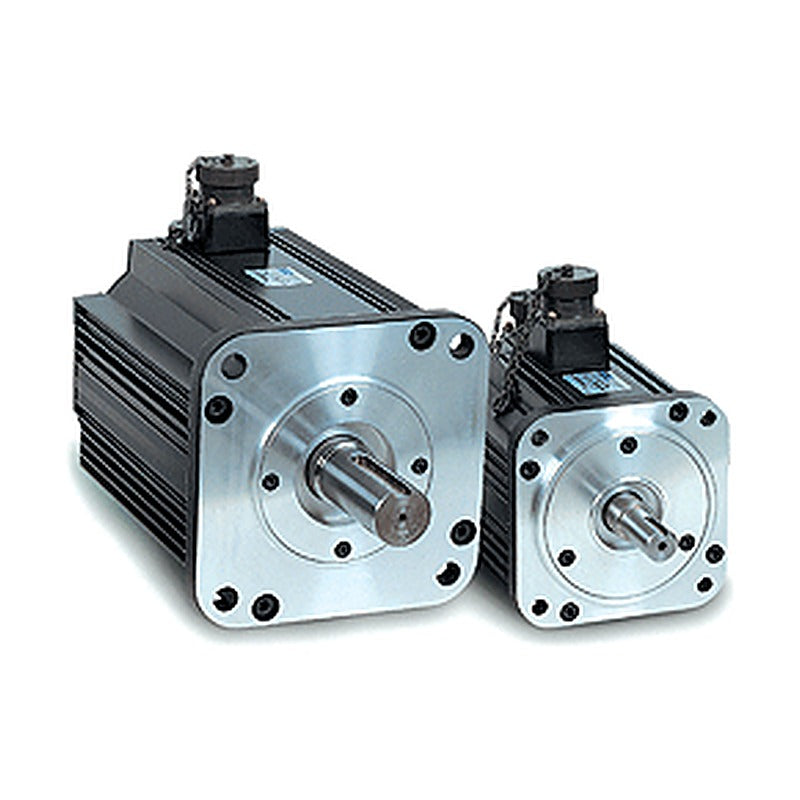

Higen FMA-TN AC Servo Motors (450 W-15 kW, 1500/3000 rpm)

Higen FMA-TN series AC servo motors (medium speed, high torque), 450 W-15 kW, rated/max speed 1500/3000 rpm, for FDA7000 series 220 V servo drives.

Key features

TN series: medium speed, high torque
Rated/max speed 1500/3000 rpm
Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
Optional holding brake (24 VDC or 90 VDC by frame)
Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series	FMA-TN
Output range	450 W-15 kW
Speed (rated/max)	1500/3000 rpm
Flange	130, 180, 220 mm
Drive	Higen FDA7000 series (AC 220 V)
Encoder	Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake	0 none, 1 DC24/90 V, 2 DC24 V
Model format	FMA-TNxx-(encoder)(shaft)(brake)(oil seal)
Ambient	0-40 °C, 80 % RH max.
Source	Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets

FMA-TN05		Output: 450 W \| Rated torque: 2.87 N·m \| Flange: 130 mm \| Drive: FDA7005 \| Speed: 1500/3000 rpm
FMA-TN09		Output: 850 W \| Rated torque: 5.41 N·m \| Flange: 130 mm \| Drive: FDA7010 \| Speed: 1500/3000 rpm
FMA-TN13		Output: 1.3 kW \| Rated torque: 8.27 N·m \| Flange: 130 mm \| Drive: FDA7015 \| Speed: 1500/3000 rpm
FMA-TN17		Output: 1.7 kW \| Rated torque: 10.8 N·m \| Flange: 130 mm \| Drive: FDA7020 \| Speed: 1500/3000 rpm
FMA-TN20		Output: 1.8 kW \| Rated torque: 11.5 N·m \| Flange: 180 mm \| Drive: FDA7020 \| Speed: 1500/3000 rpm
FMA-TN30		Output: 2.9 kW \| Rated torque: 18.6 N·m \| Flange: 180 mm \| Drive: FDA7030 \| Speed: 1500/3000 rpm
FMA-TN44		Output: 4.4 kW \| Rated torque: 27.9 N·m \| Flange: 180 mm \| Drive: FDA7045 \| Speed: 1500/3000 rpm
FMA-TN55		Output: 5.5 kW \| Rated torque: 35.0 N·m \| Flange: 180 mm \| Drive: FDA7045 \| Speed: 1500/3000 rpm
FMA-TN75		Output: 7.5 kW \| Rated torque: 47.7 N·m \| Flange: 180 mm \| Drive: FDA7075 \| Speed: 1500/3000 rpm
FMA-TN110		Output: 11 kW \| Rated torque: 70 N·m \| Flange: 220 mm \| Drive: FDA7110 \| Speed: 1500/3000 rpm
FMA-TN150		Output: 15 kW \| Rated torque: 95.4 N·m \| Flange: 220 mm \| Drive: FDA7150 \| Speed: 1500/3000 rpm
