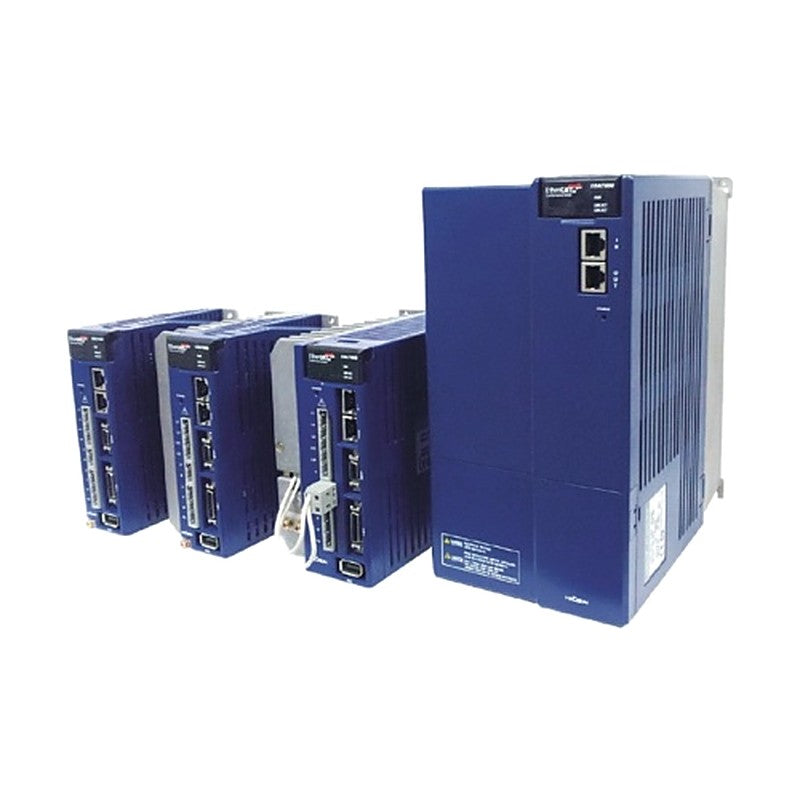

HIGEN RNM EDA7000 Series EtherCAT AC Servo Drives (100 W - 75 kW)

HIGEN RNM EDA7000 Series EtherCAT AC Servo Drives (100 W - 75 kW)

HIGEN RNM EDA7000 Series EtherCAT network servo drives in 220V (100 W - 15 kW) and 380V/440V (2 - 75 kW) classes for multi-axis motion systems.

Key features

  • EtherCAT (CoE) speed, position and torque command from an EtherCAT master
  • 17-bit serial encoder, 131,072 pulses per revolution
  • Internal speed control range 1:5000, frequency response 600 Hz
  • Built-in dynamic brake; alarm history, jog test run, encoder pulse output
  • HM type with built-in homing function
  • High-voltage -H0 (380V) and -H1 (440V) models from 2 kW to 75 kW

Specifications

Command interface EtherCAT (CoE)
Communication cable CAT.5e or higher STP
Encoder 17-bit serial
Control method Sine-wave PWM (IPM)
Torque linearity 4% or less
Monitor output Speed, torque (-5 to +5 V)
Ambient temperature 0 to 50 C
Humidity 90% RH or less, non-condensing
Source HIGEN RNM Servo System catalog (KR 2024), p. 32-36, 40-43, 96-97
EDA7001 Capacity: 100 W | Type: Standard | Input: 1-ph AC 250V 60Hz | Regen resistor: 50W/50 ohm | Weight: 1.0 kg
EDA7002 Capacity: 200 W | Type: Standard | Input: 1-ph AC 250V 60Hz | Regen resistor: 50W/50 ohm | Weight: 1.0 kg
EDA7004 Capacity: 400 W | Type: Standard | Input: 1-ph AC 250V 60Hz | Regen resistor: 70W/50 ohm | Weight: 1.5 kg
EDA7005 Capacity: 500 W | Type: Standard | Input: 3-ph/1-ph AC 200-230V | Regen resistor: 70W/50 ohm | Weight: 1.9 kg
EDA7010 Capacity: 1 kW | Type: Standard | Input: 3-ph/1-ph AC 200-230V | Regen resistor: 70W/50 ohm | Weight: 1.9 kg
EDA7015 Capacity: 1.5 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 250W/25 ohm | Weight: 4.3 kg
EDA7020 Capacity: 2 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.4 kg
EDA7030 Capacity: 3 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.5 kg
EDA7045 Capacity: 4.5 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.6 kg
EDA7075 Capacity: 7.5 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 1000W/6.25 ohm | Weight: 15 kg
EDA7110 Capacity: 11 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 1600W/4 ohm | Weight: 23 kg
EDA7150 Capacity: 15 kW | Type: Standard | Input: 3-ph AC 200-230V | Regen resistor: 2000W/3 ohm | Weight: 24 kg
EDA7001HM Capacity: 100 W | Type: Homing built-in | Input: 1-ph AC 250V 60Hz | Regen resistor: 50W/50 ohm | Weight: 1.0 kg
EDA7002HM Capacity: 200 W | Type: Homing built-in | Input: 1-ph AC 250V 60Hz | Regen resistor: 50W/50 ohm | Weight: 1.0 kg
EDA7004HM Capacity: 400 W | Type: Homing built-in | Input: 1-ph AC 250V 60Hz | Regen resistor: 70W/50 ohm | Weight: 1.5 kg
EDA7005HM Capacity: 500 W | Type: Homing built-in | Input: 3-ph/1-ph AC 200-230V | Regen resistor: 70W/50 ohm | Weight: 1.9 kg
EDA7010HM Capacity: 1 kW | Type: Homing built-in | Input: 3-ph/1-ph AC 200-230V | Regen resistor: 70W/50 ohm | Weight: 1.9 kg
EDA7015HM Capacity: 1.5 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 250W/25 ohm | Weight: 4.3 kg
EDA7020HM Capacity: 2 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.4 kg
EDA7030HM Capacity: 3 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.5 kg
EDA7045HM Capacity: 4.5 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 500W/12.5 ohm | Weight: 4.6 kg
EDA7075HM Capacity: 7.5 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 1000W/6.25 ohm | Weight: 15 kg
EDA7110HM Capacity: 11 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 1600W/4 ohm | Weight: 23 kg
EDA7150HM Capacity: 15 kW | Type: Homing built-in | Input: 3-ph AC 200-230V | Regen resistor: 2000W/3 ohm | Weight: 24 kg
EDA7020-H0 Capacity: 2 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 250W/40 ohm | Weight: 6.0 kg
EDA7020-H1 Capacity: 2 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 250W/40 ohm | Weight: 6.0 kg
EDA7030-H0 Capacity: 3 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 500W/20 ohm | Weight: 6.2 kg
EDA7030-H1 Capacity: 3 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 500W/20 ohm | Weight: 6.2 kg
EDA7045-H0 Capacity: 4.5 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 500W/20 ohm | Weight: 6.4 kg
EDA7045-H1 Capacity: 4.5 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 500W/20 ohm | Weight: 6.4 kg
EDA7075-H0 Capacity: 7.5 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 1600W/15 ohm | Weight: 15 kg
EDA7075-H1 Capacity: 7.5 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 1600W/15 ohm | Weight: 15 kg
EDA7110-H0 Capacity: 11 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 1600W/15 ohm | Weight: 23 kg
EDA7110-H1 Capacity: 11 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 1600W/15 ohm | Weight: 23 kg
EDA7150-H0 Capacity: 15 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 2000W/15 ohm | Weight: 24 kg
EDA7150-H1 Capacity: 15 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 2000W/15 ohm | Weight: 24 kg
EDA7220-H0 Capacity: 22 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 3600W/9 ohm | Weight: 35.4 kg
EDA7220-H1 Capacity: 22 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 3600W/9 ohm | Weight: 35.4 kg
EDA7300-H0 Capacity: 30 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 3600W/9 ohm | Weight: 51.7 kg
EDA7300-H1 Capacity: 30 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 3600W/9 ohm | Weight: 51.7 kg
EDA7370-H0 Capacity: 37 kW | Type: Standard | Input: 3-ph AC 380V | Regen resistor: 5000W/5 ohm | Weight: 52.3 kg
EDA7370-H1 Capacity: 37 kW | Type: Standard | Input: 3-ph AC 440V | Regen resistor: 5000W/5 ohm | Weight: 52.3 kg
EDA7450-H0 Capacity: 45 kW | Type: Standard | Input: 3-ph AC 380V | Specifications: on request
EDA7450-H1 Capacity: 45 kW | Type: Standard | Input: 3-ph AC 440V | Specifications: on request
EDA7550-H0 Capacity: 55 kW | Type: Standard | Input: 3-ph AC 380V | Specifications: on request
EDA7550-H1 Capacity: 55 kW | Type: Standard | Input: 3-ph AC 440V | Specifications: on request
EDA7750-H0 Capacity: 75 kW | Type: Standard | Input: 3-ph AC 380V | Specifications: on request
EDA7750-H1 Capacity: 75 kW | Type: Standard | Input: 3-ph AC 440V | Specifications: on request
Servo DrivesHIGEN RNM
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM EDA7000 Series EtherCAT AC Servo Drives (100 W - 75 kW)

Brand HIGEN RNM·Servo Drives

Available part numbers (48)

EDA7001, EDA7002, EDA7004, EDA7005, EDA7010, EDA7015, EDA7020, EDA7030, EDA7045, EDA7075 + 38 more — see full table ↓
