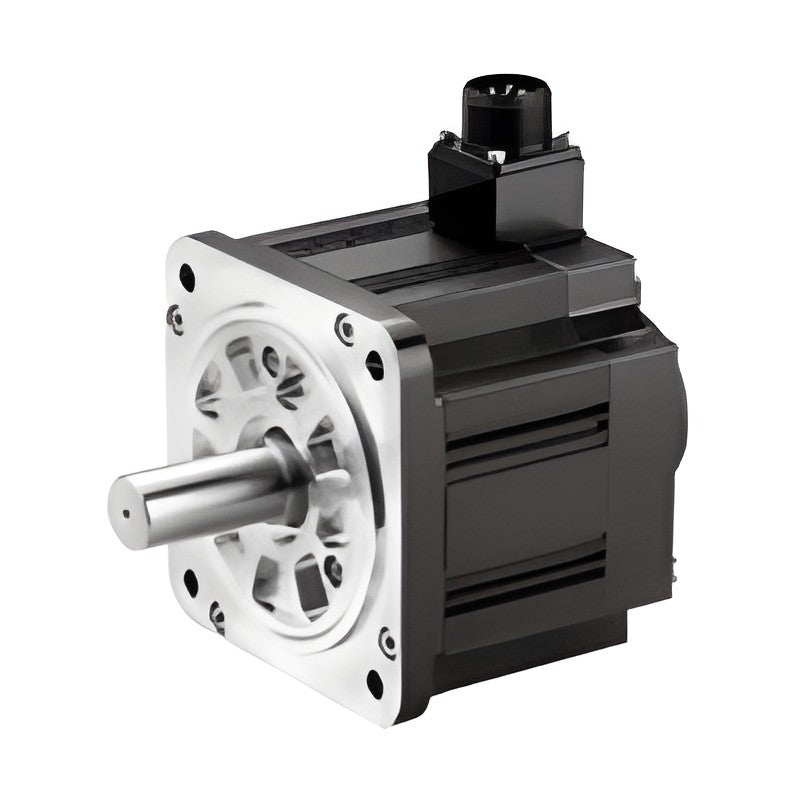

HIWIN FRMM AC Servo Motors (Middle Inertia, 1 kW)

HIWIN FRMM middle-inertia middle-capacity AC servo motors (1 kW, 220 V) for HIWIN D2 servo drives, with 13-bit or 17-bit incremental encoder.

Key features

Rated 3000 rpm
13-bit (10000 p/rev) or 17-bit incremental encoder
Optional holding brake
Round or keyed shaft, with or without oil seal
Matched to HIWIN D2 drives

Specifications

Series	FRMM
Inertia	Middle-inertia
Output	1 kW
Voltage	220 V
Encoder	5: 13-bit, 3: 17-bit incremental
Brake	0 without, B with brake
Shaft / oil seal	A, B, C, D
Drive	HIWIN D2
Model format	FR LS 40 2 0 5 06 A
Source	HIWIN AC Servo Motor & Drive Technical Information R99TE04-1405, pp.8-20, 32-37

FRMM1K20513A		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| No brake \| Shaft: round, no seal
FRMM1K20513B		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| No brake \| Shaft: round, oil seal
FRMM1K20513C		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| No brake \| Shaft: key, no seal
FRMM1K20513D		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| No brake \| Shaft: key, oil seal
FRMM1K2B513A		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| Brake \| Shaft: round, no seal
FRMM1K2B513B		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| Brake \| Shaft: round, oil seal
FRMM1K2B513C		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| Brake \| Shaft: key, no seal
FRMM1K2B513D		Output: 1 kW \| Frame: 130 mm \| Encoder: 13-bit \| Brake \| Shaft: key, oil seal
FRMM1K20313A		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| No brake \| Shaft: round, no seal
FRMM1K20313B		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| No brake \| Shaft: round, oil seal
FRMM1K20313C		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| No brake \| Shaft: key, no seal
FRMM1K20313D		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| No brake \| Shaft: key, oil seal
FRMM1K2B313A		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| Brake \| Shaft: round, no seal
FRMM1K2B313B		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| Brake \| Shaft: round, oil seal
FRMM1K2B313C		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| Brake \| Shaft: key, no seal
FRMM1K2B313D		Output: 1 kW \| Frame: 130 mm \| Encoder: 17-bit \| Brake \| Shaft: key, oil seal

Servo MotorsHIWIN

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN FRMM AC Servo Motors (Middle Inertia, 1 kW)

Brand HIWIN·Servo Motors

Available part numbers (16)

FRMM1K20513A, FRMM1K20513B, FRMM1K20513C, FRMM1K20513D, FRMM1K2B513A, FRMM1K2B513B, FRMM1K2B513C, FRMM1K2B513D, FRMM1K20313A, FRMM1K20313B + 6 more — see full table ↓

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
