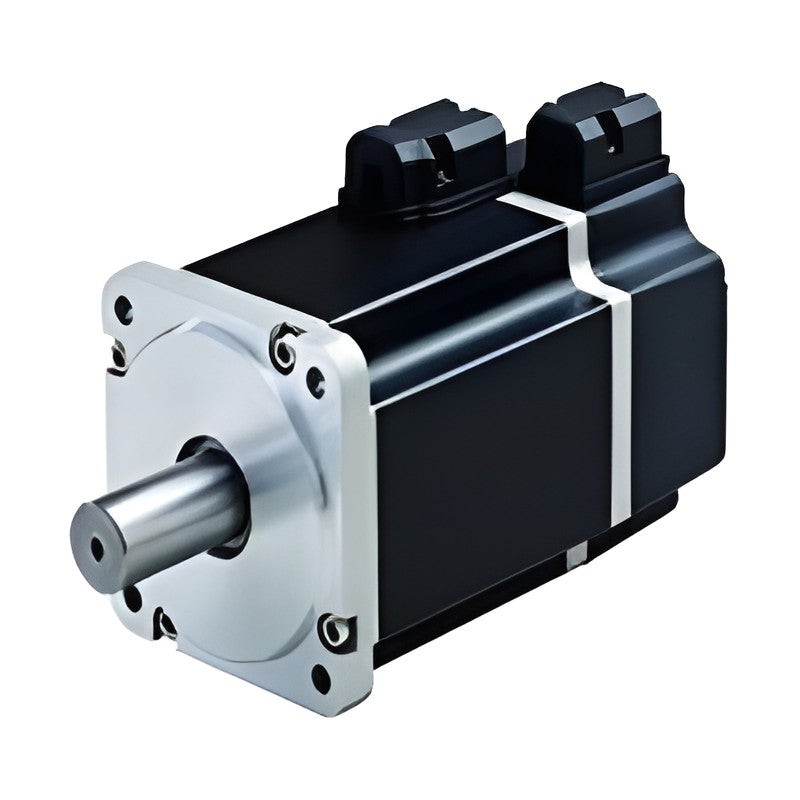

HIWIN FRMS AC Servo Motors (Middle Inertia, 750 W)

HIWIN FRMS AC Servo Motors (Middle Inertia, 750 W)

HIWIN FRMS middle-inertia small-capacity AC servo motors (750 W, 220 V) for HIWIN D2 servo drives, with 13-bit or 17-bit incremental encoder.

Key features

  • Rated 3000 rpm
  • 13-bit (10000 p/rev) or 17-bit incremental encoder
  • Optional holding brake
  • Round or keyed shaft, with or without oil seal
  • Matched to HIWIN D2 drives

Specifications

Series FRMS
Inertia Middle-inertia
Output 750 W
Voltage 220 V
Encoder 5: 13-bit, 3: 17-bit incremental
Brake 0 without, B with brake
Shaft / oil seal A, B, C, D
Drive HIWIN D2
Model format FR LS 40 2 0 5 06 A
Source HIWIN AC Servo Motor & Drive Technical Information R99TE04-1405, pp.8-20, 32-37
FRMS7520508A Output: 750 W | Frame: 80 mm | Encoder: 13-bit | No brake | Shaft: round, no seal
FRMS7520508B Output: 750 W | Frame: 80 mm | Encoder: 13-bit | No brake | Shaft: round, oil seal
FRMS7520508C Output: 750 W | Frame: 80 mm | Encoder: 13-bit | No brake | Shaft: key, no seal
FRMS7520508D Output: 750 W | Frame: 80 mm | Encoder: 13-bit | No brake | Shaft: key, oil seal
FRMS752B508A Output: 750 W | Frame: 80 mm | Encoder: 13-bit | Brake | Shaft: round, no seal
FRMS752B508B Output: 750 W | Frame: 80 mm | Encoder: 13-bit | Brake | Shaft: round, oil seal
FRMS752B508C Output: 750 W | Frame: 80 mm | Encoder: 13-bit | Brake | Shaft: key, no seal
FRMS752B508D Output: 750 W | Frame: 80 mm | Encoder: 13-bit | Brake | Shaft: key, oil seal
FRMS7520308A Output: 750 W | Frame: 80 mm | Encoder: 17-bit | No brake | Shaft: round, no seal
FRMS7520308B Output: 750 W | Frame: 80 mm | Encoder: 17-bit | No brake | Shaft: round, oil seal
FRMS7520308C Output: 750 W | Frame: 80 mm | Encoder: 17-bit | No brake | Shaft: key, no seal
FRMS7520308D Output: 750 W | Frame: 80 mm | Encoder: 17-bit | No brake | Shaft: key, oil seal
FRMS752B308A Output: 750 W | Frame: 80 mm | Encoder: 17-bit | Brake | Shaft: round, no seal
FRMS752B308B Output: 750 W | Frame: 80 mm | Encoder: 17-bit | Brake | Shaft: round, oil seal
FRMS752B308C Output: 750 W | Frame: 80 mm | Encoder: 17-bit | Brake | Shaft: key, no seal
FRMS752B308D Output: 750 W | Frame: 80 mm | Encoder: 17-bit | Brake | Shaft: key, oil seal
Servo MotorsHIWIN
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN FRMS AC Servo Motors (Middle Inertia, 750 W)

Brand HIWIN·Servo Motors

Available part numbers (16)

FRMS7520508A, FRMS7520508B, FRMS7520508C, FRMS7520508D, FRMS752B508A, FRMS752B508B, FRMS752B508C, FRMS752B508D, FRMS7520308A, FRMS7520308B + 6 more — see full table ↓
