HIWIN PGHH-CA/HA PG Positioning Linear Guideway Square Block

HIWIN PGHH-CA/HA PG Positioning Linear Guideway Square Block

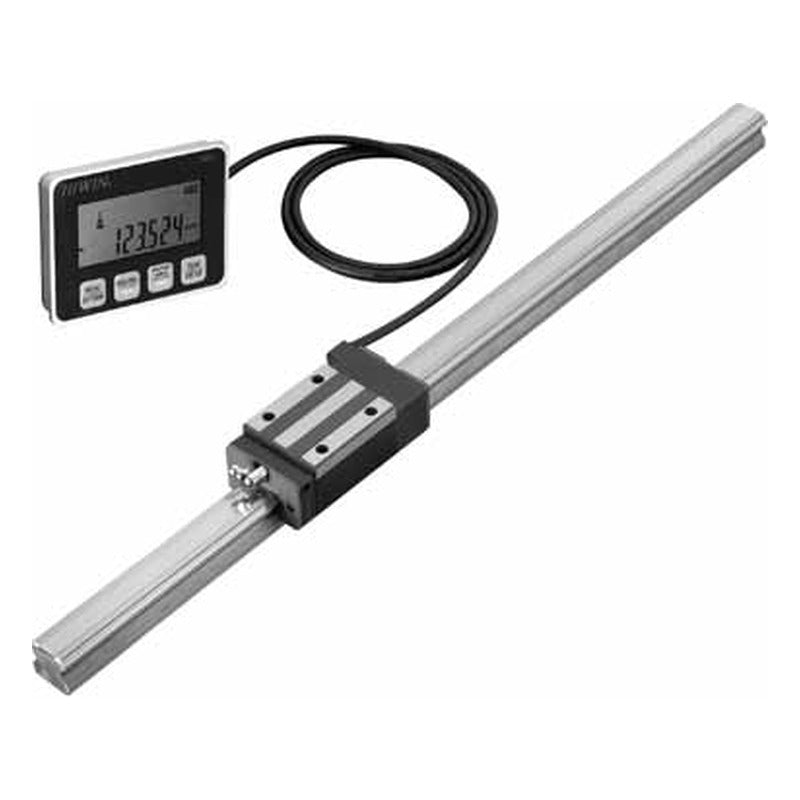

HIWIN PGHH-CA/HA blocks belong to the PG Series Positioning Linear Guideway, a HG-based linear guideway with integrated magnetic position measuring sensor. Codes list each block model by size and load type; rail length, preload and accuracy are specified at order.

Key features

  • Magnetic position measuring sensor integrated in the block end cap
  • Magnetic scale built into the rail
  • Combines guidance and position measurement in one unit
  • Signal converters and LCD/machine tool displays available
  • Block dimensions based on the HG series

Specifications

Series PG Series Positioning
Block type Square, top-mount
Sizes 20, 25, 30, 35, 45, 55
Accuracy classes C, H, P, SP, UP
Preload classes Z0, ZA, ZB
Order code Add preload, rail length and accuracy codes per catalogue
Units mm; load ratings in kN (1 kgf = 9.81 N)
Source HIWIN Linear Guideway Technical Information (G99TK02-1501), p. 173-188
PGHH20CA Block W x L: 44 x 90.5 mm | Rail WR: 20 mm | C: 17.75 kN | C0: 27.76 kN | Block mass: 0.38 kg
PGHH20HA Block W x L: 44 x 105.2 mm | Rail WR: 20 mm | C: 21.18 kN | C0: 35.9 kN | Block mass: 0.39 kg
PGHH25CA Block W x L: 48 x 95 mm | Rail WR: 23 mm | C: 26.48 kN | C0: 36.49 kN | Block mass: 0.51 kg
PGHH25HA Block W x L: 48 x 116 mm | Rail WR: 23 mm | C: 32.75 kN | C0: 49.44 kN | Block mass: 0.69 kg
PGHH30CA Block W x L: 60 x 110 mm | Rail WR: 28 mm | C: 38.74 kN | C0: 52.19 kN | Block mass: 0.88 kg
PGHH30HA Block W x L: 60 x 133 mm | Rail WR: 28 mm | C: 47.27 kN | C0: 69.16 kN | Block mass: 1.16 kg
PGHH35CA Block W x L: 70 x 123 mm | Rail WR: 34 mm | C: 49.52 kN | C0: 69.16 kN | Block mass: 1.45 kg
PGHH35HA Block W x L: 70 x 148.8 mm | Rail WR: 34 mm | C: 60.21 kN | C0: 91.63 kN | Block mass: 1.92 kg
PGHH45CA Block W x L: 86 x 148 mm | Rail WR: 45 mm | C: 77.57 kN | C0: 102.71 kN | Block mass: 2.73 kg
PGHH45HA Block W x L: 86 x 179.8 mm | Rail WR: 45 mm | C: 94.54 kN | C0: 136.46 kN | Block mass: 3.61 kg
PGHH55CA Block W x L: 100 x 172.7 mm | Rail WR: 53 mm | C: 114.44 kN | C0: 148.33 kN | Block mass: 4.17 kg
PGHH55HA Block W x L: 100 x 210.8 mm | Rail WR: 53 mm | C: 139.35 kN | C0: 196.2 kN | Block mass: 5.49 kg
Linear GuidesHIWIN
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN PGHH-CA/HA PG Positioning Linear Guideway Square Block

Brand HIWIN·Linear Guides

Available part numbers (12)

PGHH20CA, PGHH20HA, PGHH25CA, PGHH25HA, PGHH30CA, PGHH30HA, PGHH35CA, PGHH35HA, PGHH45CA, PGHH45HA + 2 more — see full table ↓

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PGHH20CABlock W x L: 44 x 90.5 mm | Rail WR: 20 mm | C: 17.75 kN | C0: 27.76 kN | Block mass: 0.38 kg
PGHH20HABlock W x L: 44 x 105.2 mm | Rail WR: 20 mm | C: 21.18 kN | C0: 35.9 kN | Block mass: 0.39 kg
PGHH25CABlock W x L: 48 x 95 mm | Rail WR: 23 mm | C: 26.48 kN | C0: 36.49 kN | Block mass: 0.51 kg
PGHH25HABlock W x L: 48 x 116 mm | Rail WR: 23 mm | C: 32.75 kN | C0: 49.44 kN | Block mass: 0.69 kg
PGHH30CABlock W x L: 60 x 110 mm | Rail WR: 28 mm | C: 38.74 kN | C0: 52.19 kN | Block mass: 0.88 kg
PGHH30HABlock W x L: 60 x 133 mm | Rail WR: 28 mm | C: 47.27 kN | C0: 69.16 kN | Block mass: 1.16 kg
PGHH35CABlock W x L: 70 x 123 mm | Rail WR: 34 mm | C: 49.52 kN | C0: 69.16 kN | Block mass: 1.45 kg
PGHH35HABlock W x L: 70 x 148.8 mm | Rail WR: 34 mm | C: 60.21 kN | C0: 91.63 kN | Block mass: 1.92 kg
PGHH45CABlock W x L: 86 x 148 mm | Rail WR: 45 mm | C: 77.57 kN | C0: 102.71 kN | Block mass: 2.73 kg
PGHH45HABlock W x L: 86 x 179.8 mm | Rail WR: 45 mm | C: 94.54 kN | C0: 136.46 kN | Block mass: 3.61 kg
PGHH55CABlock W x L: 100 x 172.7 mm | Rail WR: 53 mm | C: 114.44 kN | C0: 148.33 kN | Block mass: 4.17 kg
PGHH55HABlock W x L: 100 x 210.8 mm | Rail WR: 53 mm | C: 139.35 kN | C0: 196.2 kN | Block mass: 5.49 kg
