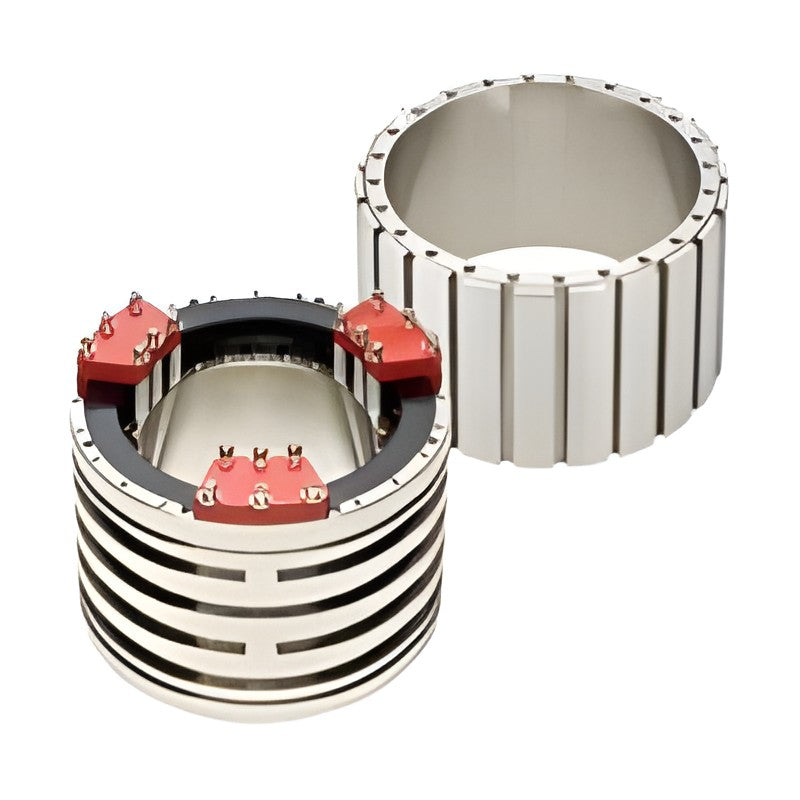

HIWIN TMRW1 Frameless Torque Motors (Peak 35.6-178.1 N·m)

HIWIN TMRW1 Frameless Torque Motors (Peak 35.6-178.1 N·m)

HIWIN TMRW1 frameless (stator + rotor kit) torque motors, peak torque 35.6-178.1 N·m, for building into machine axes; natural or water cooling.

Key features

  • Frameless stator/rotor kit for direct integration
  • High torque density, zero backlash
  • Continuous torque rating for free-air or water cooling (WC)
  • L versions: high-speed winding
  • PTC SNM100 + SNM120 + KTY84 thermal sensors

Specifications

Series TMRW1
Type Frameless torque motor (kit)
Peak torque 35.6-178.1 N·m
Max DC bus 750 VDC
Cooling Free air or water cooled
Thermal sensor PTC SNM100+SNM120+KTY84
Source HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.18-19
TMRW13 Cont. torque: 7.5 N·m | Peak torque: 35.6 N·m | Speed @cont.: 2800 rpm
TMRW13L Cont. torque: 7.5 N·m | Peak torque: 35.6 N·m | Speed @cont.: 4000 rpm
TMRW15 Cont. torque: 12.4 N·m | Peak torque: 59.4 N·m | Speed @cont.: 1600 rpm
TMRW15L Cont. torque: 12.4 N·m | Peak torque: 59.4 N·m | Speed @cont.: 2400 rpm
TMRW17 Cont. torque: 17.4 N·m | Peak torque: 83.1 N·m | Speed @cont.: 1150 rpm
TMRW17L Cont. torque: 17.4 N·m | Peak torque: 83.1 N·m | Speed @cont.: 1700 rpm
TMRW1A Cont. torque: 24.9 N·m | Peak torque: 118.8 N·m | Speed @cont.: 800 rpm
TMRW1AL Cont. torque: 24.9 N·m | Peak torque: 118.8 N·m | Speed @cont.: 1170 rpm
TMRW1F Cont. torque: 37.3 N·m | Peak torque: 178.1 N·m | Speed @cont.: 760 rpm
TMRW1FL Cont. torque: 37.3 N·m | Peak torque: 178.1 N·m | Speed @cont.: 1600 rpm
Torque MotorsHIWIN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMRW1 Frameless Torque Motors (Peak 35.6-178.1 N·m)

Brand HIWIN·Torque Motors

Available part numbers (10)

TMRW13, TMRW13L, TMRW15, TMRW15L, TMRW17, TMRW17L, TMRW1A, TMRW1AL, TMRW1F, TMRW1FL

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMRW13Cont. torque: 7.5 N·m | Peak torque: 35.6 N·m | Speed @cont.: 2800 rpm
TMRW13LCont. torque: 7.5 N·m | Peak torque: 35.6 N·m | Speed @cont.: 4000 rpm
TMRW15Cont. torque: 12.4 N·m | Peak torque: 59.4 N·m | Speed @cont.: 1600 rpm
TMRW15LCont. torque: 12.4 N·m | Peak torque: 59.4 N·m | Speed @cont.: 2400 rpm
TMRW17Cont. torque: 17.4 N·m | Peak torque: 83.1 N·m | Speed @cont.: 1150 rpm
TMRW17LCont. torque: 17.4 N·m | Peak torque: 83.1 N·m | Speed @cont.: 1700 rpm
TMRW1ACont. torque: 24.9 N·m | Peak torque: 118.8 N·m | Speed @cont.: 800 rpm
TMRW1ALCont. torque: 24.9 N·m | Peak torque: 118.8 N·m | Speed @cont.: 1170 rpm
TMRW1FCont. torque: 37.3 N·m | Peak torque: 178.1 N·m | Speed @cont.: 760 rpm
TMRW1FLCont. torque: 37.3 N·m | Peak torque: 178.1 N·m | Speed @cont.: 1600 rpm
