HIWIN TMRW2 Frameless Torque Motors (Peak 66.5-334.5 N·m)

HIWIN TMRW2 Frameless Torque Motors (Peak 66.5-334.5 N·m)

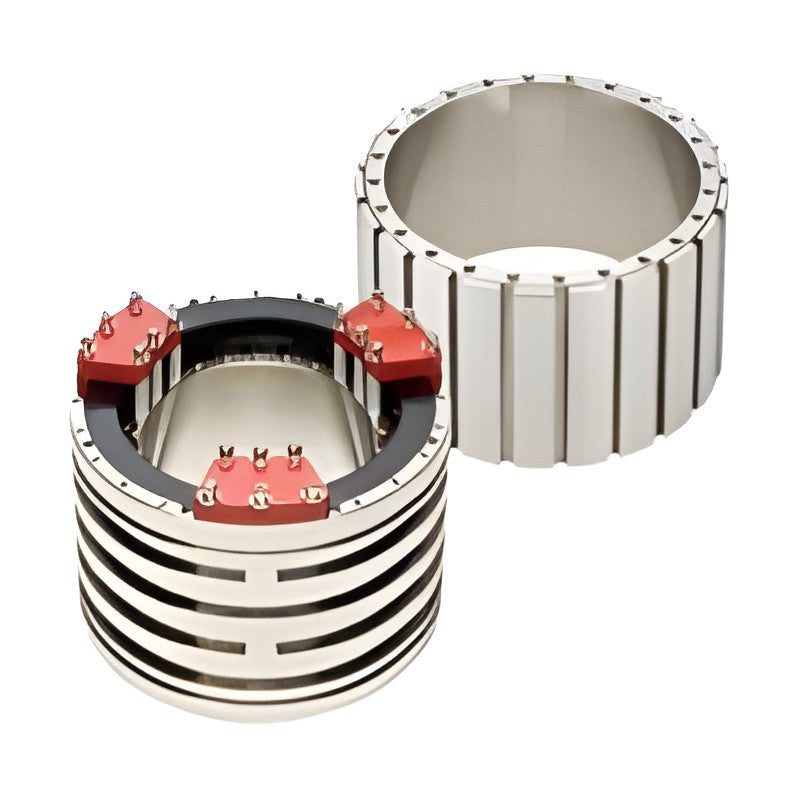

HIWIN TMRW2 frameless (stator + rotor kit) torque motors, peak torque 66.5-334.5 N·m, for building into machine axes; natural or water cooling.

Key features

  • Frameless stator/rotor kit for direct integration
  • High torque density, zero backlash
  • Continuous torque rating for free-air or water cooling (WC)
  • L versions: high-speed winding
  • PTC SNM100 + SNM120 + KTY84 thermal sensors

Specifications

Series TMRW2
Type Frameless torque motor (kit)
Peak torque 66.5-334.5 N·m
Max DC bus 750 VDC
Cooling Free air or water cooled
Thermal sensor PTC SNM100+SNM120+KTY84
Source HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.20-21
TMRW23 Cont. torque: 14.2 N·m | Peak torque: 66.5 N·m | Speed @cont.: 1260 rpm
TMRW23L Cont. torque: 14.2 N·m | Peak torque: 66.5 N·m | Speed @cont.: 1900 rpm
TMRW25 Cont. torque: 23.6 N·m | Peak torque: 112 N·m | Speed @cont.: 750 rpm
TMRW25L Cont. torque: 23.6 N·m | Peak torque: 112 N·m | Speed @cont.: 1130 rpm
TMRW27 Cont. torque: 33 N·m | Peak torque: 156 N·m | Speed @cont.: 525 rpm
TMRW27L Cont. torque: 33 N·m | Peak torque: 156 N·m | Speed @cont.: 800 rpm
TMRW2A Cont. torque: 47.3 N·m | Peak torque: 223 N·m | Speed @cont.: 360 rpm
TMRW2AL Cont. torque: 47.3 N·m | Peak torque: 223 N·m | Speed @cont.: 550 rpm
TMRW2F Cont. torque: 71 N·m | Peak torque: 334.5 N·m | Speed @cont.: 360 rpm
TMRW2FL Cont. torque: 71 N·m | Peak torque: 334.5 N·m | Speed @cont.: 740 rpm
Torque MotorsHIWIN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMRW2 Frameless Torque Motors (Peak 66.5-334.5 N·m)

Brand HIWIN·Torque Motors

Available part numbers (10)

TMRW23, TMRW23L, TMRW25, TMRW25L, TMRW27, TMRW27L, TMRW2A, TMRW2AL, TMRW2F, TMRW2FL

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMRW23Cont. torque: 14.2 N·m | Peak torque: 66.5 N·m | Speed @cont.: 1260 rpm
TMRW23LCont. torque: 14.2 N·m | Peak torque: 66.5 N·m | Speed @cont.: 1900 rpm
TMRW25Cont. torque: 23.6 N·m | Peak torque: 112 N·m | Speed @cont.: 750 rpm
TMRW25LCont. torque: 23.6 N·m | Peak torque: 112 N·m | Speed @cont.: 1130 rpm
TMRW27Cont. torque: 33 N·m | Peak torque: 156 N·m | Speed @cont.: 525 rpm
TMRW27LCont. torque: 33 N·m | Peak torque: 156 N·m | Speed @cont.: 800 rpm
TMRW2ACont. torque: 47.3 N·m | Peak torque: 223 N·m | Speed @cont.: 360 rpm
TMRW2ALCont. torque: 47.3 N·m | Peak torque: 223 N·m | Speed @cont.: 550 rpm
TMRW2FCont. torque: 71 N·m | Peak torque: 334.5 N·m | Speed @cont.: 360 rpm
TMRW2FLCont. torque: 71 N·m | Peak torque: 334.5 N·m | Speed @cont.: 740 rpm
