HIWIN TMRW4 Frameless Torque Motors (Peak 120-583 N·m)

HIWIN TMRW4 Frameless Torque Motors (Peak 120-583 N·m)

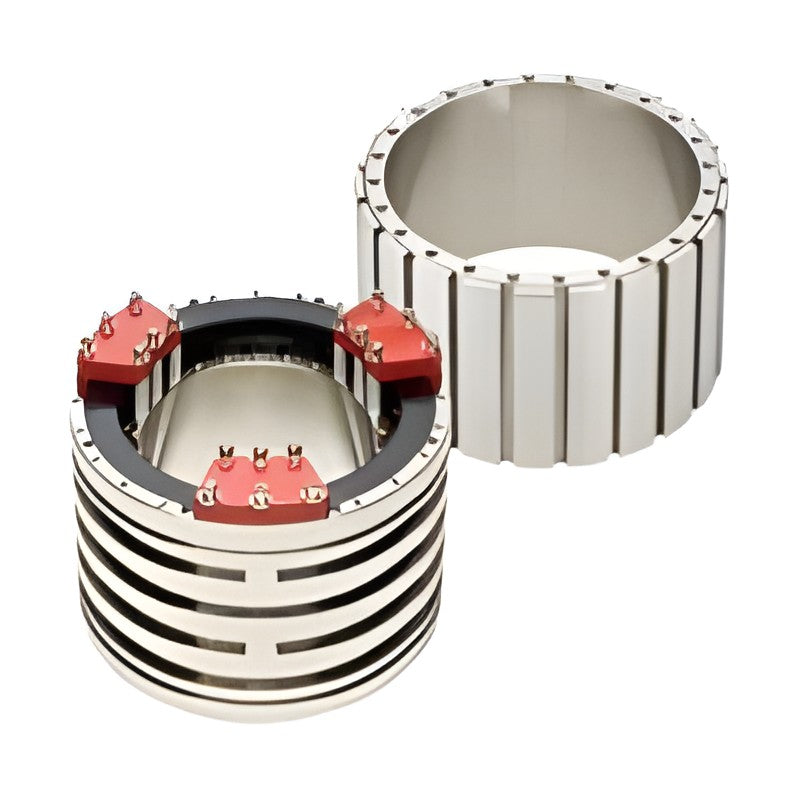

HIWIN TMRW4 frameless (stator + rotor kit) torque motors, peak torque 120-583 N·m, for building into machine axes; natural or water cooling.

Key features

  • Frameless stator/rotor kit for direct integration
  • High torque density, zero backlash
  • Continuous torque rating for free-air or water cooling (WC)
  • L versions: high-speed winding
  • PTC SNM100 + SNM120 + KTY84 thermal sensors

Specifications

Series TMRW4
Type Frameless torque motor (kit)
Peak torque 120-583 N·m
Max DC bus 750 VDC
Cooling Free air or water cooled
Thermal sensor PTC SNM100+SNM120+KTY84
Source HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.22-23
TMRW43 Cont. torque: 28.2 N·m | Peak torque: 120 N·m | Speed @cont.: 770 rpm
TMRW43L Cont. torque: 28.2 N·m | Peak torque: 120 N·m | Speed @cont.: 1600 rpm
TMRW45 Cont. torque: 47 N·m | Peak torque: 203 N·m | Speed @cont.: 450 rpm
TMRW45L Cont. torque: 47 N·m | Peak torque: 203 N·m | Speed @cont.: 950 rpm
TMRW47 Cont. torque: 65 N·m | Peak torque: 280 N·m | Speed @cont.: 320 rpm
TMRW47L Cont. torque: 65 N·m | Peak torque: 280 N·m | Speed @cont.: 670 rpm
TMRW4A Cont. torque: 91 N·m | Peak torque: 390 N·m | Speed @cont.: 460 rpm
TMRW4AL Cont. torque: 91 N·m | Peak torque: 390 N·m | Speed @cont.: 730 rpm
TMRW4F Cont. torque: 136 N·m | Peak torque: 583 N·m | Speed @cont.: 300 rpm
TMRW4FL Cont. torque: 136 N·m | Peak torque: 583 N·m | Speed @cont.: 470 rpm
Torque MotorsHIWIN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMRW4 Frameless Torque Motors (Peak 120-583 N·m)

Brand HIWIN·Torque Motors

Available part numbers (10)

TMRW43, TMRW43L, TMRW45, TMRW45L, TMRW47, TMRW47L, TMRW4A, TMRW4AL, TMRW4F, TMRW4FL

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMRW43Cont. torque: 28.2 N·m | Peak torque: 120 N·m | Speed @cont.: 770 rpm
TMRW43LCont. torque: 28.2 N·m | Peak torque: 120 N·m | Speed @cont.: 1600 rpm
TMRW45Cont. torque: 47 N·m | Peak torque: 203 N·m | Speed @cont.: 450 rpm
TMRW45LCont. torque: 47 N·m | Peak torque: 203 N·m | Speed @cont.: 950 rpm
TMRW47Cont. torque: 65 N·m | Peak torque: 280 N·m | Speed @cont.: 320 rpm
TMRW47LCont. torque: 65 N·m | Peak torque: 280 N·m | Speed @cont.: 670 rpm
TMRW4ACont. torque: 91 N·m | Peak torque: 390 N·m | Speed @cont.: 460 rpm
TMRW4ALCont. torque: 91 N·m | Peak torque: 390 N·m | Speed @cont.: 730 rpm
TMRW4FCont. torque: 136 N·m | Peak torque: 583 N·m | Speed @cont.: 300 rpm
TMRW4FLCont. torque: 136 N·m | Peak torque: 583 N·m | Speed @cont.: 470 rpm
