HIWIN TMRW7 Frameless Torque Motors (Peak 275-1360 N·m)

HIWIN TMRW7 Frameless Torque Motors (Peak 275-1360 N·m)

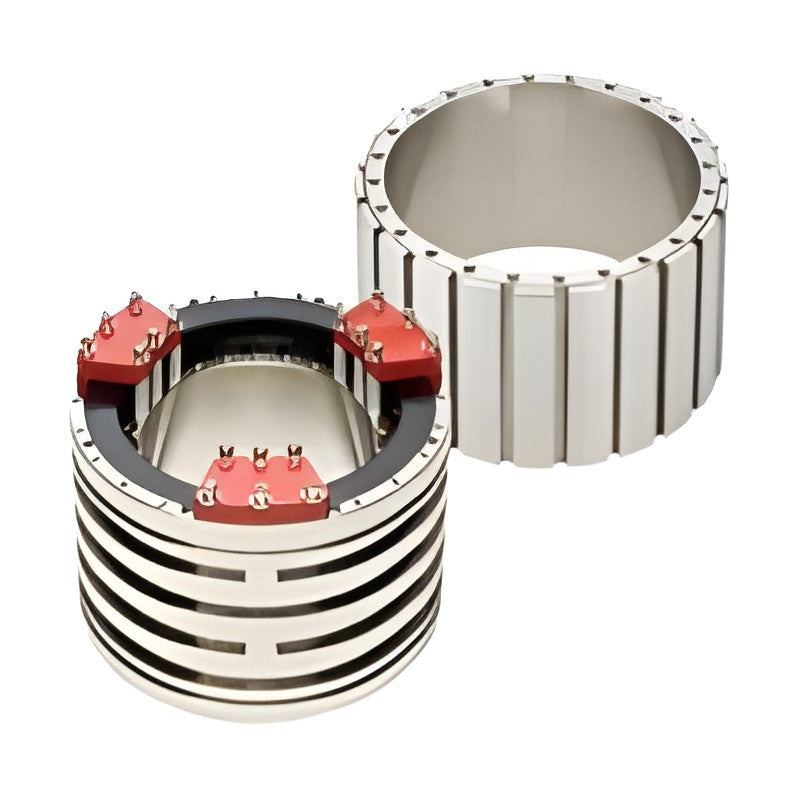

HIWIN TMRW7 frameless (stator + rotor kit) torque motors, peak torque 275-1360 N·m, for building into machine axes; natural or water cooling.

Key features

  • Frameless stator/rotor kit for direct integration
  • High torque density, zero backlash
  • Continuous torque rating for free-air or water cooling (WC)
  • L versions: high-speed winding
  • PTC SNM100 + SNM120 + KTY84 thermal sensors

Specifications

Series TMRW7
Type Frameless torque motor (kit)
Peak torque 275-1360 N·m
Max DC bus 750 VDC
Cooling Free air or water cooled
Thermal sensor PTC SNM100+SNM120+KTY84
Source HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.24-25
TMRW73 Cont. torque: 58 N·m | Peak torque: 275 N·m | Speed @cont.: 560 rpm
TMRW73L Cont. torque: 58 N·m | Peak torque: 275 N·m | Speed @cont.: 1110 rpm
TMRW75 Cont. torque: 98 N·m | Peak torque: 456 N·m | Speed @cont.: 325 rpm
TMRW75L Cont. torque: 98 N·m | Peak torque: 456 N·m | Speed @cont.: 675 rpm
TMRW77 Cont. torque: 137 N·m | Peak torque: 640 N·m | Speed @cont.: 225 rpm
TMRW77L Cont. torque: 137 N·m | Peak torque: 640 N·m | Speed @cont.: 475 rpm
TMRW7A Cont. torque: 195 N·m | Peak torque: 910 N·m | Speed @cont.: 160 rpm
TMRW7AL Cont. torque: 195 N·m | Peak torque: 910 N·m | Speed @cont.: 325 rpm
TMRW7F Cont. torque: 293 N·m | Peak torque: 1360 N·m | Speed @cont.: 100 rpm
TMRW7FL Cont. torque: 293 N·m | Peak torque: 1360 N·m | Speed @cont.: 210 rpm
Torque MotorsHIWIN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMRW7 Frameless Torque Motors (Peak 275-1360 N·m)

Brand HIWIN·Torque Motors

Available part numbers (10)

TMRW73, TMRW73L, TMRW75, TMRW75L, TMRW77, TMRW77L, TMRW7A, TMRW7AL, TMRW7F, TMRW7FL
