HIWIN TMRWA Frameless Torque Motors (Peak 490-2400 N·m)

HIWIN TMRWA Frameless Torque Motors (Peak 490-2400 N·m)

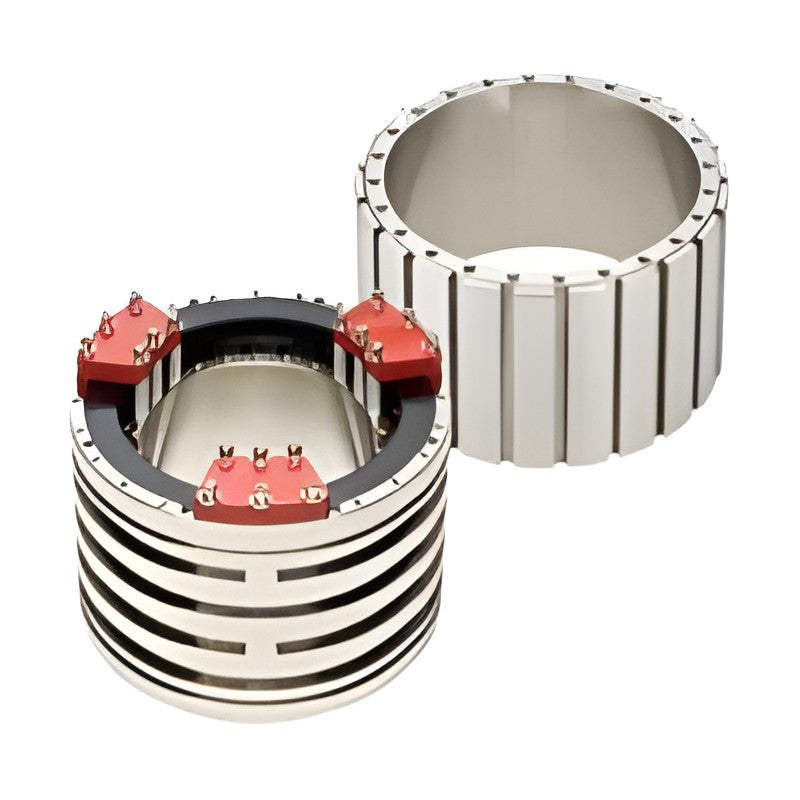

HIWIN TMRWA frameless (stator + rotor kit) torque motors, peak torque 490-2400 N·m, for building into machine axes; natural or water cooling.

Key features

  • Frameless stator/rotor kit for direct integration
  • High torque density, zero backlash
  • Continuous torque rating for free-air or water cooling (WC)
  • L versions: high-speed winding
  • PTC SNM100 + SNM120 + KTY84 thermal sensors

Specifications

Series TMRWA
Type Frameless torque motor (kit)
Peak torque 490-2400 N·m
Max DC bus 750 VDC
Cooling Free air or water cooled
Thermal sensor PTC SNM100+SNM120+KTY84
Source HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.26-27
TMRWA3 Cont. torque: 117 N·m | Peak torque: 490 N·m | Speed @cont.: 250 rpm
TMRWA3L Cont. torque: 117 N·m | Peak torque: 490 N·m | Speed @cont.: 510 rpm
TMRWA5 Cont. torque: 195 N·m | Peak torque: 810 N·m | Speed @cont.: 140 rpm
TMRWA5L Cont. torque: 195 N·m | Peak torque: 810 N·m | Speed @cont.: 300 rpm
TMRWA7 Cont. torque: 274 N·m | Peak torque: 1100 N·m | Speed @cont.: 210 rpm
TMRWA7L Cont. torque: 274 N·m | Peak torque: 1100 N·m | Speed @cont.: 320 rpm
TMRWAA Cont. torque: 390 N·m | Peak torque: 1600 N·m | Speed @cont.: 140 rpm
TMRWAAL Cont. torque: 390 N·m | Peak torque: 1600 N·m | Speed @cont.: 220 rpm
TMRWAF Cont. torque: 585 N·m | Peak torque: 2400 N·m | Speed @cont.: 140 rpm
TMRWAFL Cont. torque: 585 N·m | Peak torque: 2400 N·m | Speed @cont.: 200 rpm
Torque MotorsHIWIN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMRWA Frameless Torque Motors (Peak 490-2400 N·m)

Brand HIWIN·Torque Motors

Available part numbers (10)

TMRWA3, TMRWA3L, TMRWA5, TMRWA5L, TMRWA7, TMRWA7L, TMRWAA, TMRWAAL, TMRWAF, TMRWAFL

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMRWA3Cont. torque: 117 N·m | Peak torque: 490 N·m | Speed @cont.: 250 rpm
TMRWA3LCont. torque: 117 N·m | Peak torque: 490 N·m | Speed @cont.: 510 rpm
TMRWA5Cont. torque: 195 N·m | Peak torque: 810 N·m | Speed @cont.: 140 rpm
TMRWA5LCont. torque: 195 N·m | Peak torque: 810 N·m | Speed @cont.: 300 rpm
TMRWA7Cont. torque: 274 N·m | Peak torque: 1100 N·m | Speed @cont.: 210 rpm
TMRWA7LCont. torque: 274 N·m | Peak torque: 1100 N·m | Speed @cont.: 320 rpm
TMRWAACont. torque: 390 N·m | Peak torque: 1600 N·m | Speed @cont.: 140 rpm
TMRWAALCont. torque: 390 N·m | Peak torque: 1600 N·m | Speed @cont.: 220 rpm
TMRWAFCont. torque: 585 N·m | Peak torque: 2400 N·m | Speed @cont.: 140 rpm
TMRWAFLCont. torque: 585 N·m | Peak torque: 2400 N·m | Speed @cont.: 200 rpm
