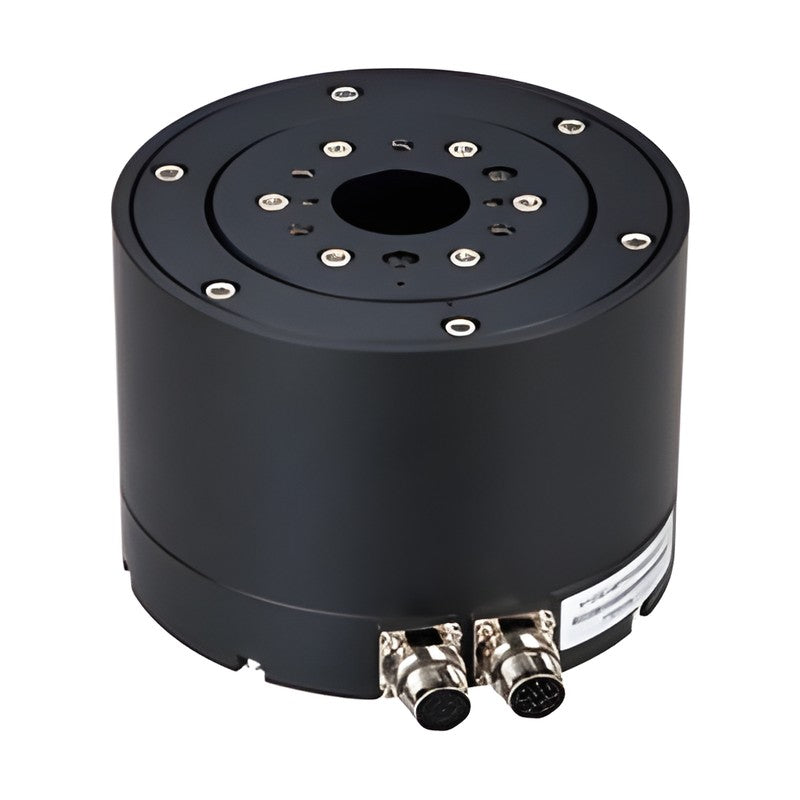

HIWIN TMS0 Torque Motor Rotary Tables (Peak 9.3-18.6 N·m)

HIWIN TMS0 series torque-motor rotary tables with integrated high-resolution incremental optical encoder and cross-roller bearing. Zero-backlash direct drive for indexing, inspection and assembly axes.

Key features

Direct drive: no gearbox, zero backlash, high rigidity
Integrated incremental optical encoder
High positioning accuracy and repeatability
Ready-to-mount rotary table with bearing
Matched to HIWIN D1-N / D2 servo drives

Specifications

Series	TMS
Type	Torque motor rotary table
Feedback	Incremental optical encoder
Motor drive	HIWIN servo drive (matched)
Cooling	Natural convection
Source	HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.3

TMS03		Cont. torque: 3.1 N·m \| Peak torque: 9.3 N·m \| Max speed: 700 rpm
TMS07		Cont. torque: 6.2 N·m \| Peak torque: 18.6 N·m \| Max speed: 700 rpm

Torque MotorsHIWIN

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMS0 Torque Motor Rotary Tables (Peak 9.3-18.6 N·m)

Brand HIWIN·Torque Motors

Available part numbers (2)

TMS03, TMS07
