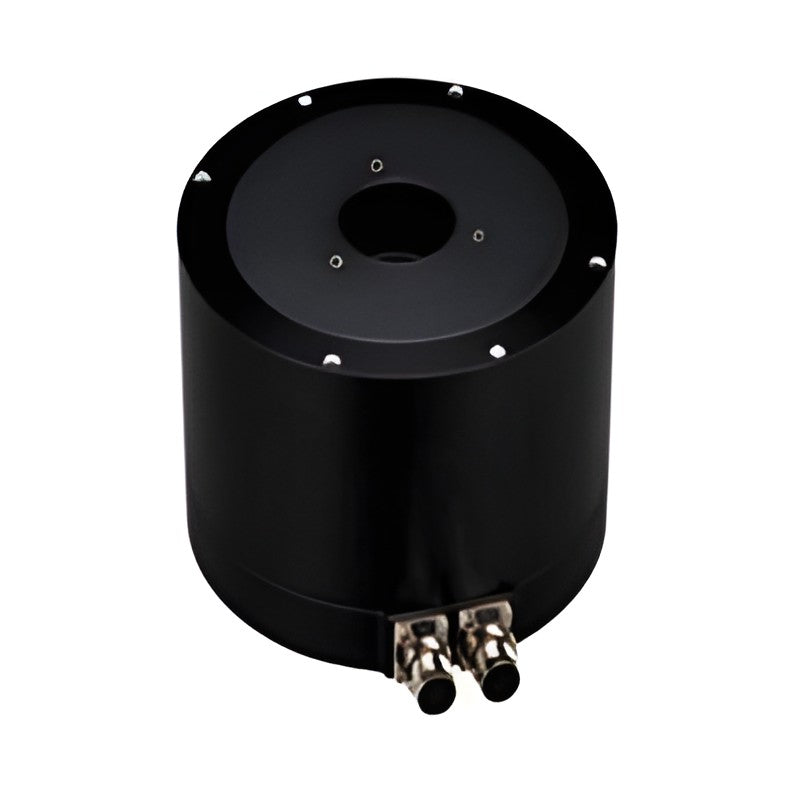

HIWIN TMY4 Torque Motor Rotary Tables (Peak 12-24 N·m)

HIWIN TMY4 series torque-motor rotary tables with integrated high-resolution absolute resolver. Zero-backlash direct drive for indexing, inspection and assembly axes.

Key features

Direct drive: no gearbox, zero backlash, high rigidity
Integrated absolute resolver
High positioning accuracy and repeatability
Ready-to-mount rotary table with bearing
Matched to HIWIN D1-N / D2 servo drives

Specifications

Series	TMY
Type	Torque motor rotary table
Feedback	Absolute resolver
Motor drive	HIWIN servo drive (matched)
Cooling	Natural convection
Source	HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.9

TMY44		Cont. torque: 4 N·m \| Peak torque: 12 N·m \| Max speed: 300 rpm
TMY48		Cont. torque: 8 N·m \| Peak torque: 24 N·m \| Max speed: 300 rpm

Torque MotorsHIWIN

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMY4 Torque Motor Rotary Tables (Peak 12-24 N·m)

Brand HIWIN·Torque Motors

Available part numbers (2)

TMY44, TMY48

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
