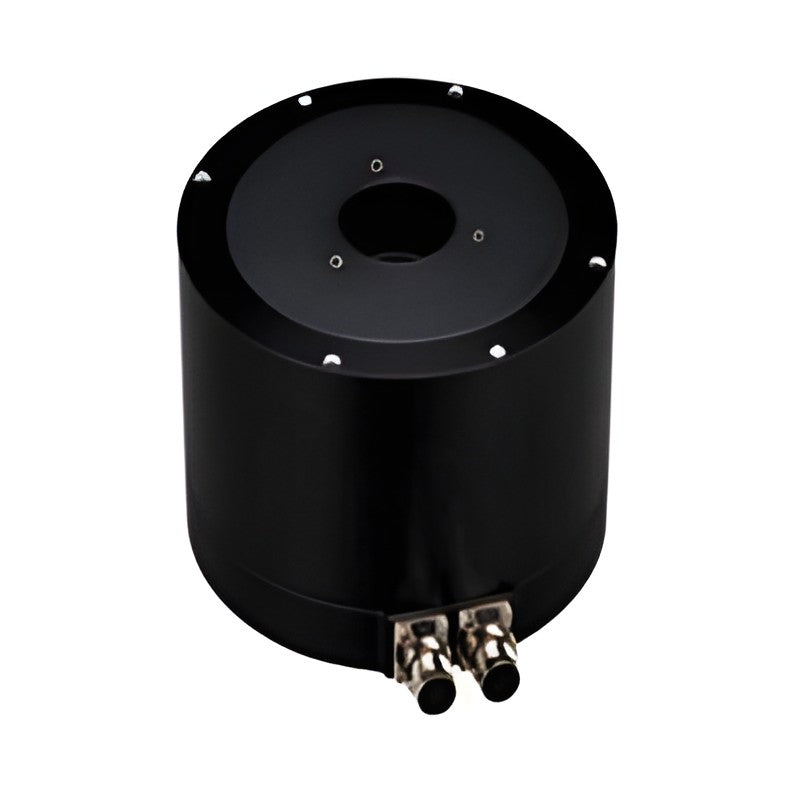

HIWIN TMYA Torque Motor Rotary Tables (Peak 150-300 N·m)

HIWIN TMYA series large torque-motor rotary tables (280 mm) with integrated absolute resolver (920,000 p/rev). Zero-backlash direct drive for indexing, inspection and assembly axes.

Key features

Direct drive: no gearbox, zero backlash, high rigidity
Integrated absolute resolver
High positioning accuracy and repeatability
Ready-to-mount rotary table with bearing
Matched to HIWIN D1-N / D2 servo drives

Specifications

Series	TMY
Type	Torque motor rotary table
Feedback	Absolute resolver
Motor drive	HIWIN servo drive (matched)
Cooling	Natural convection
Source	HIWIN Torque Motor (Direct Drive Motor) Technical Information MR99TE01-1510, p.11

TMYA5		Cont. torque: 50 N·m \| Peak torque: 150 N·m \| Max speed: 100 rpm
TMYAA		Cont. torque: 100 N·m \| Peak torque: 300 N·m \| Max speed: 100 rpm

Torque MotorsHIWIN

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN TMYA Torque Motor Rotary Tables (Peak 150-300 N·m)

Brand HIWIN·Torque Motors

Available part numbers (2)

TMYA5, TMYAA

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
