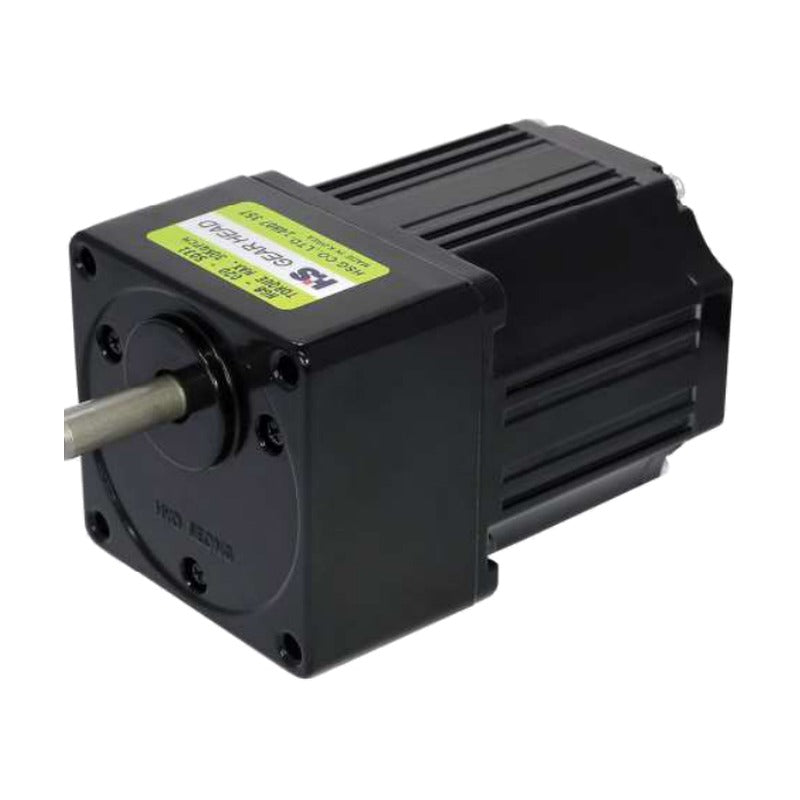

HSG HBGM BLDC Geared Motors (60-90 mm, 60-100 W, 1:5-1:200)

HSG HBGM BLDC Geared Motors (60-90 mm, 60-100 W, 1:5-1:200)

HSG HBGM series are brushless DC geared motors combining HBM motors with HGK parallel-shaft gearheads in 60, 80 and 90 mm frames. Gear ratios run from 1:5 to 1:200 with up to 30 N·m permissible output torque.

Key features

  • Gear ratios 1:5, 10, 15, 20, 30, 50, 100, 200
  • Output speed 15 to 600 rpm (no load)
  • 24 VDC and 310 VDC motor versions
  • Low vibration and minimized cogging
  • Keyed gearhead output shaft
  • Thermal protection and a range of driver options

Specifications

Motor type Brushless DC geared motor
Frame sizes 60, 80, 90 mm square
Motor output 60 W or 100 W
Voltage 24 VDC or 310 VDC
Gear ratio 1:5 to 1:200
Output speed 600 to 15 rpm (no load)
Max permissible torque 6 N·m (60), 16 N·m (80), 30 N·m (90)
Gearhead HGK6 / HGK8 / HGK9, key shaft
Source HSG Hyoseong Geared Motor catalog (BLDC Geared Motors 2-2 to 2-4)
HBGM6-6024A Frame: 60 mm | Motor: 60 W, 24 VDC | Gearhead: HGK6-( )K | Max torque: 6 N·m | Ratio: 1:5-1:200
HBGM6-60310A Frame: 60 mm | Motor: 60 W, 310 VDC | Gearhead: HGK6-( )K | Max torque: 6 N·m | Ratio: 1:5-1:200
HBGM8-10024A Frame: 80 mm | Motor: 100 W, 24 VDC | Gearhead: HGK8-( )K | Max torque: 16 N·m | Ratio: 1:5-1:200
HBGM8-100310A Frame: 80 mm | Motor: 100 W, 310 VDC | Gearhead: HGK8-( )K | Max torque: 16 N·m | Ratio: 1:5-1:200
HBGM9-10024A Frame: 90 mm | Motor: 100 W, 24 VDC | Gearhead: HGK9-( )K | Max torque: 30 N·m | Ratio: 1:5-1:200
HBGM9-100310A Frame: 90 mm | Motor: 100 W, 310 VDC | Gearhead: HGK9-( )K | Max torque: 30 N·m | Ratio: 1:5-1:200
BLDC MotorsHSG
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HBGM BLDC Geared Motors (60-90 mm, 60-100 W, 1:5-1:200)

Brand HSG·BLDC Motors

Available part numbers (6)

HBGM6-6024A, HBGM6-60310A, HBGM8-10024A, HBGM8-100310A, HBGM9-10024A, HBGM9-100310A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBGM6-6024AFrame: 60 mm | Motor: 60 W, 24 VDC | Gearhead: HGK6-( )K | Max torque: 6 N·m | Ratio: 1:5-1:200
HBGM6-60310AFrame: 60 mm | Motor: 60 W, 310 VDC | Gearhead: HGK6-( )K | Max torque: 6 N·m | Ratio: 1:5-1:200
HBGM8-10024AFrame: 80 mm | Motor: 100 W, 24 VDC | Gearhead: HGK8-( )K | Max torque: 16 N·m | Ratio: 1:5-1:200
HBGM8-100310AFrame: 80 mm | Motor: 100 W, 310 VDC | Gearhead: HGK8-( )K | Max torque: 16 N·m | Ratio: 1:5-1:200
HBGM9-10024AFrame: 90 mm | Motor: 100 W, 24 VDC | Gearhead: HGK9-( )K | Max torque: 30 N·m | Ratio: 1:5-1:200
HBGM9-100310AFrame: 90 mm | Motor: 100 W, 310 VDC | Gearhead: HGK9-( )K | Max torque: 30 N·m | Ratio: 1:5-1:200
