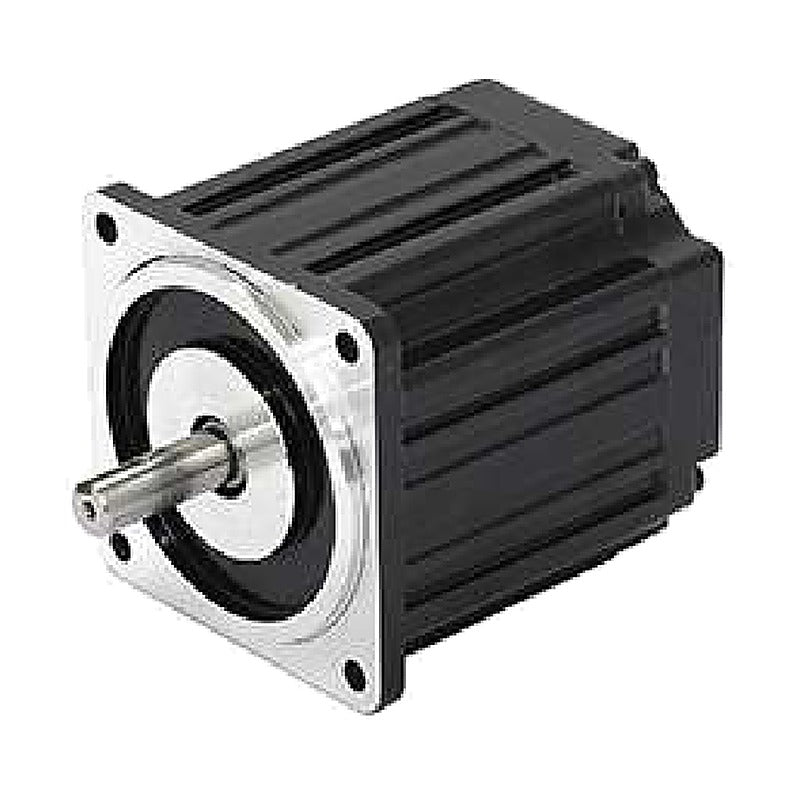

HSG HBM BLDC Motors (42-90 mm, 20-200 W, 24/310 VDC)

HSG HBM BLDC Motors (42-90 mm, 20-200 W, 24/310 VDC)

HSG HBM series are square-frame brushless DC motors from Hyoseong Geared Motor in 42, 60, 80 and 90 mm sizes. Low-voltage 24 VDC and high-voltage 310 VDC windings deliver 20 W to 200 W at 3000 rpm.

Key features

  • Low vibration, low noise and minimized cogging
  • 24 VDC and 310 VDC winding versions
  • Rated speed 3000 rpm, short-term torque reserve
  • D-cut output shaft
  • Thermal protection and a range of driver options
  • Pairs with HSG HGK gearheads for HBGM geared versions

Specifications

Motor type Brushless DC, Hall sensor
Frame sizes 42, 60, 80, 90 mm square
Rated output 20 to 200 W
Voltage 24 VDC or 310 VDC
Rated speed 3000 rpm
Speed range 100 to 3000 rpm
Shaft D-cut (8 / 10 / 12 mm)
Connections Low voltage: separate power + 5-pin Hall; high voltage: 12-pin
Source HSG Hyoseong Geared Motor catalog (BLDC Motors 2-1 to 2-4)
HBM4-2024A Frame: 42 mm | Output: 20 W | Voltage: 24 VDC | Torque: 0.7 kgf·cm @ 3000 rpm | Current: 1.5 A
HBM6-6024A Frame: 60 mm | Output: 60 W | Voltage: 24 VDC | Torque: 2.0 kgf·cm @ 3000 rpm | Current: 4.00 A
HBM6-60310A Frame: 60 mm | Output: 60 W | Voltage: 310 VDC | Torque: 2.0 kgf·cm @ 3000 rpm | Current: 0.35 A
HBM8-10024A Frame: 80 mm | Output: 100 W | Voltage: 24 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 6.00 A
HBM8-100310A Frame: 80 mm | Output: 100 W | Voltage: 310 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 0.60 A
HBM9-10024A Frame: 90 mm | Output: 100 W | Voltage: 24 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 6.00 A
HBM9-100310A Frame: 90 mm | Output: 100 W | Voltage: 310 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 0.60 A
HBM9-20024A Frame: 90 mm | Output: 200 W | Voltage: 24 VDC | Torque: 6.4 kgf·cm @ 3000 rpm | Current: 12.0 A
HBM9-200310A Frame: 90 mm | Output: 200 W | Voltage: 310 VDC | Torque: 6.4 kgf·cm @ 3000 rpm | Current: 1.20 A
BLDC MotorsHSG
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HBM BLDC Motors (42-90 mm, 20-200 W, 24/310 VDC)

Brand HSG·BLDC Motors

Available part numbers (9)

HBM4-2024A, HBM6-6024A, HBM6-60310A, HBM8-10024A, HBM8-100310A, HBM9-10024A, HBM9-100310A, HBM9-20024A, HBM9-200310A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBM4-2024AFrame: 42 mm | Output: 20 W | Voltage: 24 VDC | Torque: 0.7 kgf·cm @ 3000 rpm | Current: 1.5 A
HBM6-6024AFrame: 60 mm | Output: 60 W | Voltage: 24 VDC | Torque: 2.0 kgf·cm @ 3000 rpm | Current: 4.00 A
HBM6-60310AFrame: 60 mm | Output: 60 W | Voltage: 310 VDC | Torque: 2.0 kgf·cm @ 3000 rpm | Current: 0.35 A
HBM8-10024AFrame: 80 mm | Output: 100 W | Voltage: 24 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 6.00 A
HBM8-100310AFrame: 80 mm | Output: 100 W | Voltage: 310 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 0.60 A
HBM9-10024AFrame: 90 mm | Output: 100 W | Voltage: 24 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 6.00 A
HBM9-100310AFrame: 90 mm | Output: 100 W | Voltage: 310 VDC | Torque: 3.2 kgf·cm @ 3000 rpm | Current: 0.60 A
HBM9-20024AFrame: 90 mm | Output: 200 W | Voltage: 24 VDC | Torque: 6.4 kgf·cm @ 3000 rpm | Current: 12.0 A
HBM9-200310AFrame: 90 mm | Output: 200 W | Voltage: 310 VDC | Torque: 6.4 kgf·cm @ 3000 rpm | Current: 1.20 A
