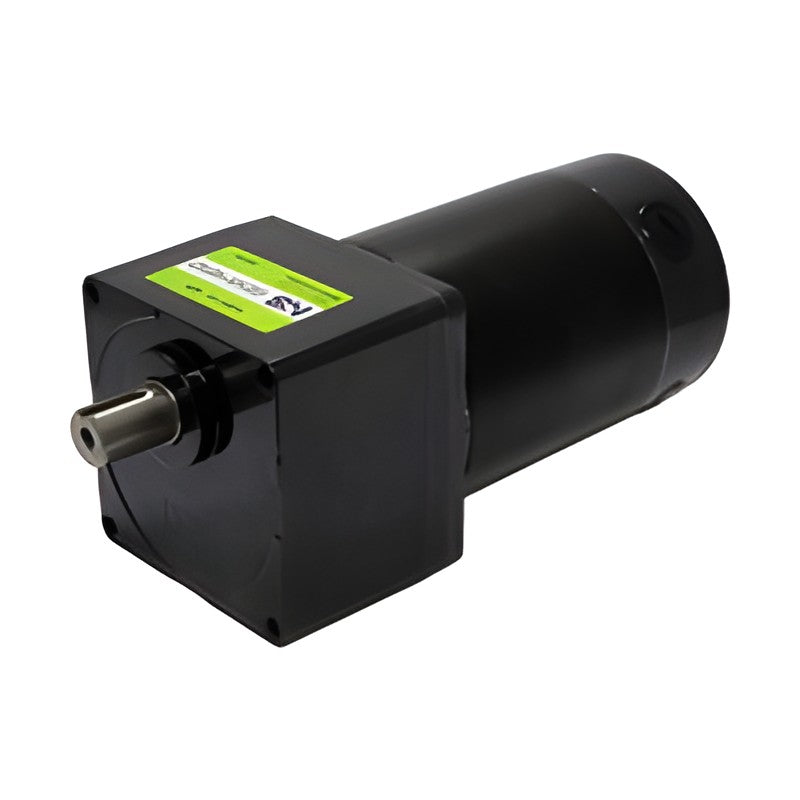

HSG HG11 Gearheads (115 mm, 1/5-1/40, Key Shaft)

HSG HG11 Gearheads (115 mm, 1/5-1/40, Key Shaft)

HSG HG11 heavy-duty parallel-shaft gearheads for 115 mm HM11 DC motors, ratios 1/5 to 1/40 with keyed output shaft and up to 50 N-m permissible torque.

Key features

  • Ratios 1/5 to 1/40
  • Max. permissible torque 50 N-m (500 kgf-cm)
  • Keyed output shaft
  • Fits HSG HM11 gear-type motors (250 / 800 W)
  • Robust 80 mm long gear case

Specifications

Frame 115 mm square
Compatible motors HSG HM11 (250-800 W)
Gear ratios 1/5-1/40
Max. torque 50 N-m (500 kgf-cm)
Output shaft Key type
Length 80 mm
Source HSG HSG DC Motor Catalog (0318EN), p.11
HG11-5K Ratio: 1/5 | Shaft: Key | Frame: 115 mm
HG11-10K Ratio: 1/10 | Shaft: Key | Frame: 115 mm
HG11-15K Ratio: 1/15 | Shaft: Key | Frame: 115 mm
HG11-20K Ratio: 1/20 | Shaft: Key | Frame: 115 mm
HG11-25K Ratio: 1/25 | Shaft: Key | Frame: 115 mm
HG11-30K Ratio: 1/30 | Shaft: Key | Frame: 115 mm
HG11-40K Ratio: 1/40 | Shaft: Key | Frame: 115 mm
GearheadsHSG
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HG11 Gearheads (115 mm, 1/5-1/40, Key Shaft)

Brand HSG·Gearheads

Available part numbers (7)

HG11-5K, HG11-10K, HG11-15K, HG11-20K, HG11-25K, HG11-30K, HG11-40K

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HG11-5KRatio: 1/5 | Shaft: Key | Frame: 115 mm
HG11-10KRatio: 1/10 | Shaft: Key | Frame: 115 mm
HG11-15KRatio: 1/15 | Shaft: Key | Frame: 115 mm
HG11-20KRatio: 1/20 | Shaft: Key | Frame: 115 mm
HG11-25KRatio: 1/25 | Shaft: Key | Frame: 115 mm
HG11-30KRatio: 1/30 | Shaft: Key | Frame: 115 mm
HG11-40KRatio: 1/40 | Shaft: Key | Frame: 115 mm
