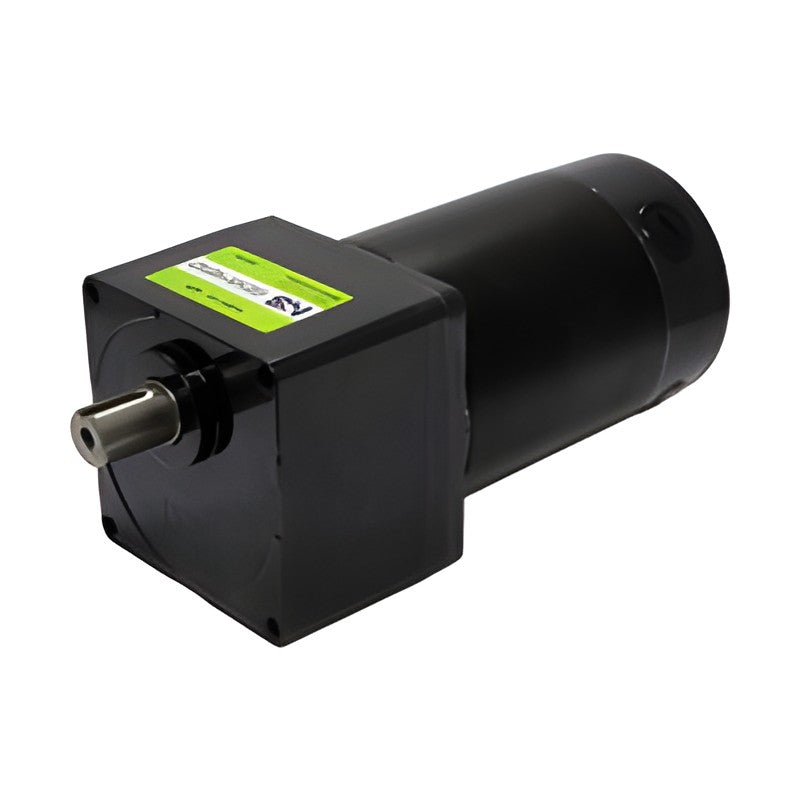

HSG HGM11 DC Geared Motors (115 mm, 250-800 W, 1/5-1/40)

HSG HGM11 DC Geared Motors (115 mm, 250-800 W, 1/5-1/40)

HSG HGM11 heavy-duty geared motor sets pair an HM11 115 mm 24 VDC motor (250 W or 800 W) with an HG11 keyed-shaft gearhead, ratios 1/5 to 1/40 and up to 50 N-m.

Key features

  • Gear ratios 1/5, 1/10, 1/15, 1/20, 1/25, 1/30, 1/40
  • Maximum permissible torque 50 N-m (500 kgf-cm)
  • Keyed output shaft (HG11-( )K)
  • Replaceable motor brushes
  • Suited to battery-powered carts and conveyors

Specifications

Frame 115 mm square
Motor HM11 series, 24 VDC
Output 250 W, 800 W
Gear ratios 1/5-1/40 (7 steps)
Max. gearhead torque 50 N-m (500 kgf-cm)
Gearhead length 80 mm
Gearhead HG11-( )K
Source HSG HSG DC Motor Catalog (0318EN), p.11
HGM11-25024A Motor: 250 W, 24 VDC | Gearhead: HG11-( )K | Ratio: 1/5-1/40 | Speed: 760-95 rpm
HGM11-80024A Motor: 800 W, 24 VDC | Gearhead: HG11-( )K | Ratio: 1/5-1/40 | Speed: 760-95 rpm
DC Geared MotorsHSG
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HGM11 DC Geared Motors (115 mm, 250-800 W, 1/5-1/40)

Brand HSG·DC Geared Motors

Available part numbers (2)

HGM11-25024A, HGM11-80024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HGM11-25024AMotor: 250 W, 24 VDC | Gearhead: HG11-( )K | Ratio: 1/5-1/40 | Speed: 760-95 rpm
HGM11-80024AMotor: 800 W, 24 VDC | Gearhead: HG11-( )K | Ratio: 1/5-1/40 | Speed: 760-95 rpm
