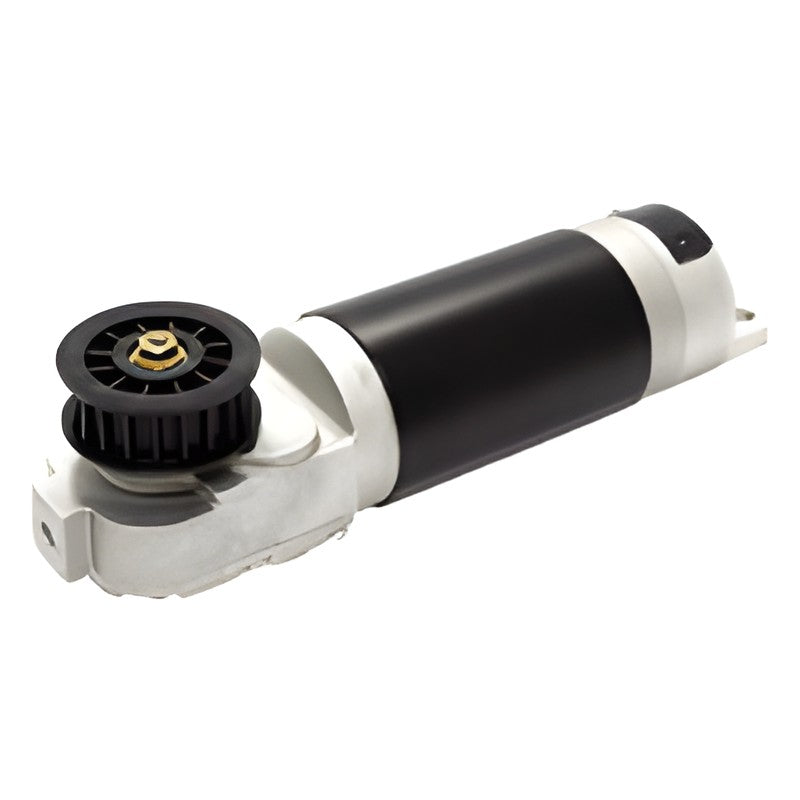

HSG HGM6-6024A Automatic Sliding Door DC Geared Motor (60 W)

Special-type 24 VDC geared motor from HSG designed for automatic sliding door operators, with a 60 W motor, 1/12 reduction and toothed belt pulley output.

Key features

Purpose-built for automatic sliding door drives
60 W motor, 1/12 reduction, 300 rpm no-load output
Toothed belt pulley on output
Slim design, wide operating temperature range
High efficiency, low price

Specifications

Application	Automatic sliding door
Rated voltage	24 VDC
Motor output	60 W
Gear ratio	1/12
Output speed (no load)	300 rpm
Motor rated torque	2.0 kgf-cm at 2950 rpm
Overall length	257 mm
Weight	1.8 kg
Source	HSG HSG DC Motor Catalog (0318EN), p.31

HGM6-6024A

Voltage: 24 VDC | Ratio: 1/12 | Output: 300 rpm no load | Motor: 60 W, 4.5 A

DC Geared MotorsHSG

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HGM6-6024A Automatic Sliding Door DC Geared Motor (60 W)

Brand HSG·DC Geared Motors

Available part numbers (1)

HGM6-6024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
