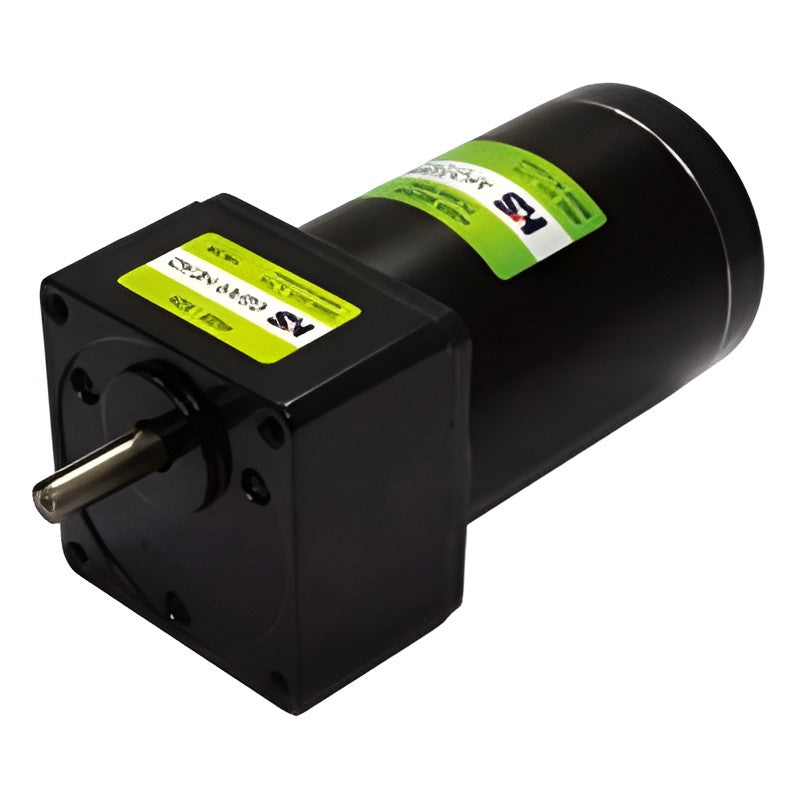

HSG HGM8 DC Geared Motors (80 mm, 25-90 W, 1/3-1/200)

HSG HGM8 DC Geared Motors (80 mm, 25-90 W, 1/3-1/200)

HSG HGM8 geared motor sets combine an HM8 80 mm 24 VDC motor with an HG8 parallel-shaft gearhead, ratios 1/3 to 1/200, delivering up to 8 N-m.

Key features

  • 24 gear ratios from 1/3 to 1/200
  • Maximum permissible gearhead torque 8 N-m (80 kgf-cm)
  • Gearhead output shaft 10 mm, D-cut or key
  • Low noise and low vibration
  • Order motor and HG8 gearhead by ratio

Specifications

Frame 80 mm square
Motor HM8 series, 24 VDC
Output 25 W, 60 W, 90 W
Gear ratios 1/3-1/200 (24 steps)
Max. gearhead torque 8 N-m (80 kgf-cm)
Gearhead length 36 mm (1/3-1/18), 46 mm (1/20-1/200)
Gearhead HG8-( )D / HG8-( )K
Source HSG HSG DC Motor Catalog (0318EN), p.8
HGM8-2524A Motor: 25 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1100-17 rpm
HGM8-6024A Motor: 60 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1167-18 rpm
HGM8-9024A Motor: 90 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1100-17 rpm
DC Geared MotorsHSG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HGM8 DC Geared Motors (80 mm, 25-90 W, 1/3-1/200)

Brand HSG·DC Geared Motors

Available part numbers (3)

HGM8-2524A, HGM8-6024A, HGM8-9024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HGM8-2524AMotor: 25 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1100-17 rpm
HGM8-6024AMotor: 60 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1167-18 rpm
HGM8-9024AMotor: 90 W, 24 VDC | Gearhead: HG8-( ) | Ratio: 1/3-1/200 | Speed: 1100-17 rpm
