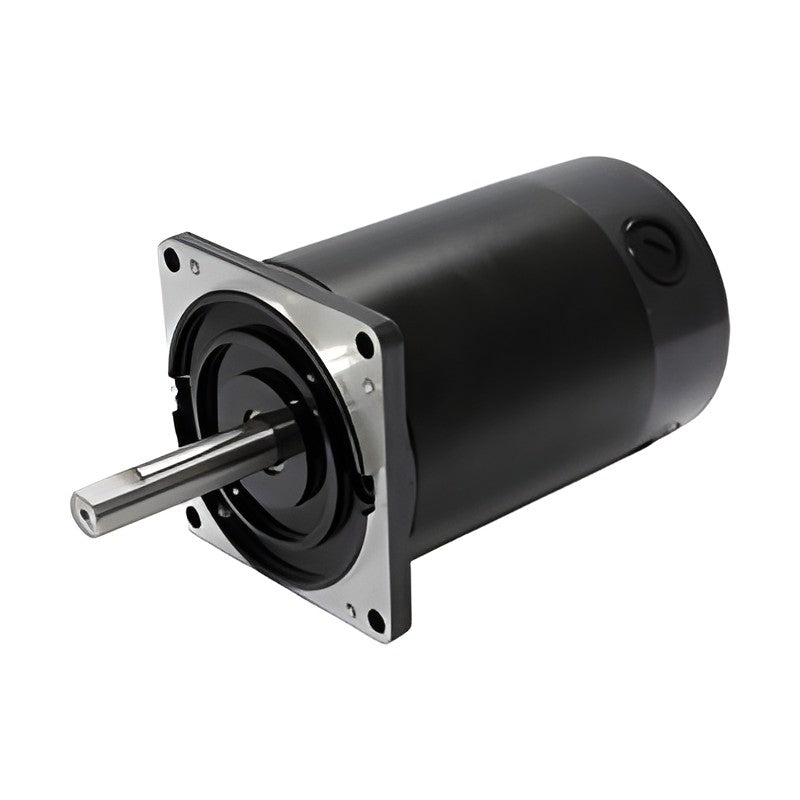

HSG HM11 DC Motors (115 mm Square, 250-800 W, 24 VDC)

Large 115 mm square permanent-magnet DC motors from HSG rated 250 W and 800 W at 24 VDC, with replaceable brushes for battery-powered and heavy-duty drives.

Key features

115 mm square flange, 4 x 8.5 mm holes on 141 mm PCD
Replaceable carbon brushes
Gear (pinion) or D-cut 17 mm output shaft
Rated torque up to 24.4 kgf-cm (800 W)
Mates with HSG HG11 gearheads

Specifications

Frame	115 mm square
Motor type	Permanent-magnet brushed DC
Rated voltage	24 VDC
Output	250 W, 800 W
No-load speed	3800 rpm
Shaft types	Gear, D-cut
Pilot	106 mm dia.
Weight	4.3-6.3 kg
Source	HSG HSG DC Motor Catalog (0318EN), p.10

HM11-25024A		Output: 250 W \| Voltage: 24 VDC \| Rated: 2930 rpm \| Rated torque: 8.3 kgf-cm \| Current: 17 A
HM11-80024A		Output: 800 W \| Voltage: 24 VDC \| Rated: 3200 rpm \| Rated torque: 24.4 kgf-cm \| Current: 46.7 A

DC MotorsHSG

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HM11 DC Motors (115 mm Square, 250-800 W, 24 VDC)

Brand HSG·DC Motors

Available part numbers (2)

HM11-25024A, HM11-80024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HM11-25024A	Output: 250 W \| Voltage: 24 VDC \| Rated: 2930 rpm \| Rated torque: 8.3 kgf-cm \| Current: 17 A
	HM11-80024A	Output: 800 W \| Voltage: 24 VDC \| Rated: 3200 rpm \| Rated torque: 24.4 kgf-cm \| Current: 46.7 A
