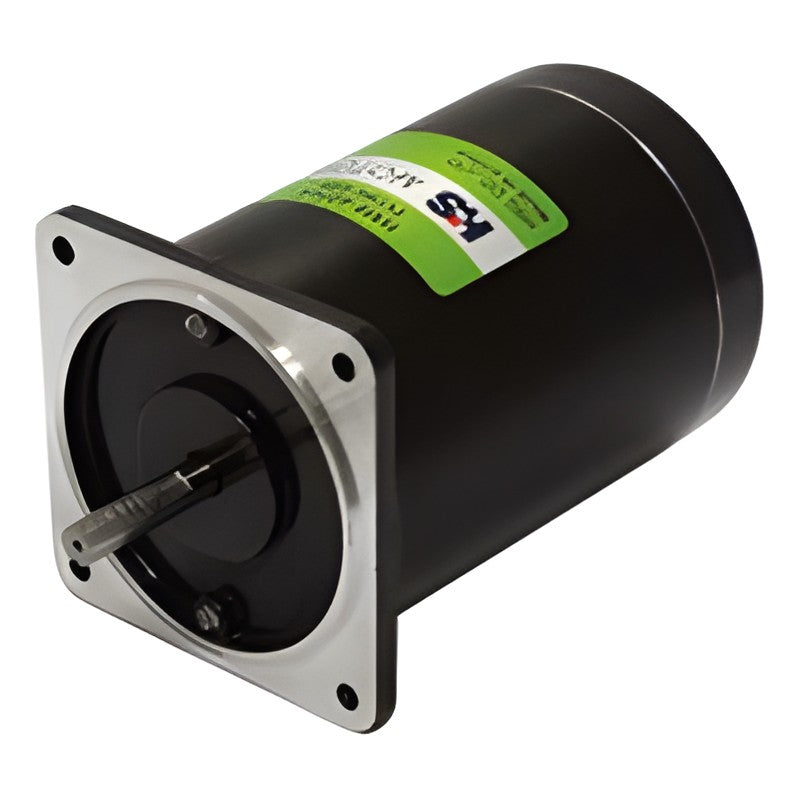

HSG HM8 DC Motors (80 mm Square, 25-90 W, 24 VDC)

HSG HM8 DC Motors (80 mm Square, 25-90 W, 24 VDC)

80 mm square permanent-magnet DC motors from HSG rated 25, 60 and 90 W at 24 VDC. Low noise and low vibration, with gear, straight, D-cut and key output shafts.

Key features

  • 80 mm square flange, 4 x 5.5 mm holes on 94 mm PCD
  • Gear (pinion) shaft mates with HSG HG8 gearheads
  • Straight, D-cut and keyed 8 mm shaft options
  • Low noise and low vibration
  • Rated torque up to 3.0 kgf-cm (90 W)

Specifications

Frame 80 mm square
Motor type Permanent-magnet brushed DC
Rated voltage 24 VDC
Output 25 W, 60 W, 90 W
Rated speed 2900-3100 rpm
Shaft types Gear, straight, D-cut, key
Pilot 73 mm dia.
Weight 1.6-1.7 kg
Source HSG HSG DC Motor Catalog (0318EN), p.7
HM8-2524A Output: 25 W | Voltage: 24 VDC | No-load: 3300 rpm | Rated torque: 0.8 kgf-cm | Length: 104 mm
HM8-6024A Output: 60 W | Voltage: 24 VDC | No-load: 3500 rpm | Rated torque: 2.0 kgf-cm | Length: 114 mm
HM8-9024A Output: 90 W | Voltage: 24 VDC | No-load: 3300 rpm | Rated torque: 3.0 kgf-cm | Length: 114 mm
DC MotorsHSG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HM8 DC Motors (80 mm Square, 25-90 W, 24 VDC)

Brand HSG·DC Motors

Available part numbers (3)

HM8-2524A, HM8-6024A, HM8-9024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HM8-2524AOutput: 25 W | Voltage: 24 VDC | No-load: 3300 rpm | Rated torque: 0.8 kgf-cm | Length: 104 mm
HM8-6024AOutput: 60 W | Voltage: 24 VDC | No-load: 3500 rpm | Rated torque: 2.0 kgf-cm | Length: 114 mm
HM8-9024AOutput: 90 W | Voltage: 24 VDC | No-load: 3300 rpm | Rated torque: 3.0 kgf-cm | Length: 114 mm
