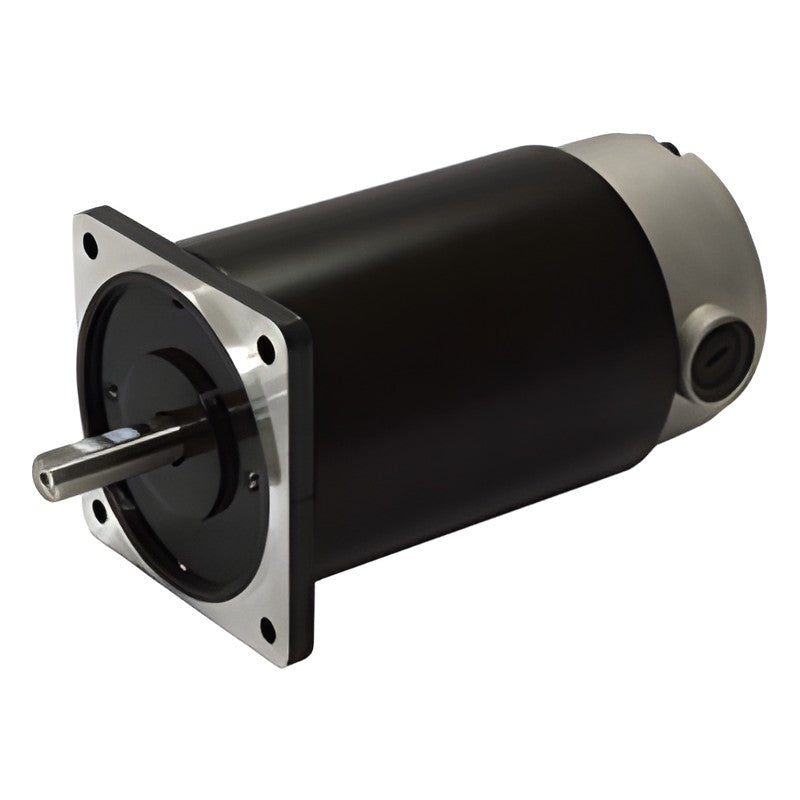

HSG HM9 DC Motors (90 mm Square, 150-200 W, 24 VDC)

90 mm square permanent-magnet DC motors from HSG rated 150 W and 200 W at 24 VDC, with replaceable brushes for long service life.

Key features

90 mm square flange, 4 x 8.5 mm holes on 104 mm PCD
Replaceable carbon brushes
Gear, straight, D-cut and keyed 12 mm shaft options
High efficiency, low noise and low vibration
Rated torque up to 6.5 kgf-cm

Specifications

Frame	90 mm square
Motor type	Permanent-magnet brushed DC
Rated voltage	24 VDC
Output	150 W, 200 W
Body length	158.5 mm
Shaft types	Gear, straight, D-cut, key
Pilot	83 mm dia.
Weight	3.4 kg
Source	HSG HSG DC Motor Catalog (0318EN), p.9

HM9-15024A		Output: 150 W \| Voltage: 24 VDC \| Rated: 2900 rpm \| Rated torque: 5.0 kgf-cm \| Current: 8.8 A
HM9-20024A		Output: 200 W \| Voltage: 24 VDC \| Rated: 3000 rpm \| Rated torque: 6.5 kgf-cm \| Current: 11.2 A

DC MotorsHSG

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HM9 DC Motors (90 mm Square, 150-200 W, 24 VDC)

Brand HSG·DC Motors

Available part numbers (2)

HM9-15024A, HM9-20024A

How to order

Send the HSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HM9-15024A	Output: 150 W \| Voltage: 24 VDC \| Rated: 2900 rpm \| Rated torque: 5.0 kgf-cm \| Current: 8.8 A
	HM9-20024A	Output: 200 W \| Voltage: 24 VDC \| Rated: 3000 rpm \| Rated torque: 6.5 kgf-cm \| Current: 11.2 A
