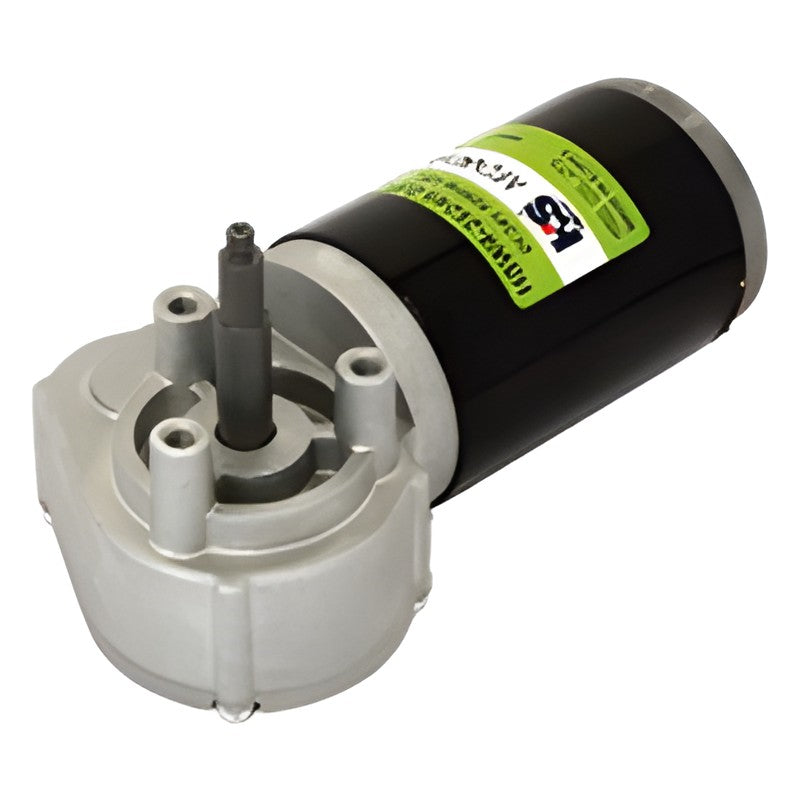

HSG HSW6 Worm Geared DC Motors (50 W, 24 VDC, 1/50-1/110)

HSG HSW6 Worm Geared DC Motors (50 W, 24 VDC, 1/50-1/110)

HSG HSW6 right-angle worm geared DC motors with a 62.5 mm, 50 W, 24 VDC motor, available in 1/50 and 1/110 ratios with reverse-drive prevention.

Key features

  • Worm gearing resists back-driving (prevents reverse force)
  • Ratios 1/50 (72 rpm) and 1/110 (33 rpm)
  • D-cut or keyed 10 mm output shaft
  • 3 x M6 mounting taps on 44 mm PCD
  • Small size and light weight (1.5 kg)

Specifications

Motor body 62.5 mm dia.
Gear type Worm, right angle
Rated voltage 24 VDC
Motor output 50 W
Motor rated torque 1.54 kgf-cm at 3150 rpm
Gear ratios 1/50, 1/110
Output shaft D-cut or key
Weight 1.5 kg
Source HSG HSG DC Motor Catalog (0318EN), p.13
HSW6-5024A 1/50 Voltage: 24 VDC | Ratio: 1/50 | Output speed: 72 rpm | Motor: 50 W
HSW6-5024A 1/110 Voltage: 24 VDC | Ratio: 1/110 | Output speed: 33 rpm | Motor: 50 W
DC Geared MotorsHSG
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HSG HSW6 Worm Geared DC Motors (50 W, 24 VDC, 1/50-1/110)

Brand HSG·DC Geared Motors

Available part numbers (2)

HSW6-5024A 1/50, HSW6-5024A 1/110
