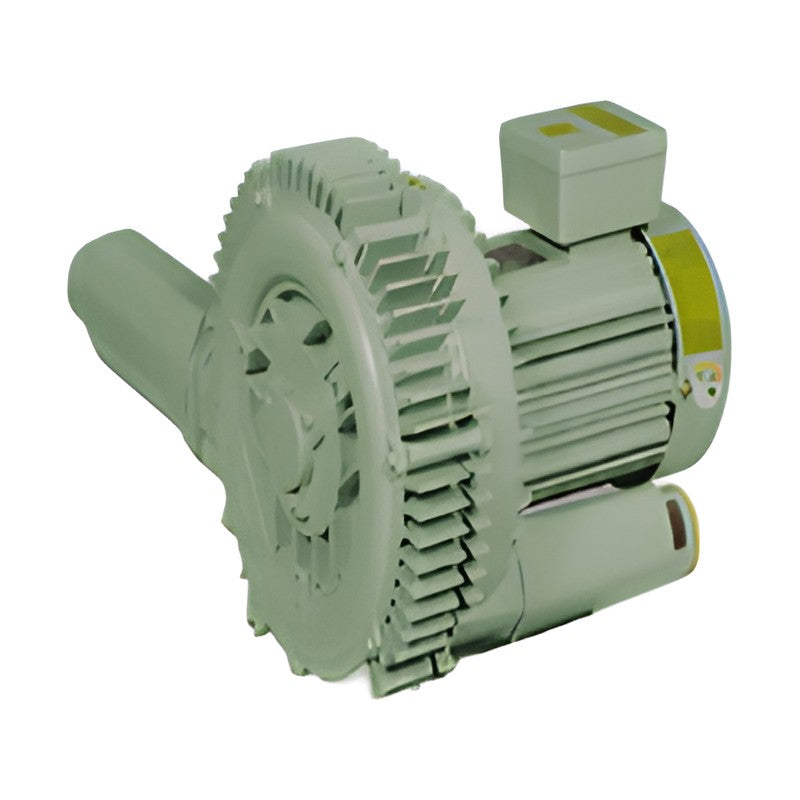

Hwang Hae HRB Double-Stage Ring Blowers, 3-Phase (0.4-25 kW)

Hwang Hae HRB Double-Stage Ring Blowers, 3-Phase (0.4-25 kW)

Hwang Hae Electric HRB double-stage three-phase ring blowers for higher pressure and vacuum, plus large-flow HRB-1503/1603/1703MH models up to 33 m3/min.

Key features

  • Two-stage impeller for higher pressure / vacuum
  • Up to 7,000 mmAq pressure (HRB-1202MH, 50 Hz)
  • Air flow from 1.4 to 33 m3/min
  • Three-phase 220/380 V (380 V on 1503-1703MH)
  • Special voltage, anti-corrosion or explosion-proof on request

Specifications

Phase 3-phase, 220/380 V, 50/60 Hz
Power range 0.4-25 kW (50 Hz)
Max. pressure 7,000 mmAq (50 Hz)
Max. vacuum 4,500 mmAq (50 Hz)
Max. air flow 33 m3/min (50 Hz), 40 m3/min (60 Hz)
Impeller Aluminium
Casing Aluminium / cast iron (large frames)
Insulation class F
Source Hwang Hae HRB ring blower catalogue (3-phase double stage)
HRB-102 Power: 0.4 kW (50 Hz) | Pressure: 1,200 mmAq | Vacuum: 1,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-202MH Power: 0.75 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 1,500 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-302MH Power: 1.1 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-402SMH Power: 1.5 kW (50 Hz) | Pressure: 2,500 mmAq | Vacuum: 2,400 mmAq | Max. air flow: 2.5 m3/min | Phase: 3-phase
HRB-402MH Power: 2.2 kW (50 Hz) | Pressure: 3,500 mmAq | Vacuum: 2,600 mmAq | Max. air flow: 2.5 m3/min | Phase: 3-phase
HRB-502MH Power: 2.2 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,200 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-602MH Power: 3.0 kW (50 Hz) | Pressure: 3,800 mmAq | Vacuum: 3,300 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-702MH Power: 4.0 kW (50 Hz) | Pressure: 4,500 mmAq | Vacuum: 3,700 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-802MH Power: 4.0 kW (50 Hz) | Pressure: 3,500 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-902MH Power: 5.5 kW (50 Hz) | Pressure: 5,000 mmAq | Vacuum: 4,000 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-1002MH Power: 7.5 kW (50 Hz) | Pressure: 5,800 mmAq | Vacuum: 4,300 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-1102MH Power: 11 kW (50 Hz) | Pressure: 5,500 mmAq | Vacuum: 4,000 mmAq | Max. air flow: 8.0 m3/min | Phase: 3-phase
HRB-1202MH Power: 15 kW (50 Hz) | Pressure: 7,000 mmAq | Vacuum: 4,500 mmAq | Max. air flow: 8.0 m3/min | Phase: 3-phase
HRB-1302MH Power: 13 kW (50 Hz) | Pressure: 2,200 mmAq | Vacuum: 2,500 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1402MH Power: 15.5 kW (50 Hz) | Pressure: 3,300 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1502MH Power: 22 kW (50 Hz) | Pressure: 4,800 mmAq | Vacuum: 4,500 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1503MH Power: 13.5 kW (50 Hz) | Pressure: 1,300 mmAq | Vacuum: 1,500 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
HRB-1603MH Power: 18.5 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 2,400 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
HRB-1703MH Power: 25 kW (50 Hz) | Pressure: 2,600 mmAq | Vacuum: 2,800 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
Ring BlowersHwang Hae Electric
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hwang Hae HRB Double-Stage Ring Blowers, 3-Phase (0.4-25 kW)

Brand Hwang Hae Electric·Ring Blowers

Available part numbers (19)

HRB-102, HRB-202MH, HRB-302MH, HRB-402SMH, HRB-402MH, HRB-502MH, HRB-602MH, HRB-702MH, HRB-802MH, HRB-902MH + 9 more — see full table ↓

How to order

Send the Hwang Hae Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRB-102Power: 0.4 kW (50 Hz) | Pressure: 1,200 mmAq | Vacuum: 1,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-202MHPower: 0.75 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 1,500 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-302MHPower: 1.1 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 3-phase
HRB-402SMHPower: 1.5 kW (50 Hz) | Pressure: 2,500 mmAq | Vacuum: 2,400 mmAq | Max. air flow: 2.5 m3/min | Phase: 3-phase
HRB-402MHPower: 2.2 kW (50 Hz) | Pressure: 3,500 mmAq | Vacuum: 2,600 mmAq | Max. air flow: 2.5 m3/min | Phase: 3-phase
HRB-502MHPower: 2.2 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,200 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-602MHPower: 3.0 kW (50 Hz) | Pressure: 3,800 mmAq | Vacuum: 3,300 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-702MHPower: 4.0 kW (50 Hz) | Pressure: 4,500 mmAq | Vacuum: 3,700 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-802MHPower: 4.0 kW (50 Hz) | Pressure: 3,500 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-902MHPower: 5.5 kW (50 Hz) | Pressure: 5,000 mmAq | Vacuum: 4,000 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-1002MHPower: 7.5 kW (50 Hz) | Pressure: 5,800 mmAq | Vacuum: 4,300 mmAq | Max. air flow: 5.2 m3/min | Phase: 3-phase
HRB-1102MHPower: 11 kW (50 Hz) | Pressure: 5,500 mmAq | Vacuum: 4,000 mmAq | Max. air flow: 8.0 m3/min | Phase: 3-phase
HRB-1202MHPower: 15 kW (50 Hz) | Pressure: 7,000 mmAq | Vacuum: 4,500 mmAq | Max. air flow: 8.0 m3/min | Phase: 3-phase
HRB-1302MHPower: 13 kW (50 Hz) | Pressure: 2,200 mmAq | Vacuum: 2,500 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1402MHPower: 15.5 kW (50 Hz) | Pressure: 3,300 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1502MHPower: 22 kW (50 Hz) | Pressure: 4,800 mmAq | Vacuum: 4,500 mmAq | Max. air flow: 17.5 m3/min | Phase: 3-phase
HRB-1503MHPower: 13.5 kW (50 Hz) | Pressure: 1,300 mmAq | Vacuum: 1,500 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
HRB-1603MHPower: 18.5 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 2,400 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
HRB-1703MHPower: 25 kW (50 Hz) | Pressure: 2,600 mmAq | Vacuum: 2,800 mmAq | Max. air flow: 33 m3/min | Phase: 3-phase
