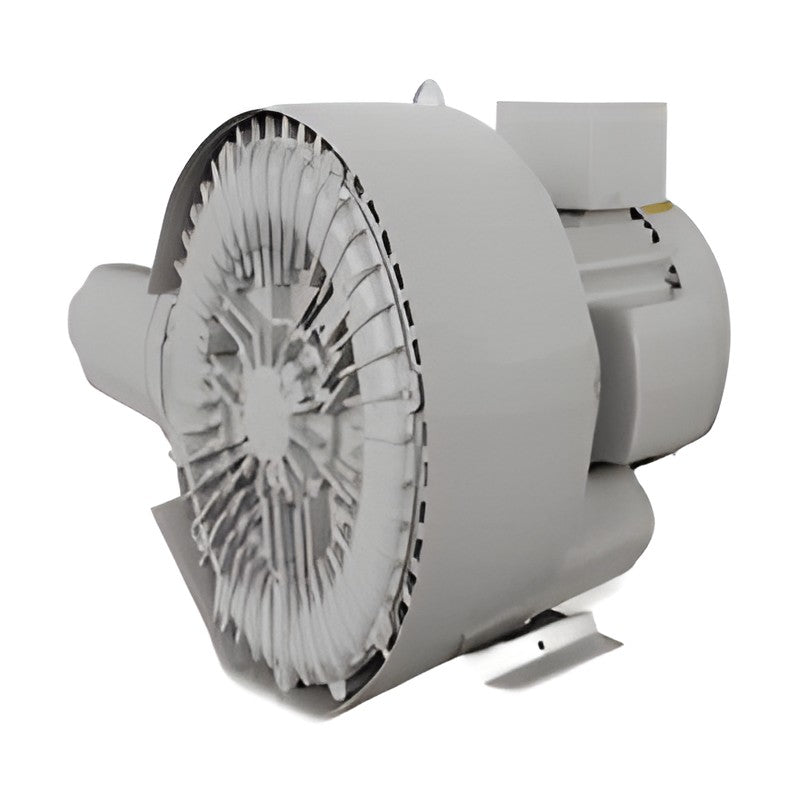

Hwang Hae HRB Single-Phase Ring Blowers (0.33-1.83 kW)

Hwang Hae HRB Single-Phase Ring Blowers (0.33-1.83 kW)

Hwang Hae Electric HRB single-phase 220 V ring blowers for sites without three-phase power, in double-stage models from 0.33 to 1.83 kW plus single-stage versions.

Key features

  • Single-phase 220 V, 50/60 Hz with run capacitor
  • Double-stage models up to 3,500 mmAq pressure
  • Air flow 1.4 to 3.2 m3/min
  • Aluminium impeller and casing
  • Single-stage single-phase versions available on request

Specifications

Phase 1-phase, 220 V, 50/60 Hz
Power range 0.33-1.83 kW (50 Hz)
Max. pressure 3,500 mmAq (50 Hz)
Max. vacuum 2,300 mmAq (50 Hz)
Max. air flow 2.5 m3/min (50 Hz), 3.2 m3/min (60 Hz)
Impeller / casing Aluminium
Source Hwang Hae HRB ring blower catalogue (single phase)
HRB-102/1 Power: 0.33 kW (50 Hz) | Pressure: 1,200 mmAq | Vacuum: 1,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 1-phase 220 V
HRB-202/1 Power: 0.63 kW (50 Hz) | Pressure: 2,100 mmAq | Vacuum: 1,700 mmAq | Max. air flow: 1.4 m3/min | Phase: 1-phase 220 V
HRB-302/1 Power: 0.9 kW (50 Hz) | Pressure: 2,400 mmAq | Vacuum: 2,000 mmAq | Max. air flow: 1.4 m3/min | Phase: 1-phase 220 V
HRB-402S/1 Power: 1.1 kW (50 Hz) | Pressure: 2,500 mmAq | Vacuum: 2,300 mmAq | Max. air flow: 2.5 m3/min | Phase: 1-phase 220 V
HRB-402/1 Power: 1.83 kW (50 Hz) | Pressure: 3,500 mmAq | Vacuum: 2,300 mmAq | Max. air flow: 2.5 m3/min | Phase: 1-phase 220 V
HRB SINGLE-PHASE SINGLE-STAGE MADE-TO-ORDER Stage: single | Phase: 1-phase 220 V | Models: on request (flow, pressure)
Ring BlowersHwang Hae Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hwang Hae HRB Single-Phase Ring Blowers (0.33-1.83 kW)

Brand Hwang Hae Electric·Ring Blowers

Available part numbers (6)

HRB-102/1, HRB-202/1, HRB-302/1, HRB-402S/1, HRB-402/1, HRB SINGLE-PHASE SINGLE-STAGE MADE-TO-ORDER

How to order

Send the Hwang Hae Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
