Hwang Hae HRB Single-Stage Ring Blowers, 3-Phase (0.4-18.5 kW)

Hwang Hae HRB Single-Stage Ring Blowers, 3-Phase (0.4-18.5 kW)

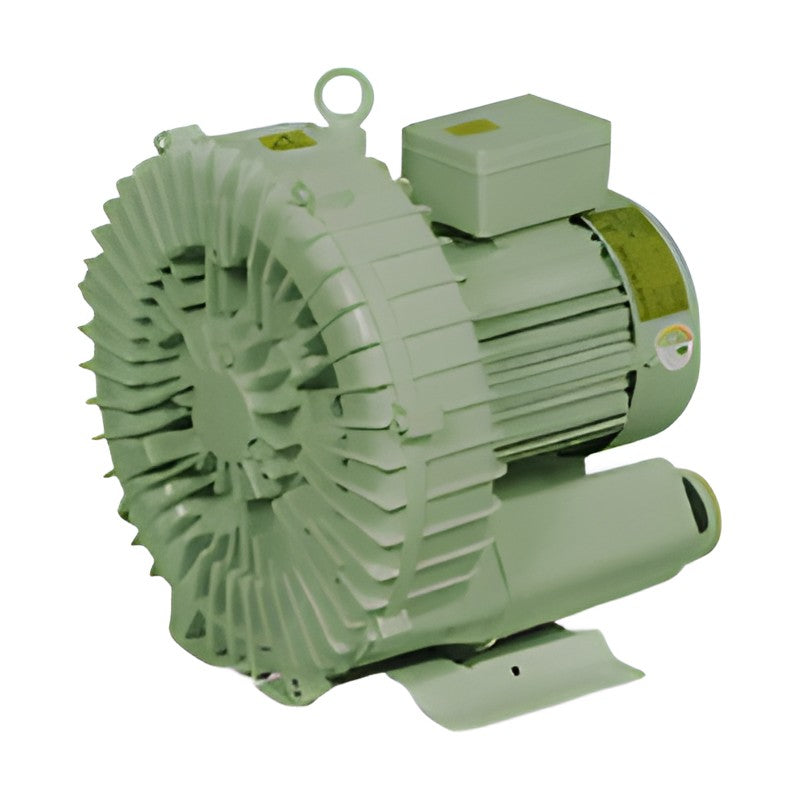

Hwang Hae Electric HRB single-stage three-phase ring blowers (side channel blowers) for vacuum and compressed-air duty, from 0.4 to 18.5 kW.

Key features

  • Single-stage side channel design for vacuum or pressure
  • Aluminium impeller; aluminium or cast-iron casing
  • Three-phase 220/380 V, 50/60 Hz motors
  • Air flow from 1.3 to 20 m3/min
  • Special voltages, anti-corrosion coating or explosion-proof on request

Specifications

Phase 3-phase, 220/380 V, 50/60 Hz
Power range 0.4-18.5 kW (50 Hz)
Max. pressure 4,400 mmAq (50 Hz)
Max. vacuum 3,600 mmAq (50 Hz)
Max. air flow 17 m3/min (50 Hz), 20 m3/min (60 Hz)
Impeller Aluminium
Casing Aluminium (to 1.5 kW frame) / cast iron
Insulation class F
Test conditions 20 C, 1,013 mbar, tolerance +/-10%
Source Hwang Hae HRB ring blower catalogue (3-phase single stage)
HRB-100 Power: 0.4 kW (50 Hz) | Pressure: 1,200 mmAq | Vacuum: 1,000 mmAq | Max. air flow: 1.3 m3/min | Phase: 3-phase
HRB-200MH Power: 0.75 kW (50 Hz) | Pressure: 1,300 mmAq | Vacuum: 1,200 mmAq | Max. air flow: 2.3 m3/min | Phase: 3-phase
HRB-300MH Power: 1.5 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 1,700 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-400MH Power: 2.2 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,200 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-500MH Power: 2.2 kW (50 Hz) | Pressure: 2,200 mmAq | Vacuum: 2,300 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-600MH Power: 3.0 kW (50 Hz) | Pressure: 2,800 mmAq | Vacuum: 2,600 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-700MH Power: 4.0 kW (50 Hz) | Pressure: 3,300 mmAq | Vacuum: 3,200 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-800MH Power: 5.5 kW (50 Hz) | Pressure: 2,800 mmAq | Vacuum: 2,700 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-900MH Power: 7.5 kW (50 Hz) | Pressure: 4,000 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-1000MH Power: 11 kW (50 Hz) | Pressure: 4,400 mmAq | Vacuum: 3,500 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-1100MH Power: 11 kW (50 Hz) | Pressure: 1,700 mmAq | Vacuum: 1,800 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
HRB-1200MH Power: 13 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,500 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
HRB-1300MH Power: 18.5 kW (50 Hz) | Pressure: 4,300 mmAq | Vacuum: 3,600 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
Ring BlowersHwang Hae Electric
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hwang Hae HRB Single-Stage Ring Blowers, 3-Phase (0.4-18.5 kW)

Brand Hwang Hae Electric·Ring Blowers

Available part numbers (13)

HRB-100, HRB-200MH, HRB-300MH, HRB-400MH, HRB-500MH, HRB-600MH, HRB-700MH, HRB-800MH, HRB-900MH, HRB-1000MH + 3 more — see full table ↓

How to order

Send the Hwang Hae Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRB-100Power: 0.4 kW (50 Hz) | Pressure: 1,200 mmAq | Vacuum: 1,000 mmAq | Max. air flow: 1.3 m3/min | Phase: 3-phase
HRB-200MHPower: 0.75 kW (50 Hz) | Pressure: 1,300 mmAq | Vacuum: 1,200 mmAq | Max. air flow: 2.3 m3/min | Phase: 3-phase
HRB-300MHPower: 1.5 kW (50 Hz) | Pressure: 2,000 mmAq | Vacuum: 1,700 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-400MHPower: 2.2 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,200 mmAq | Max. air flow: 3.4 m3/min | Phase: 3-phase
HRB-500MHPower: 2.2 kW (50 Hz) | Pressure: 2,200 mmAq | Vacuum: 2,300 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-600MHPower: 3.0 kW (50 Hz) | Pressure: 2,800 mmAq | Vacuum: 2,600 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-700MHPower: 4.0 kW (50 Hz) | Pressure: 3,300 mmAq | Vacuum: 3,200 mmAq | Max. air flow: 5.0 m3/min | Phase: 3-phase
HRB-800MHPower: 5.5 kW (50 Hz) | Pressure: 2,800 mmAq | Vacuum: 2,700 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-900MHPower: 7.5 kW (50 Hz) | Pressure: 4,000 mmAq | Vacuum: 3,000 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-1000MHPower: 11 kW (50 Hz) | Pressure: 4,400 mmAq | Vacuum: 3,500 mmAq | Max. air flow: 8.4 m3/min | Phase: 3-phase
HRB-1100MHPower: 11 kW (50 Hz) | Pressure: 1,700 mmAq | Vacuum: 1,800 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
HRB-1200MHPower: 13 kW (50 Hz) | Pressure: 2,700 mmAq | Vacuum: 2,500 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
HRB-1300MHPower: 18.5 kW (50 Hz) | Pressure: 4,300 mmAq | Vacuum: 3,600 mmAq | Max. air flow: 17 m3/min | Phase: 3-phase
