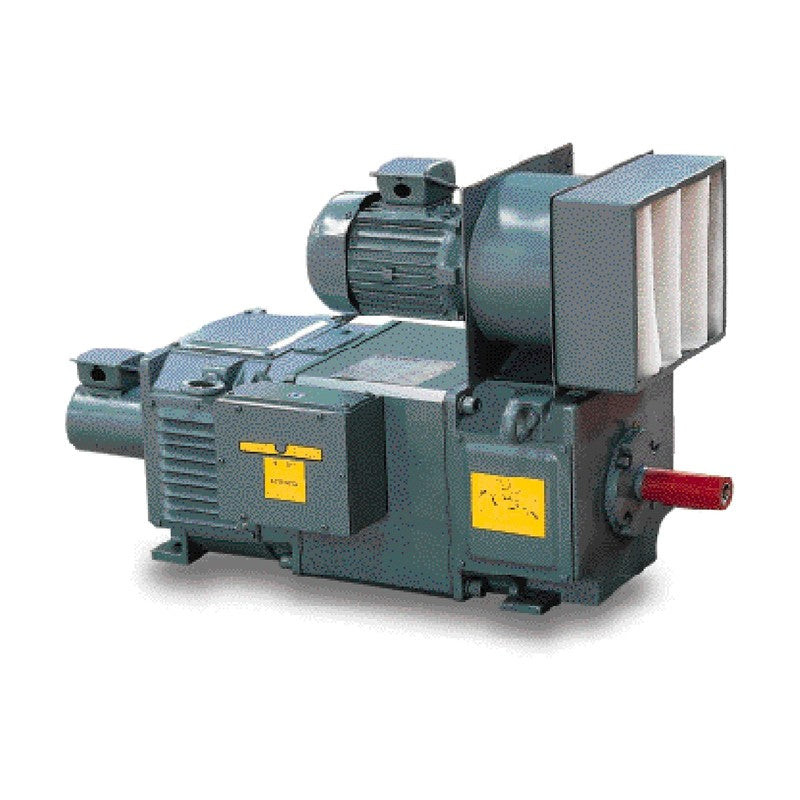

Hyosung LAB DC Motor, Frame 355-450

Hyosung LAB DC Motor, Frame 355-450

LAB-series large DC motors in centre heights 355-450 mm with outputs up to approx. 600 kW at 470 V for heavy variable-speed drives.

Key features

  • Fully laminated stator (frame, main poles and interpoles in one stamping) with low rotor inertia for fast, accurate control from a converter
  • Wide speed range; field-weakening operation possible within the listed speed limits
  • Class F insulation system (class H esterimide-varnished copper), suitable for tropical climates; anti-corrosion treatment standard
  • Low vibration and noise through careful rotor balancing and CNC-machined end shields and frames
  • Square-section frame with large inspection panels; fan motor and terminal box in 24 mounting combinations

Specifications

Motor type Separately excited DC motor
Standard IEC 34-1
Insulation class F
Degree of protection IP23S, IP54 (others on request)
Excitation Separate excitation, 180 V standard (110-440 V on request)
Rated ambient 40 °C, up to 1000 m altitude
Mounting IM 1001, IM 1011, IM 1002, IM 2001, IM 2011 (foot / flange)
Centre height 355, 400, 450 mm
Max. rated voltage 815 V
Excitation voltage 180 V
Cooling methods IC 17, IC 37, IC 06, IC W37A86
Rated output curve Output and speed at 470 V armature
Hyosung LAB DC Motor, Frame 355-450
LAB 355LA Centre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 6.1 kgm² | Excitation power: 1.9 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 1660 kg
LAB 355LB Centre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 7.1 kgm² | Excitation power: 2.1 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 1900 kg
LAB 355LC Centre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 8.4 kgm² | Excitation power: 2.3 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 2180 kg
LAB 400LB Centre height: 400 mm | Max. mechanical speed: 2200 r/min | Moment of inertia: 13.2 kgm² | Excitation power: 2.4 kW | Cooling air: 1.4 m³/s | Air pressure drop: 1100 Pa | Weight: 2740 kg
LAB 400LC Centre height: 400 mm | Max. mechanical speed: 2200 r/min | Moment of inertia: 15.3 kgm² | Excitation power: 3.6 kW | Cooling air: 1.4 m³/s | Air pressure drop: 1100 Pa | Weight: 3070 kg
LAB 450LB Centre height: 450 mm | Max. mechanical speed: 2000 r/min | Moment of inertia: 25.2 kgm² | Excitation power: 3.5 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 3500 kg
LAB 450LC Centre height: 450 mm | Max. mechanical speed: 2000 r/min | Moment of inertia: 29.5 kgm² | Excitation power: 3.2 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 4010 kg
LAB 450LD Centre height: 450 mm | Max. mechanical speed: 1800 r/min | Moment of inertia: 33.8 kgm² | Excitation power: 3.0 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 4520 kg
DC MotorsHyosung
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung LAB DC Motor, Frame 355-450

Brand Hyosung·DC Motors

Available part numbers (8)

LAB 355LA, LAB 355LB, LAB 355LC, LAB 400LB, LAB 400LC, LAB 450LB, LAB 450LC, LAB 450LD

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Hyosung LAB DC Motor, Frame 355-450
0 selected
RFQ List (0)
Product codeSpec
LAB 355LACentre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 6.1 kgm² | Excitation power: 1.9 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 1660 kg
LAB 355LBCentre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 7.1 kgm² | Excitation power: 2.1 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 1900 kg
LAB 355LCCentre height: 355 mm | Max. mechanical speed: 2400 r/min | Moment of inertia: 8.4 kgm² | Excitation power: 2.3 kW | Cooling air: 1.3 m³/s | Air pressure drop: 1200 Pa | Weight: 2180 kg
LAB 400LBCentre height: 400 mm | Max. mechanical speed: 2200 r/min | Moment of inertia: 13.2 kgm² | Excitation power: 2.4 kW | Cooling air: 1.4 m³/s | Air pressure drop: 1100 Pa | Weight: 2740 kg
LAB 400LCCentre height: 400 mm | Max. mechanical speed: 2200 r/min | Moment of inertia: 15.3 kgm² | Excitation power: 3.6 kW | Cooling air: 1.4 m³/s | Air pressure drop: 1100 Pa | Weight: 3070 kg
LAB 450LBCentre height: 450 mm | Max. mechanical speed: 2000 r/min | Moment of inertia: 25.2 kgm² | Excitation power: 3.5 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 3500 kg
LAB 450LCCentre height: 450 mm | Max. mechanical speed: 2000 r/min | Moment of inertia: 29.5 kgm² | Excitation power: 3.2 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 4010 kg
LAB 450LDCentre height: 450 mm | Max. mechanical speed: 1800 r/min | Moment of inertia: 33.8 kgm² | Excitation power: 3.0 kW | Cooling air: 1.8 m³/s | Air pressure drop: 1200 Pa | Weight: 4520 kg
