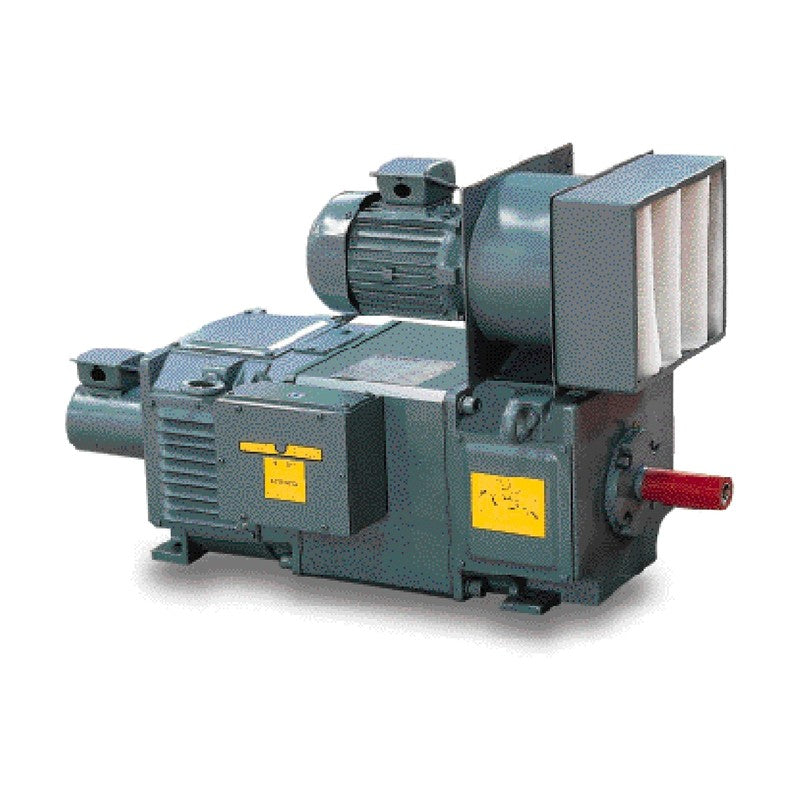

Hyosung LAP DC Motor, Frame 112-160

Hyosung LAP DC Motor, Frame 112-160

LAP-series laminated-frame DC motors in centre heights 112-160 mm for converter-fed variable-speed drives.

Key features

  • Fully laminated stator (frame, main poles and interpoles in one stamping) with low rotor inertia for fast, accurate control from a converter
  • Wide speed range; field-weakening operation possible within the listed speed limits
  • Overload capacity of 180% rated current for 30 s every 30 minutes; 160% rated torque for 15 s every 5 minutes (IEC 34-1)
  • Class F insulation system (class H esterimide-varnished copper), suitable for tropical climates; anti-corrosion treatment standard
  • Low vibration and noise through careful rotor balancing and CNC-machined end shields and frames
  • Square-section frame with large inspection panels; fan motor and terminal box in 24 mounting combinations

Specifications

Motor type Separately excited DC motor
Standard IEC 34-1
Insulation class F
Degree of protection IP23S, IP54 (others on request)
Excitation Separate excitation, 180 V standard (110-440 V on request)
Rated ambient 40 °C, up to 1000 m altitude
Mounting IM 1001, IM 1011, IM 1002, IM 2001, IM 2011 (foot / flange)
Centre height 112, 132, 160 mm
Min. speed at constant torque 40 r/min
Excitation voltage 180/220/370 V
Cooling methods IC 17, IC 37, IC 06
Rated output curve Output and speed at 470 V armature
Hyosung LAP DC Motor, Frame 112-160
LAP 112-2M Centre height: 112 mm | Max. mechanical speed: 5000 r/min | Moment of inertia: 0.03 kgm² | Excitation power: 420 W | Max. rated voltage: 620 V | Cooling air: 235 m³/h | Weight (foot/flange): 90/102 kg
LAP 112-2L Centre height: 112 mm | Max. mechanical speed: 5000 r/min | Moment of inertia: 0.04 kgm² | Excitation power: 500 W | Max. rated voltage: 620 V | Cooling air: 235 m³/h | Weight (foot/flange): 96/108 kg
LAP 132-4S Centre height: 132 mm | Max. mechanical speed: 4000 r/min | Moment of inertia: 0.10 kgm² | Excitation power: 750 W | Max. rated voltage: 620 V | Cooling air: 470 m³/h | Weight (foot/flange): 115/130 kg
LAP 132-4M Centre height: 132 mm | Max. mechanical speed: 4500 r/min | Moment of inertia: 0.12 kgm² | Excitation power: 830 W | Max. rated voltage: 620 V | Cooling air: 470 m³/h | Weight (foot/flange): 135/150 kg
LAP 132-4L Centre height: 132 mm | Max. mechanical speed: 4000 r/min | Moment of inertia: 0.14 kgm² | Excitation power: 1000 W | Max. rated voltage: 620 V | Cooling air: 470 m³/h | Weight (foot/flange): 160/175 kg
LAP 160-4S Centre height: 160 mm | Max. mechanical speed: 3500 r/min | Moment of inertia: 0.22 kgm² | Excitation power: 1050 W | Max. rated voltage: 550 V | Cooling air: 820 m³/h | Weight (foot/flange): 190/215 kg
LAP 160-4M Centre height: 160 mm | Max. mechanical speed: 3500 r/min | Moment of inertia: 0.25 kgm² | Excitation power: 1250 W | Max. rated voltage: 550 V | Cooling air: 820 m³/h | Weight (foot/flange): 220/245 kg
LAP 160-4L Centre height: 160 mm | Max. mechanical speed: 3500 r/min | Moment of inertia: 0.31 kgm² | Excitation power: 1400 W | Max. rated voltage: 550 V | Cooling air: 820 m³/h | Weight (foot/flange): 265/290 kg
