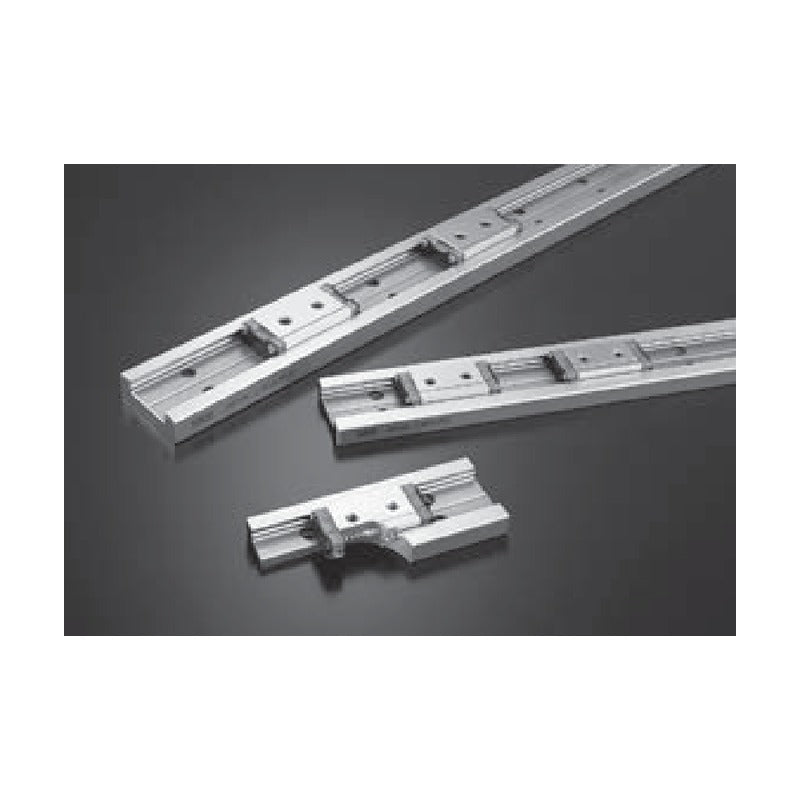

IKO MX, LRX C-Lube Linear Roller Way Super X, Flange Type

IKO MX, LRX C-Lube Linear Roller Way Super X, Flange Type

IKO C-Lube Linear Roller Way Super X MX, LRX (flange type, mountable from top or bottom): roller-type linear guides with C-Lube lubrication parts for long-term maintenance-free operation. MX codes are non-interchangeable sets; LRX codes are the interchangeable series.

Key features

  • Roller-type rolling guide with high load capacity, rigidity and running accuracy
  • C-Lube capillary lubrication part for long-term maintenance-free operation
  • Short (C), standard, long (G) and extra-long (L) slide unit lengths
  • Interchangeable LRX series ships slide units and rails separately
  • Preload: standard, T1 light, T2 medium, T3 heavy; accuracy H, P, SP, UP

Specifications

Series MX, LRX
Slide unit type Flange type, mountable from top or bottom
Rolling element Rollers
Preload classes Standard, T1, T2, T3
Accuracy classes H, P, SP, UP
Load units N (1 N = 0.102 kgf)
Order code Add slide units per rail, rail length, preload and grade
Source IKO C-Lube Linear Roller Way Super X MX/LRX catalogue, p. 12-15
MXC12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 40 mm | C / C0: 4250 / 6500 N | Unit mass: 0.058 kg
LRXC12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 37 mm | C / C0: 3900 / 6090 N | Unit mass: 0.058 kg
MX12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 50 mm | C / C0: 6120 / 10400 N | Unit mass: 0.092 kg
LRX12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 47 mm | C / C0: 5890 / 10400 N | Unit mass: 0.092 kg
MXG12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 61 mm | C / C0: 8120 / 15000 N | Unit mass: 0.13 kg
LRXG12 Rail W: 12 mm | Height H: 19 mm | Unit length L1: 58 mm | C / C0: 7710 / 14600 N | Unit mass: 0.13 kg
LRXC15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.13 kg
MXC15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.13 kg
LRX15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.20 kg
MX15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.20 kg
LRXG15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.28 kg
MXG15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.28 kg
LRXC20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.29 kg
MXC20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.29 kg
LRX20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.44 kg
MX20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.44 kg
LRXG20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.61 kg
MXG20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.61 kg
MXL20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 128 mm | C / C0: 37200 / 77200 N | Unit mass: 0.80 kg
LRXC25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.44 kg
MXC25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.44 kg
LRX25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.67 kg
MX25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.67 kg
LRXG25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.84 kg
MXG25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.84 kg
MXL25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 137 mm | C / C0: 47400 / 92800 N | Unit mass: 1.08 kg
LRXC30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.78 kg
MXC30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.78 kg
LRX30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 1.20 kg
MX30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 1.20 kg
LRXG30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.58 kg
MXG30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.58 kg
MXL30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 162 mm | C / C0: 65600 / 126000 N | Unit mass: 2.03 kg
MXC35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 92 mm | C / C0: 39500 / 60000 N | Unit mass: 1.13 kg
LRXC35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 92 mm | C / C0: 39500 / 60000 N | Unit mass: 1.13 kg
MX35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 124 mm | C / C0: 58700 / 100000 N | Unit mass: 1.76 kg
LRX35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 124 mm | C / C0: 58700 / 100000 N | Unit mass: 1.76 kg
MXG35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 152 mm | C / C0: 74200 / 135000 N | Unit mass: 2.41 kg
LRXG35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 152 mm | C / C0: 74200 / 135000 N | Unit mass: 2.41 kg
MXL35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 184 mm | C / C0: 90800 / 175000 N | Unit mass: 3.00 kg
LRXC45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 114 mm | C / C0: 64100 / 95600 N | Unit mass: 2.11 kg
MXC45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 114 mm | C / C0: 64100 / 95600 N | Unit mass: 2.11 kg
LRX45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 154 mm | C / C0: 95400 / 159000 N | Unit mass: 3.26 kg
MX45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 154 mm | C / C0: 95400 / 159000 N | Unit mass: 3.26 kg
LRXG45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 194 mm | C / C0: 124000 / 223000 N | Unit mass: 4.60 kg
MXG45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 194 mm | C / C0: 124000 / 223000 N | Unit mass: 4.60 kg
MXL45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 234 mm | C / C0: 151000 / 287000 N | Unit mass: 5.66 kg
LRXC55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 136 mm | C / C0: 99700 / 149000 N | Unit mass: 3.49 kg
MXC55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 136 mm | C / C0: 99700 / 149000 N | Unit mass: 3.49 kg
LRX55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 184 mm | C / C0: 148000 / 248000 N | Unit mass: 5.42 kg
MX55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 184 mm | C / C0: 148000 / 248000 N | Unit mass: 5.42 kg
LRXG55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 238 mm | C / C0: 198000 / 359000 N | Unit mass: 7.93 kg
MXG55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 238 mm | C / C0: 198000 / 359000 N | Unit mass: 7.93 kg
MXL55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 292 mm | C / C0: 244000 / 470000 N | Unit mass: 10.1 kg
MXC65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 180 mm | C / C0: 174000 / 249000 N | Unit mass: 7.18 kg
LRXC65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 181 mm | C / C0: 174000 / 249000 N | Unit mass: 7.18 kg
MX65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 244 mm | C / C0: 260000 / 415000 N | Unit mass: 11.5 kg
LRX65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 245 mm | C / C0: 260000 / 415000 N | Unit mass: 11.5 kg
MXG65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 308 mm | C / C0: 337000 / 581000 N | Unit mass: 16.0 kg
LRXG65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 309 mm | C / C0: 337000 / 581000 N | Unit mass: 16.0 kg
MXL65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 380 mm | C / C0: 419000 / 768000 N | Unit mass: 20.8 kg
LRX85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 323 mm | C / C0: 440000 / 753000 N | Unit mass: 25.4 kg
LRXG85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 395 mm | C / C0: 542000 / 985000 N | Unit mass: 32.7 kg
LRXL85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 494 mm | C / C0: 674000 / 1300000 N | Unit mass: 44.0 kg
LRXG100 Rail W: 100 mm | Height H: 120 mm | Unit length L1: 362 mm | C / C0: 498000 / 821000 N | Unit mass: 43.0 kg
Linear GuidesIKO
65 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
