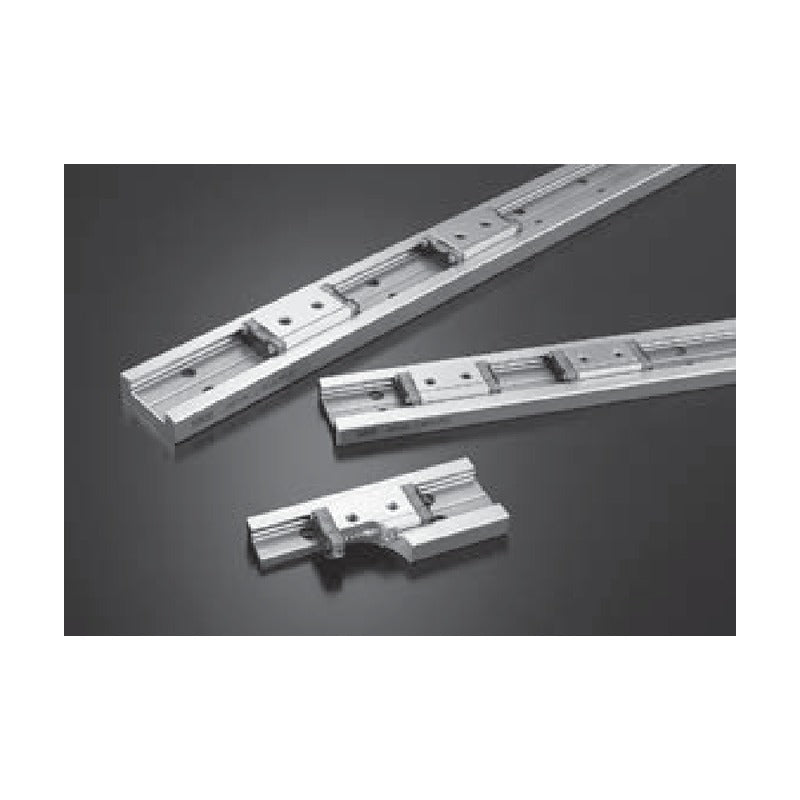

IKO MXD, LRXD C-Lube Linear Roller Way Super X, Block Type

IKO MXD, LRXD C-Lube Linear Roller Way Super X, Block Type

IKO C-Lube Linear Roller Way Super X MXD, LRXD (block type, mounted from top): roller-type linear guides with C-Lube lubrication parts for long-term maintenance-free operation. MX codes are non-interchangeable sets; LRX codes are the interchangeable series.

Key features

  • Roller-type rolling guide with high load capacity, rigidity and running accuracy
  • C-Lube capillary lubrication part for long-term maintenance-free operation
  • Short (C), standard, long (G) and extra-long (L) slide unit lengths
  • Stainless steel versions (SL) for clean and corrosive environments
  • Preload: standard, T1 light, T2 medium, T3 heavy; accuracy H, P, SP, UP

Specifications

Series MXD, LRXD
Slide unit type Block type, mounted from top
Rolling element Rollers
Preload classes Standard, T1, T2, T3
Accuracy classes H, P, SP, UP
Load units N (1 N = 0.102 kgf)
Order code Add slide units per rail, rail length, preload and grade
Source IKO C-Lube Linear Roller Way Super X MX/LRX catalogue, p. 16-20
MXD10...SL Rail W: 10 mm | Height H: 13 mm | Unit length L1: 36 mm | C / C0: 3200 / 5880 N | Unit mass: 0.028 kg
LRXD10...SL Rail W: 10 mm | Height H: 13 mm | Unit length L1: 35 mm | C / C0: 3200 / 5880 N | Unit mass: 0.028 kg
MXDC12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 40 mm | C / C0: 4250 / 6500 N | Unit mass: 0.045 kg
LRXDC12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 37 mm | C / C0: 3900 / 6090 N | Unit mass: 0.045 kg
LRXDC12...SL Rail W: 12 mm | Height H: 20 mm | Unit length L1: 37 mm | C / C0: 3900 / 6090 N | Unit mass: 0.045 kg
MXD12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 50 mm | C / C0: 6120 / 10400 N | Unit mass: 0.072 kg
LRXD12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 47 mm | C / C0: 5890 / 10400 N | Unit mass: 0.072 kg
MXD12...SL Rail W: 12 mm | Height H: 20 mm | Unit length L1: 50 mm | C / C0: 6120 / 10400 N | Unit mass: 0.072 kg
LRXD12...SL Rail W: 12 mm | Height H: 20 mm | Unit length L1: 47 mm | C / C0: 5890 / 10400 N | Unit mass: 0.072 kg
MXDG12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 61 mm | C / C0: 8120 / 15000 N | Unit mass: 0.097 kg
LRXDG12 Rail W: 12 mm | Height H: 20 mm | Unit length L1: 58 mm | C / C0: 7710 / 14600 N | Unit mass: 0.097 kg
LRXDG12...SL Rail W: 12 mm | Height H: 20 mm | Unit length L1: 58 mm | C / C0: 7710 / 14600 N | Unit mass: 0.097 kg
LRXDC15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.13 kg
MXDC15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.13 kg
LRXDC15...SL Rail W: 15 mm | Height H: 28 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.13 kg
LRXD15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.19 kg
MXD15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.19 kg
LRXD15...SL Rail W: 15 mm | Height H: 28 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.19 kg
MXD15...SL Rail W: 15 mm | Height H: 28 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.19 kg
LRXDG15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.26 kg
MXDG15 Rail W: 15 mm | Height H: 28 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.26 kg
LRXDG15...SL Rail W: 15 mm | Height H: 28 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.26 kg
LRXDC20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.25 kg
MXDC20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.25 kg
LRXDC20...SL Rail W: 20 mm | Height H: 34 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.25 kg
LRXD20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.38 kg
MXD20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.38 kg
LRXD20...SL Rail W: 20 mm | Height H: 34 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.38 kg
MXD20...SL Rail W: 20 mm | Height H: 34 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.38 kg
LRXDG20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.52 kg
MXDG20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.52 kg
LRXDG20...SL Rail W: 20 mm | Height H: 34 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.52 kg
MXDL20 Rail W: 20 mm | Height H: 34 mm | Unit length L1: 128 mm | C / C0: 37200 / 77200 N | Unit mass: 0.67 kg
LRXDC25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.36 kg
MXDC25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.36 kg
LRXDC25...SL Rail W: 23 mm | Height H: 40 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.36 kg
LRXD25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.55 kg
MXD25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.55 kg
LRXD25...SL Rail W: 23 mm | Height H: 40 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.55 kg
MXD25...SL Rail W: 23 mm | Height H: 40 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.55 kg
LRXDG25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.68 kg
MXDG25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.68 kg
LRXDG25...SL Rail W: 23 mm | Height H: 40 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.68 kg
MXDL25 Rail W: 23 mm | Height H: 40 mm | Unit length L1: 137 mm | C / C0: 47400 / 92800 N | Unit mass: 0.88 kg
LRXDC30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.60 kg
MXDC30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.60 kg
LRXDC30...SL Rail W: 28 mm | Height H: 45 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.60 kg
LRXD30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.92 kg
MXD30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.92 kg
LRXD30...SL Rail W: 28 mm | Height H: 45 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.92 kg
MXD30...SL Rail W: 28 mm | Height H: 45 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.92 kg
LRXDG30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.18 kg
MXDG30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.18 kg
LRXDG30...SL Rail W: 28 mm | Height H: 45 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.18 kg
MXDL30 Rail W: 28 mm | Height H: 45 mm | Unit length L1: 162 mm | C / C0: 65600 / 126000 N | Unit mass: 1.52 kg
MXDC35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 92 mm | C / C0: 39500 / 60000 N | Unit mass: 0.97 kg
LRXDC35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 92 mm | C / C0: 39500 / 60000 N | Unit mass: 0.97 kg
MXD35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 124 mm | C / C0: 58700 / 100000 N | Unit mass: 1.52 kg
LRXD35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 124 mm | C / C0: 58700 / 100000 N | Unit mass: 1.52 kg
MXDG35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 152 mm | C / C0: 74200 / 135000 N | Unit mass: 2.02 kg
LRXDG35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 152 mm | C / C0: 74200 / 135000 N | Unit mass: 2.02 kg
MXDL35 Rail W: 34 mm | Height H: 55 mm | Unit length L1: 184 mm | C / C0: 90800 / 175000 N | Unit mass: 2.55 kg
LRXDC45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 114 mm | C / C0: 64100 / 95600 N | Unit mass: 2.01 kg
MXDC45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 114 mm | C / C0: 64100 / 95600 N | Unit mass: 2.01 kg
LRXD45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 154 mm | C / C0: 95400 / 159000 N | Unit mass: 3.13 kg
MXD45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 154 mm | C / C0: 95400 / 159000 N | Unit mass: 3.13 kg
LRXDG45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 194 mm | C / C0: 124000 / 223000 N | Unit mass: 4.29 kg
MXDG45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 194 mm | C / C0: 124000 / 223000 N | Unit mass: 4.29 kg
MXDL45 Rail W: 45 mm | Height H: 70 mm | Unit length L1: 234 mm | C / C0: 151000 / 287000 N | Unit mass: 5.36 kg
LRXDC55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 136 mm | C / C0: 99700 / 149000 N | Unit mass: 3.17 kg
MXDC55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 136 mm | C / C0: 99700 / 149000 N | Unit mass: 3.17 kg
LRXD55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 184 mm | C / C0: 148000 / 248000 N | Unit mass: 4.97 kg
MXD55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 184 mm | C / C0: 148000 / 248000 N | Unit mass: 4.97 kg
LRXDG55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 238 mm | C / C0: 198000 / 359000 N | Unit mass: 7.06 kg
MXDG55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 238 mm | C / C0: 198000 / 359000 N | Unit mass: 7.06 kg
MXDL55 Rail W: 53 mm | Height H: 80 mm | Unit length L1: 292 mm | C / C0: 244000 / 470000 N | Unit mass: 9.08 kg
MXDC65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 180 mm | C / C0: 174000 / 249000 N | Unit mass: 5.52 kg
LRXDC65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 181 mm | C / C0: 174000 / 249000 N | Unit mass: 5.52 kg
MXD65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 244 mm | C / C0: 260000 / 415000 N | Unit mass: 8.70 kg
LRXD65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 245 mm | C / C0: 260000 / 415000 N | Unit mass: 8.70 kg
MXDG65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 308 mm | C / C0: 337000 / 581000 N | Unit mass: 12.1 kg
LRXDG65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 309 mm | C / C0: 337000 / 581000 N | Unit mass: 12.1 kg
MXDL65 Rail W: 63 mm | Height H: 90 mm | Unit length L1: 380 mm | C / C0: 419000 / 768000 N | Unit mass: 15.5 kg
LRXD85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 323 mm | C / C0: 440000 / 753000 N | Unit mass: 19.9 kg
LRXDG85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 395 mm | C / C0: 542000 / 985000 N | Unit mass: 25.5 kg
LRXDL85 Rail W: 85 mm | Height H: 110 mm | Unit length L1: 494 mm | C / C0: 674000 / 1300000 N | Unit mass: 34.1 kg
