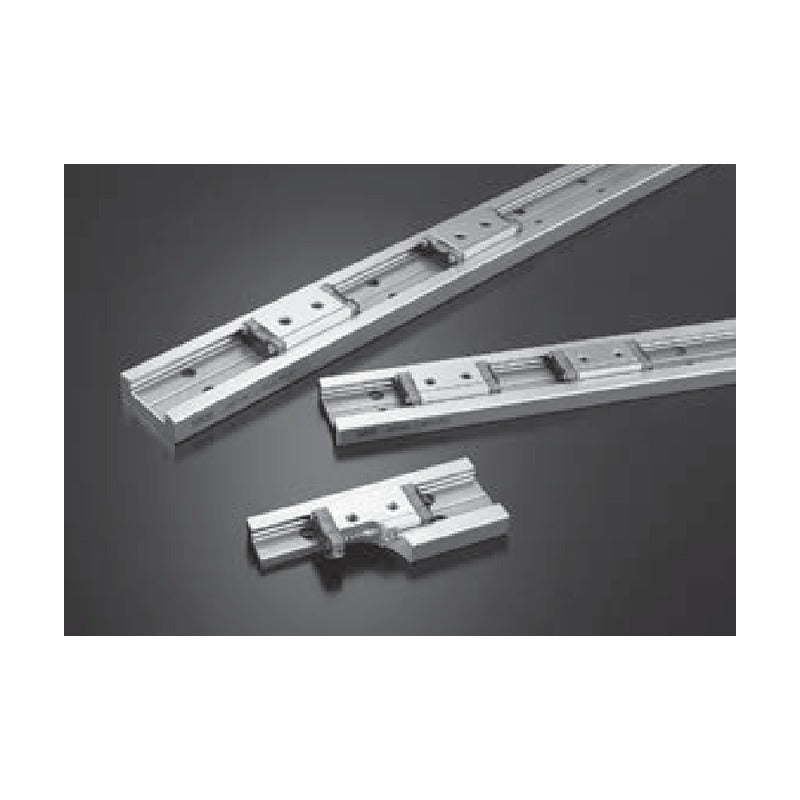

IKO MXN C-Lube Linear Roller Way Super X, Low Profile Flange Type

IKO C-Lube Linear Roller Way Super X MXN (low-profile flange type, mounted from top): roller-type linear guides with C-Lube lubrication parts for long-term maintenance-free operation. MX codes are non-interchangeable sets; LRX codes are the interchangeable series.

Key features

Roller-type rolling guide with high load capacity, rigidity and running accuracy
C-Lube capillary lubrication part for long-term maintenance-free operation
Short (C), standard, long (G) and extra-long (L) slide unit lengths
Low assembly height for compact machine designs
Preload: standard, T1 light, T2 medium, T3 heavy; accuracy H, P, SP, UP

Specifications

Series	MXN
Slide unit type	Low-profile flange type, mounted from top
Rolling element	Rollers
Preload classes	Standard, T1, T2, T3
Accuracy classes	H, P, SP, UP
Load units	N (1 N = 0.102 kgf)
Order code	Add slide units per rail, rail length, preload and grade
Source	IKO C-Lube Linear Roller Way Super X MX/LRX catalogue, p. 23-23

MXN30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 113 mm \| C / C0: 43400 / 74400 N \| Unit mass: 1.05 kg
MXNG30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 134 mm \| C / C0: 53200 / 96700 N \| Unit mass: 1.38 kg
MXNL30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 162 mm \| C / C0: 65600 / 126000 N \| Unit mass: 1.75 kg
MXN35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 124 mm \| C / C0: 58700 / 100000 N \| Unit mass: 1.55 kg
MXNG35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 152 mm \| C / C0: 74200 / 135000 N \| Unit mass: 2.13 kg
MXNL35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 184 mm \| C / C0: 90800 / 175000 N \| Unit mass: 2.71 kg
MXN45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 154 mm \| C / C0: 95400 / 159000 N \| Unit mass: 2.58 kg
MXNG45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 194 mm \| C / C0: 124000 / 223000 N \| Unit mass: 3.73 kg
MXNL45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 234 mm \| C / C0: 151000 / 287000 N \| Unit mass: 4.72 kg
MXN55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 184 mm \| C / C0: 148000 / 248000 N \| Unit mass: 4.61 kg
MXNG55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 238 mm \| C / C0: 198000 / 359000 N \| Unit mass: 6.94 kg
MXNL55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 292 mm \| C / C0: 244000 / 470000 N \| Unit mass: 8.87 kg
