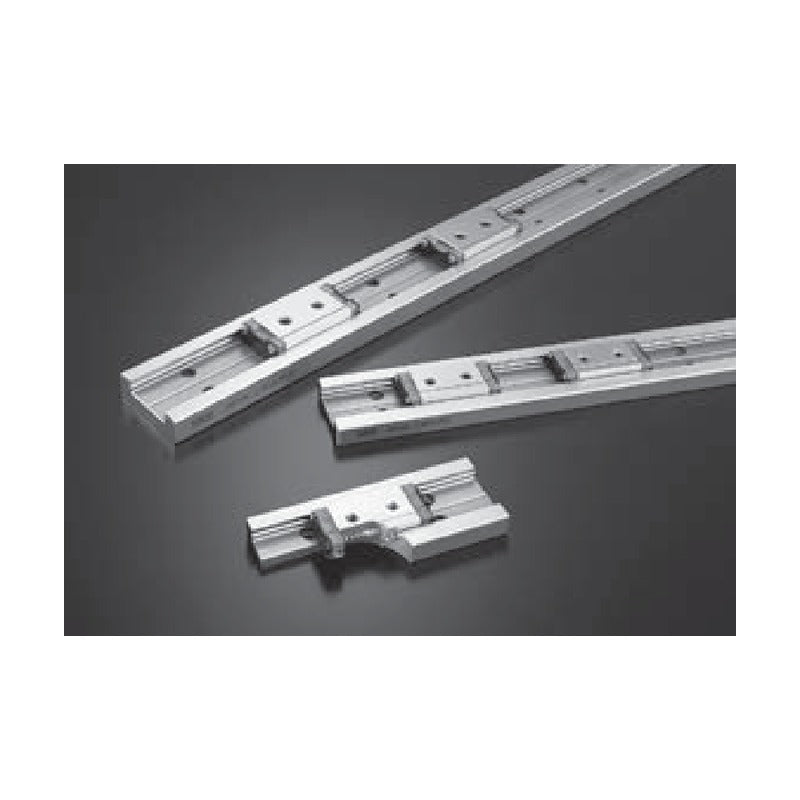

IKO MXNS C-Lube Linear Roller Way Super X, Low Profile Block Type

IKO C-Lube Linear Roller Way Super X MXNS (low-profile block type, mounted from top): roller-type linear guides with C-Lube lubrication parts for long-term maintenance-free operation. MX codes are non-interchangeable sets; LRX codes are the interchangeable series.

Key features

Roller-type rolling guide with high load capacity, rigidity and running accuracy
C-Lube capillary lubrication part for long-term maintenance-free operation
Short (C), standard, long (G) and extra-long (L) slide unit lengths
Low assembly height for compact machine designs
Preload: standard, T1 light, T2 medium, T3 heavy; accuracy H, P, SP, UP

Specifications

Series	MXNS
Slide unit type	Low-profile block type, mounted from top
Rolling element	Rollers
Preload classes	Standard, T1, T2, T3
Accuracy classes	H, P, SP, UP
Load units	N (1 N = 0.102 kgf)
Order code	Add slide units per rail, rail length, preload and grade
Source	IKO C-Lube Linear Roller Way Super X MX/LRX catalogue, p. 24-24

MXNS30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 113 mm \| C / C0: 43400 / 74400 N \| Unit mass: 0.70 kg
MXNSG30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 134 mm \| C / C0: 53200 / 96700 N \| Unit mass: 0.90 kg
MXNSL30		Rail W: 28 mm \| Height H: 38 mm \| Unit length L1: 162 mm \| C / C0: 65600 / 126000 N \| Unit mass: 1.14 kg
MXNS35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 124 mm \| C / C0: 58700 / 100000 N \| Unit mass: 1.08 kg
MXNSG35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 152 mm \| C / C0: 74200 / 135000 N \| Unit mass: 1.42 kg
MXNSL35		Rail W: 34 mm \| Height H: 44 mm \| Unit length L1: 184 mm \| C / C0: 90800 / 175000 N \| Unit mass: 1.81 kg
MXNS45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 154 mm \| C / C0: 95400 / 159000 N \| Unit mass: 1.84 kg
MXNSG45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 194 mm \| C / C0: 124000 / 223000 N \| Unit mass: 2.58 kg
MXNSL45		Rail W: 45 mm \| Height H: 52 mm \| Unit length L1: 234 mm \| C / C0: 151000 / 287000 N \| Unit mass: 3.29 kg
MXNS55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 184 mm \| C / C0: 148000 / 248000 N \| Unit mass: 3.31 kg
MXNSG55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 238 mm \| C / C0: 198000 / 359000 N \| Unit mass: 4.83 kg
MXNSL55		Rail W: 53 mm \| Height H: 63 mm \| Unit length L1: 292 mm \| C / C0: 244000 / 470000 N \| Unit mass: 6.28 kg

Linear GuidesIKO

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IKO MXNS C-Lube Linear Roller Way Super X, Low Profile Block Type

Brand IKO·Linear Guides

Available part numbers (12)

MXNS30, MXNSG30, MXNSL30, MXNS35, MXNSG35, MXNSL35, MXNS45, MXNSG45, MXNSL45, MXNS55 + 2 more — see full table ↓
