IKO MXS, LRXS C-Lube Linear Roller Way Super X, Compact Block Type

IKO MXS, LRXS C-Lube Linear Roller Way Super X, Compact Block Type

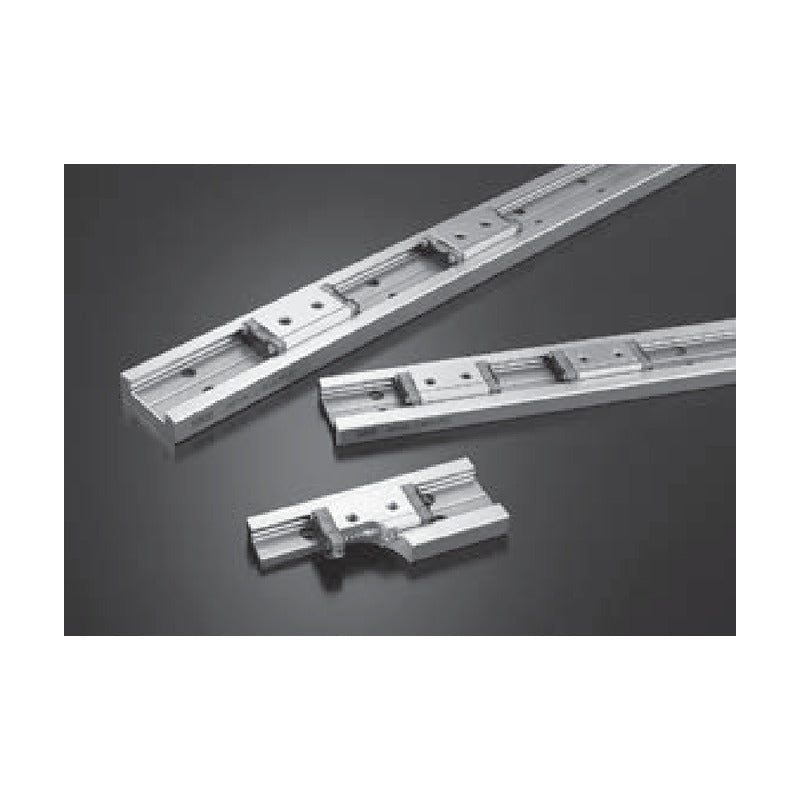

IKO C-Lube Linear Roller Way Super X MXS, LRXS (compact block type, mounted from top): roller-type linear guides with C-Lube lubrication parts for long-term maintenance-free operation. MX codes are non-interchangeable sets; LRX codes are the interchangeable series.

Key features

  • Roller-type rolling guide with high load capacity, rigidity and running accuracy
  • C-Lube capillary lubrication part for long-term maintenance-free operation
  • Short (C), standard, long (G) and extra-long (L) slide unit lengths
  • Interchangeable LRX series ships slide units and rails separately
  • Preload: standard, T1 light, T2 medium, T3 heavy; accuracy H, P, SP, UP

Specifications

Series MXS, LRXS
Slide unit type Compact block type, mounted from top
Rolling element Rollers
Preload classes Standard, T1, T2, T3
Accuracy classes H, P, SP, UP
Load units N (1 N = 0.102 kgf)
Order code Add slide units per rail, rail length, preload and grade
Source IKO C-Lube Linear Roller Way Super X MX/LRX catalogue, p. 21-22
LRXSC15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.099 kg
MXSC15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 52 mm | C / C0: 7730 / 12000 N | Unit mass: 0.099 kg
LRXS15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.15 kg
MXS15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 68 mm | C / C0: 11500 / 20000 N | Unit mass: 0.15 kg
LRXSG15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.21 kg
MXSG15 Rail W: 15 mm | Height H: 24 mm | Unit length L1: 84 mm | C / C0: 14900 / 28000 N | Unit mass: 0.21 kg
LRXSC20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.21 kg
MXSC20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 66 mm | C / C0: 16100 / 26400 N | Unit mass: 0.21 kg
LRXS20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.31 kg
MXS20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 86 mm | C / C0: 23400 / 42700 N | Unit mass: 0.31 kg
LRXSG20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.42 kg
MXSG20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 106 mm | C / C0: 30100 / 58900 N | Unit mass: 0.42 kg
MXSL20 Rail W: 20 mm | Height H: 30 mm | Unit length L1: 128 mm | C / C0: 37200 / 77200 N | Unit mass: 0.55 kg
LRXSC25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.30 kg
MXSC25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 74 mm | C / C0: 21600 / 33800 N | Unit mass: 0.30 kg
LRXS25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.47 kg
MXS25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 98 mm | C / C0: 32100 / 56300 N | Unit mass: 0.47 kg
LRXSG25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.57 kg
MXSG25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 113 mm | C / C0: 38200 / 70300 N | Unit mass: 0.57 kg
MXSL25 Rail W: 23 mm | Height H: 36 mm | Unit length L1: 137 mm | C / C0: 47400 / 92800 N | Unit mass: 0.74 kg
LRXSC30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.54 kg
MXSC30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 85 mm | C / C0: 29200 / 44600 N | Unit mass: 0.54 kg
LRXS30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.83 kg
MXS30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 113 mm | C / C0: 43400 / 74400 N | Unit mass: 0.83 kg
LRXSG30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.05 kg
MXSG30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 134 mm | C / C0: 53200 / 96700 N | Unit mass: 1.05 kg
MXSL30 Rail W: 28 mm | Height H: 42 mm | Unit length L1: 162 mm | C / C0: 65600 / 126000 N | Unit mass: 1.37 kg
MXS35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 124 mm | C / C0: 58700 / 100000 N | Unit mass: 1.22 kg
MXSG35 Rail W: 34 mm | Height H: 48 mm | Unit length L1: 152 mm | C / C0: 74200 / 135000 N | Unit mass: 1.61 kg
MXS45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 154 mm | C / C0: 95400 / 159000 N | Unit mass: 2.37 kg
MXSG45 Rail W: 45 mm | Height H: 60 mm | Unit length L1: 194 mm | C / C0: 124000 / 223000 N | Unit mass: 3.27 kg
MXS55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 184 mm | C / C0: 148000 / 248000 N | Unit mass: 3.96 kg
MXSG55 Rail W: 53 mm | Height H: 70 mm | Unit length L1: 238 mm | C / C0: 198000 / 359000 N | Unit mass: 5.63 kg
