INA BKE Braking Elements for Monorail Guidance Systems

INA BKE Braking Elements for Monorail Guidance Systems

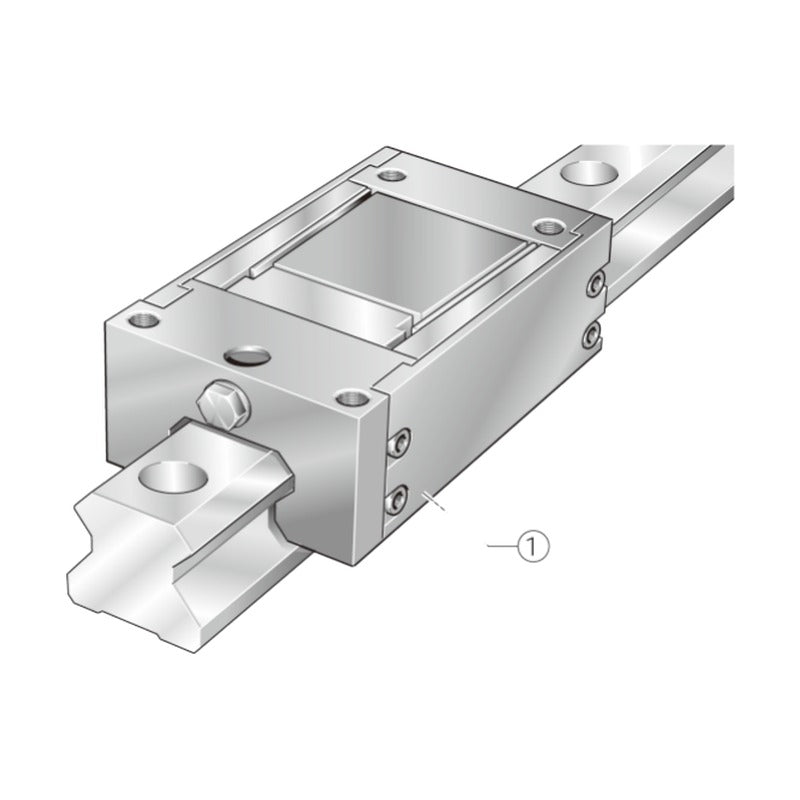

INA BKE braking elements for TSX roller guideways, TKVD four-row and TKSD six-row ball guideways; versions with adapter plate (H) and oil connection on top (O).

Key features

  • Spring-actuated braking on the guideway
  • For TSX, TKVD and TKSD guideways
  • Clamping forces from 1 to 11 kN
  • H versions with adapter plate for high carriages
  • O versions with oil supply from above

Specifications

Brand INA
Product type Linear Guides
Series BKE
Designations listed 48
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 136-137
BKE TSX 25 D Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TSX 25 D O Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TSX 25 D H Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TSX 25 D HO Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TSX 35 D Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TSX 35 D O Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TSX 35 D H Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TSX 35 D HO Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TSX 45 D Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TSX 45 D O Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TSX 45 D H Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TSX 45 D HO Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TSX 55 D Clamping force: 5.1 kN | H: 70 mm | B: 99 mm | L: 170 mm
BKE TSX 55 D O Clamping force: 5.1 kN | H: 70 mm | B: 99 mm | L: 170 mm
BKE TSX 55 D H Clamping force: 5.1 kN | H: 80 mm | B: 99 mm | L: 170 mm
BKE TSX 55 D HO Clamping force: 5.1 kN | H: 80 mm | B: 99 mm | L: 170 mm
BKE TSX 65 D Clamping force: 11 kN | H: 90 mm | B: 125 mm | L: 186 mm
BKE TSX 65 D O Clamping force: 11 kN | H: 90 mm | B: 125 mm | L: 186 mm
BKE TSX 65 D H Clamping force: 11 kN | H: 100 mm | B: 125 mm | L: 186 mm
BKE TSX 65 D HO Clamping force: 11 kN | H: 100 mm | B: 125 mm | L: 186 mm
BKE TKVD 25 Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TKVD 25 O Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TKVD 25 H Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TKVD 25 HO Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TKVD 35 Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TKVD 35 O Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TKVD 35 H Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TKVD 35 HO Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TKVD 45 Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TKVD 45 O Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TKVD 45 H Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TKVD 45 HO Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TKSD 25 Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TKSD 25 O Clamping force: 1 kN | H: 36 mm | B: 47 mm | L: 91 mm
BKE TKSD 25 H Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TKSD 25 HO Clamping force: 1 kN | H: 40 mm | B: 47 mm | L: 91 mm
BKE TKSD 35 Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TKSD 35 O Clamping force: 2.8 kN | H: 48 mm | B: 69 mm | L: 120 mm
BKE TKSD 35 H Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TKSD 35 HO Clamping force: 2.8 kN | H: 55 mm | B: 69 mm | L: 120 mm
BKE TKSD 45 Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TKSD 45 O Clamping force: 4.3 kN | H: 60 mm | B: 85 mm | L: 141 mm
BKE TKSD 45 H Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TKSD 45 HO Clamping force: 4.3 kN | H: 70 mm | B: 85 mm | L: 141 mm
BKE TKSD 55 Clamping force: 5.1 kN | H: 70 mm | B: 99 mm | L: 170 mm
BKE TKSD 55 O Clamping force: 5.1 kN | H: 70 mm | B: 99 mm | L: 170 mm
BKE TKSD 55 H Clamping force: 5.1 kN | H: 80 mm | B: 99 mm | L: 170 mm
BKE TKSD 55 HO Clamping force: 5.1 kN | H: 80 mm | B: 99 mm | L: 170 mm
Linear GuidesINA
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
