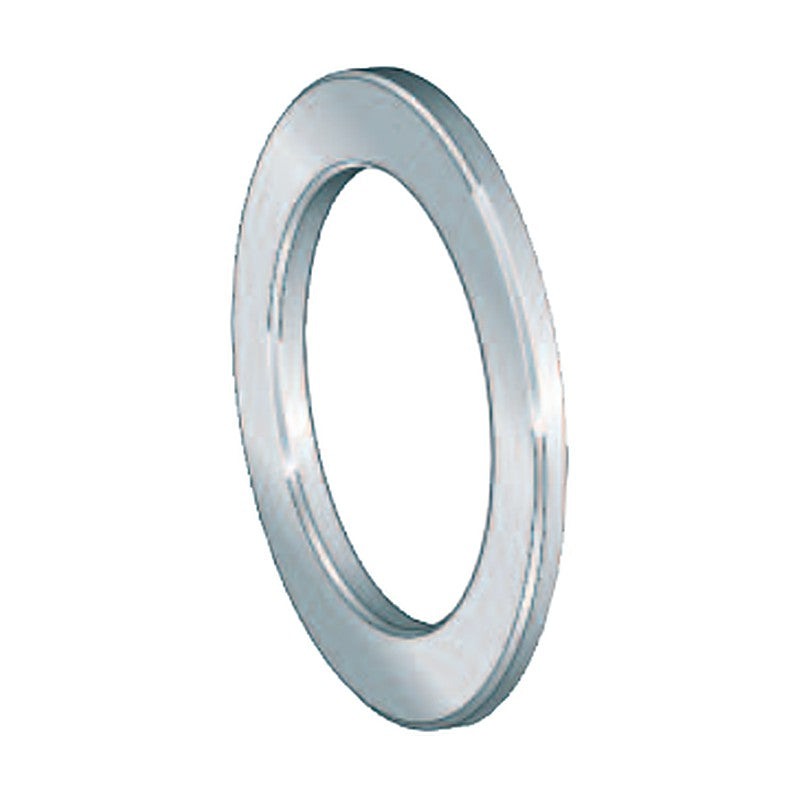

INA GS / WS / LS Axial Bearing Washers

INA GS / WS / LS Axial Bearing Washers

INA housing locating washers GS, shaft locating washers WS and universal bearing washers LS for axial cylindrical roller and cage assemblies.

Key features

  • GS: housing washer centred in the housing bore
  • WS: shaft washer centred on the shaft
  • LS: universal washer for small series sizes
  • Hardened rolling bearing steel; ground raceways
  • Matching cage assembly listed per washer

Specifications

Brand INA
Product type Bearing Accessories
Material Rolling bearing steel, hardened
Shaft diameter 15 - 320 mm
Housing diameter 28 - 580 mm
Designations listed 236
Source INA Rolling Bearings HR 1 catalogue, p. 770-777
GS81102 Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
WS81102 Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
LS1528 Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
GS81103 Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
WS81103 Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
LS1730 Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
GS81104 Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
WS81104 Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
LS2035 Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
GS81105 Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
WS81105 Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
LS2542 Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
GS81106 Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
WS81106 Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
LS3047 Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
GS81206 Shaft d: 30 mm | Housing D: 52 mm | B: 4.25 mm | Cage: K81206-TV
WS81206 Shaft d: 30 mm | Housing D: 52 mm | B: 4.25 mm | Cage: K81206-TV
GS89306 Shaft d: 30 mm | Housing D: 60 mm | B: 6.25 mm | Cage: K89306-TV
WS89306 Shaft d: 30 mm | Housing D: 60 mm | B: 6.25 mm | Cage: K89306-TV
GS81107 Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
WS81107 Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
LS3552 Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
GS81207 Shaft d: 35 mm | Housing D: 62 mm | B: 5.25 mm | Cage: K81207-TV
WS81207 Shaft d: 35 mm | Housing D: 62 mm | B: 5.25 mm | Cage: K81207-TV
GS89307 Shaft d: 35 mm | Housing D: 68 mm | B: 7 mm | Cage: K89307-TV
WS89307 Shaft d: 35 mm | Housing D: 68 mm | B: 7 mm | Cage: K89307-TV
GS81108 Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
WS81108 Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
LS4060 Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
GS81208 Shaft d: 40 mm | Housing D: 68 mm | B: 5 mm | Cage: K81208-TV
WS81208 Shaft d: 40 mm | Housing D: 68 mm | B: 5 mm | Cage: K81208-TV
GS89308 Shaft d: 40 mm | Housing D: 78 mm | B: 7.5 mm | Cage: K89308-TV
WS89308 Shaft d: 40 mm | Housing D: 78 mm | B: 7.5 mm | Cage: K89308-TV
GS81109 Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
WS81109 Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
LS4565 Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
GS81209 Shaft d: 45 mm | Housing D: 73 mm | B: 5.5 mm | Cage: K81209-TV
WS81209 Shaft d: 45 mm | Housing D: 73 mm | B: 5.5 mm | Cage: K81209-TV
GS89309 Shaft d: 45 mm | Housing D: 85 mm | B: 8.25 mm | Cage: K89309-TV
WS89309 Shaft d: 45 mm | Housing D: 85 mm | B: 8.25 mm | Cage: K89309-TV
GS81110 Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
WS81110 Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
LS5070 Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
GS81210 Shaft d: 50 mm | Housing D: 78 mm | B: 6.5 mm | Cage: K81210-TV
WS81210 Shaft d: 50 mm | Housing D: 78 mm | B: 6.5 mm | Cage: K81210-TV
GS89310 Shaft d: 50 mm | Housing D: 95 mm | B: 9.5 mm | Cage: K89310-TV
WS89310 Shaft d: 50 mm | Housing D: 95 mm | B: 9.5 mm | Cage: K89310-TV
GS81111 Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
WS81111 Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
LS5578 Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
GS81211 Shaft d: 55 mm | Housing D: 90 mm | B: 7 mm | Cage: K81211-TV
WS81211 Shaft d: 55 mm | Housing D: 90 mm | B: 7 mm | Cage: K81211-TV
GS89311 Shaft d: 55 mm | Housing D: 105 mm | B: 10.5 mm | Cage: K89311-TV
WS89311 Shaft d: 55 mm | Housing D: 105 mm | B: 10.5 mm | Cage: K89311-TV
GS81112 Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
WS81112 Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
LS6085 Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
GS81212 Shaft d: 60 mm | Housing D: 95 mm | B: 7.5 mm | Cage: K81212-TV
WS81212 Shaft d: 60 mm | Housing D: 95 mm | B: 7.5 mm | Cage: K81212-TV
GS89312 Shaft d: 60 mm | Housing D: 110 mm | B: 10.5 mm | Cage: K89312-TV
WS89312 Shaft d: 60 mm | Housing D: 110 mm | B: 10.5 mm | Cage: K89312-TV
GS89412 Shaft d: 60 mm | Housing D: 130 mm | B: 14 mm | Cage: K89412-TV
WS89412 Shaft d: 60 mm | Housing D: 130 mm | B: 14 mm | Cage: K89412-TV
GS81113 Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
WS81113 Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
LS6590 Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
GS81213 Shaft d: 65 mm | Housing D: 100 mm | B: 8 mm | Cage: K81213-TV
WS81213 Shaft d: 65 mm | Housing D: 100 mm | B: 8 mm | Cage: K81213-TV
GS89313 Shaft d: 65 mm | Housing D: 115 mm | B: 10.5 mm | Cage: K89313-TV
WS89313 Shaft d: 65 mm | Housing D: 115 mm | B: 10.5 mm | Cage: K89313-TV
GS89413 Shaft d: 65 mm | Housing D: 140 mm | B: 15 mm | Cage: K89413-TV
WS89413 Shaft d: 65 mm | Housing D: 140 mm | B: 15 mm | Cage: K89413-TV
GS81114 Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
WS81114 Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
LS7095 Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
GS81214 Shaft d: 70 mm | Housing D: 105 mm | B: 8 mm | Cage: K81214-TV
WS81214 Shaft d: 70 mm | Housing D: 105 mm | B: 8 mm | Cage: K81214-TV
GS89314 Shaft d: 70 mm | Housing D: 125 mm | B: 12 mm | Cage: K89314-TV
WS89314 Shaft d: 70 mm | Housing D: 125 mm | B: 12 mm | Cage: K89314-TV
GS89414 Shaft d: 70 mm | Housing D: 150 mm | B: 16 mm | Cage: K89414-TV
WS89414 Shaft d: 70 mm | Housing D: 150 mm | B: 16 mm | Cage: K89414-TV
GS81115 Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
WS81115 Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
LS75100 Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
GS81215 Shaft d: 75 mm | Housing D: 110 mm | B: 8 mm | Cage: K81215-TV
WS81215 Shaft d: 75 mm | Housing D: 110 mm | B: 8 mm | Cage: K81215-TV
GS89315 Shaft d: 75 mm | Housing D: 135 mm | B: 12.5 mm | Cage: K89315-TV
WS89315 Shaft d: 75 mm | Housing D: 135 mm | B: 12.5 mm | Cage: K89315-TV
GS89415 Shaft d: 75 mm | Housing D: 160 mm | B: 17 mm | Cage: K89415-M
WS89415 Shaft d: 75 mm | Housing D: 160 mm | B: 17 mm | Cage: K89415-M
GS81116 Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
WS81116 Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
LS80105 Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
GS81216 Shaft d: 80 mm | Housing D: 115 mm | B: 8.5 mm | Cage: K81216-TV
WS81216 Shaft d: 80 mm | Housing D: 115 mm | B: 8.5 mm | Cage: K81216-TV
GS89316 Shaft d: 80 mm | Housing D: 140 mm | B: 12.5 mm | Cage: K89316-TV
WS89316 Shaft d: 80 mm | Housing D: 140 mm | B: 12.5 mm | Cage: K89316-TV
GS89416 Shaft d: 80 mm | Housing D: 170 mm | B: 18 mm | Cage: K89416-M
WS89416 Shaft d: 80 mm | Housing D: 170 mm | B: 18 mm | Cage: K89416-M
GS81117 Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
WS81117 Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
LS85110 Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
GS81217 Shaft d: 85 mm | Housing D: 125 mm | B: 9.5 mm | Cage: K81217-TV
WS81217 Shaft d: 85 mm | Housing D: 125 mm | B: 9.5 mm | Cage: K81217-TV
GS89317 Shaft d: 85 mm | Housing D: 150 mm | B: 13.5 mm | Cage: K89317-M
WS89317 Shaft d: 85 mm | Housing D: 150 mm | B: 13.5 mm | Cage: K89317-M
GS89417 Shaft d: 85 mm | Housing D: 180 mm | B: 19.5 mm | Cage: K89417-M
WS89417 Shaft d: 85 mm | Housing D: 180 mm | B: 19.5 mm | Cage: K89417-M
GS81118 Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
WS81118 Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
LS90120 Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
GS81218 Shaft d: 90 mm | Housing D: 135 mm | B: 10.5 mm | Cage: K81218-TV
WS81218 Shaft d: 90 mm | Housing D: 135 mm | B: 10.5 mm | Cage: K81218-TV
GS89318 Shaft d: 90 mm | Housing D: 155 mm | B: 13.5 mm | Cage: K89318-M
WS89318 Shaft d: 90 mm | Housing D: 155 mm | B: 13.5 mm | Cage: K89318-M
GS89418 Shaft d: 90 mm | Housing D: 190 mm | B: 20 mm | Cage: K89418-M
WS89418 Shaft d: 90 mm | Housing D: 190 mm | B: 20 mm | Cage: K89418-M
GS81120 Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
WS81120 Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
LS100135 Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
GS81220 Shaft d: 100 mm | Housing D: 150 mm | B: 11.5 mm | Cage: K81220-TV
WS81220 Shaft d: 100 mm | Housing D: 150 mm | B: 11.5 mm | Cage: K81220-TV
GS89320 Shaft d: 100 mm | Housing D: 170 mm | B: 14.5 mm | Cage: K89320-M
WS89320 Shaft d: 100 mm | Housing D: 170 mm | B: 14.5 mm | Cage: K89320-M
GS89420 Shaft d: 100 mm | Housing D: 210 mm | B: 22.5 mm | Cage: K89420-M
WS89420 Shaft d: 100 mm | Housing D: 210 mm | B: 22.5 mm | Cage: K89420-M
GS81122 Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
WS81122 Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
LS110145 Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
GS81222 Shaft d: 110 mm | Housing D: 160 mm | B: 11.5 mm | Cage: K81222-TV
WS81222 Shaft d: 110 mm | Housing D: 160 mm | B: 11.5 mm | Cage: K81222-TV
GS89322 Shaft d: 110 mm | Housing D: 190 mm | B: 16.5 mm | Cage: K89322-M
WS89322 Shaft d: 110 mm | Housing D: 190 mm | B: 16.5 mm | Cage: K89322-M
GS89422 Shaft d: 110 mm | Housing D: 230 mm | B: 24.5 mm | Cage: K89422-M
WS89422 Shaft d: 110 mm | Housing D: 230 mm | B: 24.5 mm | Cage: K89422-M
GS81124 Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
WS81124 Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
LS120155 Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
GS81224 Shaft d: 120 mm | Housing D: 170 mm | B: 12 mm | Cage: K81224-TV
WS81224 Shaft d: 120 mm | Housing D: 170 mm | B: 12 mm | Cage: K81224-TV
GS89324 Shaft d: 120 mm | Housing D: 210 mm | B: 18.5 mm | Cage: K89324-M
WS89324 Shaft d: 120 mm | Housing D: 210 mm | B: 18.5 mm | Cage: K89324-M
GS89424 Shaft d: 120 mm | Housing D: 250 mm | B: 26 mm | Cage: K89424-M
WS89424 Shaft d: 120 mm | Housing D: 250 mm | B: 26 mm | Cage: K89424-M
GS81126 Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
WS81126 Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
LS130170 Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
GS81226 Shaft d: 130 mm | Housing D: 190 mm | B: 13 mm | Cage: K81226-TV
WS81226 Shaft d: 130 mm | Housing D: 190 mm | B: 13 mm | Cage: K81226-TV
GS89326 Shaft d: 130 mm | Housing D: 225 mm | B: 20 mm | Cage: K89326-M
WS89326 Shaft d: 130 mm | Housing D: 225 mm | B: 20 mm | Cage: K89326-M
GS89426 Shaft d: 130 mm | Housing D: 270 mm | B: 28.5 mm | Cage: K89426-M
WS89426 Shaft d: 130 mm | Housing D: 270 mm | B: 28.5 mm | Cage: K89426-M
GS81128 Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
WS81128 Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
LS140180 Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
GS81228 Shaft d: 140 mm | Housing D: 200 mm | B: 13.5 mm | Cage: K81228-M
WS81228 Shaft d: 140 mm | Housing D: 200 mm | B: 13.5 mm | Cage: K81228-M
GS89328 Shaft d: 140 mm | Housing D: 240 mm | B: 20.5 mm | Cage: K89328-M
WS89328 Shaft d: 140 mm | Housing D: 240 mm | B: 20.5 mm | Cage: K89328-M
GS89428 Shaft d: 140 mm | Housing D: 280 mm | B: 28.5 mm | Cage: K89428-M
WS89428 Shaft d: 140 mm | Housing D: 280 mm | B: 28.5 mm | Cage: K89428-M
GS81130 Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
WS81130 Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
LS150190 Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
GS81230 Shaft d: 150 mm | Housing D: 215 mm | B: 14.5 mm | Cage: K81230-M
WS81230 Shaft d: 150 mm | Housing D: 215 mm | B: 14.5 mm | Cage: K81230-M
GS89330 Shaft d: 150 mm | Housing D: 250 mm | B: 20.5 mm | Cage: K89330-M
WS89330 Shaft d: 150 mm | Housing D: 250 mm | B: 20.5 mm | Cage: K89330-M
GS89430 Shaft d: 150 mm | Housing D: 300 mm | B: 30 mm | Cage: K89430-M
WS89430 Shaft d: 150 mm | Housing D: 300 mm | B: 30 mm | Cage: K89430-M
GS81132 Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
WS81132 Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
LS160200 Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
GS81232 Shaft d: 160 mm | Housing D: 225 mm | B: 15 mm | Cage: K81232-M
WS81232 Shaft d: 160 mm | Housing D: 225 mm | B: 15 mm | Cage: K81232-M
GS89432 Shaft d: 160 mm | Housing D: 320 mm | B: 31.5 mm | Cage: K89432-M
WS89432 Shaft d: 160 mm | Housing D: 320 mm | B: 31.5 mm | Cage: K89432-M
GS81134 Shaft d: 170 mm | Housing D: 215 mm | B: 10 mm | Cage: K81134-TV
WS81134 Shaft d: 170 mm | Housing D: 215 mm | B: 10 mm | Cage: K81134-TV
GS81234 Shaft d: 170 mm | Housing D: 240 mm | B: 16.5 mm | Cage: K81234-M
WS81234 Shaft d: 170 mm | Housing D: 240 mm | B: 16.5 mm | Cage: K81234-M
GS89434 Shaft d: 170 mm | Housing D: 340 mm | B: 34.5 mm | Cage: K89434-M
WS89434 Shaft d: 170 mm | Housing D: 340 mm | B: 34.5 mm | Cage: K89434-M
GS81136 Shaft d: 180 mm | Housing D: 225 mm | B: 10 mm | Cage: K81136-M
WS81136 Shaft d: 180 mm | Housing D: 225 mm | B: 10 mm | Cage: K81136-M
GS81236 Shaft d: 180 mm | Housing D: 250 mm | B: 17 mm | Cage: K81236-M
WS81236 Shaft d: 180 mm | Housing D: 250 mm | B: 17 mm | Cage: K81236-M
GS89436 Shaft d: 180 mm | Housing D: 360 mm | B: 36.5 mm | Cage: K89436-M
WS89436 Shaft d: 180 mm | Housing D: 360 mm | B: 36.5 mm | Cage: K89436-M
GS81138 Shaft d: 190 mm | Housing D: 240 mm | B: 11 mm | Cage: K81138-M
WS81138 Shaft d: 190 mm | Housing D: 240 mm | B: 11 mm | Cage: K81138-M
GS81238 Shaft d: 190 mm | Housing D: 270 mm | B: 18 mm | Cage: K81238-M
WS81238 Shaft d: 190 mm | Housing D: 270 mm | B: 18 mm | Cage: K81238-M
GS89438 Shaft d: 190 mm | Housing D: 380 mm | B: 38.5 mm | Cage: K89438-M
WS89438 Shaft d: 190 mm | Housing D: 380 mm | B: 38.5 mm | Cage: K89438-M
GS81140 Shaft d: 200 mm | Housing D: 250 mm | B: 11 mm | Cage: K81140-M
WS81140 Shaft d: 200 mm | Housing D: 250 mm | B: 11 mm | Cage: K81140-M
GS81240 Shaft d: 200 mm | Housing D: 280 mm | B: 18 mm | Cage: K81240-M
WS81240 Shaft d: 200 mm | Housing D: 280 mm | B: 18 mm | Cage: K81240-M
GS89440 Shaft d: 200 mm | Housing D: 400 mm | B: 41 mm | Cage: K89440-M
WS89440 Shaft d: 200 mm | Housing D: 400 mm | B: 41 mm | Cage: K89440-M
GS81144 Shaft d: 220 mm | Housing D: 270 mm | B: 11 mm | Cage: K81144-M
WS81144 Shaft d: 220 mm | Housing D: 270 mm | B: 11 mm | Cage: K81144-M
GS81244 Shaft d: 220 mm | Housing D: 300 mm | B: 18.5 mm | Cage: K81244-M
WS81244 Shaft d: 220 mm | Housing D: 300 mm | B: 18.5 mm | Cage: K81244-M
GS89444 Shaft d: 220 mm | Housing D: 420 mm | B: 41 mm | Cage: K89444-M
WS89444 Shaft d: 220 mm | Housing D: 420 mm | B: 41 mm | Cage: K89444-M
GS81148 Shaft d: 240 mm | Housing D: 300 mm | B: 13.5 mm | Cage: K81148-M
WS81148 Shaft d: 240 mm | Housing D: 300 mm | B: 13.5 mm | Cage: K81148-M
GS81248 Shaft d: 240 mm | Housing D: 340 mm | B: 23 mm | Cage: K81248-M
WS81248 Shaft d: 240 mm | Housing D: 340 mm | B: 23 mm | Cage: K81248-M
GS89448 Shaft d: 240 mm | Housing D: 440 mm | B: 41 mm | Cage: K89448-M
WS89448 Shaft d: 240 mm | Housing D: 440 mm | B: 41 mm | Cage: K89448-M
GS81152 Shaft d: 260 mm | Housing D: 320 mm | B: 13.5 mm | Cage: K81152-M
WS81152 Shaft d: 260 mm | Housing D: 320 mm | B: 13.5 mm | Cage: K81152-M
GS81252 Shaft d: 260 mm | Housing D: 360 mm | B: 23.5 mm | Cage: K81252-M
WS81252 Shaft d: 260 mm | Housing D: 360 mm | B: 23.5 mm | Cage: K81252-M
GS89452 Shaft d: 260 mm | Housing D: 480 mm | B: 44 mm | Cage: K89452-M
WS89452 Shaft d: 260 mm | Housing D: 480 mm | B: 44 mm | Cage: K89452-M
GS81156 Shaft d: 280 mm | Housing D: 350 mm | B: 15.5 mm | Cage: K81156-M
WS81156 Shaft d: 280 mm | Housing D: 350 mm | B: 15.5 mm | Cage: K81156-M
GS81256 Shaft d: 280 mm | Housing D: 380 mm | B: 24 mm | Cage: K81256-M
WS81256 Shaft d: 280 mm | Housing D: 380 mm | B: 24 mm | Cage: K81256-M
GS89456 Shaft d: 280 mm | Housing D: 520 mm | B: 48.5 mm | Cage: K89456-M
WS89456 Shaft d: 280 mm | Housing D: 520 mm | B: 48.5 mm | Cage: K89456-M
GS81160 Shaft d: 300 mm | Housing D: 380 mm | B: 18.5 mm | Cage: K81160-M
WS81160 Shaft d: 300 mm | Housing D: 380 mm | B: 18.5 mm | Cage: K81160-M
GS81260 Shaft d: 300 mm | Housing D: 420 mm | B: 28.5 mm | Cage: K81260-M
WS81260 Shaft d: 300 mm | Housing D: 420 mm | B: 28.5 mm | Cage: K81260-M
GS89460 Shaft d: 300 mm | Housing D: 540 mm | B: 48.5 mm | Cage: K89460-M
WS89460 Shaft d: 300 mm | Housing D: 540 mm | B: 48.5 mm | Cage: K89460-M
GS81164 Shaft d: 320 mm | Housing D: 400 mm | B: 19 mm | Cage: K81164-M
WS81164 Shaft d: 320 mm | Housing D: 400 mm | B: 19 mm | Cage: K81164-M
GS89464 Shaft d: 320 mm | Housing D: 580 mm | B: 43.5 mm | Cage: K89464-M
WS89464 Shaft d: 320 mm | Housing D: 580 mm | B: 43.5 mm | Cage: K89464-M
Bearing AccessoriesINA
236 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA GS / WS / LS Axial Bearing Washers

Brand INA·Bearing Accessories

Available part numbers (236)

GS81102, WS81102, LS1528, GS81103, WS81103, LS1730, GS81104, WS81104, LS2035, GS81105 + 226 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GS81102Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
WS81102Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
LS1528Shaft d: 15 mm | Housing D: 28 mm | B: 2.75 mm | Cage: K81102-TV
GS81103Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
WS81103Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
LS1730Shaft d: 17 mm | Housing D: 30 mm | B: 2.75 mm | Cage: K81103-TV
GS81104Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
WS81104Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
LS2035Shaft d: 20 mm | Housing D: 35 mm | B: 2.75 mm | Cage: K81104-TV
GS81105Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
WS81105Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
LS2542Shaft d: 25 mm | Housing D: 42 mm | B: 3 mm | Cage: K81105-TV
GS81106Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
WS81106Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
LS3047Shaft d: 30 mm | Housing D: 47 mm | B: 3 mm | Cage: K81106-TV
GS81206Shaft d: 30 mm | Housing D: 52 mm | B: 4.25 mm | Cage: K81206-TV
WS81206Shaft d: 30 mm | Housing D: 52 mm | B: 4.25 mm | Cage: K81206-TV
GS89306Shaft d: 30 mm | Housing D: 60 mm | B: 6.25 mm | Cage: K89306-TV
WS89306Shaft d: 30 mm | Housing D: 60 mm | B: 6.25 mm | Cage: K89306-TV
GS81107Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
WS81107Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
LS3552Shaft d: 35 mm | Housing D: 52 mm | B: 3.5 mm | Cage: K81107-TV
GS81207Shaft d: 35 mm | Housing D: 62 mm | B: 5.25 mm | Cage: K81207-TV
WS81207Shaft d: 35 mm | Housing D: 62 mm | B: 5.25 mm | Cage: K81207-TV
GS89307Shaft d: 35 mm | Housing D: 68 mm | B: 7 mm | Cage: K89307-TV
WS89307Shaft d: 35 mm | Housing D: 68 mm | B: 7 mm | Cage: K89307-TV
GS81108Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
WS81108Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
LS4060Shaft d: 40 mm | Housing D: 60 mm | B: 3.5 mm | Cage: K81108-TV
GS81208Shaft d: 40 mm | Housing D: 68 mm | B: 5 mm | Cage: K81208-TV
WS81208Shaft d: 40 mm | Housing D: 68 mm | B: 5 mm | Cage: K81208-TV
GS89308Shaft d: 40 mm | Housing D: 78 mm | B: 7.5 mm | Cage: K89308-TV
WS89308Shaft d: 40 mm | Housing D: 78 mm | B: 7.5 mm | Cage: K89308-TV
GS81109Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
WS81109Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
LS4565Shaft d: 45 mm | Housing D: 65 mm | B: 4 mm | Cage: K81109-TV
GS81209Shaft d: 45 mm | Housing D: 73 mm | B: 5.5 mm | Cage: K81209-TV
WS81209Shaft d: 45 mm | Housing D: 73 mm | B: 5.5 mm | Cage: K81209-TV
GS89309Shaft d: 45 mm | Housing D: 85 mm | B: 8.25 mm | Cage: K89309-TV
WS89309Shaft d: 45 mm | Housing D: 85 mm | B: 8.25 mm | Cage: K89309-TV
GS81110Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
WS81110Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
LS5070Shaft d: 50 mm | Housing D: 70 mm | B: 4 mm | Cage: K81110-TV
GS81210Shaft d: 50 mm | Housing D: 78 mm | B: 6.5 mm | Cage: K81210-TV
WS81210Shaft d: 50 mm | Housing D: 78 mm | B: 6.5 mm | Cage: K81210-TV
GS89310Shaft d: 50 mm | Housing D: 95 mm | B: 9.5 mm | Cage: K89310-TV
WS89310Shaft d: 50 mm | Housing D: 95 mm | B: 9.5 mm | Cage: K89310-TV
GS81111Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
WS81111Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
LS5578Shaft d: 55 mm | Housing D: 78 mm | B: 5 mm | Cage: K81111-TV
GS81211Shaft d: 55 mm | Housing D: 90 mm | B: 7 mm | Cage: K81211-TV
WS81211Shaft d: 55 mm | Housing D: 90 mm | B: 7 mm | Cage: K81211-TV
GS89311Shaft d: 55 mm | Housing D: 105 mm | B: 10.5 mm | Cage: K89311-TV
WS89311Shaft d: 55 mm | Housing D: 105 mm | B: 10.5 mm | Cage: K89311-TV
GS81112Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
WS81112Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
LS6085Shaft d: 60 mm | Housing D: 85 mm | B: 4.75 mm | Cage: K81112-TV
GS81212Shaft d: 60 mm | Housing D: 95 mm | B: 7.5 mm | Cage: K81212-TV
WS81212Shaft d: 60 mm | Housing D: 95 mm | B: 7.5 mm | Cage: K81212-TV
GS89312Shaft d: 60 mm | Housing D: 110 mm | B: 10.5 mm | Cage: K89312-TV
WS89312Shaft d: 60 mm | Housing D: 110 mm | B: 10.5 mm | Cage: K89312-TV
GS89412Shaft d: 60 mm | Housing D: 130 mm | B: 14 mm | Cage: K89412-TV
WS89412Shaft d: 60 mm | Housing D: 130 mm | B: 14 mm | Cage: K89412-TV
GS81113Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
WS81113Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
LS6590Shaft d: 65 mm | Housing D: 90 mm | B: 5.25 mm | Cage: K81113-TV
GS81213Shaft d: 65 mm | Housing D: 100 mm | B: 8 mm | Cage: K81213-TV
WS81213Shaft d: 65 mm | Housing D: 100 mm | B: 8 mm | Cage: K81213-TV
GS89313Shaft d: 65 mm | Housing D: 115 mm | B: 10.5 mm | Cage: K89313-TV
WS89313Shaft d: 65 mm | Housing D: 115 mm | B: 10.5 mm | Cage: K89313-TV
GS89413Shaft d: 65 mm | Housing D: 140 mm | B: 15 mm | Cage: K89413-TV
WS89413Shaft d: 65 mm | Housing D: 140 mm | B: 15 mm | Cage: K89413-TV
GS81114Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
WS81114Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
LS7095Shaft d: 70 mm | Housing D: 95 mm | B: 5.25 mm | Cage: K81114-TV
GS81214Shaft d: 70 mm | Housing D: 105 mm | B: 8 mm | Cage: K81214-TV
WS81214Shaft d: 70 mm | Housing D: 105 mm | B: 8 mm | Cage: K81214-TV
GS89314Shaft d: 70 mm | Housing D: 125 mm | B: 12 mm | Cage: K89314-TV
WS89314Shaft d: 70 mm | Housing D: 125 mm | B: 12 mm | Cage: K89314-TV
GS89414Shaft d: 70 mm | Housing D: 150 mm | B: 16 mm | Cage: K89414-TV
WS89414Shaft d: 70 mm | Housing D: 150 mm | B: 16 mm | Cage: K89414-TV
GS81115Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
WS81115Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
LS75100Shaft d: 75 mm | Housing D: 100 mm | B: 5.75 mm | Cage: K81115-TV
GS81215Shaft d: 75 mm | Housing D: 110 mm | B: 8 mm | Cage: K81215-TV
WS81215Shaft d: 75 mm | Housing D: 110 mm | B: 8 mm | Cage: K81215-TV
GS89315Shaft d: 75 mm | Housing D: 135 mm | B: 12.5 mm | Cage: K89315-TV
WS89315Shaft d: 75 mm | Housing D: 135 mm | B: 12.5 mm | Cage: K89315-TV
GS89415Shaft d: 75 mm | Housing D: 160 mm | B: 17 mm | Cage: K89415-M
WS89415Shaft d: 75 mm | Housing D: 160 mm | B: 17 mm | Cage: K89415-M
GS81116Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
WS81116Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
LS80105Shaft d: 80 mm | Housing D: 105 mm | B: 5.75 mm | Cage: K81116-TV
GS81216Shaft d: 80 mm | Housing D: 115 mm | B: 8.5 mm | Cage: K81216-TV
WS81216Shaft d: 80 mm | Housing D: 115 mm | B: 8.5 mm | Cage: K81216-TV
GS89316Shaft d: 80 mm | Housing D: 140 mm | B: 12.5 mm | Cage: K89316-TV
WS89316Shaft d: 80 mm | Housing D: 140 mm | B: 12.5 mm | Cage: K89316-TV
GS89416Shaft d: 80 mm | Housing D: 170 mm | B: 18 mm | Cage: K89416-M
WS89416Shaft d: 80 mm | Housing D: 170 mm | B: 18 mm | Cage: K89416-M
GS81117Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
WS81117Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
LS85110Shaft d: 85 mm | Housing D: 110 mm | B: 5.75 mm | Cage: K81117-TV
GS81217Shaft d: 85 mm | Housing D: 125 mm | B: 9.5 mm | Cage: K81217-TV
WS81217Shaft d: 85 mm | Housing D: 125 mm | B: 9.5 mm | Cage: K81217-TV
GS89317Shaft d: 85 mm | Housing D: 150 mm | B: 13.5 mm | Cage: K89317-M
WS89317Shaft d: 85 mm | Housing D: 150 mm | B: 13.5 mm | Cage: K89317-M
GS89417Shaft d: 85 mm | Housing D: 180 mm | B: 19.5 mm | Cage: K89417-M
WS89417Shaft d: 85 mm | Housing D: 180 mm | B: 19.5 mm | Cage: K89417-M
GS81118Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
WS81118Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
LS90120Shaft d: 90 mm | Housing D: 120 mm | B: 6.5 mm | Cage: K81118-TV
GS81218Shaft d: 90 mm | Housing D: 135 mm | B: 10.5 mm | Cage: K81218-TV
WS81218Shaft d: 90 mm | Housing D: 135 mm | B: 10.5 mm | Cage: K81218-TV
GS89318Shaft d: 90 mm | Housing D: 155 mm | B: 13.5 mm | Cage: K89318-M
WS89318Shaft d: 90 mm | Housing D: 155 mm | B: 13.5 mm | Cage: K89318-M
GS89418Shaft d: 90 mm | Housing D: 190 mm | B: 20 mm | Cage: K89418-M
WS89418Shaft d: 90 mm | Housing D: 190 mm | B: 20 mm | Cage: K89418-M
GS81120Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
WS81120Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
LS100135Shaft d: 100 mm | Housing D: 135 mm | B: 7 mm | Cage: K81120-TV
GS81220Shaft d: 100 mm | Housing D: 150 mm | B: 11.5 mm | Cage: K81220-TV
WS81220Shaft d: 100 mm | Housing D: 150 mm | B: 11.5 mm | Cage: K81220-TV
GS89320Shaft d: 100 mm | Housing D: 170 mm | B: 14.5 mm | Cage: K89320-M
WS89320Shaft d: 100 mm | Housing D: 170 mm | B: 14.5 mm | Cage: K89320-M
GS89420Shaft d: 100 mm | Housing D: 210 mm | B: 22.5 mm | Cage: K89420-M
WS89420Shaft d: 100 mm | Housing D: 210 mm | B: 22.5 mm | Cage: K89420-M
GS81122Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
WS81122Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
LS110145Shaft d: 110 mm | Housing D: 145 mm | B: 7 mm | Cage: K81122-TV
GS81222Shaft d: 110 mm | Housing D: 160 mm | B: 11.5 mm | Cage: K81222-TV
WS81222Shaft d: 110 mm | Housing D: 160 mm | B: 11.5 mm | Cage: K81222-TV
GS89322Shaft d: 110 mm | Housing D: 190 mm | B: 16.5 mm | Cage: K89322-M
WS89322Shaft d: 110 mm | Housing D: 190 mm | B: 16.5 mm | Cage: K89322-M
GS89422Shaft d: 110 mm | Housing D: 230 mm | B: 24.5 mm | Cage: K89422-M
WS89422Shaft d: 110 mm | Housing D: 230 mm | B: 24.5 mm | Cage: K89422-M
GS81124Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
WS81124Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
LS120155Shaft d: 120 mm | Housing D: 155 mm | B: 7 mm | Cage: K81124-TV
GS81224Shaft d: 120 mm | Housing D: 170 mm | B: 12 mm | Cage: K81224-TV
WS81224Shaft d: 120 mm | Housing D: 170 mm | B: 12 mm | Cage: K81224-TV
GS89324Shaft d: 120 mm | Housing D: 210 mm | B: 18.5 mm | Cage: K89324-M
WS89324Shaft d: 120 mm | Housing D: 210 mm | B: 18.5 mm | Cage: K89324-M
GS89424Shaft d: 120 mm | Housing D: 250 mm | B: 26 mm | Cage: K89424-M
WS89424Shaft d: 120 mm | Housing D: 250 mm | B: 26 mm | Cage: K89424-M
GS81126Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
WS81126Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
LS130170Shaft d: 130 mm | Housing D: 170 mm | B: 9 mm | Cage: K81126-TV
GS81226Shaft d: 130 mm | Housing D: 190 mm | B: 13 mm | Cage: K81226-TV
WS81226Shaft d: 130 mm | Housing D: 190 mm | B: 13 mm | Cage: K81226-TV
GS89326Shaft d: 130 mm | Housing D: 225 mm | B: 20 mm | Cage: K89326-M
WS89326Shaft d: 130 mm | Housing D: 225 mm | B: 20 mm | Cage: K89326-M
GS89426Shaft d: 130 mm | Housing D: 270 mm | B: 28.5 mm | Cage: K89426-M
WS89426Shaft d: 130 mm | Housing D: 270 mm | B: 28.5 mm | Cage: K89426-M
GS81128Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
WS81128Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
LS140180Shaft d: 140 mm | Housing D: 180 mm | B: 9.5 mm | Cage: K81128-TV
GS81228Shaft d: 140 mm | Housing D: 200 mm | B: 13.5 mm | Cage: K81228-M
WS81228Shaft d: 140 mm | Housing D: 200 mm | B: 13.5 mm | Cage: K81228-M
GS89328Shaft d: 140 mm | Housing D: 240 mm | B: 20.5 mm | Cage: K89328-M
WS89328Shaft d: 140 mm | Housing D: 240 mm | B: 20.5 mm | Cage: K89328-M
GS89428Shaft d: 140 mm | Housing D: 280 mm | B: 28.5 mm | Cage: K89428-M
WS89428Shaft d: 140 mm | Housing D: 280 mm | B: 28.5 mm | Cage: K89428-M
GS81130Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
WS81130Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
LS150190Shaft d: 150 mm | Housing D: 190 mm | B: 9.5 mm | Cage: K81130-TV
GS81230Shaft d: 150 mm | Housing D: 215 mm | B: 14.5 mm | Cage: K81230-M
WS81230Shaft d: 150 mm | Housing D: 215 mm | B: 14.5 mm | Cage: K81230-M
GS89330Shaft d: 150 mm | Housing D: 250 mm | B: 20.5 mm | Cage: K89330-M
WS89330Shaft d: 150 mm | Housing D: 250 mm | B: 20.5 mm | Cage: K89330-M
GS89430Shaft d: 150 mm | Housing D: 300 mm | B: 30 mm | Cage: K89430-M
WS89430Shaft d: 150 mm | Housing D: 300 mm | B: 30 mm | Cage: K89430-M
GS81132Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
WS81132Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
LS160200Shaft d: 160 mm | Housing D: 200 mm | B: 9.5 mm | Cage: K81132-TV
GS81232Shaft d: 160 mm | Housing D: 225 mm | B: 15 mm | Cage: K81232-M
WS81232Shaft d: 160 mm | Housing D: 225 mm | B: 15 mm | Cage: K81232-M
GS89432Shaft d: 160 mm | Housing D: 320 mm | B: 31.5 mm | Cage: K89432-M
WS89432Shaft d: 160 mm | Housing D: 320 mm | B: 31.5 mm | Cage: K89432-M
GS81134Shaft d: 170 mm | Housing D: 215 mm | B: 10 mm | Cage: K81134-TV
WS81134Shaft d: 170 mm | Housing D: 215 mm | B: 10 mm | Cage: K81134-TV
GS81234Shaft d: 170 mm | Housing D: 240 mm | B: 16.5 mm | Cage: K81234-M
WS81234Shaft d: 170 mm | Housing D: 240 mm | B: 16.5 mm | Cage: K81234-M
GS89434Shaft d: 170 mm | Housing D: 340 mm | B: 34.5 mm | Cage: K89434-M
WS89434Shaft d: 170 mm | Housing D: 340 mm | B: 34.5 mm | Cage: K89434-M
GS81136Shaft d: 180 mm | Housing D: 225 mm | B: 10 mm | Cage: K81136-M
WS81136Shaft d: 180 mm | Housing D: 225 mm | B: 10 mm | Cage: K81136-M
GS81236Shaft d: 180 mm | Housing D: 250 mm | B: 17 mm | Cage: K81236-M
WS81236Shaft d: 180 mm | Housing D: 250 mm | B: 17 mm | Cage: K81236-M
GS89436Shaft d: 180 mm | Housing D: 360 mm | B: 36.5 mm | Cage: K89436-M
WS89436Shaft d: 180 mm | Housing D: 360 mm | B: 36.5 mm | Cage: K89436-M
GS81138Shaft d: 190 mm | Housing D: 240 mm | B: 11 mm | Cage: K81138-M
WS81138Shaft d: 190 mm | Housing D: 240 mm | B: 11 mm | Cage: K81138-M
GS81238Shaft d: 190 mm | Housing D: 270 mm | B: 18 mm | Cage: K81238-M
WS81238Shaft d: 190 mm | Housing D: 270 mm | B: 18 mm | Cage: K81238-M
GS89438Shaft d: 190 mm | Housing D: 380 mm | B: 38.5 mm | Cage: K89438-M
WS89438Shaft d: 190 mm | Housing D: 380 mm | B: 38.5 mm | Cage: K89438-M
GS81140Shaft d: 200 mm | Housing D: 250 mm | B: 11 mm | Cage: K81140-M
WS81140Shaft d: 200 mm | Housing D: 250 mm | B: 11 mm | Cage: K81140-M
GS81240Shaft d: 200 mm | Housing D: 280 mm | B: 18 mm | Cage: K81240-M
WS81240Shaft d: 200 mm | Housing D: 280 mm | B: 18 mm | Cage: K81240-M
GS89440Shaft d: 200 mm | Housing D: 400 mm | B: 41 mm | Cage: K89440-M
WS89440Shaft d: 200 mm | Housing D: 400 mm | B: 41 mm | Cage: K89440-M
GS81144Shaft d: 220 mm | Housing D: 270 mm | B: 11 mm | Cage: K81144-M
WS81144Shaft d: 220 mm | Housing D: 270 mm | B: 11 mm | Cage: K81144-M
GS81244Shaft d: 220 mm | Housing D: 300 mm | B: 18.5 mm | Cage: K81244-M
WS81244Shaft d: 220 mm | Housing D: 300 mm | B: 18.5 mm | Cage: K81244-M
GS89444Shaft d: 220 mm | Housing D: 420 mm | B: 41 mm | Cage: K89444-M
WS89444Shaft d: 220 mm | Housing D: 420 mm | B: 41 mm | Cage: K89444-M
GS81148Shaft d: 240 mm | Housing D: 300 mm | B: 13.5 mm | Cage: K81148-M
WS81148Shaft d: 240 mm | Housing D: 300 mm | B: 13.5 mm | Cage: K81148-M
GS81248Shaft d: 240 mm | Housing D: 340 mm | B: 23 mm | Cage: K81248-M
WS81248Shaft d: 240 mm | Housing D: 340 mm | B: 23 mm | Cage: K81248-M
GS89448Shaft d: 240 mm | Housing D: 440 mm | B: 41 mm | Cage: K89448-M
WS89448Shaft d: 240 mm | Housing D: 440 mm | B: 41 mm | Cage: K89448-M
GS81152Shaft d: 260 mm | Housing D: 320 mm | B: 13.5 mm | Cage: K81152-M
WS81152Shaft d: 260 mm | Housing D: 320 mm | B: 13.5 mm | Cage: K81152-M
GS81252Shaft d: 260 mm | Housing D: 360 mm | B: 23.5 mm | Cage: K81252-M
WS81252Shaft d: 260 mm | Housing D: 360 mm | B: 23.5 mm | Cage: K81252-M
GS89452Shaft d: 260 mm | Housing D: 480 mm | B: 44 mm | Cage: K89452-M
WS89452Shaft d: 260 mm | Housing D: 480 mm | B: 44 mm | Cage: K89452-M
GS81156Shaft d: 280 mm | Housing D: 350 mm | B: 15.5 mm | Cage: K81156-M
WS81156Shaft d: 280 mm | Housing D: 350 mm | B: 15.5 mm | Cage: K81156-M
GS81256Shaft d: 280 mm | Housing D: 380 mm | B: 24 mm | Cage: K81256-M
WS81256Shaft d: 280 mm | Housing D: 380 mm | B: 24 mm | Cage: K81256-M
GS89456Shaft d: 280 mm | Housing D: 520 mm | B: 48.5 mm | Cage: K89456-M
WS89456Shaft d: 280 mm | Housing D: 520 mm | B: 48.5 mm | Cage: K89456-M
GS81160Shaft d: 300 mm | Housing D: 380 mm | B: 18.5 mm | Cage: K81160-M
WS81160Shaft d: 300 mm | Housing D: 380 mm | B: 18.5 mm | Cage: K81160-M
GS81260Shaft d: 300 mm | Housing D: 420 mm | B: 28.5 mm | Cage: K81260-M
WS81260Shaft d: 300 mm | Housing D: 420 mm | B: 28.5 mm | Cage: K81260-M
GS89460Shaft d: 300 mm | Housing D: 540 mm | B: 48.5 mm | Cage: K89460-M
WS89460Shaft d: 300 mm | Housing D: 540 mm | B: 48.5 mm | Cage: K89460-M
GS81164Shaft d: 320 mm | Housing D: 400 mm | B: 19 mm | Cage: K81164-M
WS81164Shaft d: 320 mm | Housing D: 400 mm | B: 19 mm | Cage: K81164-M
GS89464Shaft d: 320 mm | Housing D: 580 mm | B: 43.5 mm | Cage: K89464-M
WS89464Shaft d: 320 mm | Housing D: 580 mm | B: 43.5 mm | Cage: K89464-M

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
