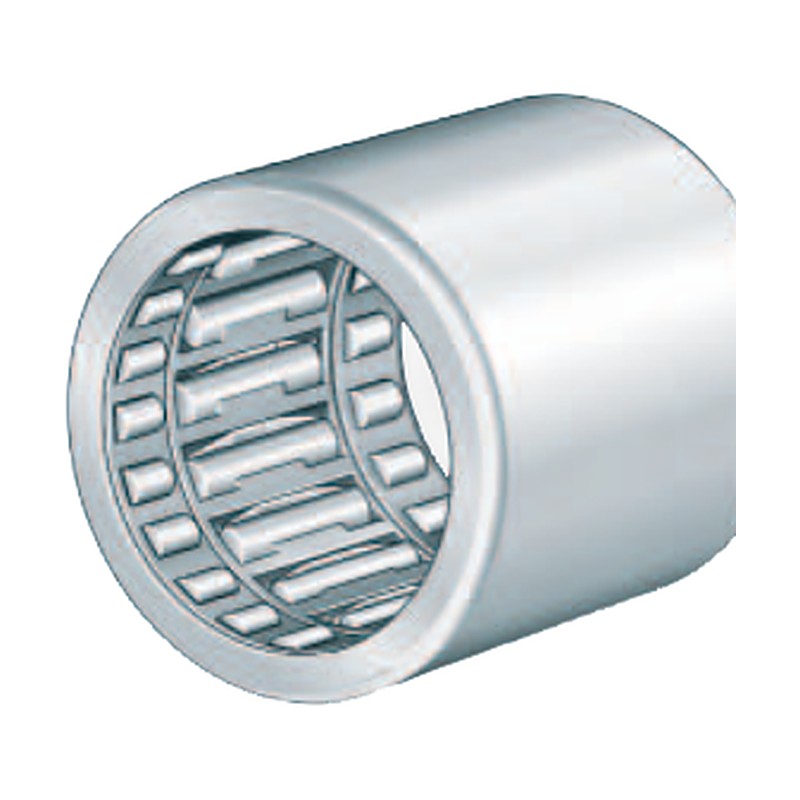

INA HFL Drawn Cup Roller Clutches with Integrated Bearing

INA HFL Drawn Cup Roller Clutches with Integrated Bearing

INA HFL drawn cup roller clutches with integrated plain or rolling bearing support, combining one-way torque transmission and radial location.

Key features

  • Clutch and radial bearing in one drawn cup
  • Plain bearing (small sizes) or needle bearing support
  • Plastic (KF) or steel springs; knurled (R) variants
  • Shaft must be hardened and ground
  • Md = transmittable torque

Specifications

Brand INA
Product type Needle Roller Bearings
Design Drawn cup roller clutch with bearing
Shaft (Fw) 3 - 35 mm
Outside diameter D 6.5 - 42 mm
Designations listed 23
Source INA Rolling Bearings HR 1 catalogue, p. 732-733
HFL0308-KF Fw: 3 mm | D: 6.5 mm | C: 8 mm | Md: 0.18 Nm | Cr: - | m: 1.4 g
HFL0308-KF-R Fw: 3 mm | D: 6.5 mm | C: 8 mm | Md: 0.06 Nm | Cr: - | m: 1.4 g
HFL0408-KF Fw: 4 mm | D: 8 mm | C: 8 mm | Md: 0.34 Nm | Cr: - | m: 1.6 g
HFL0408-KF-R Fw: 4 mm | D: 8 mm | C: 8 mm | Md: 0.1 Nm | Cr: - | m: 1.6 g
HFL0606-KF-R Fw: 6 mm | D: 10 mm | C: 6 mm | Md: 0.5 Nm | Cr: - | m: 1 g
HFL0615-KF Fw: 6 mm | D: 10 mm | C: 15 mm | Md: 1.76 Nm | Cr: - | m: 4 g
HFL0615 Fw: 6 mm | D: 10 mm | C: 15 mm | Md: 1.76 Nm | Cr: - | m: 4 g
HFL0615-KF-R Fw: 6 mm | D: 10 mm | C: 15 mm | Md: 0.6 Nm | Cr: - | m: 4 g
HFL0615-R Fw: 6 mm | D: 10 mm | C: 15 mm | Md: 0.6 Nm | Cr: - | m: 4 g
HFL0806-KF-R Fw: 8 mm | D: 12 mm | C: 6 mm | Md: 0.7 Nm | Cr: - | m: 2 g
HFL0822-KF Fw: 8 mm | D: 12 mm | C: 22 mm | Md: 3.15 Nm | Cr: 3.65 kN | m: 7 g
HFL0822 Fw: 8 mm | D: 12 mm | C: 22 mm | Md: 3.15 Nm | Cr: 3.65 kN | m: 7 g
HFL0822-KF-R Fw: 8 mm | D: 12 mm | C: 22 mm | Md: 1 Nm | Cr: 3.65 kN | m: 7 g
HFL0822-R Fw: 8 mm | D: 12 mm | C: 22 mm | Md: 1 Nm | Cr: 3.65 kN | m: 7 g
HFL1022 Fw: 10 mm | D: 14 mm | C: 22 mm | Md: 5.3 Nm | Cr: 3.95 kN | m: 8 g
HFL1226 Fw: 12 mm | D: 18 mm | C: 26 mm | Md: 12.2 Nm | Cr: 6.3 kN | m: 18 g
HFL1426 Fw: 14 mm | D: 20 mm | C: 26 mm | Md: 17.3 Nm | Cr: 6.8 kN | m: 20 g
HFL1626 Fw: 16 mm | D: 22 mm | C: 26 mm | Md: 20.5 Nm | Cr: 7.4 kN | m: 22 g
HFL1826 Fw: 18 mm | D: 24 mm | C: 26 mm | Md: 24.1 Nm | Cr: 8 kN | m: 25 g
HFL2026 Fw: 20 mm | D: 26 mm | C: 26 mm | Md: 28.5 Nm | Cr: 8.5 kN | m: 27 g
HFL2530 Fw: 25 mm | D: 32 mm | C: 30 mm | Md: 66 Nm | Cr: 10.6 kN | m: 44 g
HFL3030 Fw: 30 mm | D: 37 mm | C: 30 mm | Md: 90 Nm | Cr: 11.6 kN | m: 51 g
HFL3530 Fw: 35 mm | D: 42 mm | C: 30 mm | Md: 121 Nm | Cr: 12.2 kN | m: 58 g
Needle Roller BearingsINA
23 product codes available in this family
