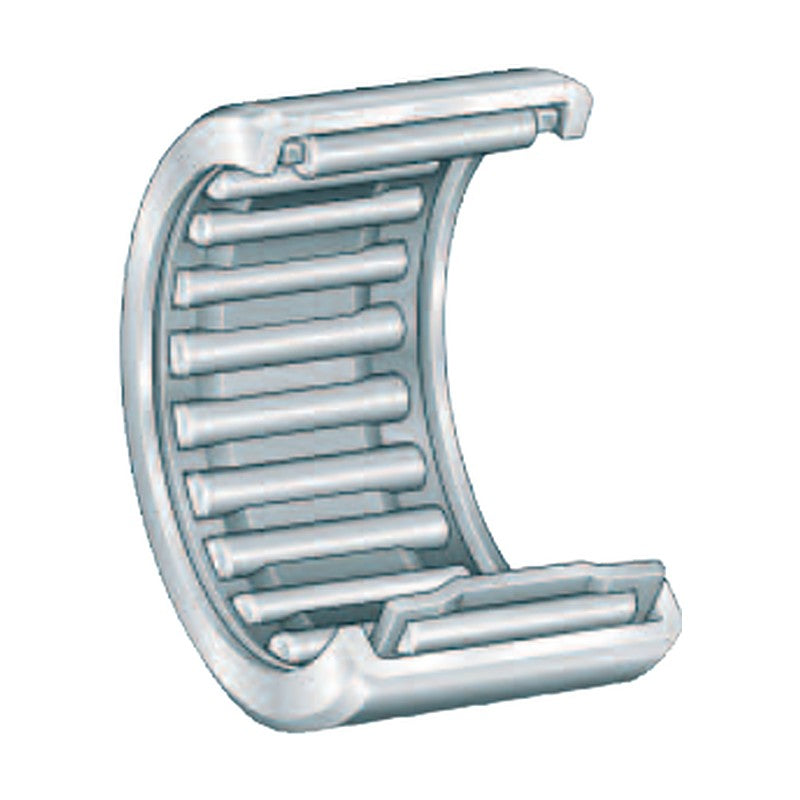

INA HK Drawn Cup Needle Roller Bearings, Open End

INA HK Drawn Cup Needle Roller Bearings, Open End

INA HK drawn cup needle roller bearings with open ends: thin-walled drawn outer cup with needle roller and cage assembly, located by press fit in the housing bore.

Key features

  • Extremely low radial section height
  • Press fit in housing: no further axial location needed
  • Run directly on hardened shaft or with separate inner ring IR/LR
  • TV suffix: polyamide cage; ZW: double row
  • Lubrication hole in cup not possible on smallest sizes

Specifications

Brand INA
Product type Needle Roller Bearings
Design Drawn cup, open end
Seal Open
Shaft (Fw) 2 - 60 mm
Outside diameter D 4.6 - 68 mm
Source INA Rolling Bearings HR 1 catalogue, p. 620-623
HK0205-TV Fw: 2 mm | D: 4.6 mm | C: 5 mm | Cr: 0.465 kN | C0r: 0.265 kN | m: 0.3 g
HK0306-TV Fw: 3 mm | D: 6.5 mm | C: 6 mm | Cr: 1.23 kN | C0r: 0.84 kN | m: 1 g
HK0408 Fw: 4 mm | D: 8 mm | C: 8 mm | Cr: 1.78 kN | C0r: 1.31 kN | m: 2 g
HK0509 Fw: 5 mm | D: 9 mm | C: 9 mm | Cr: 2.4 kN | C0r: 1.99 kN | m: 2 g
HK0606 Fw: 6 mm | D: 10 mm | C: 6 mm | Cr: 1.61 kN | C0r: 1.22 kN | m: 1.5 g
HK0608 Fw: 6 mm | D: 10 mm | C: 8 mm | Cr: 2.03 kN | C0r: 1.65 kN | m: 2.1 g
HK0609 Fw: 6 mm | D: 10 mm | C: 9 mm | Cr: 2.85 kN | C0r: 2.6 kN | m: 2.5 g
HK0709 Fw: 7 mm | D: 11 mm | C: 9 mm | Cr: 3.1 kN | C0r: 2.95 kN | m: 2.6 g
HK0808 Fw: 8 mm | D: 12 mm | C: 8 mm | Cr: 2.75 kN | C0r: 2.6 kN | m: 2.7 g
HK0810 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 3.8 kN | C0r: 3.95 kN | m: 3 g
HK0908 Fw: 9 mm | D: 13 mm | C: 8 mm | Cr: 3.55 kN | C0r: 3.75 kN | m: 3 g
HK0910 Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 4.25 kN | C0r: 4.65 kN | m: 4 g
HK0912 Fw: 9 mm | D: 13 mm | C: 12 mm | Cr: 5.3 kN | C0r: 6.3 kN | m: 4.6 g
HK1010 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 4.4 kN | C0r: 5.1 kN | m: 4.1 g
HK1012 Fw: 10 mm | D: 14 mm | C: 12 mm | Cr: 5.5 kN | C0r: 6.8 kN | m: 4.8 g
HK1015 Fw: 10 mm | D: 14 mm | C: 15 mm | Cr: 6.8 kN | C0r: 8.8 kN | m: 6 g
HK1210 Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 4.95 kN | C0r: 6.2 kN | m: 4.6 g
HK1212 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 6.5 kN | C0r: 7.3 kN | m: 9 g
HK1312 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 6.8 kN | C0r: 7.9 kN | m: 10 g
HK1412 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 7.1 kN | C0r: 8.5 kN | m: 10.5 g
HK1512 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 7.9 kN | C0r: 9.4 kN | m: 11 g
HK1516 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 10.5 kN | C0r: 14.4 kN | m: 15 g
HK1522-ZW Fw: 15 mm | D: 21 mm | C: 22 mm | Cr: 13.4 kN | C0r: 19.5 kN | m: 20 g
HK1612 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 7.6 kN | C0r: 9.7 kN | m: 12 g
HK1616 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 10.9 kN | C0r: 15.3 kN | m: 16 g
HK1622-ZW Fw: 16 mm | D: 22 mm | C: 22 mm | Cr: 13.1 kN | C0r: 19.4 kN | m: 22 g
HK1712 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 7.9 kN | C0r: 10.3 kN | m: 12 g
HK1812 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 8.1 kN | C0r: 10.9 kN | m: 13 g
HK1816 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 11.6 kN | C0r: 17.3 kN | m: 18 g
HK2010 Fw: 20 mm | D: 26 mm | C: 10 mm | Cr: 6.4 kN | C0r: 8.2 kN | m: 12 g
HK2012 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 8.6 kN | C0r: 12.1 kN | m: 14 g
HK2016 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 12.7 kN | C0r: 20.1 kN | m: 19 g
HK2020 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 15.7 kN | C0r: 26 kN | m: 24 g
HK2030-ZW Fw: 20 mm | D: 26 mm | C: 30 mm | Cr: 21.8 kN | C0r: 40 kN | m: 35 g
HK2210 Fw: 22 mm | D: 28 mm | C: 10 mm | Cr: 7.5 kN | C0r: 10.5 kN | m: 13 g
HK2212 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 9.1 kN | C0r: 13.4 kN | m: 15 g
HK2216 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 13.4 kN | C0r: 22.1 kN | m: 21 g
HK2220 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 16.5 kN | C0r: 29 kN | m: 26 g
HK2512 Fw: 25 mm | D: 32 mm | C: 12 mm | Cr: 11 kN | C0r: 15.2 kN | m: 20 g
HK2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 15.6 kN | C0r: 24 kN | m: 27 g
HK2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 19.9 kN | C0r: 33 kN | m: 33 g
HK2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 25.5 kN | C0r: 45 kN | m: 44 g
HK2538-ZW Fw: 25 mm | D: 32 mm | C: 38 mm | Cr: 34 kN | C0r: 66 kN | m: 64 g
HK2816 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 16.4 kN | C0r: 26.5 kN | m: 29 g
HK2820 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 20.9 kN | C0r: 36 kN | m: 36 g
HK3012 Fw: 30 mm | D: 37 mm | C: 12 mm | Cr: 12.1 kN | C0r: 18.2 kN | m: 23 g
HK3016 Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 17.2 kN | C0r: 29 kN | m: 31 g
HK3020 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 22 kN | C0r: 39.5 kN | m: 39 g
HK3022 Fw: 30 mm | D: 37 mm | C: 22 mm | Cr: 24.8 kN | C0r: 46 kN | m: 42 g
HK3026 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 28 kN | C0r: 54 kN | m: 51 g
HK3038-ZW Fw: 30 mm | D: 37 mm | C: 38 mm | Cr: 37.5 kN | C0r: 79 kN | m: 76 g
HK3220 Fw: 32 mm | D: 39 mm | C: 20 mm | Cr: 23 kN | C0r: 42.5 kN | m: 40.6 g
HK3224 Fw: 32 mm | D: 39 mm | C: 24 mm | Cr: 27.5 kN | C0r: 54 kN | m: 49 g
HK3512 Fw: 35 mm | D: 42 mm | C: 12 mm | Cr: 13.1 kN | C0r: 21.3 kN | m: 27 g
HK3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 18.7 kN | C0r: 33.5 kN | m: 36 g
HK3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 23.8 kN | C0r: 46 kN | m: 44 g
HK4012 Fw: 40 mm | D: 47 mm | C: 12 mm | Cr: 14 kN | C0r: 24.3 kN | m: 30 g
HK4016 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 20 kN | C0r: 38.5 kN | m: 39 g
HK4020 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 25.5 kN | C0r: 52 kN | m: 54 g
HK4512 Fw: 45 mm | D: 52 mm | C: 12 mm | Cr: 14.9 kN | C0r: 27.5 kN | m: 33 g
HK4516 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 21.3 kN | C0r: 43 kN | m: 46 g
HK4520 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 27 kN | C0r: 59 kN | m: 56 g
HK5020 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 31 kN | C0r: 63 kN | m: 70 g
HK5025 Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 38.5 kN | C0r: 84 kN | m: 90 g
HK5520 Fw: 55 mm | D: 63 mm | C: 20 mm | Cr: 31.5 kN | C0r: 67 kN | m: 74 g
HK5528 Fw: 55 mm | D: 63 mm | C: 28 mm | Cr: 44 kN | C0r: 103 kN | m: 105 g
HK6012 Fw: 60 mm | D: 68 mm | C: 12 mm | Cr: 17.4 kN | C0r: 32 kN | m: 49 g
HK6020 Fw: 60 mm | D: 68 mm | C: 20 mm | Cr: 33.5 kN | C0r: 75 kN | m: 81 g
HK6032 Fw: 60 mm | D: 68 mm | C: 32 mm | Cr: 53 kN | C0r: 135 kN | m: 136 g
Needle Roller BearingsINA
69 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA HK Drawn Cup Needle Roller Bearings, Open End

Brand INA·Needle Roller Bearings

Available part numbers (69)

HK0205-TV, HK0306-TV, HK0408, HK0509, HK0606, HK0608, HK0609, HK0709, HK0808, HK0810 + 59 more — see full table ↓
