INA HK..-RS / HK..-2RS / BK..-RS Sealed Drawn Cup Needle Bearings

INA HK..-RS / HK..-2RS / BK..-RS Sealed Drawn Cup Needle Bearings

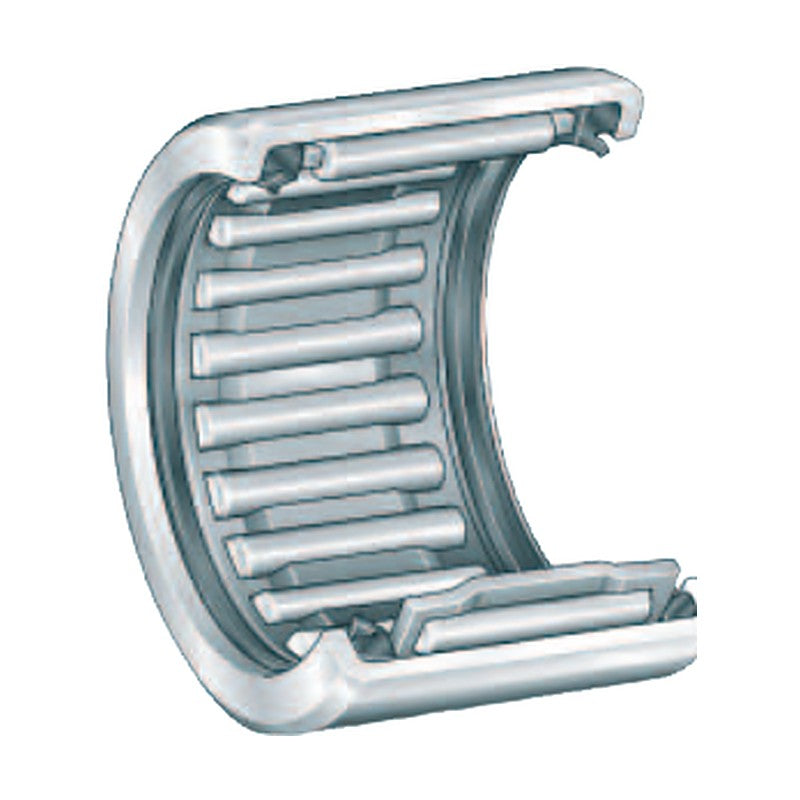

INA drawn cup needle roller bearings with integral lip seals: open end with seal on one side (HK..-RS) or both sides (HK..-2RS), and closed end with seal (BK..-RS).

Key features

  • Integrated lip seals protect against contamination
  • Greased; HK..-2RS sealed on both sides
  • Press fit in housing without further axial location
  • Width C for HK..-RS, C1 for HK..-2RS and BK..-RS
  • For use directly on hardened shaft or with LR/IR inner ring

Specifications

Brand INA
Product type Needle Roller Bearings
Design Drawn cup, sealed
Shaft (Fw) 8 - 50 mm
Outside diameter D 12 - 58 mm
Designations listed 54
Source INA Rolling Bearings HR 1 catalogue, p. 624-625
HK0810-2RS Fw: 8 mm | D: 12 mm | Width: 10 mm | Cr: 2.18 kN | C0r: 1.93 kN | m: 3.2 g
HK0810-RS Fw: 8 mm | D: 12 mm | Width: 10 mm | Cr: 2.75 kN | C0r: 2.6 kN | m: 3 g
HK0812-2RS Fw: 8 mm | D: 12 mm | Width: 12 mm | Cr: 2.75 kN | C0r: 2.6 kN | m: 3.3 g
HK0812-RS Fw: 8 mm | D: 12 mm | Width: 12 mm | Cr: 3.8 kN | C0r: 3.95 kN | m: 3.1 g
HK1012-2RS Fw: 10 mm | D: 14 mm | Width: 12 mm | Cr: 3.2 kN | C0r: 3.35 kN | m: 4.3 g
HK1012-RS Fw: 10 mm | D: 14 mm | Width: 12 mm | Cr: 4.4 kN | C0r: 5.1 kN | m: 4.2 g
HK1014-2RS Fw: 10 mm | D: 14 mm | Width: 14 mm | Cr: 4.4 kN | C0r: 5.1 kN | m: 4.6 g
BK1012-RS Fw: 10 mm | D: 14 mm | Width: 14 mm | Cr: 4.4 kN | C0r: 5.1 kN | m: 4.3 g
HK1214-2RS Fw: 12 mm | D: 16 mm | Width: 14 mm | Cr: 4.95 kN | C0r: 6.2 kN | m: 8 g
HK1214-RS Fw: 12 mm | D: 18 mm | Width: 14 mm | Cr: 6.5 kN | C0r: 7.3 kN | m: 10 g
HK1216-2RS Fw: 12 mm | D: 18 mm | Width: 16 mm | Cr: 6.5 kN | C0r: 7.3 kN | m: 11 g
HK1414-RS Fw: 14 mm | D: 20 mm | Width: 14 mm | Cr: 7.1 kN | C0r: 8.5 kN | m: 12 g
HK1416-2RS Fw: 14 mm | D: 20 mm | Width: 16 mm | Cr: 7.1 kN | C0r: 8.5 kN | m: 13 g
BK1414-RS Fw: 14 mm | D: 20 mm | Width: 16 mm | Cr: 7.1 kN | C0r: 8.5 kN | m: 13 g
HK1514-RS Fw: 15 mm | D: 21 mm | Width: 14 mm | Cr: 7.8 kN | C0r: 9.8 kN | m: 12 g
HK1516-2RS Fw: 15 mm | D: 21 mm | Width: 16 mm | Cr: 7.8 kN | C0r: 9.8 kN | m: 15 g
HK1518-RS Fw: 15 mm | D: 21 mm | Width: 18 mm | Cr: 10.5 kN | C0r: 14.4 kN | m: 16 g
HK1520-2RS Fw: 15 mm | D: 21 mm | Width: 20 mm | Cr: 10.5 kN | C0r: 14.4 kN | m: 18 g
HK1614-RS Fw: 16 mm | D: 22 mm | Width: 14 mm | Cr: 7.6 kN | C0r: 9.7 kN | m: 13 g
HK1616-2RS Fw: 16 mm | D: 22 mm | Width: 16 mm | Cr: 7.6 kN | C0r: 9.7 kN | m: 14 g
BK1614-RS Fw: 16 mm | D: 22 mm | Width: 16 mm | Cr: 7.6 kN | C0r: 9.7 kN | m: 15 g
HK1620-2RS Fw: 16 mm | D: 22 mm | Width: 20 mm | Cr: 10.9 kN | C0r: 15.3 kN | m: 18 g
HK1814-RS Fw: 18 mm | D: 24 mm | Width: 14 mm | Cr: 8.1 kN | C0r: 10.9 kN | m: 14 g
HK1816-2RS Fw: 18 mm | D: 24 mm | Width: 16 mm | Cr: 8.1 kN | C0r: 10.9 kN | m: 15 g
HK2016-2RS Fw: 20 mm | D: 26 mm | Width: 16 mm | Cr: 8.6 kN | C0r: 12.1 kN | m: 18 g
HK2018-RS Fw: 20 mm | D: 26 mm | Width: 18 mm | Cr: 12.7 kN | C0r: 20.1 kN | m: 21 g
HK2020-2RS Fw: 20 mm | D: 26 mm | Width: 20 mm | Cr: 12.7 kN | C0r: 20.1 kN | m: 23 g
BK2018-RS Fw: 20 mm | D: 26 mm | Width: 20 mm | Cr: 12.7 kN | C0r: 20.1 kN | m: 24 g
HK2214-RS Fw: 22 mm | D: 28 mm | Width: 14 mm | Cr: 9.1 kN | C0r: 13.4 kN | m: 16 g
HK2216-2RS Fw: 22 mm | D: 28 mm | Width: 16 mm | Cr: 9.1 kN | C0r: 13.4 kN | m: 18 g
HK2218-RS Fw: 22 mm | D: 28 mm | Width: 18 mm | Cr: 13.4 kN | C0r: 22.1 kN | m: 24 g
HK2220-2RS Fw: 22 mm | D: 28 mm | Width: 20 mm | Cr: 13.4 kN | C0r: 22.1 kN | m: 26 g
HK2516-2RS Fw: 25 mm | D: 32 mm | Width: 16 mm | Cr: 11 kN | C0r: 15.2 kN | m: 27 g
HK2518-RS Fw: 25 mm | D: 32 mm | Width: 18 mm | Cr: 15.6 kN | C0r: 24 kN | m: 29 g
HK2520-2RS Fw: 25 mm | D: 32 mm | Width: 20 mm | Cr: 15.6 kN | C0r: 24 kN | m: 31 g
BK2518-RS Fw: 25 mm | D: 32 mm | Width: 20 mm | Cr: 15.6 kN | C0r: 24 kN | m: 34 g
HK2524-2RS Fw: 25 mm | D: 32 mm | Width: 24 mm | Cr: 19.9 kN | C0r: 33 kN | m: 40 g
HK2530-2RS Fw: 25 mm | D: 32 mm | Width: 30 mm | Cr: 25.5 kN | C0r: 45 kN | m: 47 g
HK2818-RS Fw: 28 mm | D: 35 mm | Width: 18 mm | Cr: 16.4 kN | C0r: 26.5 kN | m: 31 g
HK2820-2RS Fw: 28 mm | D: 35 mm | Width: 20 mm | Cr: 16.4 kN | C0r: 26.5 kN | m: 34 g
HK3016-2RS Fw: 30 mm | D: 37 mm | Width: 16 mm | Cr: 12.1 kN | C0r: 18.2 kN | m: 31 g
HK3018-RS Fw: 30 mm | D: 37 mm | Width: 18 mm | Cr: 17.2 kN | C0r: 29 kN | m: 37 g
HK3020-2RS Fw: 30 mm | D: 37 mm | Width: 20 mm | Cr: 17.2 kN | C0r: 29 kN | m: 36 g
HK3024-2RS Fw: 30 mm | D: 37 mm | Width: 24 mm | Cr: 22 kN | C0r: 39.5 kN | m: 44 g
HK3516-2RS Fw: 35 mm | D: 42 mm | Width: 16 mm | Cr: 13.1 kN | C0r: 21.3 kN | m: 32 g
HK3518-RS Fw: 35 mm | D: 42 mm | Width: 18 mm | Cr: 18.7 kN | C0r: 33.5 kN | m: 39 g
HK3520-2RS Fw: 35 mm | D: 42 mm | Width: 20 mm | Cr: 18.7 kN | C0r: 33.5 kN | m: 41 g
HK4016-2RS Fw: 40 mm | D: 47 mm | Width: 16 mm | Cr: 14 kN | C0r: 24.3 kN | m: 37 g
HK4018-RS Fw: 40 mm | D: 47 mm | Width: 18 mm | Cr: 20 kN | C0r: 38.5 kN | m: 45 g
HK4020-2RS Fw: 40 mm | D: 47 mm | Width: 20 mm | Cr: 20 kN | C0r: 38.5 kN | m: 48 g
HK4518-RS Fw: 45 mm | D: 52 mm | Width: 18 mm | Cr: 21.3 kN | C0r: 43 kN | m: 50 g
HK4520-2RS Fw: 45 mm | D: 52 mm | Width: 20 mm | Cr: 21.3 kN | C0r: 43 kN | m: 54 g
HK5022-RS Fw: 50 mm | D: 58 mm | Width: 22 mm | Cr: 31 kN | C0r: 63 kN | m: 76 g
HK5024-2RS Fw: 50 mm | D: 58 mm | Width: 24 mm | Cr: 31 kN | C0r: 63 kN | m: 81 g
Needle Roller BearingsINA
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA HK..-RS / HK..-2RS / BK..-RS Sealed Drawn Cup Needle Bearings

Brand INA·Needle Roller Bearings

Available part numbers (54)

HK0810-2RS, HK0810-RS, HK0812-2RS, HK0812-RS, HK1012-2RS, HK1012-RS, HK1014-2RS, BK1012-RS, HK1214-2RS, HK1214-RS + 44 more — see full table ↓
