INA HN Full Complement Drawn Cup Needle Roller Bearings

INA HN Full Complement Drawn Cup Needle Roller Bearings

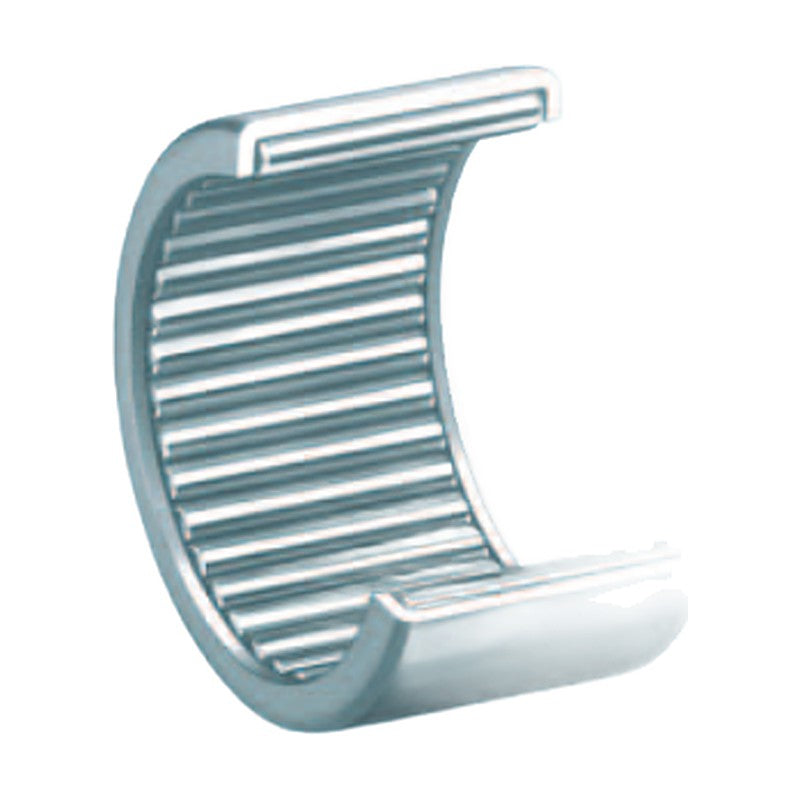

INA HN drawn cup needle roller bearings with full complement of needles, open end, for high radial loads at low speeds and oscillating motion.

Key features

  • Full complement: maximum number of needles, no cage
  • Higher load capacity than caged HK at the same size
  • Suited to low speeds and swivel motion
  • Press fit in housing bore

Specifications

Brand INA
Product type Needle Roller Bearings
Design Drawn cup, full complement
Shaft (Fw) 8 - 50 mm
Outside diameter D 12 - 58 mm
Designations listed 18
Source INA Rolling Bearings HR 1 catalogue, p. 626-627
HN0808 Fw: 8 mm | D: 12 mm | C: 8 mm | Cr: 5 kN | C0r: 6.7 kN | m: 3 g
HN1010 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 7.2 kN | C0r: 11.1 kN | m: 4.6 g
HN1210 Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 8 kN | C0r: 13.4 kN | m: 5.3 g
HN1212 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 10.2 kN | C0r: 15.2 kN | m: 10.5 g
HN1412 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 11 kN | C0r: 17.5 kN | m: 12 g
HN1516 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 15.4 kN | C0r: 27.5 kN | m: 14 g
HN1612 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 12 kN | C0r: 20.3 kN | m: 13 g
HN1816 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 17 kN | C0r: 32.5 kN | m: 20 g
HN2016 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 18.1 kN | C0r: 36.5 kN | m: 22 g
HN2020 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 22.4 kN | C0r: 48 kN | m: 29.5 g
HN2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 28 kN | C0r: 59 kN | m: 39.6 g
HN2820 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 30 kN | C0r: 67 kN | m: 44 g
HN3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 33.5 kN | C0r: 83 kN | m: 54 g
HN4020 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 36 kN | C0r: 95 kN | m: 60.5 g
HN4520 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 38.5 kN | C0r: 108 kN | m: 66 g
HN4525 Fw: 45 mm | D: 52 mm | C: 25 mm | Cr: 47 kN | C0r: 139 kN | m: 85 g
HN5020 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 44.5 kN | C0r: 119 kN | m: 85.3 g
HN5025 Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 54 kN | C0r: 152 kN | m: 107 g
Needle Roller BearingsINA
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA HN Full Complement Drawn Cup Needle Roller Bearings

Brand INA·Needle Roller Bearings

Available part numbers (18)

HN0808, HN1010, HN1210, HN1212, HN1412, HN1516, HN1612, HN1816, HN2016, HN2020 + 8 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HN0808Fw: 8 mm | D: 12 mm | C: 8 mm | Cr: 5 kN | C0r: 6.7 kN | m: 3 g
HN1010Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 7.2 kN | C0r: 11.1 kN | m: 4.6 g
HN1210Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 8 kN | C0r: 13.4 kN | m: 5.3 g
HN1212Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 10.2 kN | C0r: 15.2 kN | m: 10.5 g
HN1412Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 11 kN | C0r: 17.5 kN | m: 12 g
HN1516Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 15.4 kN | C0r: 27.5 kN | m: 14 g
HN1612Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 12 kN | C0r: 20.3 kN | m: 13 g
HN1816Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 17 kN | C0r: 32.5 kN | m: 20 g
HN2016Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 18.1 kN | C0r: 36.5 kN | m: 22 g
HN2020Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 22.4 kN | C0r: 48 kN | m: 29.5 g
HN2520Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 28 kN | C0r: 59 kN | m: 39.6 g
HN2820Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 30 kN | C0r: 67 kN | m: 44 g
HN3520Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 33.5 kN | C0r: 83 kN | m: 54 g
HN4020Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 36 kN | C0r: 95 kN | m: 60.5 g
HN4520Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 38.5 kN | C0r: 108 kN | m: 66 g
HN4525Fw: 45 mm | D: 52 mm | C: 25 mm | Cr: 47 kN | C0r: 139 kN | m: 85 g
HN5020Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 44.5 kN | C0r: 119 kN | m: 85.3 g
HN5025Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 54 kN | C0r: 152 kN | m: 107 g

Need a different model, or a part not listed here? Send us your parts list →
