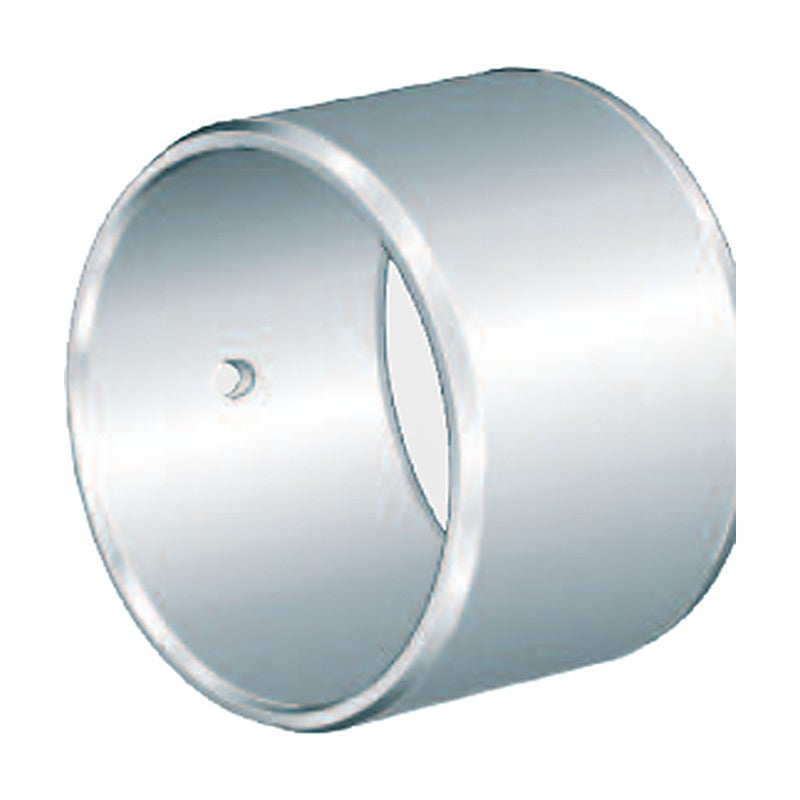

INA IR..-IS1 Inner Rings with Lubrication Hole

INA IR..-IS1 Inner Rings with Lubrication Hole

INA inner rings IR..-IS1 with lubrication hole for lubrication via the shaft.

Key features

  • Lubrication hole in inner ring (suffix IS1)
  • Hardened and ground rolling bearing steel
  • For lubrication supply through the shaft
  • Designation IR d x F x B-IS1

Specifications

Brand INA
Product type Bearing Accessories
Material Rolling bearing steel, hardened
Suffix IS1 lubrication hole
Bore d 6 - 50 mm
Raceway diameter F 10 - 60 mm
Source INA Rolling Bearings HR 1 catalogue, p. 716-716
IR6X10X10-IS1 d: 6 mm | F: 10 mm | B: 10 mm | m: 3.7 g
IR8X12X10-IS1 d: 8 mm | F: 12 mm | B: 10 mm | m: 4.8 g
IR10X14X12-IS1 d: 10 mm | F: 14 mm | B: 12 mm | m: 7.3 g
IR12X16X12-IS1 d: 12 mm | F: 16 mm | B: 12 mm | m: 7.9 g
IR15X20X12-IS1 d: 15 mm | F: 20 mm | B: 12 mm | m: 12.2 g
IR20X25X16-IS1 d: 20 mm | F: 25 mm | B: 16 mm | m: 24 g
IR25X30X16-IS1 d: 25 mm | F: 30 mm | B: 16 mm | m: 25.7 g
IR30X38X20-IS1 d: 30 mm | F: 38 mm | B: 20 mm | m: 77 g
IR35X42X20-IS1 d: 35 mm | F: 42 mm | B: 20 mm | m: 63.9 g
IR40X50X20-IS1 d: 40 mm | F: 50 mm | B: 20 mm | m: 106 g
IR45X55X20-IS1 d: 45 mm | F: 55 mm | B: 20 mm | m: 117 g
IR50X55X20-IS1 d: 50 mm | F: 55 mm | B: 20 mm | m: 62.5 g
IR50X60X20-IS1 d: 50 mm | F: 60 mm | B: 20 mm | m: 128 g
Bearing AccessoriesINA
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA IR..-IS1 Inner Rings with Lubrication Hole

Brand INA·Bearing Accessories

Available part numbers (13)

IR6X10X10-IS1, IR8X12X10-IS1, IR10X14X12-IS1, IR12X16X12-IS1, IR15X20X12-IS1, IR20X25X16-IS1, IR25X30X16-IS1, IR30X38X20-IS1, IR35X42X20-IS1, IR40X50X20-IS1 + 3 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR6X10X10-IS1d: 6 mm | F: 10 mm | B: 10 mm | m: 3.7 g
IR8X12X10-IS1d: 8 mm | F: 12 mm | B: 10 mm | m: 4.8 g
IR10X14X12-IS1d: 10 mm | F: 14 mm | B: 12 mm | m: 7.3 g
IR12X16X12-IS1d: 12 mm | F: 16 mm | B: 12 mm | m: 7.9 g
IR15X20X12-IS1d: 15 mm | F: 20 mm | B: 12 mm | m: 12.2 g
IR20X25X16-IS1d: 20 mm | F: 25 mm | B: 16 mm | m: 24 g
IR25X30X16-IS1d: 25 mm | F: 30 mm | B: 16 mm | m: 25.7 g
IR30X38X20-IS1d: 30 mm | F: 38 mm | B: 20 mm | m: 77 g
IR35X42X20-IS1d: 35 mm | F: 42 mm | B: 20 mm | m: 63.9 g
IR40X50X20-IS1d: 40 mm | F: 50 mm | B: 20 mm | m: 106 g
IR45X55X20-IS1d: 45 mm | F: 55 mm | B: 20 mm | m: 117 g
IR50X55X20-IS1d: 50 mm | F: 55 mm | B: 20 mm | m: 62.5 g
IR50X60X20-IS1d: 50 mm | F: 60 mm | B: 20 mm | m: 128 g
