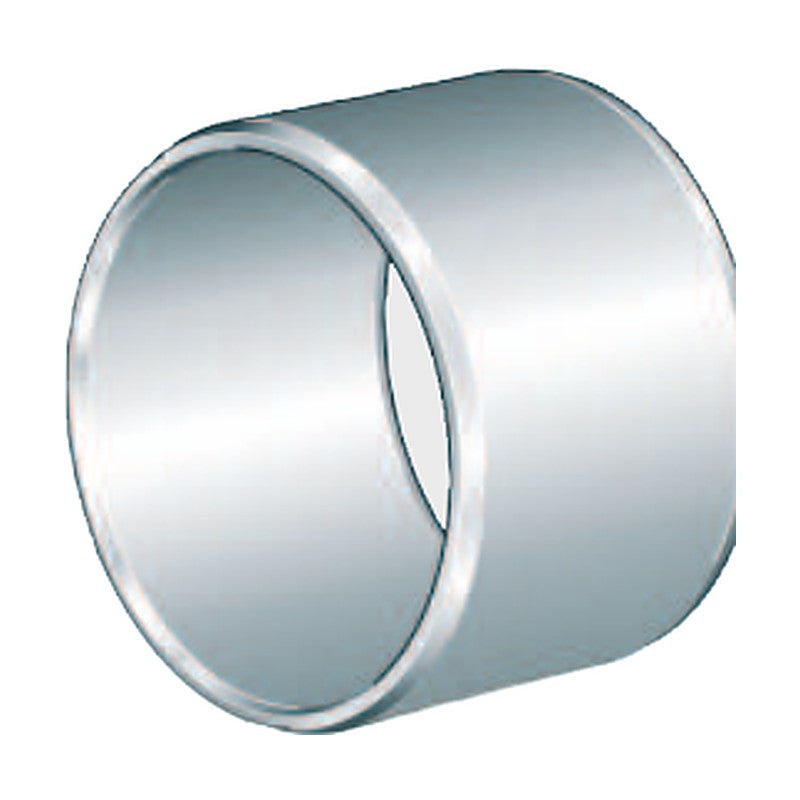

INA IR / LR Inner Rings for Needle Roller Bearings

INA IR / LR Inner Rings for Needle Roller Bearings

INA inner rings IR (ground raceway) and LR (for drawn cup bearings) made of hardened rolling bearing steel, used where the shaft cannot serve as raceway.

Key features

  • Hardened and ground rolling bearing steel
  • IR: precision raceway with defined tolerance on F
  • LR: for drawn cup needle roller bearings
  • Designation IR d x F x B
  • Combine with HK, BK, NK, RNA and combined needle bearings

Specifications

Brand INA
Product type Bearing Accessories
Material Rolling bearing steel, hardened
Bore d 5 - 380 mm
Raceway diameter F 8 - 415 mm
Designations listed 208
Source INA Rolling Bearings HR 1 catalogue, p. 712-715
IR5X8X12 d: 5 mm | F: 8 mm | B: 12 mm | m: 2.8 g
LR15X18X12,5 d: 15 mm | F: 18 mm | B: 12.5 mm | m: 7.2 g
IR5X8X16 d: 5 mm | F: 8 mm | B: 16 mm | m: 3.7 g
IR15X18X16 d: 15 mm | F: 18 mm | B: 16 mm | m: 9.4 g
IR6X9X12 d: 6 mm | F: 9 mm | B: 12 mm | m: 3 g
IR15X18X16,5 d: 15 mm | F: 18 mm | B: 16.5 mm | m: 9.8 g
IR6X9X16 d: 6 mm | F: 9 mm | B: 16 mm | m: 4.3 g
LR15X18X16,5 d: 15 mm | F: 18 mm | B: 16.5 mm | m: 9.8 g
IR7X10X10,5 d: 7 mm | F: 10 mm | B: 10.5 mm | m: 3.1 g
IR15X19X16 d: 15 mm | F: 19 mm | B: 16 mm | m: 12.9 g
LR7X10X10,5 d: 7 mm | F: 10 mm | B: 10.5 mm | m: 3.1 g
IR15X19X20 d: 15 mm | F: 19 mm | B: 20 mm | m: 16.3 g
IR7X10X12 d: 7 mm | F: 10 mm | B: 12 mm | m: 3.6 g
IR15X20X13 d: 15 mm | F: 20 mm | B: 13 mm | m: 13.5 g
IR7X10X16 d: 7 mm | F: 10 mm | B: 16 mm | m: 4.9 g
IR15X20X23 d: 15 mm | F: 20 mm | B: 23 mm | m: 24.4 g
IR8X12X10,5 d: 8 mm | F: 12 mm | B: 10.5 mm | m: 5 g
IR17X20X16 d: 17 mm | F: 20 mm | B: 16 mm | m: 10.6 g
LR8X12X10,5 d: 8 mm | F: 12 mm | B: 10.5 mm | m: 5 g
IR17X20X16,5 d: 17 mm | F: 20 mm | B: 16.5 mm | m: 11.1 g
IR8X12X12,5 d: 8 mm | F: 12 mm | B: 12.5 mm | m: 5.9 g
LR17X20X16,5 d: 17 mm | F: 20 mm | B: 16.5 mm | m: 11.1 g
LR8X12X12,5 d: 8 mm | F: 12 mm | B: 12.5 mm | m: 5 g
IR17X20X20 d: 17 mm | F: 20 mm | B: 20 mm | m: 13.5 g
IR9X12X12 d: 9 mm | F: 12 mm | B: 12 mm | m: 4.4 g
IR17X20X20,5 d: 17 mm | F: 20 mm | B: 20.5 mm | m: 13.8 g
IR9X12X16 d: 9 mm | F: 12 mm | B: 16 mm | m: 6 g
LR17X20X20,5 d: 17 mm | F: 20 mm | B: 20.5 mm | m: 13.8 g
IR10X13X12,5 d: 10 mm | F: 13 mm | B: 12.5 mm | m: 5.2 g
IR17X20X30,5 d: 17 mm | F: 20 mm | B: 30.5 mm | m: 20.6 g
LR10X13X12,5 d: 10 mm | F: 13 mm | B: 12.5 mm | m: 5.2 g
IR10X14X13 d: 10 mm | F: 14 mm | B: 13 mm | m: 7.4 g
IR17X21X16 d: 17 mm | F: 21 mm | B: 16 mm | m: 15 g
IR10X14X16 d: 10 mm | F: 14 mm | B: 16 mm | m: 9.2 g
IR17X21X20 d: 17 mm | F: 21 mm | B: 20 mm | m: 18 g
IR10X14X20 d: 10 mm | F: 14 mm | B: 20 mm | m: 11.5 g
IR17X22X13 d: 17 mm | F: 22 mm | B: 13 mm | m: 14.9 g
IR12X15X12 d: 12 mm | F: 15 mm | B: 12 mm | m: 5.7 g
IR17X22X16 d: 17 mm | F: 22 mm | B: 16 mm | m: 18.4 g
IR12X15X12,5 d: 12 mm | F: 15 mm | B: 12.5 mm | m: 6.1 g
IR17X22X23 d: 17 mm | F: 22 mm | B: 23 mm | m: 27.1 g
LR12X15X12,5 d: 12 mm | F: 15 mm | B: 12.5 mm | m: 6.1 g
IR17X24X20 d: 17 mm | F: 24 mm | B: 20 mm | m: 33.8 g
IR12X15X16 d: 12 mm | F: 15 mm | B: 16 mm | m: 7.6 g
IR12X15X16,5 d: 12 mm | F: 15 mm | B: 16.5 mm | m: 8.1 g
LR12X15X16,5 d: 12 mm | F: 15 mm | B: 16.5 mm | m: 8.1 g
IR12X15X22,5 d: 12 mm | F: 15 mm | B: 22.5 mm | m: 10.9 g
LR12X15X22,5 d: 12 mm | F: 15 mm | B: 22.5 mm | m: 10.9 g
IR12X16X13 d: 12 mm | F: 16 mm | B: 13 mm | m: 8.5 g
IR12X16X16 d: 12 mm | F: 16 mm | B: 16 mm | m: 10.7 g
IR12X16X20 d: 12 mm | F: 16 mm | B: 20 mm | m: 13.5 g
IR12X16X22 d: 12 mm | F: 16 mm | B: 22 mm | m: 14.9 g
IR14X17X17 d: 14 mm | F: 17 mm | B: 17 mm | m: 9.5 g
IR20X24X16 d: 20 mm | F: 24 mm | B: 16 mm | m: 15 g
IR25X29X20 d: 25 mm | F: 29 mm | B: 20 mm | m: 25.9 g
IR20X24X20 d: 20 mm | F: 24 mm | B: 20 mm | m: 21.3 g
IR25X29X30 d: 25 mm | F: 29 mm | B: 30 mm | m: 39.3 g
LR20X25X12,5 d: 20 mm | F: 25 mm | B: 12.5 mm | m: 16.3 g
LR25X30X12,5 d: 25 mm | F: 30 mm | B: 12.5 mm | m: 20 g
LR20X25X16,5 d: 20 mm | F: 25 mm | B: 16.5 mm | m: 21.7 g
LR25X30X16,5 d: 25 mm | F: 30 mm | B: 16.5 mm | m: 26.7 g
IR20X25X17 d: 20 mm | F: 25 mm | B: 17 mm | m: 25 g
IR20X25X20 d: 20 mm | F: 25 mm | B: 20 mm | m: 27.5 g
IR25X30X20 d: 25 mm | F: 30 mm | B: 20 mm | m: 32.8 g
IR20X25X20,5 d: 20 mm | F: 25 mm | B: 20.5 mm | m: 27.4 g
IR25X30X20,5 d: 25 mm | F: 30 mm | B: 20.5 mm | m: 33.4 g
LR20X25X20,5 d: 20 mm | F: 25 mm | B: 20.5 mm | m: 27.4 g
LR25X30X20,5 d: 25 mm | F: 30 mm | B: 20.5 mm | m: 33.4 g
IR20X25X26,5 d: 20 mm | F: 25 mm | B: 26.5 mm | m: 38 g
IR25X30X26,5 d: 25 mm | F: 30 mm | B: 26.5 mm | m: 46 g
LR20X25X26,5 d: 20 mm | F: 25 mm | B: 26.5 mm | m: 38 g
LR25X30X26,5 d: 25 mm | F: 30 mm | B: 26.5 mm | m: 46 g
IR20X25X30 d: 20 mm | F: 25 mm | B: 30 mm | m: 40.4 g
IR25X30X30 d: 25 mm | F: 30 mm | B: 30 mm | m: 53 g
IR20X25X38,5 d: 20 mm | F: 25 mm | B: 38.5 mm | m: 52.5 g
IR25X30X32 d: 25 mm | F: 30 mm | B: 32 mm | m: 56 g
LR20X25X38,5 d: 20 mm | F: 25 mm | B: 38.5 mm | m: 52.5 g
IR25X30X38,5 d: 25 mm | F: 30 mm | B: 38.5 mm | m: 64.5 g
IR20X28X20 d: 20 mm | F: 28 mm | B: 20 mm | m: 45.2 g
LR25X30X38,5 d: 25 mm | F: 30 mm | B: 38.5 mm | m: 64.5 g
IR22X26X16 d: 22 mm | F: 26 mm | B: 16 mm | m: 18.2 g
IR25X32X22 d: 25 mm | F: 32 mm | B: 22 mm | m: 52.5 g
IR22X26X20 d: 22 mm | F: 26 mm | B: 20 mm | m: 23 g
IR28X32X17 d: 28 mm | F: 32 mm | B: 17 mm | m: 24.5 g
IR22X28X17 d: 22 mm | F: 28 mm | B: 17 mm | m: 29.5 g
IR28X32X20 d: 28 mm | F: 32 mm | B: 20 mm | m: 28.5 g
IR22X28X20 d: 22 mm | F: 28 mm | B: 20 mm | m: 35 g
IR28X32X30 d: 28 mm | F: 32 mm | B: 30 mm | m: 43.5 g
IR22X28X20,5 d: 22 mm | F: 28 mm | B: 20.5 mm | m: 36 g
LR22X28X20,5 d: 22 mm | F: 28 mm | B: 20.5 mm | m: 36 g
IR30X35X13 d: 30 mm | F: 35 mm | B: 13 mm | m: 25 g
IR22X28X30 d: 22 mm | F: 28 mm | B: 30 mm | m: 54.4 g
IR30X35X16 d: 30 mm | F: 35 mm | B: 16 mm | m: 34 g
LR30X35X16,5 d: 30 mm | F: 35 mm | B: 16.5 mm | m: 31.4 g
IR30X35X17 d: 30 mm | F: 35 mm | B: 17 mm | m: 36 g
IR30X35X20 d: 30 mm | F: 35 mm | B: 20 mm | m: 39 g
IR30X35X20,5 d: 30 mm | F: 35 mm | B: 20.5 mm | m: 39.7 g
LR30X35X20,5 d: 30 mm | F: 35 mm | B: 20.5 mm | m: 39.7 g
IR30X35X26 d: 30 mm | F: 35 mm | B: 26 mm | m: 50.4 g
IR30X35X30 d: 30 mm | F: 35 mm | B: 30 mm | m: 58.5 g
IR30X37X18 d: 30 mm | F: 37 mm | B: 18 mm | m: 50 g
IR30X37X22 d: 30 mm | F: 37 mm | B: 22 mm | m: 61.6 g
IR32X37X20 d: 32 mm | F: 37 mm | B: 20 mm | m: 42 g
IR32X40X20 d: 32 mm | F: 40 mm | B: 20 mm | m: 68 g
IR32X40X36 d: 32 mm | F: 40 mm | B: 36 mm | m: 124 g
IR33X37X13 d: 33 mm | F: 37 mm | B: 13 mm | m: 21.9 g
LR35X40X12,5 d: 35 mm | F: 40 mm | B: 12.5 mm | m: 27.2 g
IR50X58X22 d: 50 mm | F: 58 mm | B: 22 mm | m: 115 g
LR35X40X16,5 d: 35 mm | F: 40 mm | B: 16.5 mm | m: 37.4 g
IR50X58X40 d: 50 mm | F: 58 mm | B: 40 mm | m: 208 g
IR35X40X17 d: 35 mm | F: 40 mm | B: 17 mm | m: 37.8 g
IR50X60X25 d: 50 mm | F: 60 mm | B: 25 mm | m: 162 g
IR35X40X20 d: 35 mm | F: 40 mm | B: 20 mm | m: 44.2 g
IR50X60X28 d: 50 mm | F: 60 mm | B: 28 mm | m: 181 g
IR35X40X20,5 d: 35 mm | F: 40 mm | B: 20.5 mm | m: 46.1 g
IR55X60X25 d: 55 mm | F: 60 mm | B: 25 mm | m: 85.5 g
LR35X40X20,5 d: 35 mm | F: 40 mm | B: 20.5 mm | m: 46.1 g
IR55X60X35 d: 55 mm | F: 60 mm | B: 35 mm | m: 121 g
IR35X40X30 d: 35 mm | F: 40 mm | B: 30 mm | m: 67.1 g
IR55X63X25 d: 55 mm | F: 63 mm | B: 25 mm | m: 141 g
IR35X42X36 d: 35 mm | F: 42 mm | B: 36 mm | m: 117 g
IR55X63X45 d: 55 mm | F: 63 mm | B: 45 mm | m: 256 g
IR35X43X22 d: 35 mm | F: 43 mm | B: 22 mm | m: 82 g
IR55X65X28 d: 55 mm | F: 65 mm | B: 28 mm | m: 198 g
IR38X43X20 d: 38 mm | F: 43 mm | B: 20 mm | m: 48.1 g
IR60X68X25 d: 60 mm | F: 68 mm | B: 25 mm | m: 152 g
IR38X43X30 d: 38 mm | F: 43 mm | B: 30 mm | m: 73.6 g
IR60X68X35 d: 60 mm | F: 68 mm | B: 35 mm | m: 213 g
LR40X45X16,5 d: 40 mm | F: 45 mm | B: 16.5 mm | m: 41.4 g
IR60X68X45 d: 60 mm | F: 68 mm | B: 45 mm | m: 276 g
IR40X45X17 d: 40 mm | F: 45 mm | B: 17 mm | m: 42.5 g
IR60X70X25 d: 60 mm | F: 70 mm | B: 25 mm | m: 195 g
IR40X45X20 d: 40 mm | F: 45 mm | B: 20 mm | m: 50.8 g
IR60X70X28 d: 60 mm | F: 70 mm | B: 28 mm | m: 215 g
IR40X45X20,5 d: 40 mm | F: 45 mm | B: 20.5 mm | m: 51.8 g
IR65X72X25 d: 65 mm | F: 72 mm | B: 25 mm | m: 141 g
LR40X45X20,5 d: 40 mm | F: 45 mm | B: 20.5 mm | m: 51.8 g
IR65X72X45 d: 65 mm | F: 72 mm | B: 45 mm | m: 259 g
IR40X45X30 d: 40 mm | F: 45 mm | B: 30 mm | m: 84 g
IR65X73X25 d: 65 mm | F: 73 mm | B: 25 mm | m: 164 g
IR40X48X22 d: 40 mm | F: 48 mm | B: 22 mm | m: 91.6 g
IR65X73X35 d: 65 mm | F: 73 mm | B: 35 mm | m: 231 g
IR40X48X40 d: 40 mm | F: 48 mm | B: 40 mm | m: 170 g
IR65X75X28 d: 65 mm | F: 75 mm | B: 28 mm | m: 229 g
IR40X50X22 d: 40 mm | F: 50 mm | B: 22 mm | m: 118 g
IR42X47X20 d: 42 mm | F: 47 mm | B: 20 mm | m: 52.8 g
IR70X80X30 d: 70 mm | F: 80 mm | B: 30 mm | m: 267 g
IR42X47X30 d: 42 mm | F: 47 mm | B: 30 mm | m: 81 g
IR70X80X35 d: 70 mm | F: 80 mm | B: 35 mm | m: 312 g
LR45X50X20,5 d: 45 mm | F: 50 mm | B: 20.5 mm | m: 58.8 g
IR70X80X54 d: 70 mm | F: 80 mm | B: 54 mm | m: 488 g
IR45X50X25 d: 45 mm | F: 50 mm | B: 25 mm | m: 70.8 g
IR75X85X25 d: 75 mm | F: 85 mm | B: 25 mm | m: 238 g
IR45X50X25,5 d: 45 mm | F: 50 mm | B: 25.5 mm | m: 75.1 g
IR75X85X30 d: 75 mm | F: 85 mm | B: 30 mm | m: 287 g
LR45X50X25,5 d: 45 mm | F: 50 mm | B: 25.5 mm | m: 75.1 g
IR75X85X35 d: 75 mm | F: 85 mm | B: 35 mm | m: 336 g
IR45X50X35 d: 45 mm | F: 50 mm | B: 35 mm | m: 101 g
IR75X85X54 d: 75 mm | F: 85 mm | B: 54 mm | m: 520 g
IR45X52X22 d: 45 mm | F: 52 mm | B: 22 mm | m: 89 g
IR80X90X25 d: 80 mm | F: 90 mm | B: 25 mm | m: 253 g
IR45X52X40 d: 45 mm | F: 52 mm | B: 40 mm | m: 164 g
IR80X90X30 d: 80 mm | F: 90 mm | B: 30 mm | m: 304 g
IR45X55X22 d: 45 mm | F: 55 mm | B: 22 mm | m: 129 g
IR80X90X35 d: 80 mm | F: 90 mm | B: 35 mm | m: 355 g
LR50X55X20,5 d: 50 mm | F: 55 mm | B: 20.5 mm | m: 64.1 g
IR80X90X54 d: 80 mm | F: 90 mm | B: 54 mm | m: 556 g
IR50X55X25 d: 50 mm | F: 55 mm | B: 25 mm | m: 78 g
IR85X95X26 d: 85 mm | F: 95 mm | B: 26 mm | m: 277 g
IR50X55X35 d: 50 mm | F: 55 mm | B: 35 mm | m: 112 g
IR85X95X36 d: 85 mm | F: 95 mm | B: 36 mm | m: 388 g
IR85X100X35 d: 85 mm | F: 100 mm | B: 35 mm | m: 582 g
IR85X100X63 d: 85 mm | F: 100 mm | B: 63 mm | m: 1054 g
IR90X100X26 d: 90 mm | F: 100 mm | B: 26 mm | m: 294 g
IR90X100X30 d: 90 mm | F: 100 mm | B: 30 mm | m: 340 g
IR90X100X36 d: 90 mm | F: 100 mm | B: 36 mm | m: 406 g
IR90X105X35 d: 90 mm | F: 105 mm | B: 35 mm | m: 610 g
IR90X105X63 d: 90 mm | F: 105 mm | B: 63 mm | m: 1110 g
IR95X105X26 d: 95 mm | F: 105 mm | B: 26 mm | m: 313 g
IR95X105X36 d: 95 mm | F: 105 mm | B: 36 mm | m: 431 g
IR95X110X35 d: 95 mm | F: 110 mm | B: 35 mm | m: 657 g
IR95X110X63 d: 95 mm | F: 110 mm | B: 63 mm | m: 1170 g
IR100X110X30 d: 100 mm | F: 110 mm | B: 30 mm | m: 350 g
IR100X110X40 d: 100 mm | F: 110 mm | B: 40 mm | m: 505 g
IR100X115X40 d: 100 mm | F: 115 mm | B: 40 mm | m: 797 g
IR110X120X30 d: 110 mm | F: 120 mm | B: 30 mm | m: 409 g
IR110X125X40 d: 110 mm | F: 125 mm | B: 40 mm | m: 840 g
IR120X130X30 d: 120 mm | F: 130 mm | B: 30 mm | m: 442 g
IR120X135X45 d: 120 mm | F: 135 mm | B: 45 mm | m: 1044 g
IR130X145X35 d: 130 mm | F: 145 mm | B: 35 mm | m: 855 g
IR130X150X50 d: 130 mm | F: 150 mm | B: 50 mm | m: 1690 g
IR140X155X35 d: 140 mm | F: 155 mm | B: 35 mm | m: 917 g
IR140X160X50 d: 140 mm | F: 160 mm | B: 50 mm | m: 1800 g
IR150X165X40 d: 150 mm | F: 165 mm | B: 40 mm | m: 1122 g
IR160X175X40 d: 160 mm | F: 175 mm | B: 40 mm | m: 1200 g
IR170X185X45 d: 170 mm | F: 185 mm | B: 45 mm | m: 1441 g
IR180X195X45 d: 180 mm | F: 195 mm | B: 45 mm | m: 1510 g
IR190X210X50 d: 190 mm | F: 210 mm | B: 50 mm | m: 2410 g
IR200X220X50 d: 200 mm | F: 220 mm | B: 50 mm | m: 2518 g
IR220X240X50 d: 220 mm | F: 240 mm | B: 50 mm | m: 2753 g
IR240X265X60 d: 240 mm | F: 265 mm | B: 60 mm | m: 4600 g
IR260X285X60 d: 260 mm | F: 285 mm | B: 60 mm | m: 4980 g
IR280X305X69 d: 280 mm | F: 305 mm | B: 69 mm | m: 6100 g
IR300X330X80 d: 300 mm | F: 330 mm | B: 80 mm | m: 9200 g
IR320X350X80 d: 320 mm | F: 350 mm | B: 80 mm | m: 9800 g
IR340X370X80 d: 340 mm | F: 370 mm | B: 80 mm | m: 10200 g
IR360X390X80 d: 360 mm | F: 390 mm | B: 80 mm | m: 10900 g
IR380X415X100 d: 380 mm | F: 415 mm | B: 100 mm | m: 16700 g
Bearing AccessoriesINA
208 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA IR / LR Inner Rings for Needle Roller Bearings

Brand INA·Bearing Accessories

Available part numbers (208)

IR5X8X12, LR15X18X12,5, IR5X8X16, IR15X18X16, IR6X9X12, IR15X18X16,5, IR6X9X16, LR15X18X16,5, IR7X10X10,5, IR15X19X16 + 198 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR5X8X12d: 5 mm | F: 8 mm | B: 12 mm | m: 2.8 g
LR15X18X12,5d: 15 mm | F: 18 mm | B: 12.5 mm | m: 7.2 g
IR5X8X16d: 5 mm | F: 8 mm | B: 16 mm | m: 3.7 g
IR15X18X16d: 15 mm | F: 18 mm | B: 16 mm | m: 9.4 g
IR6X9X12d: 6 mm | F: 9 mm | B: 12 mm | m: 3 g
IR15X18X16,5d: 15 mm | F: 18 mm | B: 16.5 mm | m: 9.8 g
IR6X9X16d: 6 mm | F: 9 mm | B: 16 mm | m: 4.3 g
LR15X18X16,5d: 15 mm | F: 18 mm | B: 16.5 mm | m: 9.8 g
IR7X10X10,5d: 7 mm | F: 10 mm | B: 10.5 mm | m: 3.1 g
IR15X19X16d: 15 mm | F: 19 mm | B: 16 mm | m: 12.9 g
LR7X10X10,5d: 7 mm | F: 10 mm | B: 10.5 mm | m: 3.1 g
IR15X19X20d: 15 mm | F: 19 mm | B: 20 mm | m: 16.3 g
IR7X10X12d: 7 mm | F: 10 mm | B: 12 mm | m: 3.6 g
IR15X20X13d: 15 mm | F: 20 mm | B: 13 mm | m: 13.5 g
IR7X10X16d: 7 mm | F: 10 mm | B: 16 mm | m: 4.9 g
IR15X20X23d: 15 mm | F: 20 mm | B: 23 mm | m: 24.4 g
IR8X12X10,5d: 8 mm | F: 12 mm | B: 10.5 mm | m: 5 g
IR17X20X16d: 17 mm | F: 20 mm | B: 16 mm | m: 10.6 g
LR8X12X10,5d: 8 mm | F: 12 mm | B: 10.5 mm | m: 5 g
IR17X20X16,5d: 17 mm | F: 20 mm | B: 16.5 mm | m: 11.1 g
IR8X12X12,5d: 8 mm | F: 12 mm | B: 12.5 mm | m: 5.9 g
LR17X20X16,5d: 17 mm | F: 20 mm | B: 16.5 mm | m: 11.1 g
LR8X12X12,5d: 8 mm | F: 12 mm | B: 12.5 mm | m: 5 g
IR17X20X20d: 17 mm | F: 20 mm | B: 20 mm | m: 13.5 g
IR9X12X12d: 9 mm | F: 12 mm | B: 12 mm | m: 4.4 g
IR17X20X20,5d: 17 mm | F: 20 mm | B: 20.5 mm | m: 13.8 g
IR9X12X16d: 9 mm | F: 12 mm | B: 16 mm | m: 6 g
LR17X20X20,5d: 17 mm | F: 20 mm | B: 20.5 mm | m: 13.8 g
IR10X13X12,5d: 10 mm | F: 13 mm | B: 12.5 mm | m: 5.2 g
IR17X20X30,5d: 17 mm | F: 20 mm | B: 30.5 mm | m: 20.6 g
LR10X13X12,5d: 10 mm | F: 13 mm | B: 12.5 mm | m: 5.2 g
IR10X14X13d: 10 mm | F: 14 mm | B: 13 mm | m: 7.4 g
IR17X21X16d: 17 mm | F: 21 mm | B: 16 mm | m: 15 g
IR10X14X16d: 10 mm | F: 14 mm | B: 16 mm | m: 9.2 g
IR17X21X20d: 17 mm | F: 21 mm | B: 20 mm | m: 18 g
IR10X14X20d: 10 mm | F: 14 mm | B: 20 mm | m: 11.5 g
IR17X22X13d: 17 mm | F: 22 mm | B: 13 mm | m: 14.9 g
IR12X15X12d: 12 mm | F: 15 mm | B: 12 mm | m: 5.7 g
IR17X22X16d: 17 mm | F: 22 mm | B: 16 mm | m: 18.4 g
IR12X15X12,5d: 12 mm | F: 15 mm | B: 12.5 mm | m: 6.1 g
IR17X22X23d: 17 mm | F: 22 mm | B: 23 mm | m: 27.1 g
LR12X15X12,5d: 12 mm | F: 15 mm | B: 12.5 mm | m: 6.1 g
IR17X24X20d: 17 mm | F: 24 mm | B: 20 mm | m: 33.8 g
IR12X15X16d: 12 mm | F: 15 mm | B: 16 mm | m: 7.6 g
IR12X15X16,5d: 12 mm | F: 15 mm | B: 16.5 mm | m: 8.1 g
LR12X15X16,5d: 12 mm | F: 15 mm | B: 16.5 mm | m: 8.1 g
IR12X15X22,5d: 12 mm | F: 15 mm | B: 22.5 mm | m: 10.9 g
LR12X15X22,5d: 12 mm | F: 15 mm | B: 22.5 mm | m: 10.9 g
IR12X16X13d: 12 mm | F: 16 mm | B: 13 mm | m: 8.5 g
IR12X16X16d: 12 mm | F: 16 mm | B: 16 mm | m: 10.7 g
IR12X16X20d: 12 mm | F: 16 mm | B: 20 mm | m: 13.5 g
IR12X16X22d: 12 mm | F: 16 mm | B: 22 mm | m: 14.9 g
IR14X17X17d: 14 mm | F: 17 mm | B: 17 mm | m: 9.5 g
IR20X24X16d: 20 mm | F: 24 mm | B: 16 mm | m: 15 g
IR25X29X20d: 25 mm | F: 29 mm | B: 20 mm | m: 25.9 g
IR20X24X20d: 20 mm | F: 24 mm | B: 20 mm | m: 21.3 g
IR25X29X30d: 25 mm | F: 29 mm | B: 30 mm | m: 39.3 g
LR20X25X12,5d: 20 mm | F: 25 mm | B: 12.5 mm | m: 16.3 g
LR25X30X12,5d: 25 mm | F: 30 mm | B: 12.5 mm | m: 20 g
LR20X25X16,5d: 20 mm | F: 25 mm | B: 16.5 mm | m: 21.7 g
LR25X30X16,5d: 25 mm | F: 30 mm | B: 16.5 mm | m: 26.7 g
IR20X25X17d: 20 mm | F: 25 mm | B: 17 mm | m: 25 g
IR20X25X20d: 20 mm | F: 25 mm | B: 20 mm | m: 27.5 g
IR25X30X20d: 25 mm | F: 30 mm | B: 20 mm | m: 32.8 g
IR20X25X20,5d: 20 mm | F: 25 mm | B: 20.5 mm | m: 27.4 g
IR25X30X20,5d: 25 mm | F: 30 mm | B: 20.5 mm | m: 33.4 g
LR20X25X20,5d: 20 mm | F: 25 mm | B: 20.5 mm | m: 27.4 g
LR25X30X20,5d: 25 mm | F: 30 mm | B: 20.5 mm | m: 33.4 g
IR20X25X26,5d: 20 mm | F: 25 mm | B: 26.5 mm | m: 38 g
IR25X30X26,5d: 25 mm | F: 30 mm | B: 26.5 mm | m: 46 g
LR20X25X26,5d: 20 mm | F: 25 mm | B: 26.5 mm | m: 38 g
LR25X30X26,5d: 25 mm | F: 30 mm | B: 26.5 mm | m: 46 g
IR20X25X30d: 20 mm | F: 25 mm | B: 30 mm | m: 40.4 g
IR25X30X30d: 25 mm | F: 30 mm | B: 30 mm | m: 53 g
IR20X25X38,5d: 20 mm | F: 25 mm | B: 38.5 mm | m: 52.5 g
IR25X30X32d: 25 mm | F: 30 mm | B: 32 mm | m: 56 g
LR20X25X38,5d: 20 mm | F: 25 mm | B: 38.5 mm | m: 52.5 g
IR25X30X38,5d: 25 mm | F: 30 mm | B: 38.5 mm | m: 64.5 g
IR20X28X20d: 20 mm | F: 28 mm | B: 20 mm | m: 45.2 g
LR25X30X38,5d: 25 mm | F: 30 mm | B: 38.5 mm | m: 64.5 g
IR22X26X16d: 22 mm | F: 26 mm | B: 16 mm | m: 18.2 g
IR25X32X22d: 25 mm | F: 32 mm | B: 22 mm | m: 52.5 g
IR22X26X20d: 22 mm | F: 26 mm | B: 20 mm | m: 23 g
IR28X32X17d: 28 mm | F: 32 mm | B: 17 mm | m: 24.5 g
IR22X28X17d: 22 mm | F: 28 mm | B: 17 mm | m: 29.5 g
IR28X32X20d: 28 mm | F: 32 mm | B: 20 mm | m: 28.5 g
IR22X28X20d: 22 mm | F: 28 mm | B: 20 mm | m: 35 g
IR28X32X30d: 28 mm | F: 32 mm | B: 30 mm | m: 43.5 g
IR22X28X20,5d: 22 mm | F: 28 mm | B: 20.5 mm | m: 36 g
LR22X28X20,5d: 22 mm | F: 28 mm | B: 20.5 mm | m: 36 g
IR30X35X13d: 30 mm | F: 35 mm | B: 13 mm | m: 25 g
IR22X28X30d: 22 mm | F: 28 mm | B: 30 mm | m: 54.4 g
IR30X35X16d: 30 mm | F: 35 mm | B: 16 mm | m: 34 g
LR30X35X16,5d: 30 mm | F: 35 mm | B: 16.5 mm | m: 31.4 g
IR30X35X17d: 30 mm | F: 35 mm | B: 17 mm | m: 36 g
IR30X35X20d: 30 mm | F: 35 mm | B: 20 mm | m: 39 g
IR30X35X20,5d: 30 mm | F: 35 mm | B: 20.5 mm | m: 39.7 g
LR30X35X20,5d: 30 mm | F: 35 mm | B: 20.5 mm | m: 39.7 g
IR30X35X26d: 30 mm | F: 35 mm | B: 26 mm | m: 50.4 g
IR30X35X30d: 30 mm | F: 35 mm | B: 30 mm | m: 58.5 g
IR30X37X18d: 30 mm | F: 37 mm | B: 18 mm | m: 50 g
IR30X37X22d: 30 mm | F: 37 mm | B: 22 mm | m: 61.6 g
IR32X37X20d: 32 mm | F: 37 mm | B: 20 mm | m: 42 g
IR32X40X20d: 32 mm | F: 40 mm | B: 20 mm | m: 68 g
IR32X40X36d: 32 mm | F: 40 mm | B: 36 mm | m: 124 g
IR33X37X13d: 33 mm | F: 37 mm | B: 13 mm | m: 21.9 g
LR35X40X12,5d: 35 mm | F: 40 mm | B: 12.5 mm | m: 27.2 g
IR50X58X22d: 50 mm | F: 58 mm | B: 22 mm | m: 115 g
LR35X40X16,5d: 35 mm | F: 40 mm | B: 16.5 mm | m: 37.4 g
IR50X58X40d: 50 mm | F: 58 mm | B: 40 mm | m: 208 g
IR35X40X17d: 35 mm | F: 40 mm | B: 17 mm | m: 37.8 g
IR50X60X25d: 50 mm | F: 60 mm | B: 25 mm | m: 162 g
IR35X40X20d: 35 mm | F: 40 mm | B: 20 mm | m: 44.2 g
IR50X60X28d: 50 mm | F: 60 mm | B: 28 mm | m: 181 g
IR35X40X20,5d: 35 mm | F: 40 mm | B: 20.5 mm | m: 46.1 g
IR55X60X25d: 55 mm | F: 60 mm | B: 25 mm | m: 85.5 g
LR35X40X20,5d: 35 mm | F: 40 mm | B: 20.5 mm | m: 46.1 g
IR55X60X35d: 55 mm | F: 60 mm | B: 35 mm | m: 121 g
IR35X40X30d: 35 mm | F: 40 mm | B: 30 mm | m: 67.1 g
IR55X63X25d: 55 mm | F: 63 mm | B: 25 mm | m: 141 g
IR35X42X36d: 35 mm | F: 42 mm | B: 36 mm | m: 117 g
IR55X63X45d: 55 mm | F: 63 mm | B: 45 mm | m: 256 g
IR35X43X22d: 35 mm | F: 43 mm | B: 22 mm | m: 82 g
IR55X65X28d: 55 mm | F: 65 mm | B: 28 mm | m: 198 g
IR38X43X20d: 38 mm | F: 43 mm | B: 20 mm | m: 48.1 g
IR60X68X25d: 60 mm | F: 68 mm | B: 25 mm | m: 152 g
IR38X43X30d: 38 mm | F: 43 mm | B: 30 mm | m: 73.6 g
IR60X68X35d: 60 mm | F: 68 mm | B: 35 mm | m: 213 g
LR40X45X16,5d: 40 mm | F: 45 mm | B: 16.5 mm | m: 41.4 g
IR60X68X45d: 60 mm | F: 68 mm | B: 45 mm | m: 276 g
IR40X45X17d: 40 mm | F: 45 mm | B: 17 mm | m: 42.5 g
IR60X70X25d: 60 mm | F: 70 mm | B: 25 mm | m: 195 g
IR40X45X20d: 40 mm | F: 45 mm | B: 20 mm | m: 50.8 g
IR60X70X28d: 60 mm | F: 70 mm | B: 28 mm | m: 215 g
IR40X45X20,5d: 40 mm | F: 45 mm | B: 20.5 mm | m: 51.8 g
IR65X72X25d: 65 mm | F: 72 mm | B: 25 mm | m: 141 g
LR40X45X20,5d: 40 mm | F: 45 mm | B: 20.5 mm | m: 51.8 g
IR65X72X45d: 65 mm | F: 72 mm | B: 45 mm | m: 259 g
IR40X45X30d: 40 mm | F: 45 mm | B: 30 mm | m: 84 g
IR65X73X25d: 65 mm | F: 73 mm | B: 25 mm | m: 164 g
IR40X48X22d: 40 mm | F: 48 mm | B: 22 mm | m: 91.6 g
IR65X73X35d: 65 mm | F: 73 mm | B: 35 mm | m: 231 g
IR40X48X40d: 40 mm | F: 48 mm | B: 40 mm | m: 170 g
IR65X75X28d: 65 mm | F: 75 mm | B: 28 mm | m: 229 g
IR40X50X22d: 40 mm | F: 50 mm | B: 22 mm | m: 118 g
IR42X47X20d: 42 mm | F: 47 mm | B: 20 mm | m: 52.8 g
IR70X80X30d: 70 mm | F: 80 mm | B: 30 mm | m: 267 g
IR42X47X30d: 42 mm | F: 47 mm | B: 30 mm | m: 81 g
IR70X80X35d: 70 mm | F: 80 mm | B: 35 mm | m: 312 g
LR45X50X20,5d: 45 mm | F: 50 mm | B: 20.5 mm | m: 58.8 g
IR70X80X54d: 70 mm | F: 80 mm | B: 54 mm | m: 488 g
IR45X50X25d: 45 mm | F: 50 mm | B: 25 mm | m: 70.8 g
IR75X85X25d: 75 mm | F: 85 mm | B: 25 mm | m: 238 g
IR45X50X25,5d: 45 mm | F: 50 mm | B: 25.5 mm | m: 75.1 g
IR75X85X30d: 75 mm | F: 85 mm | B: 30 mm | m: 287 g
LR45X50X25,5d: 45 mm | F: 50 mm | B: 25.5 mm | m: 75.1 g
IR75X85X35d: 75 mm | F: 85 mm | B: 35 mm | m: 336 g
IR45X50X35d: 45 mm | F: 50 mm | B: 35 mm | m: 101 g
IR75X85X54d: 75 mm | F: 85 mm | B: 54 mm | m: 520 g
IR45X52X22d: 45 mm | F: 52 mm | B: 22 mm | m: 89 g
IR80X90X25d: 80 mm | F: 90 mm | B: 25 mm | m: 253 g
IR45X52X40d: 45 mm | F: 52 mm | B: 40 mm | m: 164 g
IR80X90X30d: 80 mm | F: 90 mm | B: 30 mm | m: 304 g
IR45X55X22d: 45 mm | F: 55 mm | B: 22 mm | m: 129 g
IR80X90X35d: 80 mm | F: 90 mm | B: 35 mm | m: 355 g
LR50X55X20,5d: 50 mm | F: 55 mm | B: 20.5 mm | m: 64.1 g
IR80X90X54d: 80 mm | F: 90 mm | B: 54 mm | m: 556 g
IR50X55X25d: 50 mm | F: 55 mm | B: 25 mm | m: 78 g
IR85X95X26d: 85 mm | F: 95 mm | B: 26 mm | m: 277 g
IR50X55X35d: 50 mm | F: 55 mm | B: 35 mm | m: 112 g
IR85X95X36d: 85 mm | F: 95 mm | B: 36 mm | m: 388 g
IR85X100X35d: 85 mm | F: 100 mm | B: 35 mm | m: 582 g
IR85X100X63d: 85 mm | F: 100 mm | B: 63 mm | m: 1054 g
IR90X100X26d: 90 mm | F: 100 mm | B: 26 mm | m: 294 g
IR90X100X30d: 90 mm | F: 100 mm | B: 30 mm | m: 340 g
IR90X100X36d: 90 mm | F: 100 mm | B: 36 mm | m: 406 g
IR90X105X35d: 90 mm | F: 105 mm | B: 35 mm | m: 610 g
IR90X105X63d: 90 mm | F: 105 mm | B: 63 mm | m: 1110 g
IR95X105X26d: 95 mm | F: 105 mm | B: 26 mm | m: 313 g
IR95X105X36d: 95 mm | F: 105 mm | B: 36 mm | m: 431 g
IR95X110X35d: 95 mm | F: 110 mm | B: 35 mm | m: 657 g
IR95X110X63d: 95 mm | F: 110 mm | B: 63 mm | m: 1170 g
IR100X110X30d: 100 mm | F: 110 mm | B: 30 mm | m: 350 g
IR100X110X40d: 100 mm | F: 110 mm | B: 40 mm | m: 505 g
IR100X115X40d: 100 mm | F: 115 mm | B: 40 mm | m: 797 g
IR110X120X30d: 110 mm | F: 120 mm | B: 30 mm | m: 409 g
IR110X125X40d: 110 mm | F: 125 mm | B: 40 mm | m: 840 g
IR120X130X30d: 120 mm | F: 130 mm | B: 30 mm | m: 442 g
IR120X135X45d: 120 mm | F: 135 mm | B: 45 mm | m: 1044 g
IR130X145X35d: 130 mm | F: 145 mm | B: 35 mm | m: 855 g
IR130X150X50d: 130 mm | F: 150 mm | B: 50 mm | m: 1690 g
IR140X155X35d: 140 mm | F: 155 mm | B: 35 mm | m: 917 g
IR140X160X50d: 140 mm | F: 160 mm | B: 50 mm | m: 1800 g
IR150X165X40d: 150 mm | F: 165 mm | B: 40 mm | m: 1122 g
IR160X175X40d: 160 mm | F: 175 mm | B: 40 mm | m: 1200 g
IR170X185X45d: 170 mm | F: 185 mm | B: 45 mm | m: 1441 g
IR180X195X45d: 180 mm | F: 195 mm | B: 45 mm | m: 1510 g
IR190X210X50d: 190 mm | F: 210 mm | B: 50 mm | m: 2410 g
IR200X220X50d: 200 mm | F: 220 mm | B: 50 mm | m: 2518 g
IR220X240X50d: 220 mm | F: 240 mm | B: 50 mm | m: 2753 g
IR240X265X60d: 240 mm | F: 265 mm | B: 60 mm | m: 4600 g
IR260X285X60d: 260 mm | F: 285 mm | B: 60 mm | m: 4980 g
IR280X305X69d: 280 mm | F: 305 mm | B: 69 mm | m: 6100 g
IR300X330X80d: 300 mm | F: 330 mm | B: 80 mm | m: 9200 g
IR320X350X80d: 320 mm | F: 350 mm | B: 80 mm | m: 9800 g
IR340X370X80d: 340 mm | F: 370 mm | B: 80 mm | m: 10200 g
IR360X390X80d: 360 mm | F: 390 mm | B: 80 mm | m: 10900 g
IR380X415X100d: 380 mm | F: 415 mm | B: 100 mm | m: 16700 g

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
