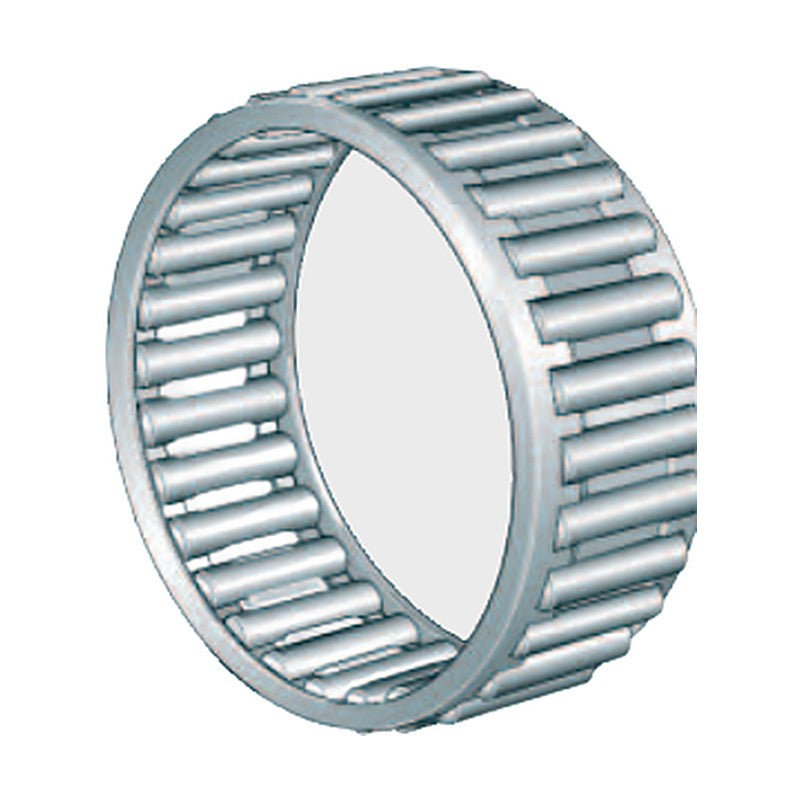

INA K Needle Roller and Cage Assemblies (Single and Double Row)

INA radial needle roller and cage assemblies K, K..-TV (polyamide cage) and K..-ZW (double row) running directly on hardened shafts and housing bores.

Key features

Very small radial section height: needles run directly on shaft and housing
Steel or glass fibre reinforced polyamide (TV) cage
Single row and double row (ZW) designs
High radial load capacity and rigidity in minimal space
Raceways must be hardened and ground

Specifications

Brand	INA
Product type	Needle Roller Bearings
Design	Radial needle cage
Raceway	Shaft and housing bore
Inner enveloping circle Fw	3 - 265 mm
Outer enveloping circle Ew	5 - 280 mm
Source	INA Rolling Bearings HR 1 catalogue, p. 600-608

K3X5X7-TV		Fw: 3 mm \| Ew: 5 mm \| Bc: 7 mm \| Cr: 1.54 kN \| C0r: 1.29 kN \| m: 0.3 g
K3X5X9-TV		Fw: 3 mm \| Ew: 5 mm \| Bc: 9 mm \| Cr: 1.71 kN \| C0r: 1.48 kN \| m: 0.4 g
K3X6X7-TV		Fw: 3 mm \| Ew: 6 mm \| Bc: 7 mm \| Cr: 1.43 kN \| C0r: 0.97 kN \| m: 0.4 g
K4X7X7-TV		Fw: 4 mm \| Ew: 7 mm \| Bc: 7 mm \| Cr: 1.74 kN \| C0r: 1.27 kN \| m: 0.5 g
K4X7X10-TV		Fw: 4 mm \| Ew: 7 mm \| Bc: 10 mm \| Cr: 2.33 kN \| C0r: 1.84 kN \| m: 0.7 g
K5X8X8-TV		Fw: 5 mm \| Ew: 8 mm \| Bc: 8 mm \| Cr: 2.35 kN \| C0r: 1.92 kN \| m: 0.7 g
K5X8X10-TV		Fw: 5 mm \| Ew: 8 mm \| Bc: 10 mm \| Cr: 3 kN \| C0r: 2.65 kN \| m: 0.9 g
K6X9X8-TV		Fw: 6 mm \| Ew: 9 mm \| Bc: 8 mm \| Cr: 2.6 kN \| C0r: 2.28 kN \| m: 0.8 g
K6X9X10-TV		Fw: 6 mm \| Ew: 9 mm \| Bc: 10 mm \| Cr: 3.35 kN \| C0r: 3.15 kN \| m: 1 g
K6X10X13-TV		Fw: 6 mm \| Ew: 10 mm \| Bc: 13 mm \| Cr: 3.8 kN \| C0r: 3.1 kN \| m: 1 g
K7X9X7-TV		Fw: 7 mm \| Ew: 9 mm \| Bc: 7 mm \| Cr: 1.73 kN \| C0r: 1.77 kN \| m: 0.6 g
K7X10X8-TV		Fw: 7 mm \| Ew: 10 mm \| Bc: 8 mm \| Cr: 2.85 kN \| C0r: 2.65 kN \| m: 0.9 g
K7X10X10-TV		Fw: 7 mm \| Ew: 10 mm \| Bc: 10 mm \| Cr: 3.65 kN \| C0r: 3.6 kN \| m: 1 g
K8X11X8-TV		Fw: 8 mm \| Ew: 11 mm \| Bc: 8 mm \| Cr: 3.1 kN \| C0r: 3 kN \| m: 1.1 g
K8X11X10-TV		Fw: 8 mm \| Ew: 11 mm \| Bc: 10 mm \| Cr: 3.95 kN \| C0r: 4.1 kN \| m: 1.2 g
K8X11X13-TV		Fw: 8 mm \| Ew: 11 mm \| Bc: 13 mm \| Cr: 5.1 kN \| C0r: 5.8 kN \| m: 1.7 g
K8X12X10-TV		Fw: 8 mm \| Ew: 12 mm \| Bc: 10 mm \| Cr: 5 kN \| C0r: 4.7 kN \| m: 2 g
K9X12X10-TV		Fw: 9 mm \| Ew: 12 mm \| Bc: 10 mm \| Cr: 4.5 kN \| C0r: 5 kN \| m: 2 g
K9X12X13-TV		Fw: 9 mm \| Ew: 12 mm \| Bc: 13 mm \| Cr: 5.9 kN \| C0r: 7.1 kN \| m: 2.1 g
K10X13X10-TV		Fw: 10 mm \| Ew: 13 mm \| Bc: 10 mm \| Cr: 4.75 kN \| C0r: 5.5 kN \| m: 2 g
K10X13X13-TV		Fw: 10 mm \| Ew: 13 mm \| Bc: 13 mm \| Cr: 6.2 kN \| C0r: 7.8 kN \| m: 2 g
K10X13X16-TV		Fw: 10 mm \| Ew: 13 mm \| Bc: 16 mm \| Cr: 7.1 kN \| C0r: 9.3 kN \| m: 2.9 g
K10X14X10-TV		Fw: 10 mm \| Ew: 14 mm \| Bc: 10 mm \| Cr: 5.8 kN \| C0r: 6 kN \| m: 2.5 g
K10X14X13-TV		Fw: 10 mm \| Ew: 14 mm \| Bc: 13 mm \| Cr: 7.5 kN \| C0r: 8.4 kN \| m: 4.6 g
K10X16X12-TV		Fw: 10 mm \| Ew: 16 mm \| Bc: 12 mm \| Cr: 8.1 kN \| C0r: 7.2 kN \| m: 5 g
K12X15X10-TV		Fw: 12 mm \| Ew: 15 mm \| Bc: 10 mm \| Cr: 4.9 kN \| C0r: 6.1 kN \| m: 2.9 g
K12X15X13-TV		Fw: 12 mm \| Ew: 15 mm \| Bc: 13 mm \| Cr: 6.4 kN \| C0r: 8.5 kN \| m: 2.3 g
K12X16X13-TV		Fw: 12 mm \| Ew: 16 mm \| Bc: 13 mm \| Cr: 8 kN \| C0r: 9.4 kN \| m: 3.6 g
K12X17X13-TV		Fw: 12 mm \| Ew: 17 mm \| Bc: 13 mm \| Cr: 9.6 kN \| C0r: 10.4 kN \| m: 4.9 g
K12X18X12-TV		Fw: 12 mm \| Ew: 18 mm \| Bc: 12 mm \| Cr: 10 kN \| C0r: 9.9 kN \| m: 6 g
K14X18X10		Fw: 14 mm \| Ew: 18 mm \| Bc: 10 mm \| Cr: 7.1 kN \| C0r: 8.5 kN \| m: 4 g
K14X18X13		Fw: 14 mm \| Ew: 18 mm \| Bc: 13 mm \| Cr: 8.2 kN \| C0r: 10.1 kN \| m: 6.5 g
K14X18X15-TV		Fw: 14 mm \| Ew: 18 mm \| Bc: 15 mm \| Cr: 9.5 kN \| C0r: 12.3 kN \| m: 5 g
K14X18X17		Fw: 14 mm \| Ew: 18 mm \| Bc: 17 mm \| Cr: 10.8 kN \| C0r: 14.4 kN \| m: 8 g
K14X20X12		Fw: 14 mm \| Ew: 20 mm \| Bc: 12 mm \| Cr: 10.3 kN \| C0r: 10.6 kN \| m: 8.5 g
K15X18X17-TV		Fw: 15 mm \| Ew: 18 mm \| Bc: 17 mm \| Cr: 8 kN \| C0r: 12.1 kN \| m: 4.6 g
K15X19X10		Fw: 15 mm \| Ew: 19 mm \| Bc: 10 mm \| Cr: 7.5 kN \| C0r: 9.2 kN \| m: 5.1 g
K15X19X13		Fw: 15 mm \| Ew: 19 mm \| Bc: 13 mm \| Cr: 8.5 kN \| C0r: 10.9 kN \| m: 7 g
K15X19X17		Fw: 15 mm \| Ew: 19 mm \| Bc: 17 mm \| Cr: 11.3 kN \| C0r: 15.6 kN \| m: 9.5 g
K15X20X13		Fw: 15 mm \| Ew: 20 mm \| Bc: 13 mm \| Cr: 9.9 kN \| C0r: 11.5 kN \| m: 7 g
K15X21X15		Fw: 15 mm \| Ew: 21 mm \| Bc: 15 mm \| Cr: 14.3 kN \| C0r: 16.4 kN \| m: 11 g
K15X21X21		Fw: 15 mm \| Ew: 21 mm \| Bc: 21 mm \| Cr: 19.4 kN \| C0r: 24.3 kN \| m: 17 g
K16X20X10		Fw: 16 mm \| Ew: 20 mm \| Bc: 10 mm \| Cr: 7.8 kN \| C0r: 9.9 kN \| m: 5 g
K16X20X13		Fw: 16 mm \| Ew: 20 mm \| Bc: 13 mm \| Cr: 8.9 kN \| C0r: 11.8 kN \| m: 8 g
K16X20X17		Fw: 16 mm \| Ew: 20 mm \| Bc: 17 mm \| Cr: 11.7 kN \| C0r: 16.8 kN \| m: 10.4 g
K16X22X12		Fw: 16 mm \| Ew: 22 mm \| Bc: 12 mm \| Cr: 11.5 kN \| C0r: 12.5 kN \| m: 10 g
K16X22X16		Fw: 16 mm \| Ew: 22 mm \| Bc: 16 mm \| Cr: 14.8 kN \| C0r: 17.5 kN \| m: 12 g
K16X22X20		Fw: 16 mm \| Ew: 22 mm \| Bc: 20 mm \| Cr: 18.3 kN \| C0r: 22.8 kN \| m: 15 g
K16X24X20		Fw: 16 mm \| Ew: 24 mm \| Bc: 20 mm \| Cr: 21.4 kN \| C0r: 23.5 kN \| m: 22 g
K17X21X10		Fw: 17 mm \| Ew: 21 mm \| Bc: 10 mm \| Cr: 8.1 kN \| C0r: 10.6 kN \| m: 5 g
K17X21X13		Fw: 17 mm \| Ew: 21 mm \| Bc: 13 mm \| Cr: 10.4 kN \| C0r: 14.6 kN \| m: 6.5 g
K17X21X17		Fw: 17 mm \| Ew: 21 mm \| Bc: 17 mm \| Cr: 12.2 kN \| C0r: 17.9 kN \| m: 9.5 g
K18X22X10		Fw: 18 mm \| Ew: 22 mm \| Bc: 10 mm \| Cr: 8.4 kN \| C0r: 11.3 kN \| m: 6 g
K18X22X13		Fw: 18 mm \| Ew: 22 mm \| Bc: 13 mm \| Cr: 9.2 kN \| C0r: 12.7 kN \| m: 8 g
K18X22X17		Fw: 18 mm \| Ew: 22 mm \| Bc: 17 mm \| Cr: 12.1 kN \| C0r: 18 kN \| m: 11 g
K18X24X12		Fw: 18 mm \| Ew: 24 mm \| Bc: 12 mm \| Cr: 12.8 kN \| C0r: 14.9 kN \| m: 12 g
K18X24X13		Fw: 18 mm \| Ew: 24 mm \| Bc: 13 mm \| Cr: 13.1 kN \| C0r: 15.3 kN \| m: 13 g
K18X24X20		Fw: 18 mm \| Ew: 24 mm \| Bc: 20 mm \| Cr: 20.2 kN \| C0r: 27 kN \| m: 18 g
K18X25X22		Fw: 18 mm \| Ew: 25 mm \| Bc: 22 mm \| Cr: 23.1 kN \| C0r: 29 kN \| m: 23 g
K19X23X13		Fw: 19 mm \| Ew: 23 mm \| Bc: 13 mm \| Cr: 9.5 kN \| C0r: 13.5 kN \| m: 8 g
K19X23X17		Fw: 19 mm \| Ew: 23 mm \| Bc: 17 mm \| Cr: 12.5 kN \| C0r: 19.2 kN \| m: 11 g
K20X24X10		Fw: 20 mm \| Ew: 24 mm \| Bc: 10 mm \| Cr: 8.9 kN \| C0r: 12.6 kN \| m: 7 g
K20X24X13		Fw: 20 mm \| Ew: 24 mm \| Bc: 13 mm \| Cr: 9.8 kN \| C0r: 14.3 kN \| m: 9 g
K20X24X17		Fw: 20 mm \| Ew: 24 mm \| Bc: 17 mm \| Cr: 12.9 kN \| C0r: 20.4 kN \| m: 13 g
K20X26X12		Fw: 20 mm \| Ew: 26 mm \| Bc: 12 mm \| Cr: 13.4 kN \| C0r: 16.2 kN \| m: 12 g
K20X26X13		Fw: 20 mm \| Ew: 26 mm \| Bc: 13 mm \| Cr: 14.4 kN \| C0r: 17.9 kN \| m: 12 g
K20X26X17		Fw: 20 mm \| Ew: 26 mm \| Bc: 17 mm \| Cr: 19.2 kN \| C0r: 26 kN \| m: 16 g
K20X26X20		Fw: 20 mm \| Ew: 26 mm \| Bc: 20 mm \| Cr: 21.1 kN \| C0r: 29 kN \| m: 19 g
K20X28X16		Fw: 20 mm \| Ew: 28 mm \| Bc: 16 mm \| Cr: 19.8 kN \| C0r: 22.4 kN \| m: 20 g
K20X28X20		Fw: 20 mm \| Ew: 28 mm \| Bc: 20 mm \| Cr: 23.9 kN \| C0r: 28.5 kN \| m: 27 g
K20X28X25		Fw: 20 mm \| Ew: 28 mm \| Bc: 25 mm \| Cr: 30.5 kN \| C0r: 39 kN \| m: 32 g
K20X30X30		Fw: 20 mm \| Ew: 30 mm \| Bc: 30 mm \| Cr: 35.5 kN \| C0r: 41.5 kN \| m: 49 g
K21X25X13		Fw: 21 mm \| Ew: 25 mm \| Bc: 13 mm \| Cr: 10.1 kN \| C0r: 15.1 kN \| m: 9 g
K22X26X10		Fw: 22 mm \| Ew: 26 mm \| Bc: 10 mm \| Cr: 9.1 kN \| C0r: 13.4 kN \| m: 8 g
K22X26X13		Fw: 22 mm \| Ew: 26 mm \| Bc: 13 mm \| Cr: 10.4 kN \| C0r: 15.9 kN \| m: 10 g
K22X26X17		Fw: 22 mm \| Ew: 26 mm \| Bc: 17 mm \| Cr: 13.7 kN \| C0r: 22.7 kN \| m: 12.1 g
K22X28X17		Fw: 22 mm \| Ew: 28 mm \| Bc: 17 mm \| Cr: 19.4 kN \| C0r: 27 kN \| m: 18 g
K22X29X16		Fw: 22 mm \| Ew: 29 mm \| Bc: 16 mm \| Cr: 20 kN \| C0r: 25.5 kN \| m: 16 g
K22X30X15-TV		Fw: 22 mm \| Ew: 30 mm \| Bc: 15 mm \| Cr: 20.1 kN \| C0r: 23.4 kN \| m: 18 g
K22X32X24		Fw: 22 mm \| Ew: 32 mm \| Bc: 24 mm \| Cr: 34 kN \| C0r: 40 kN \| m: 43 g
K23X35X16-TV		Fw: 23 mm \| Ew: 35 mm \| Bc: 16 mm \| Cr: 24.5 kN \| C0r: 23.9 kN \| m: 29 g
K24X28X10		Fw: 24 mm \| Ew: 28 mm \| Bc: 10 mm \| Cr: 9.6 kN \| C0r: 14.8 kN \| m: 9 g
K24X28X13		Fw: 24 mm \| Ew: 28 mm \| Bc: 13 mm \| Cr: 11 kN \| C0r: 17.6 kN \| m: 12 g
K24X28X17		Fw: 24 mm \| Ew: 28 mm \| Bc: 17 mm \| Cr: 14.5 kN \| C0r: 25 kN \| m: 13 g
K24X30X17		Fw: 24 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 19.5 kN \| C0r: 27.5 kN \| m: 20 g
K24X30X31-ZW		Fw: 24 mm \| Ew: 30 mm \| Bc: 31 mm \| Cr: 27.5 kN \| C0r: 43.5 kN \| m: 32 g
K25X29X10		Fw: 25 mm \| Ew: 29 mm \| Bc: 10 mm \| Cr: 9.9 kN \| C0r: 15.4 kN \| m: 7 g
K25X29X13		Fw: 25 mm \| Ew: 29 mm \| Bc: 13 mm \| Cr: 11.3 kN \| C0r: 18.4 kN \| m: 11 g
K25X29X17		Fw: 25 mm \| Ew: 29 mm \| Bc: 17 mm \| Cr: 14.9 kN \| C0r: 26 kN \| m: 14 g
K25X30X17		Fw: 25 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 18.7 kN \| C0r: 30 kN \| m: 16 g
K25X30X20		Fw: 25 mm \| Ew: 30 mm \| Bc: 20 mm \| Cr: 21.7 kN \| C0r: 36.5 kN \| m: 18 g
K25X30X26-ZW		Fw: 25 mm \| Ew: 30 mm \| Bc: 26 mm \| Cr: 21.4 kN \| C0r: 35.5 kN \| m: 19 g
K25X31X17		Fw: 25 mm \| Ew: 31 mm \| Bc: 17 mm \| Cr: 19.6 kN \| C0r: 28.5 kN \| m: 19 g
K25X31X21		Fw: 25 mm \| Ew: 31 mm \| Bc: 21 mm \| Cr: 24.7 kN \| C0r: 38 kN \| m: 20 g
K25X32X16		Fw: 25 mm \| Ew: 32 mm \| Bc: 16 mm \| Cr: 20.8 kN \| C0r: 27.5 kN \| m: 21 g
K25X33X20		Fw: 25 mm \| Ew: 33 mm \| Bc: 20 mm \| Cr: 28.5 kN \| C0r: 38 kN \| m: 34 g
K25X33X24		Fw: 25 mm \| Ew: 33 mm \| Bc: 24 mm \| Cr: 34 kN \| C0r: 47 kN \| m: 39 g
K25X35X30		Fw: 25 mm \| Ew: 35 mm \| Bc: 30 mm \| Cr: 47 kN \| C0r: 62 kN \| m: 65 g
K26X30X13		Fw: 26 mm \| Ew: 30 mm \| Bc: 13 mm \| Cr: 11.6 kN \| C0r: 19.2 kN \| m: 11 g
K26X30X17		Fw: 26 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 15.2 kN \| C0r: 27.5 kN \| m: 15 g
K26X30X22-ZW		Fw: 26 mm \| Ew: 30 mm \| Bc: 22 mm \| Cr: 15.7 kN \| C0r: 28.5 kN \| m: 21 g
K28X33X13		Fw: 28 mm \| Ew: 33 mm \| Bc: 13 mm \| Cr: 15.3 kN \| C0r: 24.2 kN \| m: 14 g
K28X33X17		Fw: 28 mm \| Ew: 33 mm \| Bc: 17 mm \| Cr: 19.7 kN \| C0r: 33.5 kN \| m: 17 g
K28X34X17		Fw: 28 mm \| Ew: 34 mm \| Bc: 17 mm \| Cr: 21.8 kN \| C0r: 33.5 kN \| m: 24 g
K28X35X16		Fw: 28 mm \| Ew: 35 mm \| Bc: 16 mm \| Cr: 21.5 kN \| C0r: 29.5 kN \| m: 24 g
K28X35X18		Fw: 28 mm \| Ew: 35 mm \| Bc: 18 mm \| Cr: 24 kN \| C0r: 34 kN \| m: 29 g
K28X40X25		Fw: 28 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 45.5 kN \| C0r: 55 kN \| m: 72 g
K30X34X13		Fw: 30 mm \| Ew: 34 mm \| Bc: 13 mm \| Cr: 12.3 kN \| C0r: 21.7 kN \| m: 14 g
K30X35X13		Fw: 30 mm \| Ew: 35 mm \| Bc: 13 mm \| Cr: 15.6 kN \| C0r: 25.5 kN \| m: 14 g
K30X35X17		Fw: 30 mm \| Ew: 35 mm \| Bc: 17 mm \| Cr: 19.6 kN \| C0r: 34 kN \| m: 19 g
K30X35X27		Fw: 30 mm \| Ew: 35 mm \| Bc: 27 mm \| Cr: 30.5 kN \| C0r: 59 kN \| m: 30 g
K30X37X16		Fw: 30 mm \| Ew: 37 mm \| Bc: 16 mm \| Cr: 23.1 kN \| C0r: 33.5 kN \| m: 27 g
K30X37X18		Fw: 30 mm \| Ew: 37 mm \| Bc: 18 mm \| Cr: 26 kN \| C0r: 38.5 kN \| m: 30 g
K30X40X18		Fw: 30 mm \| Ew: 40 mm \| Bc: 18 mm \| Cr: 32 kN \| C0r: 40 kN \| m: 48 g
K30X40X30		Fw: 30 mm \| Ew: 40 mm \| Bc: 30 mm \| Cr: 49 kN \| C0r: 69 kN \| m: 73 g
K32X37X13		Fw: 32 mm \| Ew: 37 mm \| Bc: 13 mm \| Cr: 15.5 kN \| C0r: 25.5 kN \| m: 19 g
K32X37X17		Fw: 32 mm \| Ew: 37 mm \| Bc: 17 mm \| Cr: 19.9 kN \| C0r: 35.5 kN \| m: 19 g
K32X37X27		Fw: 32 mm \| Ew: 37 mm \| Bc: 27 mm \| Cr: 30 kN \| C0r: 60 kN \| m: 30 g
K32X38X20		Fw: 32 mm \| Ew: 38 mm \| Bc: 20 mm \| Cr: 26.5 kN \| C0r: 45 kN \| m: 30 g
K32X39X16		Fw: 32 mm \| Ew: 39 mm \| Bc: 16 mm \| Cr: 23.8 kN \| C0r: 35.5 kN \| m: 29 g
K32X39X18		Fw: 32 mm \| Ew: 39 mm \| Bc: 18 mm \| Cr: 26.5 kN \| C0r: 41 kN \| m: 31 g
K32X40X25		Fw: 32 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 37.5 kN \| C0r: 58 kN \| m: 50 g
K32X40X42-ZW-TV		Fw: 32 mm \| Ew: 40 mm \| Bc: 42 mm \| Cr: 50 kN \| C0r: 84 kN \| m: 65 g
K32X46X32		Fw: 32 mm \| Ew: 46 mm \| Bc: 32 mm \| Cr: 66 kN \| C0r: 84 kN \| m: 119 g
K35X40X13		Fw: 35 mm \| Ew: 40 mm \| Bc: 13 mm \| Cr: 16.2 kN \| C0r: 28 kN \| m: 19 g
K35X40X17		Fw: 35 mm \| Ew: 40 mm \| Bc: 17 mm \| Cr: 20.8 kN \| C0r: 38.5 kN \| m: 21 g
K35X40X25		Fw: 35 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 29.5 kN \| C0r: 60 kN \| m: 31 g
K35X40X27-TV		Fw: 35 mm \| Ew: 40 mm \| Bc: 27 mm \| Cr: 25 kN \| C0r: 48.5 kN \| m: 39 g
K35X42X16		Fw: 35 mm \| Ew: 42 mm \| Bc: 16 mm \| Cr: 24.4 kN \| C0r: 37.5 kN \| m: 34 g
K35X42X18		Fw: 35 mm \| Ew: 42 mm \| Bc: 18 mm \| Cr: 27.5 kN \| C0r: 43 kN \| m: 34 g
K35X42X20		Fw: 35 mm \| Ew: 42 mm \| Bc: 20 mm \| Cr: 30 kN \| C0r: 49 kN \| m: 40 g
K35X42X30		Fw: 35 mm \| Ew: 42 mm \| Bc: 30 mm \| Cr: 39 kN \| C0r: 68 kN \| m: 67 g
K35X45X20		Fw: 35 mm \| Ew: 45 mm \| Bc: 20 mm \| Cr: 37 kN \| C0r: 50 kN \| m: 56 g
K35X45X30		Fw: 35 mm \| Ew: 45 mm \| Bc: 30 mm \| Cr: 53 kN \| C0r: 79 kN \| m: 80 g
K37X42X17		Fw: 37 mm \| Ew: 42 mm \| Bc: 17 mm \| Cr: 22.4 kN \| C0r: 43 kN \| m: 23 g
K38X43X17		Fw: 38 mm \| Ew: 43 mm \| Bc: 17 mm \| Cr: 20.5 kN \| C0r: 38.5 kN \| m: 29 g
K38X43X27		Fw: 38 mm \| Ew: 43 mm \| Bc: 27 mm \| Cr: 31.5 kN \| C0r: 68 kN \| m: 43 g
K38X46X20		Fw: 38 mm \| Ew: 46 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 57 kN \| m: 51 g
K38X46X32		Fw: 38 mm \| Ew: 46 mm \| Bc: 32 mm \| Cr: 55 kN \| C0r: 99 kN \| m: 76 g
K39X44X26-ZW		Fw: 39 mm \| Ew: 44 mm \| Bc: 26 mm \| Cr: 27.5 kN \| C0r: 56 kN \| m: 45 g
K40X45X13		Fw: 40 mm \| Ew: 45 mm \| Bc: 13 mm \| Cr: 17.6 kN \| C0r: 32.5 kN \| m: 19 g
K40X45X17		Fw: 40 mm \| Ew: 45 mm \| Bc: 17 mm \| Cr: 21.4 kN \| C0r: 41.5 kN \| m: 31 g
K40X45X27		Fw: 40 mm \| Ew: 45 mm \| Bc: 27 mm \| Cr: 33 kN \| C0r: 73 kN \| m: 46 g
K40X47X18		Fw: 40 mm \| Ew: 47 mm \| Bc: 18 mm \| Cr: 29.5 kN \| C0r: 50 kN \| m: 39 g
K40X47X20		Fw: 40 mm \| Ew: 47 mm \| Bc: 20 mm \| Cr: 32.5 kN \| C0r: 57 kN \| m: 42 g
K40X48X20		Fw: 40 mm \| Ew: 48 mm \| Bc: 20 mm \| Cr: 36 kN \| C0r: 59 kN \| m: 49 g
K42X47X13		Fw: 42 mm \| Ew: 47 mm \| Bc: 13 mm \| Cr: 17.8 kN \| C0r: 33.5 kN \| m: 18 g
K42X47X17		Fw: 42 mm \| Ew: 47 mm \| Bc: 17 mm \| Cr: 21.7 kN \| C0r: 43 kN \| m: 32 g
K42X47X30-ZW		Fw: 42 mm \| Ew: 47 mm \| Bc: 30 mm \| Cr: 33.5 kN \| C0r: 76 kN \| m: 54 g
K42X50X20		Fw: 42 mm \| Ew: 50 mm \| Bc: 20 mm \| Cr: 35 kN \| C0r: 57 kN \| m: 53 g
K43X48X17		Fw: 43 mm \| Ew: 48 mm \| Bc: 17 mm \| Cr: 21.6 kN \| C0r: 43 kN \| m: 30 g
K43X48X27		Fw: 43 mm \| Ew: 48 mm \| Bc: 27 mm \| Cr: 33.5 kN \| C0r: 75 kN \| m: 50 g
K45X50X17		Fw: 45 mm \| Ew: 50 mm \| Bc: 17 mm \| Cr: 22.5 kN \| C0r: 46 kN \| m: 34 g
K45X50X27		Fw: 45 mm \| Ew: 50 mm \| Bc: 27 mm \| Cr: 34.5 kN \| C0r: 80 kN \| m: 52 g
K45X52X18		Fw: 45 mm \| Ew: 52 mm \| Bc: 18 mm \| Cr: 31.5 kN \| C0r: 57 kN \| m: 42 g
K45X53X20		Fw: 45 mm \| Ew: 53 mm \| Bc: 20 mm \| Cr: 39 kN \| C0r: 67 kN \| m: 55 g
K45X53X21		Fw: 45 mm \| Ew: 53 mm \| Bc: 21 mm \| Cr: 38.5 kN \| C0r: 67 kN \| m: 60 g
K45X53X28		Fw: 45 mm \| Ew: 53 mm \| Bc: 28 mm \| Cr: 52 kN \| C0r: 98 kN \| m: 80 g
K45X59X18-TV		Fw: 45 mm \| Ew: 59 mm \| Bc: 18 mm \| Cr: 44.5 kN \| C0r: 54 kN \| m: 72 g
K45X59X32		Fw: 45 mm \| Ew: 59 mm \| Bc: 32 mm \| Cr: 73 kN \| C0r: 103 kN \| m: 148 g
K47X52X17		Fw: 47 mm \| Ew: 52 mm \| Bc: 17 mm \| Cr: 23.3 kN \| C0r: 49 kN \| m: 35 g
K47X52X27		Fw: 47 mm \| Ew: 52 mm \| Bc: 27 mm \| Cr: 35 kN \| C0r: 83 kN \| m: 51 g
K50X55X13.5		Fw: 50 mm \| Ew: 55 mm \| Bc: 13.5 mm \| Cr: 18.2 kN \| C0r: 36.5 kN \| m: 30 g
K50X55X17		Fw: 50 mm \| Ew: 55 mm \| Bc: 17 mm \| Cr: 26 kN \| C0r: 57 kN \| m: 35 g
K50X55X20		Fw: 50 mm \| Ew: 55 mm \| Bc: 20 mm \| Cr: 26.5 kN \| C0r: 60 kN \| m: 45 g
K50X55X30		Fw: 50 mm \| Ew: 55 mm \| Bc: 30 mm \| Cr: 39 kN \| C0r: 97 kN \| m: 65 g
K50X57X18		Fw: 50 mm \| Ew: 57 mm \| Bc: 18 mm \| Cr: 33.5 kN \| C0r: 63 kN \| m: 47 g
K50X58X20		Fw: 50 mm \| Ew: 58 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 62 kN \| m: 75 g
K50X58X25		Fw: 50 mm \| Ew: 58 mm \| Bc: 25 mm \| Cr: 44 kN \| C0r: 81 kN \| m: 90 g
K52X57X12		Fw: 52 mm \| Ew: 57 mm \| Bc: 12 mm \| Cr: 18 kN \| C0r: 36.5 kN \| m: 24 g
K55X60X20		Fw: 55 mm \| Ew: 60 mm \| Bc: 20 mm \| Cr: 28.5 kN \| C0r: 66 kN \| m: 40 g
K55X60X27		Fw: 55 mm \| Ew: 60 mm \| Bc: 27 mm \| Cr: 38 kN \| C0r: 97 kN \| m: 69 g
K55X60X30		Fw: 55 mm \| Ew: 60 mm \| Bc: 30 mm \| Cr: 41 kN \| C0r: 108 kN \| m: 72 g
K55X62X18		Fw: 55 mm \| Ew: 62 mm \| Bc: 18 mm \| Cr: 35.5 kN \| C0r: 70 kN \| m: 52 g
K55X63X20		Fw: 55 mm \| Ew: 63 mm \| Bc: 20 mm \| Cr: 40 kN \| C0r: 74 kN \| m: 67 g
K55X63X25		Fw: 55 mm \| Ew: 63 mm \| Bc: 25 mm \| Cr: 50 kN \| C0r: 100 kN \| m: 80 g
K55X63X32		Fw: 55 mm \| Ew: 63 mm \| Bc: 32 mm \| Cr: 62 kN \| C0r: 130 kN \| m: 102 g
K58X65X18		Fw: 58 mm \| Ew: 65 mm \| Bc: 18 mm \| Cr: 35 kN \| C0r: 70 kN \| m: 79 g
K58X65X36-ZW		Fw: 58 mm \| Ew: 65 mm \| Bc: 36 mm \| Cr: 49 kN \| C0r: 107 kN \| m: 127 g
K60X65X20		Fw: 60 mm \| Ew: 65 mm \| Bc: 20 mm \| Cr: 29.5 kN \| C0r: 72 kN \| m: 52 g
K60X65X30		Fw: 60 mm \| Ew: 65 mm \| Bc: 30 mm \| Cr: 42.5 kN \| C0r: 116 kN \| m: 77 g
K60X66X33-ZW		Fw: 60 mm \| Ew: 66 mm \| Bc: 33 mm \| Cr: 46 kN \| C0r: 112 kN \| m: 104 g
K60X66X40-ZW		Fw: 60 mm \| Ew: 66 mm \| Bc: 40 mm \| Cr: 58 kN \| C0r: 151 kN \| m: 147 g
K60X68X20		Fw: 60 mm \| Ew: 68 mm \| Bc: 20 mm \| Cr: 43.5 kN \| C0r: 85 kN \| m: 71 g
K60X68X23		Fw: 60 mm \| Ew: 68 mm \| Bc: 23 mm \| Cr: 49.5 kN \| C0r: 101 kN \| m: 94 g
K60X68X25		Fw: 60 mm \| Ew: 68 mm \| Bc: 25 mm \| Cr: 53 kN \| C0r: 111 kN \| m: 89 g
K60X68X30-ZW		Fw: 60 mm \| Ew: 68 mm \| Bc: 30 mm \| Cr: 44.5 kN \| C0r: 88 kN \| m: 129 g
K60X75X42		Fw: 60 mm \| Ew: 75 mm \| Bc: 42 mm \| Cr: 118 kN \| C0r: 199 kN \| m: 240 g
K62X70X40-ZW		Fw: 62 mm \| Ew: 70 mm \| Bc: 40 mm \| Cr: 66 kN \| C0r: 146 kN \| m: 174 g
K64X70X16		Fw: 64 mm \| Ew: 70 mm \| Bc: 16 mm \| Cr: 28 kN \| C0r: 60 kN \| m: 53 g
K65X70X20		Fw: 65 mm \| Ew: 70 mm \| Bc: 20 mm \| Cr: 30.5 kN \| C0r: 77 kN \| m: 56 g
K65X70X30		Fw: 65 mm \| Ew: 70 mm \| Bc: 30 mm \| Cr: 44 kN \| C0r: 124 kN \| m: 83 g
K65X73X23		Fw: 65 mm \| Ew: 73 mm \| Bc: 23 mm \| Cr: 46 kN \| C0r: 94 kN \| m: 108 g
K65X73X30		Fw: 65 mm \| Ew: 73 mm \| Bc: 30 mm \| Cr: 57 kN \| C0r: 123 kN \| m: 141 g
K68X74X20		Fw: 68 mm \| Ew: 74 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 84 kN \| m: 71 g
K68X74X30		Fw: 68 mm \| Ew: 74 mm \| Bc: 30 mm \| Cr: 46.5 kN \| C0r: 118 kN \| m: 100 g
K68X74X35-ZW		Fw: 68 mm \| Ew: 74 mm \| Bc: 35 mm \| Cr: 48.5 kN \| C0r: 125 kN \| m: 120 g
K70X76X20		Fw: 70 mm \| Ew: 76 mm \| Bc: 20 mm \| Cr: 36 kN \| C0r: 86 kN \| m: 71 g
K70X76X30		Fw: 70 mm \| Ew: 76 mm \| Bc: 30 mm \| Cr: 52 kN \| C0r: 139 kN \| m: 110 g
K70X78X30		Fw: 70 mm \| Ew: 78 mm \| Bc: 30 mm \| Cr: 60 kN \| C0r: 135 kN \| m: 148 g
K72X80X20		Fw: 72 mm \| Ew: 80 mm \| Bc: 20 mm \| Cr: 41.5 kN \| C0r: 85 kN \| m: 98 g
K73X79X20		Fw: 73 mm \| Ew: 79 mm \| Bc: 20 mm \| Cr: 37 kN \| C0r: 90 kN \| m: 75 g
K75X81X20		Fw: 75 mm \| Ew: 81 mm \| Bc: 20 mm \| Cr: 37.5 kN \| C0r: 94 kN \| m: 79 g
K75X81X30		Fw: 75 mm \| Ew: 81 mm \| Bc: 30 mm \| Cr: 52 kN \| C0r: 143 kN \| m: 114 g
K75X83X23		Fw: 75 mm \| Ew: 83 mm \| Bc: 23 mm \| Cr: 50 kN \| C0r: 109 kN \| m: 124 g
K75X83X30		Fw: 75 mm \| Ew: 83 mm \| Bc: 30 mm \| Cr: 62 kN \| C0r: 143 kN \| m: 147 g
K75X83X35-ZW		Fw: 75 mm \| Ew: 83 mm \| Bc: 35 mm \| Cr: 63 kN \| C0r: 147 kN \| m: 182 g
K75X83X40-ZW		Fw: 75 mm \| Ew: 83 mm \| Bc: 40 mm \| Cr: 73 kN \| C0r: 177 kN \| m: 211 g
K80X86X20		Fw: 80 mm \| Ew: 86 mm \| Bc: 20 mm \| Cr: 38.5 kN \| C0r: 98 kN \| m: 60 g
K80X88X30		Fw: 80 mm \| Ew: 88 mm \| Bc: 30 mm \| Cr: 71 kN \| C0r: 176 kN \| m: 138 g
K80X88X40-ZW		Fw: 80 mm \| Ew: 88 mm \| Bc: 40 mm \| Cr: 76 kN \| C0r: 192 kN \| m: 227 g
K80X88X46-ZW		Fw: 80 mm \| Ew: 88 mm \| Bc: 46 mm \| Cr: 88 kN \| C0r: 231 kN \| m: 260 g
K85X92X20		Fw: 85 mm \| Ew: 92 mm \| Bc: 20 mm \| Cr: 44.5 kN \| C0r: 108 kN \| m: 102 g
K90X97X20		Fw: 90 mm \| Ew: 97 mm \| Bc: 20 mm \| Cr: 45 kN \| C0r: 113 kN \| m: 109 g
K90X98X27		Fw: 90 mm \| Ew: 98 mm \| Bc: 27 mm \| Cr: 61 kN \| C0r: 150 kN \| m: 150 g
K90X98X30		Fw: 90 mm \| Ew: 98 mm \| Bc: 30 mm \| Cr: 68 kN \| C0r: 172 kN \| m: 172 g
K95X103X30		Fw: 95 mm \| Ew: 103 mm \| Bc: 30 mm \| Cr: 69 kN \| C0r: 180 kN \| m: 165 g
K95X103X40-ZW		Fw: 95 mm \| Ew: 103 mm \| Bc: 40 mm \| Cr: 83 kN \| C0r: 228 kN \| m: 266 g
K100X107X21		Fw: 100 mm \| Ew: 107 mm \| Bc: 21 mm \| Cr: 48 kN \| C0r: 127 kN \| m: 120 g
K100X108X27		Fw: 100 mm \| Ew: 108 mm \| Bc: 27 mm \| Cr: 57 kN \| C0r: 143 kN \| m: 185 g
K100X108X30		Fw: 100 mm \| Ew: 108 mm \| Bc: 30 mm \| Cr: 71 kN \| C0r: 188 kN \| m: 180 g
K105X112X21		Fw: 105 mm \| Ew: 112 mm \| Bc: 21 mm \| Cr: 47.5 kN \| C0r: 127 kN \| m: 129 g
K110X117X24		Fw: 110 mm \| Ew: 117 mm \| Bc: 24 mm \| Cr: 56 kN \| C0r: 158 kN \| m: 172 g
K110X118X30		Fw: 110 mm \| Ew: 118 mm \| Bc: 30 mm \| Cr: 78 kN \| C0r: 219 kN \| m: 217 g
K115X123X27		Fw: 115 mm \| Ew: 123 mm \| Bc: 27 mm \| Cr: 63 kN \| C0r: 170 kN \| m: 200 g
K120X127X24		Fw: 120 mm \| Ew: 127 mm \| Bc: 24 mm \| Cr: 59 kN \| C0r: 174 kN \| m: 165 g
K125X133X35		Fw: 125 mm \| Ew: 133 mm \| Bc: 35 mm \| Cr: 86 kN \| C0r: 260 kN \| m: 275 g
K130X137X24		Fw: 130 mm \| Ew: 137 mm \| Bc: 24 mm \| Cr: 61 kN \| C0r: 186 kN \| m: 170 g
K135X143X35		Fw: 135 mm \| Ew: 143 mm \| Bc: 35 mm \| Cr: 91 kN \| C0r: 290 kN \| m: 300 g
K145X153X26		Fw: 145 mm \| Ew: 153 mm \| Bc: 26 mm \| Cr: 74 kN \| C0r: 225 kN \| m: 262 g
K150X160X46		Fw: 150 mm \| Ew: 160 mm \| Bc: 46 mm \| Cr: 147 kN \| C0r: 470 kN \| m: 570 g
K155X163X26		Fw: 155 mm \| Ew: 163 mm \| Bc: 26 mm \| Cr: 75 kN \| C0r: 236 kN \| m: 265 g
K160X170X46		Fw: 160 mm \| Ew: 170 mm \| Bc: 46 mm \| Cr: 152 kN \| C0r: 510 kN \| m: 550 g
K165X173X26		Fw: 165 mm \| Ew: 173 mm \| Bc: 26 mm \| Cr: 81 kN \| C0r: 265 kN \| m: 320 g
K175X183X32		Fw: 175 mm \| Ew: 183 mm \| Bc: 32 mm \| Cr: 99 kN \| C0r: 350 kN \| m: 400 g
K185X195X37		Fw: 185 mm \| Ew: 195 mm \| Bc: 37 mm \| Cr: 128 kN \| C0r: 425 kN \| m: 607 g
K195X205X37		Fw: 195 mm \| Ew: 205 mm \| Bc: 37 mm \| Cr: 133 kN \| C0r: 450 kN \| m: 620 g
K210X220X42		Fw: 210 mm \| Ew: 220 mm \| Bc: 42 mm \| Cr: 154 kN \| C0r: 560 kN \| m: 740 g
K220X230X42		Fw: 220 mm \| Ew: 230 mm \| Bc: 42 mm \| Cr: 158 kN \| C0r: 590 kN \| m: 790 g
K240X250X42		Fw: 240 mm \| Ew: 250 mm \| Bc: 42 mm \| Cr: 164 kN \| C0r: 630 kN \| m: 850 g
K265X280X50		Fw: 265 mm \| Ew: 280 mm \| Bc: 50 mm \| Cr: 255 kN \| C0r: 860 kN \| m: 1810 g

Needle Roller BearingsINA

241 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA K Needle Roller and Cage Assemblies (Single and Double Row)

Brand INA·Needle Roller Bearings

Available part numbers (241)

K3X5X7-TV, K3X5X9-TV, K3X6X7-TV, K4X7X7-TV, K4X7X10-TV, K5X8X8-TV, K5X8X10-TV, K6X9X8-TV, K6X9X10-TV, K6X10X13-TV + 231 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	K3X5X7-TV	Fw: 3 mm \| Ew: 5 mm \| Bc: 7 mm \| Cr: 1.54 kN \| C0r: 1.29 kN \| m: 0.3 g
	K3X5X9-TV	Fw: 3 mm \| Ew: 5 mm \| Bc: 9 mm \| Cr: 1.71 kN \| C0r: 1.48 kN \| m: 0.4 g
	K3X6X7-TV	Fw: 3 mm \| Ew: 6 mm \| Bc: 7 mm \| Cr: 1.43 kN \| C0r: 0.97 kN \| m: 0.4 g
	K4X7X7-TV	Fw: 4 mm \| Ew: 7 mm \| Bc: 7 mm \| Cr: 1.74 kN \| C0r: 1.27 kN \| m: 0.5 g
	K4X7X10-TV	Fw: 4 mm \| Ew: 7 mm \| Bc: 10 mm \| Cr: 2.33 kN \| C0r: 1.84 kN \| m: 0.7 g
	K5X8X8-TV	Fw: 5 mm \| Ew: 8 mm \| Bc: 8 mm \| Cr: 2.35 kN \| C0r: 1.92 kN \| m: 0.7 g
	K5X8X10-TV	Fw: 5 mm \| Ew: 8 mm \| Bc: 10 mm \| Cr: 3 kN \| C0r: 2.65 kN \| m: 0.9 g
	K6X9X8-TV	Fw: 6 mm \| Ew: 9 mm \| Bc: 8 mm \| Cr: 2.6 kN \| C0r: 2.28 kN \| m: 0.8 g
	K6X9X10-TV	Fw: 6 mm \| Ew: 9 mm \| Bc: 10 mm \| Cr: 3.35 kN \| C0r: 3.15 kN \| m: 1 g
	K6X10X13-TV	Fw: 6 mm \| Ew: 10 mm \| Bc: 13 mm \| Cr: 3.8 kN \| C0r: 3.1 kN \| m: 1 g
	K7X9X7-TV	Fw: 7 mm \| Ew: 9 mm \| Bc: 7 mm \| Cr: 1.73 kN \| C0r: 1.77 kN \| m: 0.6 g
	K7X10X8-TV	Fw: 7 mm \| Ew: 10 mm \| Bc: 8 mm \| Cr: 2.85 kN \| C0r: 2.65 kN \| m: 0.9 g
	K7X10X10-TV	Fw: 7 mm \| Ew: 10 mm \| Bc: 10 mm \| Cr: 3.65 kN \| C0r: 3.6 kN \| m: 1 g
	K8X11X8-TV	Fw: 8 mm \| Ew: 11 mm \| Bc: 8 mm \| Cr: 3.1 kN \| C0r: 3 kN \| m: 1.1 g
	K8X11X10-TV	Fw: 8 mm \| Ew: 11 mm \| Bc: 10 mm \| Cr: 3.95 kN \| C0r: 4.1 kN \| m: 1.2 g
	K8X11X13-TV	Fw: 8 mm \| Ew: 11 mm \| Bc: 13 mm \| Cr: 5.1 kN \| C0r: 5.8 kN \| m: 1.7 g
	K8X12X10-TV	Fw: 8 mm \| Ew: 12 mm \| Bc: 10 mm \| Cr: 5 kN \| C0r: 4.7 kN \| m: 2 g
	K9X12X10-TV	Fw: 9 mm \| Ew: 12 mm \| Bc: 10 mm \| Cr: 4.5 kN \| C0r: 5 kN \| m: 2 g
	K9X12X13-TV	Fw: 9 mm \| Ew: 12 mm \| Bc: 13 mm \| Cr: 5.9 kN \| C0r: 7.1 kN \| m: 2.1 g
	K10X13X10-TV	Fw: 10 mm \| Ew: 13 mm \| Bc: 10 mm \| Cr: 4.75 kN \| C0r: 5.5 kN \| m: 2 g
	K10X13X13-TV	Fw: 10 mm \| Ew: 13 mm \| Bc: 13 mm \| Cr: 6.2 kN \| C0r: 7.8 kN \| m: 2 g
	K10X13X16-TV	Fw: 10 mm \| Ew: 13 mm \| Bc: 16 mm \| Cr: 7.1 kN \| C0r: 9.3 kN \| m: 2.9 g
	K10X14X10-TV	Fw: 10 mm \| Ew: 14 mm \| Bc: 10 mm \| Cr: 5.8 kN \| C0r: 6 kN \| m: 2.5 g
	K10X14X13-TV	Fw: 10 mm \| Ew: 14 mm \| Bc: 13 mm \| Cr: 7.5 kN \| C0r: 8.4 kN \| m: 4.6 g
	K10X16X12-TV	Fw: 10 mm \| Ew: 16 mm \| Bc: 12 mm \| Cr: 8.1 kN \| C0r: 7.2 kN \| m: 5 g
	K12X15X10-TV	Fw: 12 mm \| Ew: 15 mm \| Bc: 10 mm \| Cr: 4.9 kN \| C0r: 6.1 kN \| m: 2.9 g
	K12X15X13-TV	Fw: 12 mm \| Ew: 15 mm \| Bc: 13 mm \| Cr: 6.4 kN \| C0r: 8.5 kN \| m: 2.3 g
	K12X16X13-TV	Fw: 12 mm \| Ew: 16 mm \| Bc: 13 mm \| Cr: 8 kN \| C0r: 9.4 kN \| m: 3.6 g
	K12X17X13-TV	Fw: 12 mm \| Ew: 17 mm \| Bc: 13 mm \| Cr: 9.6 kN \| C0r: 10.4 kN \| m: 4.9 g
	K12X18X12-TV	Fw: 12 mm \| Ew: 18 mm \| Bc: 12 mm \| Cr: 10 kN \| C0r: 9.9 kN \| m: 6 g
	K14X18X10	Fw: 14 mm \| Ew: 18 mm \| Bc: 10 mm \| Cr: 7.1 kN \| C0r: 8.5 kN \| m: 4 g
	K14X18X13	Fw: 14 mm \| Ew: 18 mm \| Bc: 13 mm \| Cr: 8.2 kN \| C0r: 10.1 kN \| m: 6.5 g
	K14X18X15-TV	Fw: 14 mm \| Ew: 18 mm \| Bc: 15 mm \| Cr: 9.5 kN \| C0r: 12.3 kN \| m: 5 g
	K14X18X17	Fw: 14 mm \| Ew: 18 mm \| Bc: 17 mm \| Cr: 10.8 kN \| C0r: 14.4 kN \| m: 8 g
	K14X20X12	Fw: 14 mm \| Ew: 20 mm \| Bc: 12 mm \| Cr: 10.3 kN \| C0r: 10.6 kN \| m: 8.5 g
	K15X18X17-TV	Fw: 15 mm \| Ew: 18 mm \| Bc: 17 mm \| Cr: 8 kN \| C0r: 12.1 kN \| m: 4.6 g
	K15X19X10	Fw: 15 mm \| Ew: 19 mm \| Bc: 10 mm \| Cr: 7.5 kN \| C0r: 9.2 kN \| m: 5.1 g
	K15X19X13	Fw: 15 mm \| Ew: 19 mm \| Bc: 13 mm \| Cr: 8.5 kN \| C0r: 10.9 kN \| m: 7 g
	K15X19X17	Fw: 15 mm \| Ew: 19 mm \| Bc: 17 mm \| Cr: 11.3 kN \| C0r: 15.6 kN \| m: 9.5 g
	K15X20X13	Fw: 15 mm \| Ew: 20 mm \| Bc: 13 mm \| Cr: 9.9 kN \| C0r: 11.5 kN \| m: 7 g
	K15X21X15	Fw: 15 mm \| Ew: 21 mm \| Bc: 15 mm \| Cr: 14.3 kN \| C0r: 16.4 kN \| m: 11 g
	K15X21X21	Fw: 15 mm \| Ew: 21 mm \| Bc: 21 mm \| Cr: 19.4 kN \| C0r: 24.3 kN \| m: 17 g
	K16X20X10	Fw: 16 mm \| Ew: 20 mm \| Bc: 10 mm \| Cr: 7.8 kN \| C0r: 9.9 kN \| m: 5 g
	K16X20X13	Fw: 16 mm \| Ew: 20 mm \| Bc: 13 mm \| Cr: 8.9 kN \| C0r: 11.8 kN \| m: 8 g
	K16X20X17	Fw: 16 mm \| Ew: 20 mm \| Bc: 17 mm \| Cr: 11.7 kN \| C0r: 16.8 kN \| m: 10.4 g
	K16X22X12	Fw: 16 mm \| Ew: 22 mm \| Bc: 12 mm \| Cr: 11.5 kN \| C0r: 12.5 kN \| m: 10 g
	K16X22X16	Fw: 16 mm \| Ew: 22 mm \| Bc: 16 mm \| Cr: 14.8 kN \| C0r: 17.5 kN \| m: 12 g
	K16X22X20	Fw: 16 mm \| Ew: 22 mm \| Bc: 20 mm \| Cr: 18.3 kN \| C0r: 22.8 kN \| m: 15 g
	K16X24X20	Fw: 16 mm \| Ew: 24 mm \| Bc: 20 mm \| Cr: 21.4 kN \| C0r: 23.5 kN \| m: 22 g
	K17X21X10	Fw: 17 mm \| Ew: 21 mm \| Bc: 10 mm \| Cr: 8.1 kN \| C0r: 10.6 kN \| m: 5 g
	K17X21X13	Fw: 17 mm \| Ew: 21 mm \| Bc: 13 mm \| Cr: 10.4 kN \| C0r: 14.6 kN \| m: 6.5 g
	K17X21X17	Fw: 17 mm \| Ew: 21 mm \| Bc: 17 mm \| Cr: 12.2 kN \| C0r: 17.9 kN \| m: 9.5 g
	K18X22X10	Fw: 18 mm \| Ew: 22 mm \| Bc: 10 mm \| Cr: 8.4 kN \| C0r: 11.3 kN \| m: 6 g
	K18X22X13	Fw: 18 mm \| Ew: 22 mm \| Bc: 13 mm \| Cr: 9.2 kN \| C0r: 12.7 kN \| m: 8 g
	K18X22X17	Fw: 18 mm \| Ew: 22 mm \| Bc: 17 mm \| Cr: 12.1 kN \| C0r: 18 kN \| m: 11 g
	K18X24X12	Fw: 18 mm \| Ew: 24 mm \| Bc: 12 mm \| Cr: 12.8 kN \| C0r: 14.9 kN \| m: 12 g
	K18X24X13	Fw: 18 mm \| Ew: 24 mm \| Bc: 13 mm \| Cr: 13.1 kN \| C0r: 15.3 kN \| m: 13 g
	K18X24X20	Fw: 18 mm \| Ew: 24 mm \| Bc: 20 mm \| Cr: 20.2 kN \| C0r: 27 kN \| m: 18 g
	K18X25X22	Fw: 18 mm \| Ew: 25 mm \| Bc: 22 mm \| Cr: 23.1 kN \| C0r: 29 kN \| m: 23 g
	K19X23X13	Fw: 19 mm \| Ew: 23 mm \| Bc: 13 mm \| Cr: 9.5 kN \| C0r: 13.5 kN \| m: 8 g
	K19X23X17	Fw: 19 mm \| Ew: 23 mm \| Bc: 17 mm \| Cr: 12.5 kN \| C0r: 19.2 kN \| m: 11 g
	K20X24X10	Fw: 20 mm \| Ew: 24 mm \| Bc: 10 mm \| Cr: 8.9 kN \| C0r: 12.6 kN \| m: 7 g
	K20X24X13	Fw: 20 mm \| Ew: 24 mm \| Bc: 13 mm \| Cr: 9.8 kN \| C0r: 14.3 kN \| m: 9 g
	K20X24X17	Fw: 20 mm \| Ew: 24 mm \| Bc: 17 mm \| Cr: 12.9 kN \| C0r: 20.4 kN \| m: 13 g
	K20X26X12	Fw: 20 mm \| Ew: 26 mm \| Bc: 12 mm \| Cr: 13.4 kN \| C0r: 16.2 kN \| m: 12 g
	K20X26X13	Fw: 20 mm \| Ew: 26 mm \| Bc: 13 mm \| Cr: 14.4 kN \| C0r: 17.9 kN \| m: 12 g
	K20X26X17	Fw: 20 mm \| Ew: 26 mm \| Bc: 17 mm \| Cr: 19.2 kN \| C0r: 26 kN \| m: 16 g
	K20X26X20	Fw: 20 mm \| Ew: 26 mm \| Bc: 20 mm \| Cr: 21.1 kN \| C0r: 29 kN \| m: 19 g
	K20X28X16	Fw: 20 mm \| Ew: 28 mm \| Bc: 16 mm \| Cr: 19.8 kN \| C0r: 22.4 kN \| m: 20 g
	K20X28X20	Fw: 20 mm \| Ew: 28 mm \| Bc: 20 mm \| Cr: 23.9 kN \| C0r: 28.5 kN \| m: 27 g
	K20X28X25	Fw: 20 mm \| Ew: 28 mm \| Bc: 25 mm \| Cr: 30.5 kN \| C0r: 39 kN \| m: 32 g
	K20X30X30	Fw: 20 mm \| Ew: 30 mm \| Bc: 30 mm \| Cr: 35.5 kN \| C0r: 41.5 kN \| m: 49 g
	K21X25X13	Fw: 21 mm \| Ew: 25 mm \| Bc: 13 mm \| Cr: 10.1 kN \| C0r: 15.1 kN \| m: 9 g
	K22X26X10	Fw: 22 mm \| Ew: 26 mm \| Bc: 10 mm \| Cr: 9.1 kN \| C0r: 13.4 kN \| m: 8 g
	K22X26X13	Fw: 22 mm \| Ew: 26 mm \| Bc: 13 mm \| Cr: 10.4 kN \| C0r: 15.9 kN \| m: 10 g
	K22X26X17	Fw: 22 mm \| Ew: 26 mm \| Bc: 17 mm \| Cr: 13.7 kN \| C0r: 22.7 kN \| m: 12.1 g
	K22X28X17	Fw: 22 mm \| Ew: 28 mm \| Bc: 17 mm \| Cr: 19.4 kN \| C0r: 27 kN \| m: 18 g
	K22X29X16	Fw: 22 mm \| Ew: 29 mm \| Bc: 16 mm \| Cr: 20 kN \| C0r: 25.5 kN \| m: 16 g
	K22X30X15-TV	Fw: 22 mm \| Ew: 30 mm \| Bc: 15 mm \| Cr: 20.1 kN \| C0r: 23.4 kN \| m: 18 g
	K22X32X24	Fw: 22 mm \| Ew: 32 mm \| Bc: 24 mm \| Cr: 34 kN \| C0r: 40 kN \| m: 43 g
	K23X35X16-TV	Fw: 23 mm \| Ew: 35 mm \| Bc: 16 mm \| Cr: 24.5 kN \| C0r: 23.9 kN \| m: 29 g
	K24X28X10	Fw: 24 mm \| Ew: 28 mm \| Bc: 10 mm \| Cr: 9.6 kN \| C0r: 14.8 kN \| m: 9 g
	K24X28X13	Fw: 24 mm \| Ew: 28 mm \| Bc: 13 mm \| Cr: 11 kN \| C0r: 17.6 kN \| m: 12 g
	K24X28X17	Fw: 24 mm \| Ew: 28 mm \| Bc: 17 mm \| Cr: 14.5 kN \| C0r: 25 kN \| m: 13 g
	K24X30X17	Fw: 24 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 19.5 kN \| C0r: 27.5 kN \| m: 20 g
	K24X30X31-ZW	Fw: 24 mm \| Ew: 30 mm \| Bc: 31 mm \| Cr: 27.5 kN \| C0r: 43.5 kN \| m: 32 g
	K25X29X10	Fw: 25 mm \| Ew: 29 mm \| Bc: 10 mm \| Cr: 9.9 kN \| C0r: 15.4 kN \| m: 7 g
	K25X29X13	Fw: 25 mm \| Ew: 29 mm \| Bc: 13 mm \| Cr: 11.3 kN \| C0r: 18.4 kN \| m: 11 g
	K25X29X17	Fw: 25 mm \| Ew: 29 mm \| Bc: 17 mm \| Cr: 14.9 kN \| C0r: 26 kN \| m: 14 g
	K25X30X17	Fw: 25 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 18.7 kN \| C0r: 30 kN \| m: 16 g
	K25X30X20	Fw: 25 mm \| Ew: 30 mm \| Bc: 20 mm \| Cr: 21.7 kN \| C0r: 36.5 kN \| m: 18 g
	K25X30X26-ZW	Fw: 25 mm \| Ew: 30 mm \| Bc: 26 mm \| Cr: 21.4 kN \| C0r: 35.5 kN \| m: 19 g
	K25X31X17	Fw: 25 mm \| Ew: 31 mm \| Bc: 17 mm \| Cr: 19.6 kN \| C0r: 28.5 kN \| m: 19 g
	K25X31X21	Fw: 25 mm \| Ew: 31 mm \| Bc: 21 mm \| Cr: 24.7 kN \| C0r: 38 kN \| m: 20 g
	K25X32X16	Fw: 25 mm \| Ew: 32 mm \| Bc: 16 mm \| Cr: 20.8 kN \| C0r: 27.5 kN \| m: 21 g
	K25X33X20	Fw: 25 mm \| Ew: 33 mm \| Bc: 20 mm \| Cr: 28.5 kN \| C0r: 38 kN \| m: 34 g
	K25X33X24	Fw: 25 mm \| Ew: 33 mm \| Bc: 24 mm \| Cr: 34 kN \| C0r: 47 kN \| m: 39 g
	K25X35X30	Fw: 25 mm \| Ew: 35 mm \| Bc: 30 mm \| Cr: 47 kN \| C0r: 62 kN \| m: 65 g
	K26X30X13	Fw: 26 mm \| Ew: 30 mm \| Bc: 13 mm \| Cr: 11.6 kN \| C0r: 19.2 kN \| m: 11 g
	K26X30X17	Fw: 26 mm \| Ew: 30 mm \| Bc: 17 mm \| Cr: 15.2 kN \| C0r: 27.5 kN \| m: 15 g
	K26X30X22-ZW	Fw: 26 mm \| Ew: 30 mm \| Bc: 22 mm \| Cr: 15.7 kN \| C0r: 28.5 kN \| m: 21 g
	K28X33X13	Fw: 28 mm \| Ew: 33 mm \| Bc: 13 mm \| Cr: 15.3 kN \| C0r: 24.2 kN \| m: 14 g
	K28X33X17	Fw: 28 mm \| Ew: 33 mm \| Bc: 17 mm \| Cr: 19.7 kN \| C0r: 33.5 kN \| m: 17 g
	K28X34X17	Fw: 28 mm \| Ew: 34 mm \| Bc: 17 mm \| Cr: 21.8 kN \| C0r: 33.5 kN \| m: 24 g
	K28X35X16	Fw: 28 mm \| Ew: 35 mm \| Bc: 16 mm \| Cr: 21.5 kN \| C0r: 29.5 kN \| m: 24 g
	K28X35X18	Fw: 28 mm \| Ew: 35 mm \| Bc: 18 mm \| Cr: 24 kN \| C0r: 34 kN \| m: 29 g
	K28X40X25	Fw: 28 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 45.5 kN \| C0r: 55 kN \| m: 72 g
	K30X34X13	Fw: 30 mm \| Ew: 34 mm \| Bc: 13 mm \| Cr: 12.3 kN \| C0r: 21.7 kN \| m: 14 g
	K30X35X13	Fw: 30 mm \| Ew: 35 mm \| Bc: 13 mm \| Cr: 15.6 kN \| C0r: 25.5 kN \| m: 14 g
	K30X35X17	Fw: 30 mm \| Ew: 35 mm \| Bc: 17 mm \| Cr: 19.6 kN \| C0r: 34 kN \| m: 19 g
	K30X35X27	Fw: 30 mm \| Ew: 35 mm \| Bc: 27 mm \| Cr: 30.5 kN \| C0r: 59 kN \| m: 30 g
	K30X37X16	Fw: 30 mm \| Ew: 37 mm \| Bc: 16 mm \| Cr: 23.1 kN \| C0r: 33.5 kN \| m: 27 g
	K30X37X18	Fw: 30 mm \| Ew: 37 mm \| Bc: 18 mm \| Cr: 26 kN \| C0r: 38.5 kN \| m: 30 g
	K30X40X18	Fw: 30 mm \| Ew: 40 mm \| Bc: 18 mm \| Cr: 32 kN \| C0r: 40 kN \| m: 48 g
	K30X40X30	Fw: 30 mm \| Ew: 40 mm \| Bc: 30 mm \| Cr: 49 kN \| C0r: 69 kN \| m: 73 g
	K32X37X13	Fw: 32 mm \| Ew: 37 mm \| Bc: 13 mm \| Cr: 15.5 kN \| C0r: 25.5 kN \| m: 19 g
	K32X37X17	Fw: 32 mm \| Ew: 37 mm \| Bc: 17 mm \| Cr: 19.9 kN \| C0r: 35.5 kN \| m: 19 g
	K32X37X27	Fw: 32 mm \| Ew: 37 mm \| Bc: 27 mm \| Cr: 30 kN \| C0r: 60 kN \| m: 30 g
	K32X38X20	Fw: 32 mm \| Ew: 38 mm \| Bc: 20 mm \| Cr: 26.5 kN \| C0r: 45 kN \| m: 30 g
	K32X39X16	Fw: 32 mm \| Ew: 39 mm \| Bc: 16 mm \| Cr: 23.8 kN \| C0r: 35.5 kN \| m: 29 g
	K32X39X18	Fw: 32 mm \| Ew: 39 mm \| Bc: 18 mm \| Cr: 26.5 kN \| C0r: 41 kN \| m: 31 g
	K32X40X25	Fw: 32 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 37.5 kN \| C0r: 58 kN \| m: 50 g
	K32X40X42-ZW-TV	Fw: 32 mm \| Ew: 40 mm \| Bc: 42 mm \| Cr: 50 kN \| C0r: 84 kN \| m: 65 g
	K32X46X32	Fw: 32 mm \| Ew: 46 mm \| Bc: 32 mm \| Cr: 66 kN \| C0r: 84 kN \| m: 119 g
	K35X40X13	Fw: 35 mm \| Ew: 40 mm \| Bc: 13 mm \| Cr: 16.2 kN \| C0r: 28 kN \| m: 19 g
	K35X40X17	Fw: 35 mm \| Ew: 40 mm \| Bc: 17 mm \| Cr: 20.8 kN \| C0r: 38.5 kN \| m: 21 g
	K35X40X25	Fw: 35 mm \| Ew: 40 mm \| Bc: 25 mm \| Cr: 29.5 kN \| C0r: 60 kN \| m: 31 g
	K35X40X27-TV	Fw: 35 mm \| Ew: 40 mm \| Bc: 27 mm \| Cr: 25 kN \| C0r: 48.5 kN \| m: 39 g
	K35X42X16	Fw: 35 mm \| Ew: 42 mm \| Bc: 16 mm \| Cr: 24.4 kN \| C0r: 37.5 kN \| m: 34 g
	K35X42X18	Fw: 35 mm \| Ew: 42 mm \| Bc: 18 mm \| Cr: 27.5 kN \| C0r: 43 kN \| m: 34 g
	K35X42X20	Fw: 35 mm \| Ew: 42 mm \| Bc: 20 mm \| Cr: 30 kN \| C0r: 49 kN \| m: 40 g
	K35X42X30	Fw: 35 mm \| Ew: 42 mm \| Bc: 30 mm \| Cr: 39 kN \| C0r: 68 kN \| m: 67 g
	K35X45X20	Fw: 35 mm \| Ew: 45 mm \| Bc: 20 mm \| Cr: 37 kN \| C0r: 50 kN \| m: 56 g
	K35X45X30	Fw: 35 mm \| Ew: 45 mm \| Bc: 30 mm \| Cr: 53 kN \| C0r: 79 kN \| m: 80 g
	K37X42X17	Fw: 37 mm \| Ew: 42 mm \| Bc: 17 mm \| Cr: 22.4 kN \| C0r: 43 kN \| m: 23 g
	K38X43X17	Fw: 38 mm \| Ew: 43 mm \| Bc: 17 mm \| Cr: 20.5 kN \| C0r: 38.5 kN \| m: 29 g
	K38X43X27	Fw: 38 mm \| Ew: 43 mm \| Bc: 27 mm \| Cr: 31.5 kN \| C0r: 68 kN \| m: 43 g
	K38X46X20	Fw: 38 mm \| Ew: 46 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 57 kN \| m: 51 g
	K38X46X32	Fw: 38 mm \| Ew: 46 mm \| Bc: 32 mm \| Cr: 55 kN \| C0r: 99 kN \| m: 76 g
	K39X44X26-ZW	Fw: 39 mm \| Ew: 44 mm \| Bc: 26 mm \| Cr: 27.5 kN \| C0r: 56 kN \| m: 45 g
	K40X45X13	Fw: 40 mm \| Ew: 45 mm \| Bc: 13 mm \| Cr: 17.6 kN \| C0r: 32.5 kN \| m: 19 g
	K40X45X17	Fw: 40 mm \| Ew: 45 mm \| Bc: 17 mm \| Cr: 21.4 kN \| C0r: 41.5 kN \| m: 31 g
	K40X45X27	Fw: 40 mm \| Ew: 45 mm \| Bc: 27 mm \| Cr: 33 kN \| C0r: 73 kN \| m: 46 g
	K40X47X18	Fw: 40 mm \| Ew: 47 mm \| Bc: 18 mm \| Cr: 29.5 kN \| C0r: 50 kN \| m: 39 g
	K40X47X20	Fw: 40 mm \| Ew: 47 mm \| Bc: 20 mm \| Cr: 32.5 kN \| C0r: 57 kN \| m: 42 g
	K40X48X20	Fw: 40 mm \| Ew: 48 mm \| Bc: 20 mm \| Cr: 36 kN \| C0r: 59 kN \| m: 49 g
	K42X47X13	Fw: 42 mm \| Ew: 47 mm \| Bc: 13 mm \| Cr: 17.8 kN \| C0r: 33.5 kN \| m: 18 g
	K42X47X17	Fw: 42 mm \| Ew: 47 mm \| Bc: 17 mm \| Cr: 21.7 kN \| C0r: 43 kN \| m: 32 g
	K42X47X30-ZW	Fw: 42 mm \| Ew: 47 mm \| Bc: 30 mm \| Cr: 33.5 kN \| C0r: 76 kN \| m: 54 g
	K42X50X20	Fw: 42 mm \| Ew: 50 mm \| Bc: 20 mm \| Cr: 35 kN \| C0r: 57 kN \| m: 53 g
	K43X48X17	Fw: 43 mm \| Ew: 48 mm \| Bc: 17 mm \| Cr: 21.6 kN \| C0r: 43 kN \| m: 30 g
	K43X48X27	Fw: 43 mm \| Ew: 48 mm \| Bc: 27 mm \| Cr: 33.5 kN \| C0r: 75 kN \| m: 50 g
	K45X50X17	Fw: 45 mm \| Ew: 50 mm \| Bc: 17 mm \| Cr: 22.5 kN \| C0r: 46 kN \| m: 34 g
	K45X50X27	Fw: 45 mm \| Ew: 50 mm \| Bc: 27 mm \| Cr: 34.5 kN \| C0r: 80 kN \| m: 52 g
	K45X52X18	Fw: 45 mm \| Ew: 52 mm \| Bc: 18 mm \| Cr: 31.5 kN \| C0r: 57 kN \| m: 42 g
	K45X53X20	Fw: 45 mm \| Ew: 53 mm \| Bc: 20 mm \| Cr: 39 kN \| C0r: 67 kN \| m: 55 g
	K45X53X21	Fw: 45 mm \| Ew: 53 mm \| Bc: 21 mm \| Cr: 38.5 kN \| C0r: 67 kN \| m: 60 g
	K45X53X28	Fw: 45 mm \| Ew: 53 mm \| Bc: 28 mm \| Cr: 52 kN \| C0r: 98 kN \| m: 80 g
	K45X59X18-TV	Fw: 45 mm \| Ew: 59 mm \| Bc: 18 mm \| Cr: 44.5 kN \| C0r: 54 kN \| m: 72 g
	K45X59X32	Fw: 45 mm \| Ew: 59 mm \| Bc: 32 mm \| Cr: 73 kN \| C0r: 103 kN \| m: 148 g
	K47X52X17	Fw: 47 mm \| Ew: 52 mm \| Bc: 17 mm \| Cr: 23.3 kN \| C0r: 49 kN \| m: 35 g
	K47X52X27	Fw: 47 mm \| Ew: 52 mm \| Bc: 27 mm \| Cr: 35 kN \| C0r: 83 kN \| m: 51 g
	K50X55X13.5	Fw: 50 mm \| Ew: 55 mm \| Bc: 13.5 mm \| Cr: 18.2 kN \| C0r: 36.5 kN \| m: 30 g
	K50X55X17	Fw: 50 mm \| Ew: 55 mm \| Bc: 17 mm \| Cr: 26 kN \| C0r: 57 kN \| m: 35 g
	K50X55X20	Fw: 50 mm \| Ew: 55 mm \| Bc: 20 mm \| Cr: 26.5 kN \| C0r: 60 kN \| m: 45 g
	K50X55X30	Fw: 50 mm \| Ew: 55 mm \| Bc: 30 mm \| Cr: 39 kN \| C0r: 97 kN \| m: 65 g
	K50X57X18	Fw: 50 mm \| Ew: 57 mm \| Bc: 18 mm \| Cr: 33.5 kN \| C0r: 63 kN \| m: 47 g
	K50X58X20	Fw: 50 mm \| Ew: 58 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 62 kN \| m: 75 g
	K50X58X25	Fw: 50 mm \| Ew: 58 mm \| Bc: 25 mm \| Cr: 44 kN \| C0r: 81 kN \| m: 90 g
	K52X57X12	Fw: 52 mm \| Ew: 57 mm \| Bc: 12 mm \| Cr: 18 kN \| C0r: 36.5 kN \| m: 24 g
	K55X60X20	Fw: 55 mm \| Ew: 60 mm \| Bc: 20 mm \| Cr: 28.5 kN \| C0r: 66 kN \| m: 40 g
	K55X60X27	Fw: 55 mm \| Ew: 60 mm \| Bc: 27 mm \| Cr: 38 kN \| C0r: 97 kN \| m: 69 g
	K55X60X30	Fw: 55 mm \| Ew: 60 mm \| Bc: 30 mm \| Cr: 41 kN \| C0r: 108 kN \| m: 72 g
	K55X62X18	Fw: 55 mm \| Ew: 62 mm \| Bc: 18 mm \| Cr: 35.5 kN \| C0r: 70 kN \| m: 52 g
	K55X63X20	Fw: 55 mm \| Ew: 63 mm \| Bc: 20 mm \| Cr: 40 kN \| C0r: 74 kN \| m: 67 g
	K55X63X25	Fw: 55 mm \| Ew: 63 mm \| Bc: 25 mm \| Cr: 50 kN \| C0r: 100 kN \| m: 80 g
	K55X63X32	Fw: 55 mm \| Ew: 63 mm \| Bc: 32 mm \| Cr: 62 kN \| C0r: 130 kN \| m: 102 g
	K58X65X18	Fw: 58 mm \| Ew: 65 mm \| Bc: 18 mm \| Cr: 35 kN \| C0r: 70 kN \| m: 79 g
	K58X65X36-ZW	Fw: 58 mm \| Ew: 65 mm \| Bc: 36 mm \| Cr: 49 kN \| C0r: 107 kN \| m: 127 g
	K60X65X20	Fw: 60 mm \| Ew: 65 mm \| Bc: 20 mm \| Cr: 29.5 kN \| C0r: 72 kN \| m: 52 g
	K60X65X30	Fw: 60 mm \| Ew: 65 mm \| Bc: 30 mm \| Cr: 42.5 kN \| C0r: 116 kN \| m: 77 g
	K60X66X33-ZW	Fw: 60 mm \| Ew: 66 mm \| Bc: 33 mm \| Cr: 46 kN \| C0r: 112 kN \| m: 104 g
	K60X66X40-ZW	Fw: 60 mm \| Ew: 66 mm \| Bc: 40 mm \| Cr: 58 kN \| C0r: 151 kN \| m: 147 g
	K60X68X20	Fw: 60 mm \| Ew: 68 mm \| Bc: 20 mm \| Cr: 43.5 kN \| C0r: 85 kN \| m: 71 g
	K60X68X23	Fw: 60 mm \| Ew: 68 mm \| Bc: 23 mm \| Cr: 49.5 kN \| C0r: 101 kN \| m: 94 g
	K60X68X25	Fw: 60 mm \| Ew: 68 mm \| Bc: 25 mm \| Cr: 53 kN \| C0r: 111 kN \| m: 89 g
	K60X68X30-ZW	Fw: 60 mm \| Ew: 68 mm \| Bc: 30 mm \| Cr: 44.5 kN \| C0r: 88 kN \| m: 129 g
	K60X75X42	Fw: 60 mm \| Ew: 75 mm \| Bc: 42 mm \| Cr: 118 kN \| C0r: 199 kN \| m: 240 g
	K62X70X40-ZW	Fw: 62 mm \| Ew: 70 mm \| Bc: 40 mm \| Cr: 66 kN \| C0r: 146 kN \| m: 174 g
	K64X70X16	Fw: 64 mm \| Ew: 70 mm \| Bc: 16 mm \| Cr: 28 kN \| C0r: 60 kN \| m: 53 g
	K65X70X20	Fw: 65 mm \| Ew: 70 mm \| Bc: 20 mm \| Cr: 30.5 kN \| C0r: 77 kN \| m: 56 g
	K65X70X30	Fw: 65 mm \| Ew: 70 mm \| Bc: 30 mm \| Cr: 44 kN \| C0r: 124 kN \| m: 83 g
	K65X73X23	Fw: 65 mm \| Ew: 73 mm \| Bc: 23 mm \| Cr: 46 kN \| C0r: 94 kN \| m: 108 g
	K65X73X30	Fw: 65 mm \| Ew: 73 mm \| Bc: 30 mm \| Cr: 57 kN \| C0r: 123 kN \| m: 141 g
	K68X74X20	Fw: 68 mm \| Ew: 74 mm \| Bc: 20 mm \| Cr: 35.5 kN \| C0r: 84 kN \| m: 71 g
	K68X74X30	Fw: 68 mm \| Ew: 74 mm \| Bc: 30 mm \| Cr: 46.5 kN \| C0r: 118 kN \| m: 100 g
	K68X74X35-ZW	Fw: 68 mm \| Ew: 74 mm \| Bc: 35 mm \| Cr: 48.5 kN \| C0r: 125 kN \| m: 120 g
	K70X76X20	Fw: 70 mm \| Ew: 76 mm \| Bc: 20 mm \| Cr: 36 kN \| C0r: 86 kN \| m: 71 g
	K70X76X30	Fw: 70 mm \| Ew: 76 mm \| Bc: 30 mm \| Cr: 52 kN \| C0r: 139 kN \| m: 110 g
	K70X78X30	Fw: 70 mm \| Ew: 78 mm \| Bc: 30 mm \| Cr: 60 kN \| C0r: 135 kN \| m: 148 g
	K72X80X20	Fw: 72 mm \| Ew: 80 mm \| Bc: 20 mm \| Cr: 41.5 kN \| C0r: 85 kN \| m: 98 g
	K73X79X20	Fw: 73 mm \| Ew: 79 mm \| Bc: 20 mm \| Cr: 37 kN \| C0r: 90 kN \| m: 75 g
	K75X81X20	Fw: 75 mm \| Ew: 81 mm \| Bc: 20 mm \| Cr: 37.5 kN \| C0r: 94 kN \| m: 79 g
	K75X81X30	Fw: 75 mm \| Ew: 81 mm \| Bc: 30 mm \| Cr: 52 kN \| C0r: 143 kN \| m: 114 g
	K75X83X23	Fw: 75 mm \| Ew: 83 mm \| Bc: 23 mm \| Cr: 50 kN \| C0r: 109 kN \| m: 124 g
	K75X83X30	Fw: 75 mm \| Ew: 83 mm \| Bc: 30 mm \| Cr: 62 kN \| C0r: 143 kN \| m: 147 g
	K75X83X35-ZW	Fw: 75 mm \| Ew: 83 mm \| Bc: 35 mm \| Cr: 63 kN \| C0r: 147 kN \| m: 182 g
	K75X83X40-ZW	Fw: 75 mm \| Ew: 83 mm \| Bc: 40 mm \| Cr: 73 kN \| C0r: 177 kN \| m: 211 g
	K80X86X20	Fw: 80 mm \| Ew: 86 mm \| Bc: 20 mm \| Cr: 38.5 kN \| C0r: 98 kN \| m: 60 g
	K80X88X30	Fw: 80 mm \| Ew: 88 mm \| Bc: 30 mm \| Cr: 71 kN \| C0r: 176 kN \| m: 138 g
	K80X88X40-ZW	Fw: 80 mm \| Ew: 88 mm \| Bc: 40 mm \| Cr: 76 kN \| C0r: 192 kN \| m: 227 g
	K80X88X46-ZW	Fw: 80 mm \| Ew: 88 mm \| Bc: 46 mm \| Cr: 88 kN \| C0r: 231 kN \| m: 260 g
	K85X92X20	Fw: 85 mm \| Ew: 92 mm \| Bc: 20 mm \| Cr: 44.5 kN \| C0r: 108 kN \| m: 102 g
	K90X97X20	Fw: 90 mm \| Ew: 97 mm \| Bc: 20 mm \| Cr: 45 kN \| C0r: 113 kN \| m: 109 g
	K90X98X27	Fw: 90 mm \| Ew: 98 mm \| Bc: 27 mm \| Cr: 61 kN \| C0r: 150 kN \| m: 150 g
	K90X98X30	Fw: 90 mm \| Ew: 98 mm \| Bc: 30 mm \| Cr: 68 kN \| C0r: 172 kN \| m: 172 g
	K95X103X30	Fw: 95 mm \| Ew: 103 mm \| Bc: 30 mm \| Cr: 69 kN \| C0r: 180 kN \| m: 165 g
	K95X103X40-ZW	Fw: 95 mm \| Ew: 103 mm \| Bc: 40 mm \| Cr: 83 kN \| C0r: 228 kN \| m: 266 g
	K100X107X21	Fw: 100 mm \| Ew: 107 mm \| Bc: 21 mm \| Cr: 48 kN \| C0r: 127 kN \| m: 120 g
	K100X108X27	Fw: 100 mm \| Ew: 108 mm \| Bc: 27 mm \| Cr: 57 kN \| C0r: 143 kN \| m: 185 g
	K100X108X30	Fw: 100 mm \| Ew: 108 mm \| Bc: 30 mm \| Cr: 71 kN \| C0r: 188 kN \| m: 180 g
	K105X112X21	Fw: 105 mm \| Ew: 112 mm \| Bc: 21 mm \| Cr: 47.5 kN \| C0r: 127 kN \| m: 129 g
	K110X117X24	Fw: 110 mm \| Ew: 117 mm \| Bc: 24 mm \| Cr: 56 kN \| C0r: 158 kN \| m: 172 g
	K110X118X30	Fw: 110 mm \| Ew: 118 mm \| Bc: 30 mm \| Cr: 78 kN \| C0r: 219 kN \| m: 217 g
	K115X123X27	Fw: 115 mm \| Ew: 123 mm \| Bc: 27 mm \| Cr: 63 kN \| C0r: 170 kN \| m: 200 g
	K120X127X24	Fw: 120 mm \| Ew: 127 mm \| Bc: 24 mm \| Cr: 59 kN \| C0r: 174 kN \| m: 165 g
	K125X133X35	Fw: 125 mm \| Ew: 133 mm \| Bc: 35 mm \| Cr: 86 kN \| C0r: 260 kN \| m: 275 g
	K130X137X24	Fw: 130 mm \| Ew: 137 mm \| Bc: 24 mm \| Cr: 61 kN \| C0r: 186 kN \| m: 170 g
	K135X143X35	Fw: 135 mm \| Ew: 143 mm \| Bc: 35 mm \| Cr: 91 kN \| C0r: 290 kN \| m: 300 g
	K145X153X26	Fw: 145 mm \| Ew: 153 mm \| Bc: 26 mm \| Cr: 74 kN \| C0r: 225 kN \| m: 262 g
	K150X160X46	Fw: 150 mm \| Ew: 160 mm \| Bc: 46 mm \| Cr: 147 kN \| C0r: 470 kN \| m: 570 g
	K155X163X26	Fw: 155 mm \| Ew: 163 mm \| Bc: 26 mm \| Cr: 75 kN \| C0r: 236 kN \| m: 265 g
	K160X170X46	Fw: 160 mm \| Ew: 170 mm \| Bc: 46 mm \| Cr: 152 kN \| C0r: 510 kN \| m: 550 g
	K165X173X26	Fw: 165 mm \| Ew: 173 mm \| Bc: 26 mm \| Cr: 81 kN \| C0r: 265 kN \| m: 320 g
	K175X183X32	Fw: 175 mm \| Ew: 183 mm \| Bc: 32 mm \| Cr: 99 kN \| C0r: 350 kN \| m: 400 g
	K185X195X37	Fw: 185 mm \| Ew: 195 mm \| Bc: 37 mm \| Cr: 128 kN \| C0r: 425 kN \| m: 607 g
	K195X205X37	Fw: 195 mm \| Ew: 205 mm \| Bc: 37 mm \| Cr: 133 kN \| C0r: 450 kN \| m: 620 g
	K210X220X42	Fw: 210 mm \| Ew: 220 mm \| Bc: 42 mm \| Cr: 154 kN \| C0r: 560 kN \| m: 740 g
	K220X230X42	Fw: 220 mm \| Ew: 230 mm \| Bc: 42 mm \| Cr: 158 kN \| C0r: 590 kN \| m: 790 g
	K240X250X42	Fw: 240 mm \| Ew: 250 mm \| Bc: 42 mm \| Cr: 164 kN \| C0r: 630 kN \| m: 850 g
	K265X280X50	Fw: 265 mm \| Ew: 280 mm \| Bc: 50 mm \| Cr: 255 kN \| C0r: 860 kN \| m: 1810 g

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

INA K Needle Roller and Cage Assemblies (Single and Double Row)
