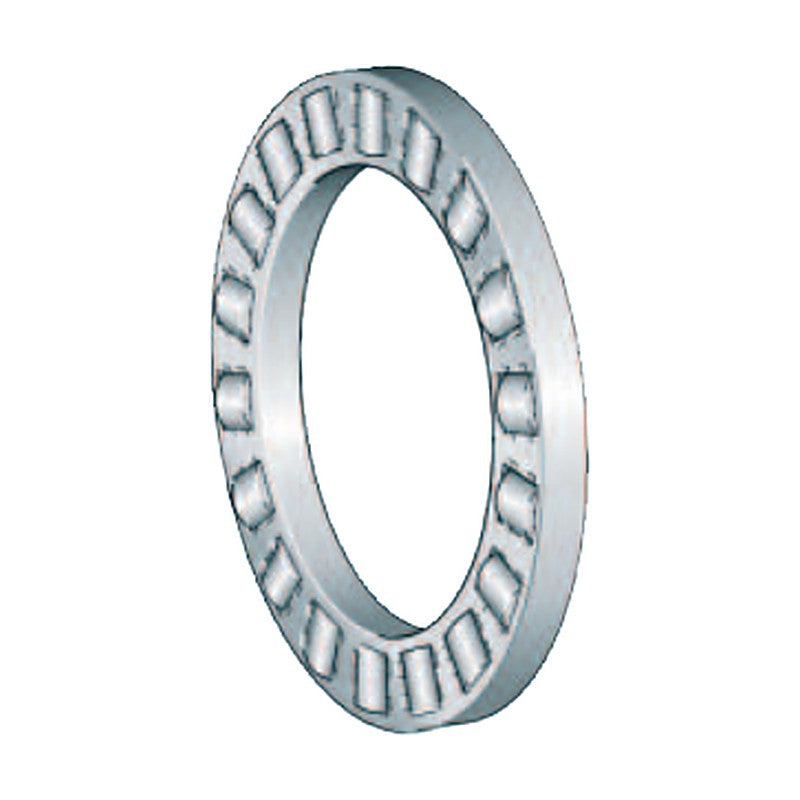

INA K811/K812/K893/K894 Axial Cylindrical Roller and Cage Assemblies

INA axial cylindrical roller and cage assemblies K811, K812, K893 and K894 for running directly on hardened adjacent surfaces or on GS/WS/LS washers.

Key features

Very compact axial bearing arrangement
Rollers run on hardened machine parts or bearing washers
Polyamide (TV) or metal (M) cage
Dc1 = cage bore, Dc = cage outside diameter

Specifications

Brand	INA
Product type	Thrust Bearings
Design	Axial roller and cage assembly
Cage bore Dc1	15 - 320 mm
Cage OD Dc	28 - 580 mm
Designations listed	106
Source	INA Rolling Bearings HR 1 catalogue, p. 770-777

K81102-TV		Dc1: 15 mm \| Dc: 28 mm \| Dw: 3.5 mm \| Ca: 14.4 kN \| C0a: 28.5 kN \| m: 0.006 kg
K81103-TV		Dc1: 17 mm \| Dc: 30 mm \| Dw: 3.5 mm \| Ca: 15.9 kN \| C0a: 33.5 kN \| m: 0.009 kg
K81104-TV		Dc1: 20 mm \| Dc: 35 mm \| Dw: 4.5 mm \| Ca: 24.9 kN \| C0a: 53 kN \| m: 0.013 kg
K81105-TV		Dc1: 25 mm \| Dc: 42 mm \| Dw: 5 mm \| Ca: 33.5 kN \| C0a: 76 kN \| m: 0.015 kg
K81106-TV		Dc1: 30 mm \| Dc: 47 mm \| Dw: 5 mm \| Ca: 35.5 kN \| C0a: 86 kN \| m: 0.017 kg
K81206-TV		Dc1: 30 mm \| Dc: 52 mm \| Dw: 7.5 mm \| Ca: 64 kN \| C0a: 141 kN \| m: 0.033 kg
K89306-TV		Dc1: 30 mm \| Dc: 60 mm \| Dw: 5.5 mm \| Ca: 69 kN \| C0a: 197 kN \| m: 0.04 kg
K81107-TV		Dc1: 35 mm \| Dc: 52 mm \| Dw: 5 mm \| Ca: 39 kN \| C0a: 101 kN \| m: 0.019 kg
K81207-TV		Dc1: 35 mm \| Dc: 62 mm \| Dw: 7.5 mm \| Ca: 80 kN \| C0a: 199 kN \| m: 0.043 kg
K89307-TV		Dc1: 35 mm \| Dc: 68 mm \| Dw: 6 mm \| Ca: 80 kN \| C0a: 237 kN \| m: 0.053 kg
K81108-TV		Dc1: 40 mm \| Dc: 60 mm \| Dw: 6 mm \| Ca: 56 kN \| C0a: 148 kN \| m: 0.031 kg
K81208-TV		Dc1: 40 mm \| Dc: 68 mm \| Dw: 9 mm \| Ca: 107 kN \| C0a: 265 kN \| m: 0.081 kg
K89308-TV		Dc1: 40 mm \| Dc: 78 mm \| Dw: 7 mm \| Ca: 122 kN \| C0a: 385 kN \| m: 0.098 kg
K81109-TV		Dc1: 45 mm \| Dc: 65 mm \| Dw: 6 mm \| Ca: 59 kN \| C0a: 163 kN \| m: 0.035 kg
K81209-TV		Dc1: 45 mm \| Dc: 73 mm \| Dw: 9 mm \| Ca: 105 kN \| C0a: 265 kN \| m: 0.085 kg
K89309-TV		Dc1: 45 mm \| Dc: 85 mm \| Dw: 7.5 mm \| Ca: 139 kN \| C0a: 445 kN \| m: 0.121 kg
K81110-TV		Dc1: 50 mm \| Dc: 70 mm \| Dw: 6 mm \| Ca: 61 kN \| C0a: 177 kN \| m: 0.038 kg
K81210-TV		Dc1: 50 mm \| Dc: 78 mm \| Dw: 9 mm \| Ca: 117 kN \| C0a: 315 kN \| m: 0.098 kg
K89310-TV		Dc1: 50 mm \| Dc: 95 mm \| Dw: 8 mm \| Ca: 167 kN \| C0a: 560 kN \| m: 0.175 kg
K81111-TV		Dc1: 55 mm \| Dc: 78 mm \| Dw: 6 mm \| Ca: 90 kN \| C0a: 300 kN \| m: 0.045 kg
K81211-TV		Dc1: 55 mm \| Dc: 90 mm \| Dw: 11 mm \| Ca: 154 kN \| C0a: 405 kN \| m: 0.166 kg
K89311-TV		Dc1: 55 mm \| Dc: 105 mm \| Dw: 9 mm \| Ca: 184 kN \| C0a: 600 kN \| m: 0.195 kg
K81112-TV		Dc1: 60 mm \| Dc: 85 mm \| Dw: 7.5 mm \| Ca: 103 kN \| C0a: 315 kN \| m: 0.082 kg
K81212-TV		Dc1: 60 mm \| Dc: 95 mm \| Dw: 11 mm \| Ca: 172 kN \| C0a: 480 kN \| m: 0.176 kg
K89312-TV		Dc1: 60 mm \| Dc: 110 mm \| Dw: 9 mm \| Ca: 196 kN \| C0a: 670 kN \| m: 0.21 kg
K89412-TV		Dc1: 60 mm \| Dc: 130 mm \| Dw: 14 mm \| Ca: 390 kN \| C0a: 1220 kN \| m: 0.538 kg
K81113-TV		Dc1: 65 mm \| Dc: 90 mm \| Dw: 7.5 mm \| Ca: 107 kN \| C0a: 340 kN \| m: 0.09 kg
K81213-TV		Dc1: 65 mm \| Dc: 100 mm \| Dw: 11 mm \| Ca: 177 kN \| C0a: 500 kN \| m: 0.185 kg
K89313-TV		Dc1: 65 mm \| Dc: 115 mm \| Dw: 9 mm \| Ca: 194 kN \| C0a: 670 kN \| m: 0.21 kg
K89413-TV		Dc1: 65 mm \| Dc: 140 mm \| Dw: 15 mm \| Ca: 445 kN \| C0a: 1410 kN \| m: 0.72 kg
K81114-TV		Dc1: 70 mm \| Dc: 95 mm \| Dw: 7.5 mm \| Ca: 111 kN \| C0a: 365 kN \| m: 0.092 kg
K81214-TV		Dc1: 70 mm \| Dc: 105 mm \| Dw: 11 mm \| Ca: 187 kN \| C0a: 550 kN \| m: 0.212 kg
K89314-TV		Dc1: 70 mm \| Dc: 125 mm \| Dw: 10 mm \| Ca: 239 kN \| C0a: 830 kN \| m: 0.29 kg
K89414-TV		Dc1: 70 mm \| Dc: 150 mm \| Dw: 16 mm \| Ca: 475 kN \| C0a: 1500 kN \| m: 0.76 kg
K81115-TV		Dc1: 75 mm \| Dc: 100 mm \| Dw: 7.5 mm \| Ca: 107 kN \| C0a: 350 kN \| m: 0.096 kg
K81215-TV		Dc1: 75 mm \| Dc: 110 mm \| Dw: 11 mm \| Ca: 172 kN \| C0a: 500 kN \| m: 0.195 kg
K89315-TV		Dc1: 75 mm \| Dc: 135 mm \| Dw: 11 mm \| Ca: 285 kN \| C0a: 1010 kN \| m: 0.375 kg
K89415-M		Dc1: 75 mm \| Dc: 160 mm \| Dw: 17 mm \| Ca: 500 kN \| C0a: 1580 kN \| m: 1.78 kg
K81116-TV		Dc1: 80 mm \| Dc: 105 mm \| Dw: 7.5 mm \| Ca: 106 kN \| C0a: 350 kN \| m: 0.095 kg
K81216-TV		Dc1: 80 mm \| Dc: 115 mm \| Dw: 11 mm \| Ca: 201 kN \| C0a: 630 kN \| m: 0.234 kg
K89316-TV		Dc1: 80 mm \| Dc: 140 mm \| Dw: 11 mm \| Ca: 305 kN \| C0a: 1110 kN \| m: 0.42 kg
K89416-M		Dc1: 80 mm \| Dc: 170 mm \| Dw: 18 mm \| Ca: 560 kN \| C0a: 1770 kN \| m: 2.04 kg
K81117-TV		Dc1: 85 mm \| Dc: 110 mm \| Dw: 7.5 mm \| Ca: 112 kN \| C0a: 385 kN \| m: 0.118 kg
K81217-TV		Dc1: 85 mm \| Dc: 125 mm \| Dw: 12 mm \| Ca: 217 kN \| C0a: 660 kN \| m: 0.28 kg
K89317-M		Dc1: 85 mm \| Dc: 150 mm \| Dw: 12 mm \| Ca: 325 kN \| C0a: 1140 kN \| m: 0.93 kg
K89417-M		Dc1: 85 mm \| Dc: 180 mm \| Dw: 19 mm \| Ca: 620 kN \| C0a: 1980 kN \| m: 2.71 kg
K81118-TV		Dc1: 90 mm \| Dc: 120 mm \| Dw: 9 mm \| Ca: 141 kN \| C0a: 465 kN \| m: 0.15 kg
K81218-TV		Dc1: 90 mm \| Dc: 135 mm \| Dw: 14 mm \| Ca: 290 kN \| C0a: 890 kN \| m: 0.54 kg
K89318-M		Dc1: 90 mm \| Dc: 155 mm \| Dw: 12 mm \| Ca: 335 kN \| C0a: 1200 kN \| m: 0.97 kg
K89418-M		Dc1: 90 mm \| Dc: 190 mm \| Dw: 20 mm \| Ca: 680 kN \| C0a: 2200 kN \| m: 3.04 kg
K81120-TV		Dc1: 100 mm \| Dc: 135 mm \| Dw: 11 mm \| Ca: 199 kN \| C0a: 650 kN \| m: 0.25 kg
K81220-TV		Dc1: 100 mm \| Dc: 150 mm \| Dw: 15 mm \| Ca: 340 kN \| C0a: 1080 kN \| m: 0.6 kg
K89320-M		Dc1: 100 mm \| Dc: 170 mm \| Dw: 13 mm \| Ca: 380 kN \| C0a: 1400 kN \| m: 1.18 kg
K89420-M		Dc1: 100 mm \| Dc: 210 mm \| Dw: 22 mm \| Ca: 850 kN \| C0a: 2850 kN \| m: 3.92 kg
K81122-TV		Dc1: 110 mm \| Dc: 145 mm \| Dw: 11 mm \| Ca: 207 kN \| C0a: 700 kN \| m: 0.27 kg
K81222-TV		Dc1: 110 mm \| Dc: 160 mm \| Dw: 15 mm \| Ca: 325 kN \| C0a: 1030 kN \| m: 0.53 kg
K89322-M		Dc1: 110 mm \| Dc: 190 mm \| Dw: 15 mm \| Ca: 500 kN \| C0a: 1870 kN \| m: 1.83 kg
K89422-M		Dc1: 110 mm \| Dc: 230 mm \| Dw: 24 mm \| Ca: 1000 kN \| C0a: 3400 kN \| m: 5.11 kg
K81124-TV		Dc1: 120 mm \| Dc: 155 mm \| Dw: 11 mm \| Ca: 214 kN \| C0a: 760 kN \| m: 0.29 kg
K81224-TV		Dc1: 120 mm \| Dc: 170 mm \| Dw: 15 mm \| Ca: 340 kN \| C0a: 1120 kN \| m: 0.58 kg
K89324-M		Dc1: 120 mm \| Dc: 210 mm \| Dw: 17 mm \| Ca: 640 kN \| C0a: 2420 kN \| m: 2.64 kg
K89424-M		Dc1: 120 mm \| Dc: 250 mm \| Dw: 26 mm \| Ca: 1160 kN \| C0a: 4000 kN \| m: 6.37 kg
K81126-TV		Dc1: 130 mm \| Dc: 170 mm \| Dw: 12 mm \| Ca: 250 kN \| C0a: 900 kN \| m: 0.38 kg
K81226-TV		Dc1: 130 mm \| Dc: 190 mm \| Dw: 19 mm \| Ca: 480 kN \| C0a: 1520 kN \| m: 0.92 kg
K89326-M		Dc1: 130 mm \| Dc: 225 mm \| Dw: 18 mm \| Ca: 710 kN \| C0a: 2700 kN \| m: 2.09 kg
K89426-M		Dc1: 130 mm \| Dc: 270 mm \| Dw: 28 mm \| Ca: 1330 kN \| C0a: 4600 kN \| m: 7.96 kg
K81128-TV		Dc1: 140 mm \| Dc: 180 mm \| Dw: 12 mm \| Ca: 260 kN \| C0a: 960 kN \| m: 0.4 kg
K81228-M		Dc1: 140 mm \| Dc: 200 mm \| Dw: 19 mm \| Ca: 455 kN \| C0a: 1450 kN \| m: 1.8 kg
K89328-M		Dc1: 140 mm \| Dc: 240 mm \| Dw: 19 mm \| Ca: 820 kN \| C0a: 3200 kN \| m: 2.57 kg
K89428-M		Dc1: 140 mm \| Dc: 280 mm \| Dw: 28 mm \| Ca: 1380 kN \| C0a: 4950 kN \| m: 8.53 kg
K81130-TV		Dc1: 150 mm \| Dc: 190 mm \| Dw: 12 mm \| Ca: 270 kN \| C0a: 1020 kN \| m: 0.43 kg
K81230-M		Dc1: 150 mm \| Dc: 215 mm \| Dw: 21 mm \| Ca: 590 kN \| C0a: 1940 kN \| m: 2.81 kg
K89330-M		Dc1: 150 mm \| Dc: 250 mm \| Dw: 19 mm \| Ca: 840 kN \| C0a: 3350 kN \| m: 3.75 kg
K89430-M		Dc1: 150 mm \| Dc: 300 mm \| Dw: 30 mm \| Ca: 1570 kN \| C0a: 5700 kN \| m: 10.4 kg
K81132-TV		Dc1: 160 mm \| Dc: 200 mm \| Dw: 12 mm \| Ca: 260 kN \| C0a: 990 kN \| m: 0.44 kg
K81232-M		Dc1: 160 mm \| Dc: 225 mm \| Dw: 21 mm \| Ca: 600 kN \| C0a: 2030 kN \| m: 3.01 kg
K89432-M		Dc1: 160 mm \| Dc: 320 mm \| Dw: 32 mm \| Ca: 1780 kN \| C0a: 6500 kN \| m: 12.4 kg
K81134-TV		Dc1: 170 mm \| Dc: 215 mm \| Dw: 14 mm \| Ca: 360 kN \| C0a: 1380 kN \| m: 0.66 kg
K81234-M		Dc1: 170 mm \| Dc: 240 mm \| Dw: 22 mm \| Ca: 680 kN \| C0a: 2340 kN \| m: 3.5 kg
K89434-M		Dc1: 170 mm \| Dc: 340 mm \| Dw: 34 mm \| Ca: 1990 kN \| C0a: 7400 kN \| m: 14.9 kg
K81136-M		Dc1: 180 mm \| Dc: 225 mm \| Dw: 14 mm \| Ca: 340 kN \| C0a: 1300 kN \| m: 1.46 kg
K81236-M		Dc1: 180 mm \| Dc: 250 mm \| Dw: 22 mm \| Ca: 690 kN \| C0a: 2440 kN \| m: 3.67 kg
K89436-M		Dc1: 180 mm \| Dc: 360 mm \| Dw: 36 mm \| Ca: 2210 kN \| C0a: 8200 kN \| m: 17.6 kg
K81138-M		Dc1: 190 mm \| Dc: 240 mm \| Dw: 15 mm \| Ca: 385 kN \| C0a: 1500 kN \| m: 1.84 kg
K81238-M		Dc1: 190 mm \| Dc: 270 mm \| Dw: 26 mm \| Ca: 880 kN \| C0a: 3000 kN \| m: 5.17 kg
K89438-M		Dc1: 190 mm \| Dc: 380 mm \| Dw: 38 mm \| Ca: 2450 kN \| C0a: 9200 kN \| m: 20.9 kg
K81140-M		Dc1: 200 mm \| Dc: 250 mm \| Dw: 15 mm \| Ca: 390 kN \| C0a: 1550 kN \| m: 1.93 kg
K81240-M		Dc1: 200 mm \| Dc: 280 mm \| Dw: 26 mm \| Ca: 900 kN \| C0a: 3150 kN \| m: 5.4 kg
K89440-M		Dc1: 200 mm \| Dc: 400 mm \| Dw: 40 mm \| Ca: 2700 kN \| C0a: 10200 kN \| m: 24 kg
K81144-M		Dc1: 220 mm \| Dc: 270 mm \| Dw: 15 mm \| Ca: 420 kN \| C0a: 1730 kN \| m: 2.04 kg
K81244-M		Dc1: 220 mm \| Dc: 300 mm \| Dw: 26 mm \| Ca: 940 kN \| C0a: 3450 kN \| m: 5.8 kg
K89444-M		Dc1: 220 mm \| Dc: 420 mm \| Dw: 40 mm \| Ca: 2900 kN \| C0a: 11500 kN \| m: 25.7 kg
K81148-M		Dc1: 240 mm \| Dc: 300 mm \| Dw: 18 mm \| Ca: 600 kN \| C0a: 2500 kN \| m: 3.32 kg
K81248-M		Dc1: 240 mm \| Dc: 340 mm \| Dw: 32 mm \| Ca: 1370 kN \| C0a: 5000 kN \| m: 9.94 kg
K89448-M		Dc1: 240 mm \| Dc: 440 mm \| Dw: 40 mm \| Ca: 3000 kN \| C0a: 12200 kN \| m: 27.3 kg
K81152-M		Dc1: 260 mm \| Dc: 320 mm \| Dw: 18 mm \| Ca: 620 kN \| C0a: 2650 kN \| m: 3.55 kg
K81252-M		Dc1: 260 mm \| Dc: 360 mm \| Dw: 32 mm \| Ca: 1440 kN \| C0a: 5400 kN \| m: 10.8 kg
K89452-M		Dc1: 260 mm \| Dc: 480 mm \| Dw: 44 mm \| Ca: 3600 kN \| C0a: 14700 kN \| m: 36.8 kg
K81156-M		Dc1: 280 mm \| Dc: 350 mm \| Dw: 22 mm \| Ca: 860 kN \| C0a: 3650 kN \| m: 5.31 kg
K81256-M		Dc1: 280 mm \| Dc: 380 mm \| Dw: 32 mm \| Ca: 1460 kN \| C0a: 5600 kN \| m: 11.5 kg
K89456-M		Dc1: 280 mm \| Dc: 520 mm \| Dw: 48 mm \| Ca: 4200 kN \| C0a: 17600 kN \| m: 47.5 kg
K81160-M		Dc1: 300 mm \| Dc: 380 mm \| Dw: 25 mm \| Ca: 1060 kN \| C0a: 4500 kN \| m: 7.6 kg
K81260-M		Dc1: 300 mm \| Dc: 420 mm \| Dw: 38 mm \| Ca: 1930 kN \| C0a: 7300 kN \| m: 17.8 kg
K89460-M		Dc1: 300 mm \| Dc: 540 mm \| Dw: 48 mm \| Ca: 4350 kN \| C0a: 18500 kN \| m: 49.8 kg
K81164-M		Dc1: 320 mm \| Dc: 400 mm \| Dw: 25 mm \| Ca: 1100 kN \| C0a: 4750 kN \| m: 8.04 kg
K89464-M		Dc1: 320 mm \| Dc: 580 mm \| Dw: 68 mm \| Ca: 5500 kN \| C0a: 19900 kN \| m: 80.3 kg
