INA KLRU / KLRZ Track Rollers with Plastic Tyre

INA KLRU / KLRZ Track Rollers with Plastic Tyre

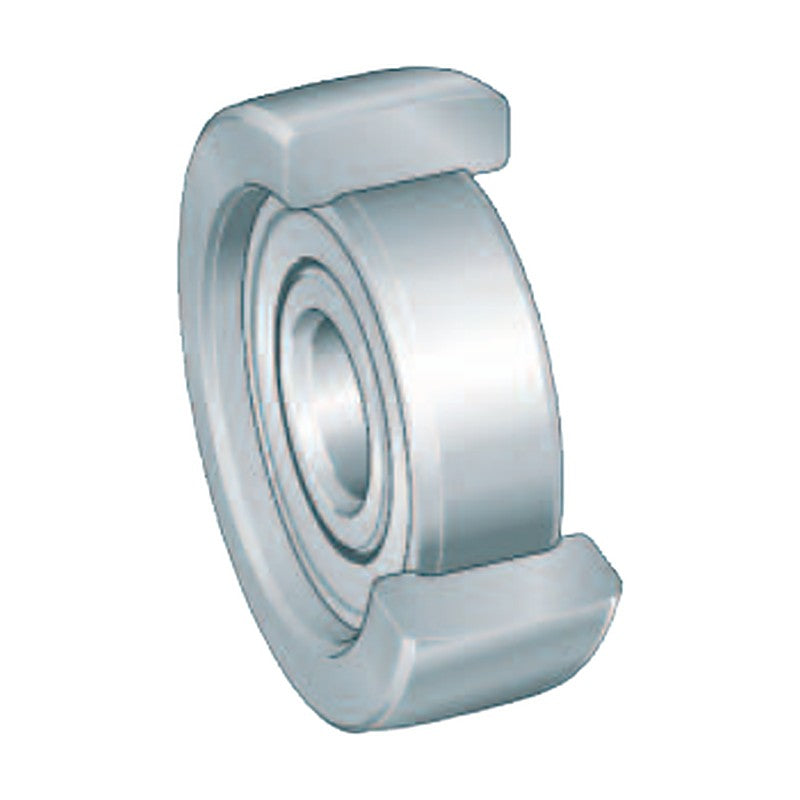

INA track rollers KLRU and KLRZ with plastic tyre on a deep groove ball bearing, for quiet running on unhardened tracks.

Key features

  • Plastic tyre moulded onto deep groove ball bearing
  • KLRU crowned profile, KLRZ cylindrical profile
  • Low noise, protects mating track
  • Fr per = permissible radial load as track roller
  • Values apply up to +40 deg C

Specifications

Brand INA
Product type Track Rollers
Design Plastic tyre track roller
Outside diameter D 27.5 - 46.8 mm
Bore d 8 - 15 mm
Designations listed 6
Source INA Rolling Bearings HR 1 catalogue, p. 872-872
KLRU08X28X11-2Z D: 27.5 mm | d: 8 mm | C: 11 mm | Fr per: 0.25 kN | Bearing: 608-2Z | m: 16 g
KLRZ10X30X10-2Z D: 30 mm | d: 10 mm | C: 10 mm | Fr per: 0.25 kN | Bearing: 6000-2Z | m: 50 g
KLRU12X35X12-2Z D: 34.8 mm | d: 12 mm | C: 12 mm | Fr per: 0.34 kN | Bearing: 6001-2Z | m: 30 g
KLRZ12X41X16-2RSR D: 41 mm | d: 12 mm | C: 16 mm | Fr per: 0.5 kN | Bearing: 6201-2RSR | m: 50 g
KLRU12X47X20-2Z D: 46.8 mm | d: 12 mm | C: 20 mm | Fr per: 0.5 kN | Bearing: 6201-2Z | m: 45 g
KLRU15X47X20-2Z D: 46.8 mm | d: 15 mm | C: 20 mm | Fr per: 0.5 kN | Bearing: 6202-2Z | m: 50 g
Track RollersINA
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA KLRU / KLRZ Track Rollers with Plastic Tyre

Brand INA·Track Rollers

Available part numbers (6)

KLRU08X28X11-2Z, KLRZ10X30X10-2Z, KLRU12X35X12-2Z, KLRZ12X41X16-2RSR, KLRU12X47X20-2Z, KLRU15X47X20-2Z
