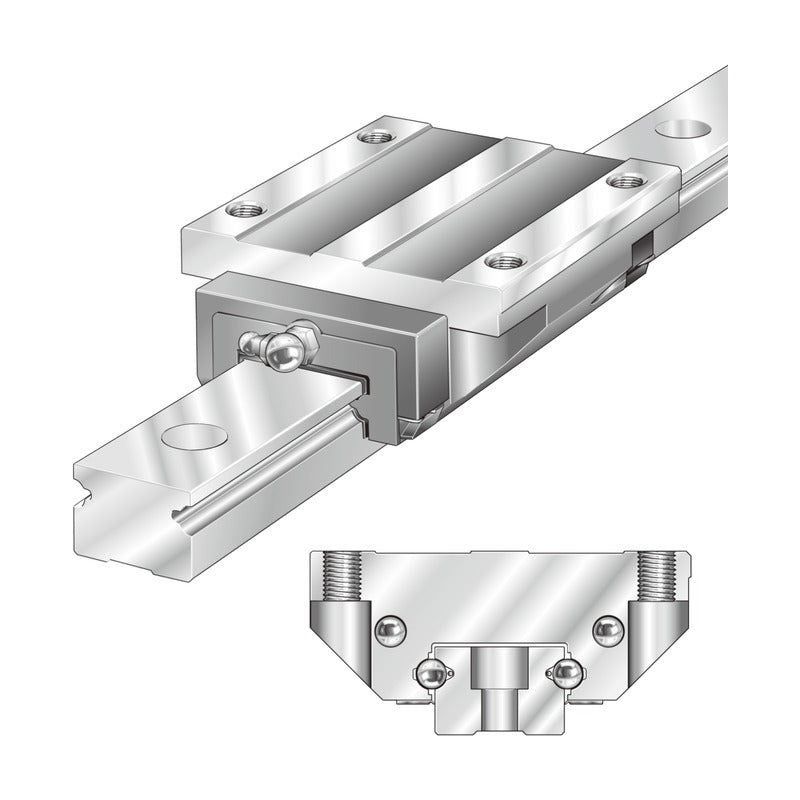

INA KUE Two-Row Ball Monorail Assemblies (Standard, H)

INA KUE Two-Row Ball Monorail Assemblies (Standard, H)

INA KUE two-row linear recirculating ball bearing and guideway assemblies for moderate loads, with flanged standard and narrow high (H) carriages.

Key features

  • Two rows of balls, cost-effective guidance
  • Sizes 15 to 35
  • Flanged standard and narrow H carriages
  • Runs on TKD guideways

Specifications

Brand INA
Product type Linear Guides
Series KUE
Designations listed 10
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 99-113
KUE 15 Rail width: 15 mm | H: 24 mm | B: 47 mm | L: 54.5 mm | C: 6.5 kN | C0: 9.2 kN
KUE 20 Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 70.4 mm | C: 13.3 kN | C0: 18 kN
KUE 25 Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 80.5 mm | C: 16.2 kN | C0: 20.9 kN
KUE 30 Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 92.9 mm | C: 22.5 kN | C0: 29.7 kN
KUE 35 Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 106.1 mm | C: 28 kN | C0: 37 kN
KUE 15 H Rail width: 15 mm | H: 28 mm | B: 34 mm | L: 54.5 mm | C: 6.5 kN | C0: 9.2 kN
KUE 20 H Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 70.4 mm | C: 13.3 kN | C0: 18 kN
KUE 25 H Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 80.5 mm | C: 16.2 kN | C0: 20.9 kN
KUE 30 H Rail width: 28 mm | H: 45 mm | B: 60 mm | L: 92.9 mm | C: 22.5 kN | C0: 29.7 kN
KUE 35 H Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 106.1 mm | C: 28 kN | C0: 37 kN
Linear GuidesINA
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA KUE Two-Row Ball Monorail Assemblies (Standard, H)

Brand INA·Linear Guides

Available part numbers (10)

KUE 15, KUE 20, KUE 25, KUE 30, KUE 35, KUE 15 H, KUE 20 H, KUE 25 H, KUE 30 H, KUE 35 H

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KUE 15Rail width: 15 mm | H: 24 mm | B: 47 mm | L: 54.5 mm | C: 6.5 kN | C0: 9.2 kN
KUE 20Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 70.4 mm | C: 13.3 kN | C0: 18 kN
KUE 25Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 80.5 mm | C: 16.2 kN | C0: 20.9 kN
KUE 30Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 92.9 mm | C: 22.5 kN | C0: 29.7 kN
KUE 35Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 106.1 mm | C: 28 kN | C0: 37 kN
KUE 15 HRail width: 15 mm | H: 28 mm | B: 34 mm | L: 54.5 mm | C: 6.5 kN | C0: 9.2 kN
KUE 20 HRail width: 20 mm | H: 30 mm | B: 44 mm | L: 70.4 mm | C: 13.3 kN | C0: 18 kN
KUE 25 HRail width: 23 mm | H: 40 mm | B: 48 mm | L: 80.5 mm | C: 16.2 kN | C0: 20.9 kN
KUE 30 HRail width: 28 mm | H: 45 mm | B: 60 mm | L: 92.9 mm | C: 22.5 kN | C0: 29.7 kN
KUE 35 HRail width: 34 mm | H: 55 mm | B: 70 mm | L: 106.1 mm | C: 28 kN | C0: 37 kN
