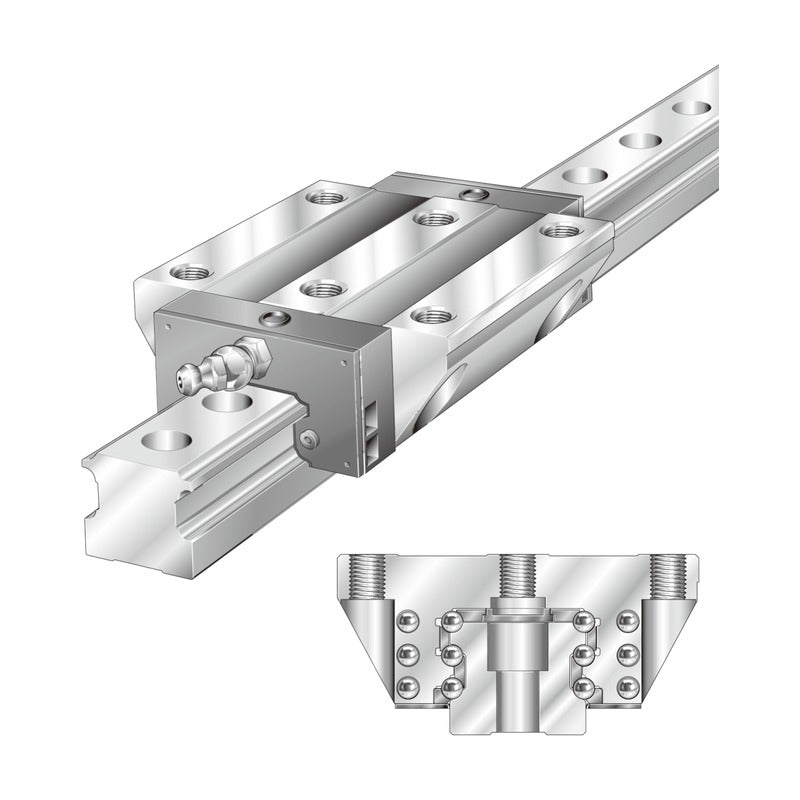

INA KUSE Six-Row Ball Monorail Assemblies (Standard, L, H, HL)

INA KUSE Six-Row Ball Monorail Assemblies (Standard, L, H, HL)

INA KUSE six-row linear recirculating ball bearing and guideway assemblies for very high load capacity, in standard, long (L), high (H) and high-long (HL) carriages.

Key features

  • Six rows of balls for very high load capacity and rigidity
  • Sizes 20 to 55
  • Flanged (standard, L) and narrow high (H, HL) carriages
  • Runs on TKSD guideways
  • C and C0 shown for load direction I (compressive)

Specifications

Brand INA
Product type Linear Guides
Series KUSE
Designations listed 24
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 39-61
KUSE 20 Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 71.3 mm | C: 22 kN | C0: 52 kN
KUSE 25 Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 81.8 mm | C: 28 kN | C0: 67 kN
KUSE 30 Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 91.4 mm | C: 40 kN | C0: 80 kN
KUSE 35 Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 107.1 mm | C: 55 kN | C0: 102 kN
KUSE 45 Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 136.7 mm | C: 80 kN | C0: 174 kN
KUSE 55 Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 156.5 mm | C: 102 kN | C0: 230 kN
KUSE 20 L Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 91.6 mm | C: 28 kN | C0: 72 kN
KUSE 25 L Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 104.3 mm | C: 35.3 kN | C0: 93.7 kN
KUSE 30 L Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 119.1 mm | C: 51 kN | C0: 113 kN
KUSE 35 L Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 138.5 mm | C: 70 kN | C0: 145 kN
KUSE 45 L Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 172.3 mm | C: 98 kN | C0: 236 kN
KUSE 55 L Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 196.7 mm | C: 125.4 kN | C0: 312 kN
KUSE 20 H Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 71.3 mm | C: 22 kN | C0: 52 kN
KUSE 25 H Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 81.8 mm | C: 28 kN | C0: 67 kN
KUSE 30 H Rail width: 28 mm | H: 45 mm | B: 60 mm | L: 91.4 mm | C: 40 kN | C0: 80 kN
KUSE 35 H Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 107.1 mm | C: 55 kN | C0: 102 kN
KUSE 45 H Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 136.7 mm | C: 80 kN | C0: 174 kN
KUSE 55 H Rail width: 53 mm | H: 80 mm | B: 100 mm | L: 156.5 mm | C: 102 kN | C0: 230 kN
KUSE 20 HL Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 91.6 mm | C: 28 kN | C0: 72 kN
KUSE 25 HL Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 104.3 mm | C: 35.3 kN | C0: 93.7 kN
KUSE 30 HL Rail width: 28 mm | H: 45 mm | B: 60 mm | L: 119.1 mm | C: 51 kN | C0: 113 kN
KUSE 35 HL Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 138.5 mm | C: 70 kN | C0: 145 kN
KUSE 45 HL Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 172.3 mm | C: 98 kN | C0: 236 kN
KUSE 55 HL Rail width: 53 mm | H: 80 mm | B: 100 mm | L: 196.7 mm | C: 125.4 kN | C0: 312 kN
Linear GuidesINA
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA KUSE Six-Row Ball Monorail Assemblies (Standard, L, H, HL)

Brand INA·Linear Guides

Available part numbers (24)

KUSE 20, KUSE 25, KUSE 30, KUSE 35, KUSE 45, KUSE 55, KUSE 20 L, KUSE 25 L, KUSE 30 L, KUSE 35 L + 14 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KUSE 20Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 71.3 mm | C: 22 kN | C0: 52 kN
KUSE 25Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 81.8 mm | C: 28 kN | C0: 67 kN
KUSE 30Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 91.4 mm | C: 40 kN | C0: 80 kN
KUSE 35Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 107.1 mm | C: 55 kN | C0: 102 kN
KUSE 45Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 136.7 mm | C: 80 kN | C0: 174 kN
KUSE 55Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 156.5 mm | C: 102 kN | C0: 230 kN
KUSE 20 LRail width: 20 mm | H: 30 mm | B: 63 mm | L: 91.6 mm | C: 28 kN | C0: 72 kN
KUSE 25 LRail width: 23 mm | H: 36 mm | B: 70 mm | L: 104.3 mm | C: 35.3 kN | C0: 93.7 kN
KUSE 30 LRail width: 28 mm | H: 42 mm | B: 90 mm | L: 119.1 mm | C: 51 kN | C0: 113 kN
KUSE 35 LRail width: 34 mm | H: 48 mm | B: 100 mm | L: 138.5 mm | C: 70 kN | C0: 145 kN
KUSE 45 LRail width: 45 mm | H: 60 mm | B: 120 mm | L: 172.3 mm | C: 98 kN | C0: 236 kN
KUSE 55 LRail width: 53 mm | H: 70 mm | B: 140 mm | L: 196.7 mm | C: 125.4 kN | C0: 312 kN
KUSE 20 HRail width: 20 mm | H: 30 mm | B: 44 mm | L: 71.3 mm | C: 22 kN | C0: 52 kN
KUSE 25 HRail width: 23 mm | H: 40 mm | B: 48 mm | L: 81.8 mm | C: 28 kN | C0: 67 kN
KUSE 30 HRail width: 28 mm | H: 45 mm | B: 60 mm | L: 91.4 mm | C: 40 kN | C0: 80 kN
KUSE 35 HRail width: 34 mm | H: 55 mm | B: 70 mm | L: 107.1 mm | C: 55 kN | C0: 102 kN
KUSE 45 HRail width: 45 mm | H: 70 mm | B: 86 mm | L: 136.7 mm | C: 80 kN | C0: 174 kN
KUSE 55 HRail width: 53 mm | H: 80 mm | B: 100 mm | L: 156.5 mm | C: 102 kN | C0: 230 kN
KUSE 20 HLRail width: 20 mm | H: 30 mm | B: 44 mm | L: 91.6 mm | C: 28 kN | C0: 72 kN
KUSE 25 HLRail width: 23 mm | H: 40 mm | B: 48 mm | L: 104.3 mm | C: 35.3 kN | C0: 93.7 kN
KUSE 30 HLRail width: 28 mm | H: 45 mm | B: 60 mm | L: 119.1 mm | C: 51 kN | C0: 113 kN
KUSE 35 HLRail width: 34 mm | H: 55 mm | B: 70 mm | L: 138.5 mm | C: 70 kN | C0: 145 kN
KUSE 45 HLRail width: 45 mm | H: 70 mm | B: 86 mm | L: 172.3 mm | C: 98 kN | C0: 236 kN
KUSE 55 HLRail width: 53 mm | H: 80 mm | B: 100 mm | L: 196.7 mm | C: 125.4 kN | C0: 312 kN
