INA KUVE..-B-EC/ESC Short Monorail Assemblies (sizes 15-45)

INA KUVE..-B-EC/ESC Short Monorail Assemblies (sizes 15-45)

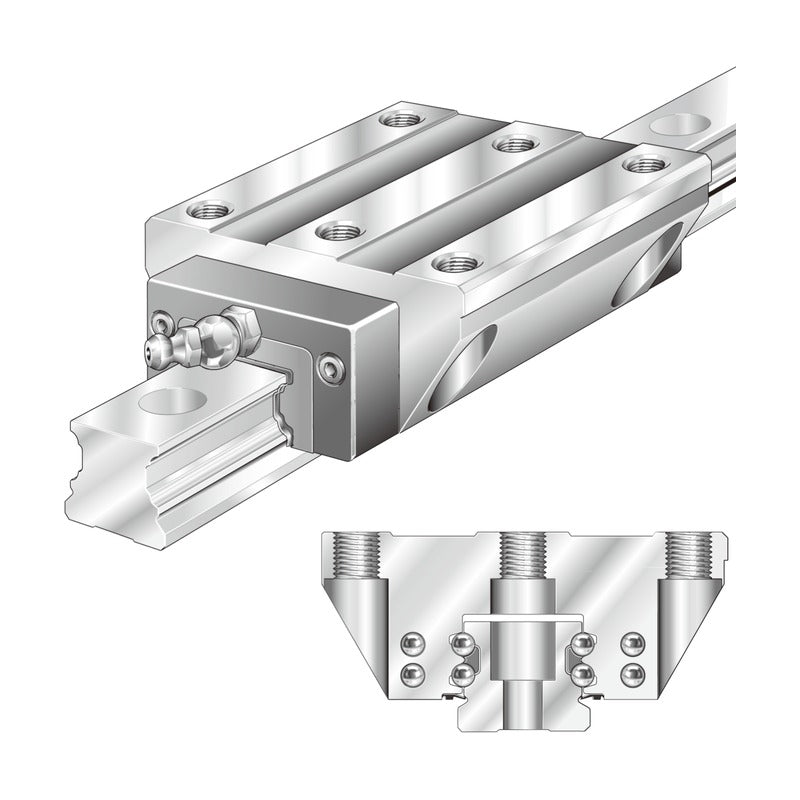

INA KUVE..-B-EC (flanged) and -ESC (narrow) short-carriage four-row ball monorail assemblies for compact axes with moderate loads.

Key features

  • Four-row ball recirculation, full complement
  • O-arrangement contact for high moment load capacity
  • Interchangeable carriages and TKVD guideways
  • Lubrication nipple supplied loose with delivery
  • Short carriage length for maximum stroke

Specifications

Brand INA
Product type Linear Guides
Series KUVE..-B-EC/ESC
Designations listed 12
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 88-95
KUVE15-B-EC Rail width: 15 mm | H: 24 mm | B: 52 mm | L: 42.9 mm | C: 4.9 kN | C0: 8.3 kN
KUVE20-B-EC Rail width: 20 mm | H: 28 mm | B: 59 mm | L: 48.8 mm | C: 8.9 kN | C0: 15.4 kN
KUVE25-B-EC Rail width: 23 mm | H: 33 mm | B: 73 mm | L: 56.6 mm | C: 12.5 kN | C0: 22.2 kN
KUVE30-B-EC Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 67.4 mm | C: 18.7 kN | C0: 31.5 kN
KUVE35-B-EC Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 74.6 mm | C: 24.6 kN | C0: 39 kN
KUVE45-B-EC Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 96.2 mm | C: 46.5 kN | C0: 80 kN
KUVE15-B-ESC Rail width: 15 mm | H: 24 mm | B: 34 mm | L: 42.9 mm | C: 4.9 kN | C0: 8.3 kN
KUVE20-B-ESC Rail width: 20 mm | H: 28 mm | B: 42 mm | L: 48.8 mm | C: 8.9 kN | C0: 15.4 kN
KUVE25-B-ESC Rail width: 23 mm | H: 33 mm | B: 48 mm | L: 56.6 mm | C: 12.5 kN | C0: 22.2 kN
KUVE30-B-ESC Rail width: 28 mm | H: 42 mm | B: 60 mm | L: 67.4 mm | C: 18.7 kN | C0: 31.5 kN
KUVE35-B-ESC Rail width: 34 mm | H: 48 mm | B: 70 mm | L: 74.6 mm | C: 24.6 kN | C0: 39 kN
KUVE45-B-ESC Rail width: 45 mm | H: 60 mm | B: 86 mm | L: 96.2 mm | C: 46.5 kN | C0: 80 kN
